Promtail+Loki+Grafana监控日志

1.安装Promtail和Loki

链接: https://pan.baidu.com/s/1keC4CWfE7EK5n6RjZdmhgA?pwd=6666 提取码: 6666

解压：unzip .....

没有unzip请安装：yum install -y unzip

2.下载Promtail和Loki的配置文件

wget https://raw.githubusercontent.com/grafana/loki/main/cmd/loki/loki-local-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/main/clients/cmd/promtail/promtail-local-config.yaml

3.修改配置文件

promtail-local-config.yaml

#promtail-local-config.yaml
server:http_listen_port: 9080  #promtail访问地址grpc_listen_port: 0positions:filename: /tmp/positions.yamlclients:- url: http://192.168.111.106:3100/loki/api/v1/push  #推送到Loki服务器的地址scrape_configs:
- job_name: systemstatic_configs:- targets:- localhostlabels:job: varlogs__path__: /var/log/messages*#以上是简单的配置如需了解配置，请自行搜索

loki-local-config.yaml

#loki-local.config.yamlauth_enabled: false
server:http_listen_port: 3100
ingester:lifecycler:address: 192.168.111.106 ring:kvstore:store: inmemoryreplication_factor: 1final_sleep: 0schunk_idle_period: 5mchunk_retain_period: 30s
schema_config:configs:- from: 2025-04-29store: boltdbobject_store: filesystemschema: v11index:prefix: index_period: 168h
storage_config:boltdb:directory: /data/loki/index   filesystem:directory: /data/loki/chunks  #以上是简单的配置如需了解配置，请自行搜索

4.运行Primtail和Loki

后台运行重定向

nohup ./loki-linux-amd64 -config.file=loki-local-config.yaml > loki.log 2>&1 &

nohup ./promtail-linux-amd64 -config.file=promtail-local-config.yaml > promtail.log 2>&1 &

 运行情况

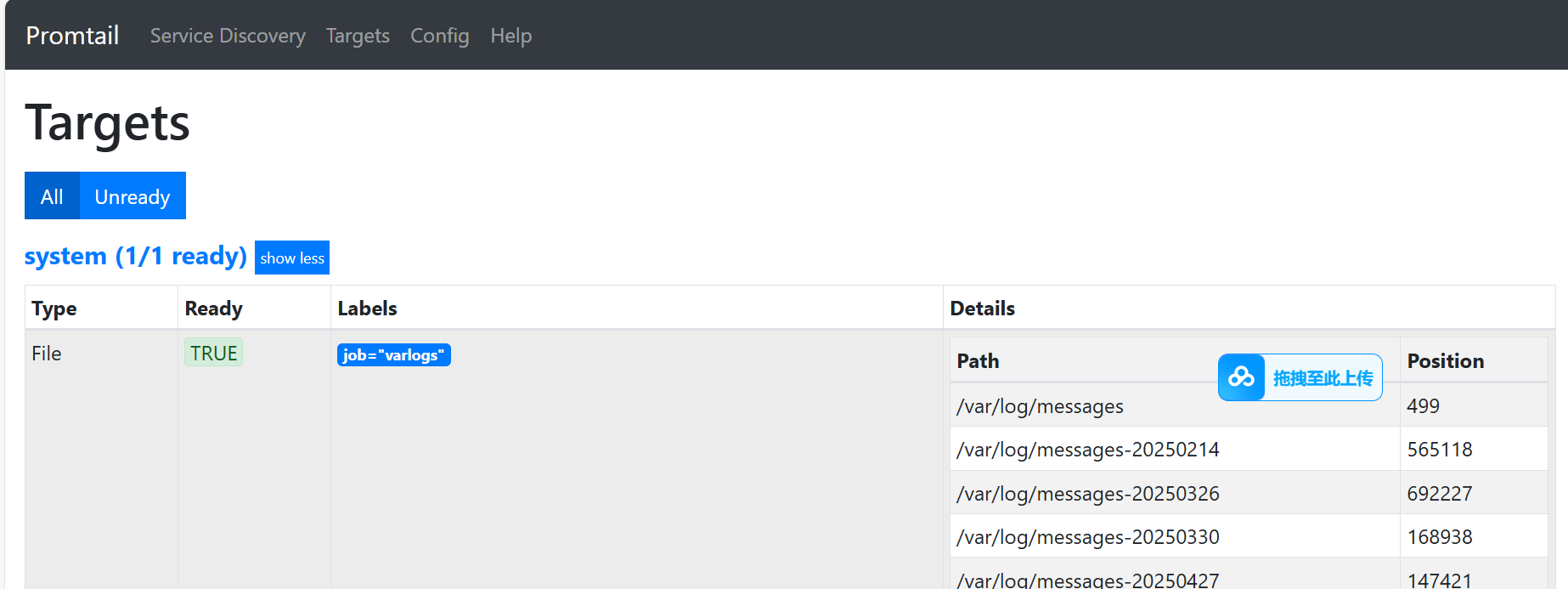

 promtial拉取到数据

 查看Promtail是否成功推送到Loki

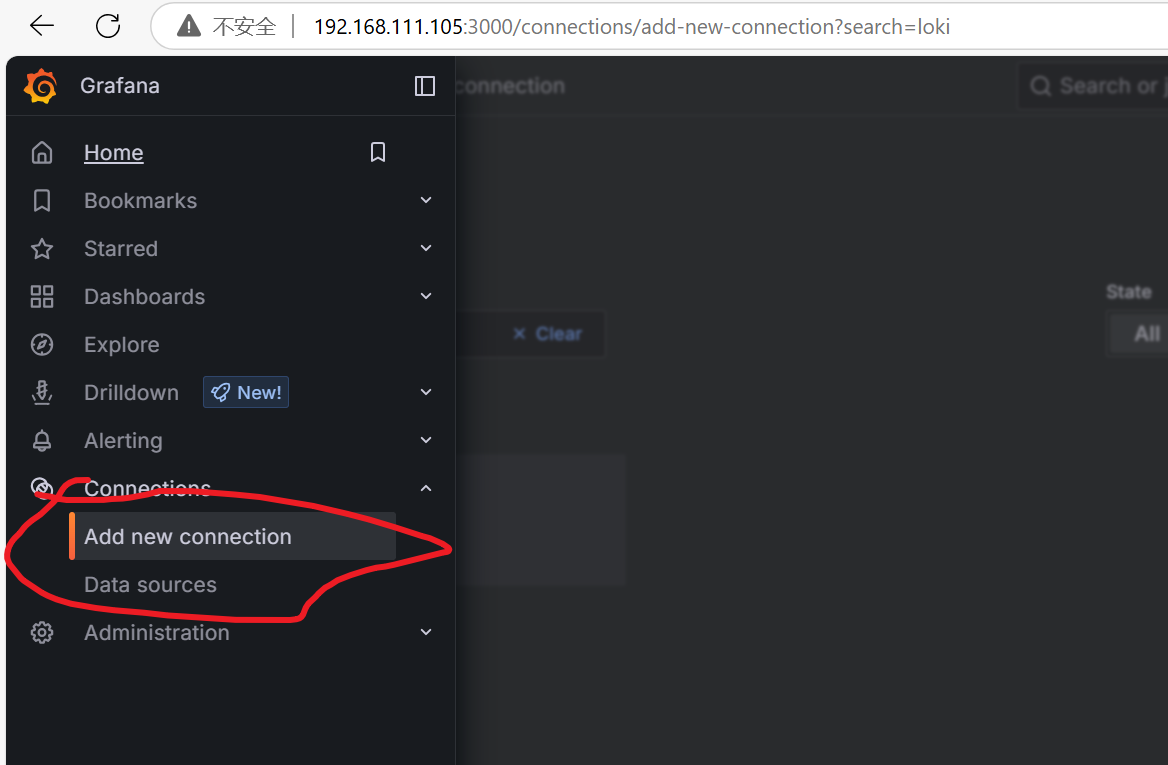

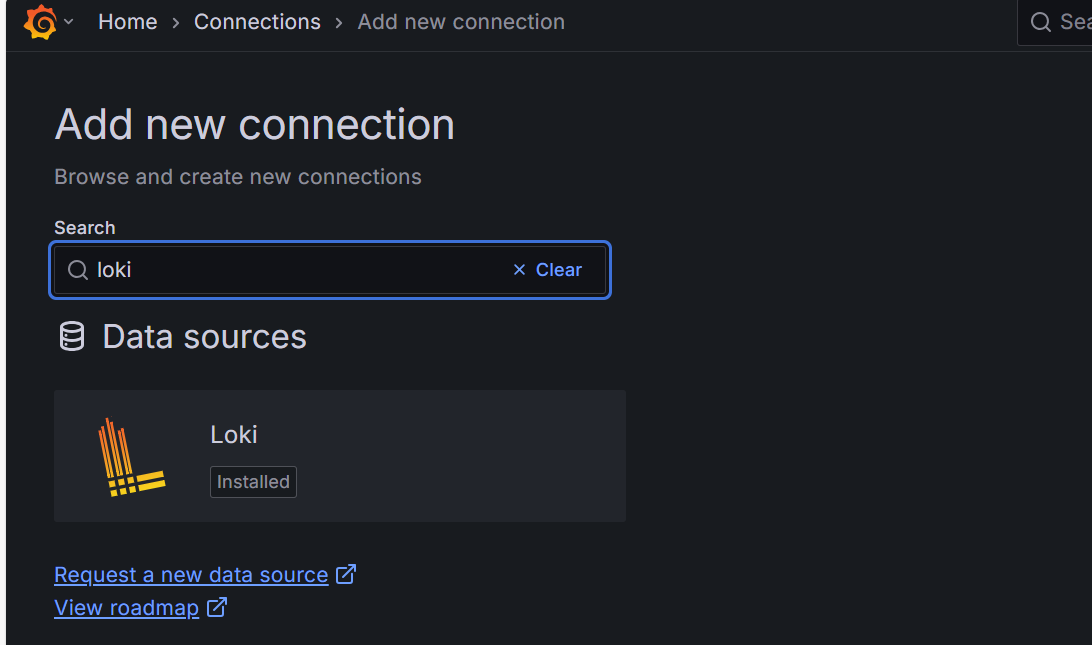

5.登录到Grafana客户端

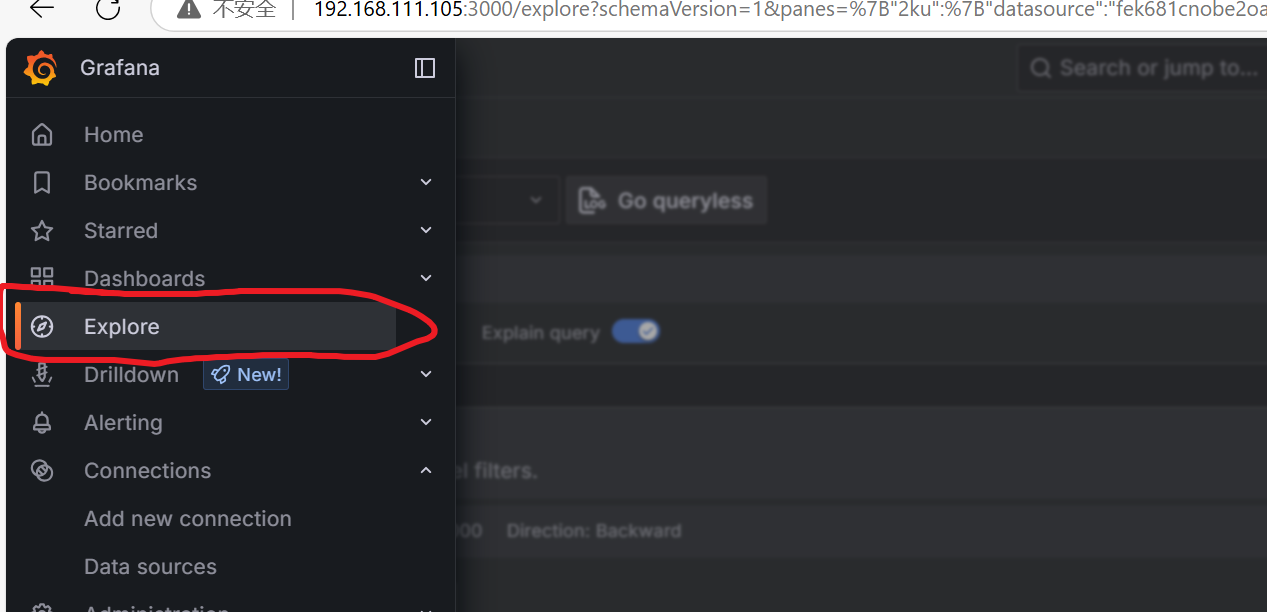

6.日志查询
