[023-01-47].第47节：组件应用 - GetWay与 Sentinel 集成实现服务限流

news 来源：原创 2025/5/9 10:01:56

SpringCloud学习大纲

一、需求说明：

实现网关cloudalibaba-sentinel-gateway9528模块保护cloudalibaba-provider-payment9001

二、编码实现：

2.1.建module:

新建模块，名称是：cloudalibaba-sentinel-gateway9528

2.2.改pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>com.atguigu.cloud</groupId>
        <artifactId>mscloudV3</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloudalibaba-sentinel-gateway9528</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
    </properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-transport-simple-http</artifactId>
            <version>1.8.6</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-spring-cloud-gateway-adapter</artifactId>
            <version>1.8.6</version>
        </dependency>
        <dependency>
            <groupId>javax.annotation</groupId>
            <artifactId>javax.annotation-api</artifactId>
            <version>1.3.2</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

2.3.写yml

server:
  port: 9528

spring:
  application:
    name: cloudalibaba-sentinel-gateway     # sentinel+gataway整合Case
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    gateway:
      routes:
        - id: pay_routh1 #pay_routh1                #路由的ID(类似mysql主键ID)，没有固定规则但要求唯一，建议配合服务名
          uri: http://localhost:9001                #匹配后提供服务的路由地址
          predicates:
          - Path=/pay/**                      # 断言，路径相匹配的进行路由

2.4.主启动

package com.atguigu.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class Main9528{
    public static void main(String[] args){
        SpringApplication.run(Main9528.class,args);
    }
}

2.5.业务类：

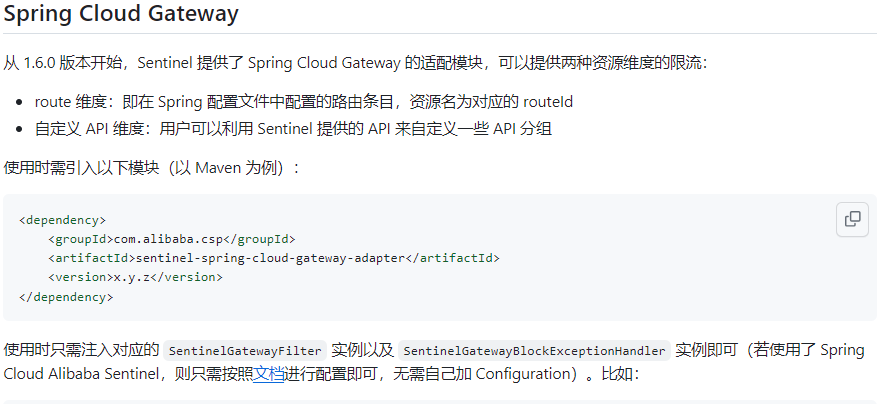

a.参考官网配置说明案例：

在这里插入图片描述

b.配置config:

package com.atguigu.cloud.config;

import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayFlowRule;
import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayRuleManager;
import com.alibaba.csp.sentinel.adapter.gateway.sc.SentinelGatewayFilter;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.BlockRequestHandler;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.GatewayCallbackManager;
import com.alibaba.csp.sentinel.adapter.gateway.sc.exception.SentinelGatewayBlockExceptionHandler;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.function.BodyInserters;
import org.springframework.web.reactive.function.server.ServerResponse;
import org.springframework.web.reactive.result.view.ViewResolver;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import javax.annotation.PostConstruct;
import java.util.*;
/**
 * 使用时只需注入对应的 SentinelGatewayFilter 实例以及 SentinelGatewayBlockExceptionHandler 实例即可
 */
@Configuration
public class GatewayConfiguration {

    private final List<ViewResolver> viewResolvers;
    private final ServerCodecConfigurer serverCodecConfigurer;

    public GatewayConfiguration(ObjectProvider<List<ViewResolver>> viewResolversProvider, ServerCodecConfigurer serverCodecConfigurer){
        this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
        this.serverCodecConfigurer = serverCodecConfigurer;
    }

    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public SentinelGatewayBlockExceptionHandler sentinelGatewayBlockExceptionHandler() {
        // Register the block exception handler for Spring Cloud Gateway.
        return new SentinelGatewayBlockExceptionHandler(viewResolvers, serverCodecConfigurer);
    }

    @Bean
    @Order(-1)
    public GlobalFilter sentinelGatewayFilter() {
        return new SentinelGatewayFilter();
    }

    @PostConstruct //javax.annotation.PostConstruct
    public void doInit() {
        initBlockHandler();
    }


    //处理/自定义返回的例外信息
    private void initBlockHandler() {
        Set<GatewayFlowRule> rules = new HashSet<>();
        rules.add(new GatewayFlowRule("pay_routh1").setCount(2).setIntervalSec(1));

        GatewayRuleManager.loadRules(rules);
        BlockRequestHandler handler = new BlockRequestHandler() {
            @Override
            public Mono<ServerResponse> handleRequest(ServerWebExchange exchange, Throwable t) {
                Map<String,String> map = new HashMap<>();

                map.put("errorCode", HttpStatus.TOO_MANY_REQUESTS.getReasonPhrase());
                map.put("errorMessage", "请求太过频繁，系统忙不过来，触发限流(sentinel+gataway整合Case)");

                return ServerResponse.status(HttpStatus.TOO_MANY_REQUESTS)
                        .contentType(MediaType.APPLICATION_JSON)
                        .body(BodyInserters.fromValue(map));
            }
        };
        GatewayCallbackManager.setBlockHandler(handler);
    }

}
