开发小运维-搭建rocketmq集群

本章内容主要介绍部署一个双主双从的rocketmq集群

关键配置说明

NameServer：负责服务发现和路由管理。
Broker：

• Master Broker 负责消息的写入和读取。
• Slave Broker 负责从 Master 同步数据，提供高可用性。
  RocketMQ Console：提供 Web 管理界面，方便监控和管理集群。（如果拉取镜像失败，则先注释掉）
  数据持久化：通过挂载卷（volumes）将 Broker 的日志和数据存储到宿主机，确保数据持久化。

我们需要按如下目录去创建文件夹和文件

/tmp/rocketmq-cluster/
├── docker-compose.yml
├── Dockerfile
├── entrypoint.sh
├── broker-master1/
│   ├── conf/
│   │   └── broker.conf
│   ├── logs/
│   └── store/
├── broker-slave1/
│   ├── conf/
│   │   └── broker.conf
│   ├── logs/
│   └── store/
├── broker-master2/
│   ├── conf/
│   │   └── broker.conf
│   ├── logs/
│   └── store/
└── broker-slave2/
    ├── conf/
    │   └── broker.conf
    ├── logs/
    └── store/

Dockerfile

通用的 RocketMQ Dockerfile，用于构建 NameServer 和 Broker 的镜像

# 使用官方的 OpenJDK 镜像作为基础镜像
FROM openjdk:8-jdk-alpine

# 设置 RocketMQ 版本
ENV ROCKETMQ_VERSION=4.9.4

# 安装必要的工具
RUN apk add --no-cache bash curl

# 下载并解压 RocketMQ
RUN mkdir -p /opt/rocketmq \
    && cd /opt/rocketmq \
    && curl -O https://archive.apache.org/dist/rocketmq/${ROCKETMQ_VERSION}/rocketmq-all-${ROCKETMQ_VERSION}-bin-release.zip \
    && unzip rocketmq-all-${ROCKETMQ_VERSION}-bin-release.zip \
    && mv rocketmq-all-${ROCKETMQ_VERSION}-bin-release/* . \
    && rm -rf rocketmq-all-${ROCKETMQ_VERSION}-bin-release.zip rocketmq-all-${ROCKETMQ_VERSION}-bin-release

# 设置环境变量
ENV ROCKETMQ_HOME=/opt/rocketmq
ENV PATH=${ROCKETMQ_HOME}/bin:${PATH}

# 暴露端口
# NameServer 默认端口：9876
# Broker 默认端口：10911（Broker）、10909（主从同步）、10912（HA）
EXPOSE 9876 10911 10909 10912

# 设置工作目录
WORKDIR ${ROCKETMQ_HOME}

# 启动脚本
COPY entrypoint.sh /entrypoint.sh
RUN chmod +x /entrypoint.sh

# 启动 NameServer 或 Broker
ENTRYPOINT ["/entrypoint.sh"]

entrypoint.sh

这是一个启动脚本，用于根据环境变量启动 NameServer 或 Broker：

#!/bin/bash

# 根据环境变量启动 NameServer 或 Broker
if [ "$ROCKETMQ_ROLE" = "namesrv" ]; then
    echo "Starting NameServer..."
    ${ROCKETMQ_HOME}/bin/mqnamesrv
elif [ "$ROCKETMQ_ROLE" = "broker" ]; then
    echo "Starting Broker..."
    ${ROCKETMQ_HOME}/bin/mqbroker -c ${ROCKETMQ_HOME}/conf/broker.conf
else
    echo "Unknown role: $ROCKETMQ_ROLE"
    exit 1
fi

Broker 配置文件

master1的broker.conf文件

brokerClusterName=DefaultCluster
brokerName=broker-a
brokerId=0
deleteWhen=04
fileReservedTime=48
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH
namesrvAddr=namesrv1:9876;namesrv2:9876
listenPort=10911
storePathRootDir=/opt/rocketmq/store/broker-master1

master2的broker.conf文件

brokerClusterName=DefaultCluster
brokerName=broker-b
brokerId=0
deleteWhen=04
fileReservedTime=48
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH
namesrvAddr=namesrv1:9876;namesrv2:9876
listenPort=10912
storePathRootDir=/opt/rocketmq/store/broker-master2

salve1的broker.conf文件

brokerClusterName=DefaultCluster
brokerName=broker-a
brokerId=1
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
namesrvAddr=namesrv1:9876;namesrv2:9876
listenPort=10921
storePathRootDir=/opt/rocketmq/store/broker-slave1

salve2的broker.conf文件

brokerClusterName=DefaultCluster
brokerName=broker-b
brokerId=1
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
namesrvAddr=namesrv1:9876;namesrv2:9876
listenPort=10922
storePathRootDir=/opt/rocketmq/store/broker-slave2

docker-compose.yml

用于部署双主双从的 RocketMQ 集群

version: '3.8'

services:
  # NameServer 1
  namesrv1:
    build: .
    container_name: rocketmq-namesrv1
    environment:
      - ROCKETMQ_ROLE=namesrv
    ports:
      - "9876:9876"
    networks:
      - rocketmq-net

  # NameServer 2
  namesrv2:
    build: .
    container_name: rocketmq-namesrv2
    environment:
      - ROCKETMQ_ROLE=namesrv
    ports:
      - "9877:9876"
    networks:
      - rocketmq-net

  # Broker Master 1
  broker-master1:
    build: .
    container_name: rocketmq-broker-master1
    environment:
      - ROCKETMQ_ROLE=broker
    volumes:
      - /tmp/rocketmq-cluster/broker-master1/conf/broker.conf:/opt/rocketmq/conf/broker.conf
      - /tmp/rocketmq-cluster/broker-master1/logs:/opt/rocketmq/logs
      - /tmp/rocketmq-cluster/broker-master1/store:/opt/rocketmq/store
    ports:
      - "10911:10911"
      - "10909:10909"
    depends_on:
      - namesrv1
      - namesrv2
    networks:
      - rocketmq-net

  # Broker Slave 1
  broker-slave1:
    build: .
    container_name: rocketmq-broker-slave1
    environment:
      - ROCKETMQ_ROLE=broker
    volumes:
      - /tmp/rocketmq-cluster/broker-slave1/conf/broker.conf:/opt/rocketmq/conf/broker.conf
      - /tmp/rocketmq-cluster/broker-slave1/logs:/opt/rocketmq/logs
      - /tmp/rocketmq-cluster/broker-slave1/store:/opt/rocketmq/store
    ports:
      - "10921:10911"
      - "10919:10909"
    depends_on:
      - namesrv1
      - namesrv2
    networks:
      - rocketmq-net

  # Broker Master 2
  broker-master2:
    build: .
    container_name: rocketmq-broker-master2
    environment:
      - ROCKETMQ_ROLE=broker
    volumes:
      - /tmp/rocketmq-cluster/broker-master2/conf/broker.conf:/opt/rocketmq/conf/broker.conf
      - /tmp/rocketmq-cluster/broker-master2/logs:/opt/rocketmq/logs
      - /tmp/rocketmq-cluster/broker-master2/store:/opt/rocketmq/store
    ports:
      - "10912:10911"
      - "10910:10909"
    depends_on:
      - namesrv1
      - namesrv2
    networks:
      - rocketmq-net

  # Broker Slave 2
  broker-slave2:
    build: .
    container_name: rocketmq-broker-slave2
    environment:
      - ROCKETMQ_ROLE=broker
    volumes:
      - /tmp/rocketmq-cluster/broker-slave2/conf/broker.conf:/opt/rocketmq/conf/broker.conf
      - /tmp/rocketmq-cluster/broker-slave2/logs:/opt/rocketmq/logs
      - /tmp/rocketmq-cluster/broker-slave2/store:/opt/rocketmq/store
    ports:
      - "10922:10911"
      - "10920:10909"
    depends_on:
      - namesrv1
      - namesrv2
    networks:
      - rocketmq-net

  # RocketMQ Console（可选）
  console:
    image: apacherocketmq/rocketmq-console:2.0.0
    container_name: rocketmq-console
    ports:
      - "8080:8080"
    environment:
      - JAVA_OPTS=-Drocketmq.namesrv.addr=namesrv1:9876;namesrv2:9876
    depends_on:
      - namesrv1
      - namesrv2
    networks:
      - rocketmq-net

networks:
  rocketmq-net:
    driver: bridge

部署步骤

构建镜像：

运行以下命令构建镜像：

docker-compose build

启动集群：

docker-compose up -d

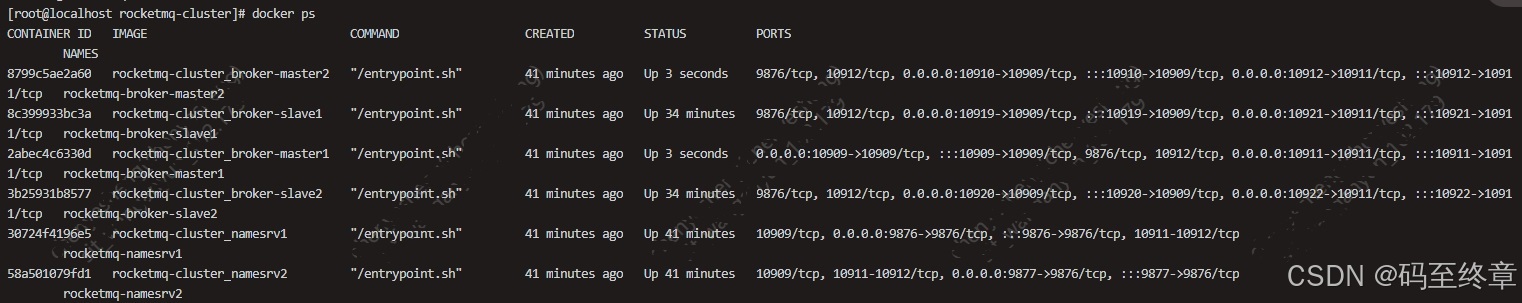

查看服务启动情况

docker ps

如果启动失败，查看对应的容器日志

rocketmq-broker-master1是对应的容器名

docker logs rocketmq-broker-master1

关闭容器并删除镜像

如果要重新构建镜像，则可以通过下面这行命令

docker-compose down
