【LwIP源码学习8】netbuf源码分析

netbuf结构体

netbuf是lwip中对接收和发送数据的更高一层封装，记录了数据发送方的IP地址和端口号，netbuf结构体如下：

/** "Network buffer" - contains data and addressing info */
struct netbuf {struct pbuf *p, *ptr;ip_addr_t addr;u16_t port;
};

其中addr是ip地址，port是端口号，ip地址对应的是一个设备，端口号对应一个设备里的一个线程。

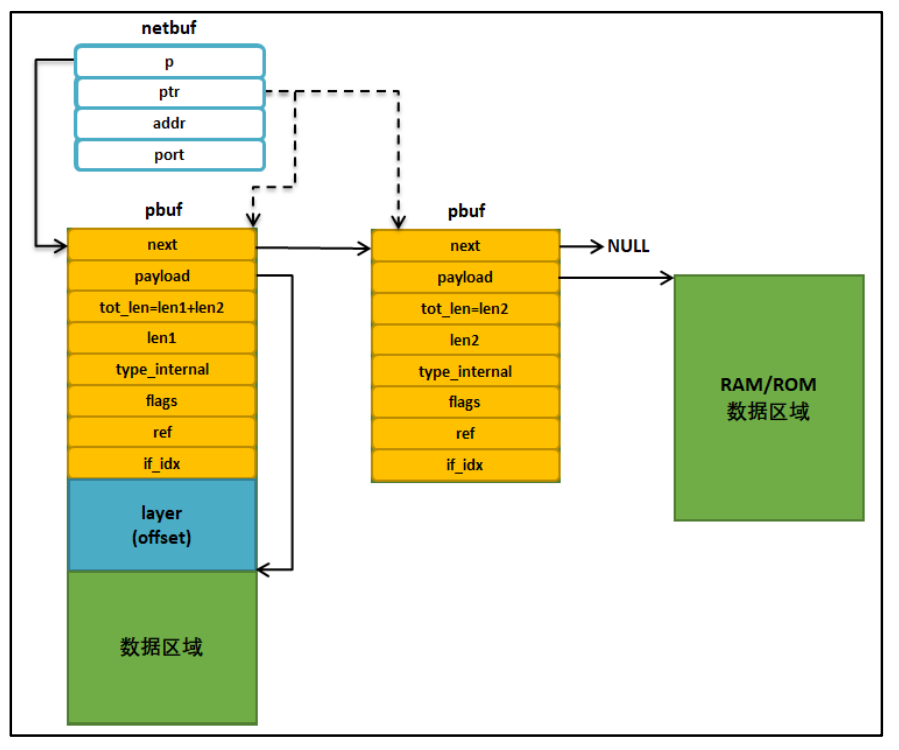

指针p指向首个pbuf，是不可改变的，指针ptr可以通过函数netbuf_next()和函数netbuf_first()来移动。用函数netbuf_data(struct netbuf *buf, void **dataptr, u16_t *len)获取ptr指向的pbuf中数据的地址dataptr，并获取其数据量len。

netbuf_new(）

申请一个新的netbuf结构体内存空间并返回。

struct
netbuf *netbuf_new(void)
{struct netbuf *buf;buf = (struct netbuf *)memp_malloc(MEMP_NETBUF);if (buf != NULL) {memset(buf, 0, sizeof(struct netbuf));}return buf;
}

netbuf_delete(）

删除一个netbuf结构体内存空间，如果删除的netbuf中ptr或p指向的pbuf有数据，那么将对应的pbuf也释放掉。

void
netbuf_delete(struct netbuf *buf)
{if (buf != NULL) {if (buf->p != NULL) {pbuf_free(buf->p);buf->p = buf->ptr = NULL;}memp_free(MEMP_NETBUF, buf);}
}

netbuf_alloc(）

为netbuf中ptr或p指向的pbuf申请一块指定大小的内存空间。如果当前netbuf中的pbuf存在数据，则先把数据释放掉。

void *
netbuf_alloc(struct netbuf *buf, u16_t size)
{LWIP_ERROR("netbuf_alloc: invalid buf", (buf != NULL), return NULL;);/* Deallocate any previously allocated memory. */if (buf->p != NULL) {pbuf_free(buf->p);}buf->p = pbuf_alloc(PBUF_TRANSPORT, size, PBUF_RAM);if (buf->p == NULL) {return NULL;}LWIP_ASSERT("check that first pbuf can hold size",(buf->p->len >= size));buf->ptr = buf->p;return buf->p->payload;
}

netbuf_free(）

将netbuf中的pbuf的内存空间释放掉。

void
netbuf_free(struct netbuf *buf)
{LWIP_ERROR("netbuf_free: invalid buf", (buf != NULL), return;);if (buf->p != NULL) {pbuf_free(buf->p);}buf->p = buf->ptr = NULL;
#if LWIP_CHECKSUM_ON_COPYbuf->flags = 0;buf->toport_chksum = 0;
#endif /* LWIP_CHECKSUM_ON_COPY */
}

netbuf_ref(）

与netbuf_alloc()类似，只不过这个是申请一个空的pbuf，然后pbuf的数据指针payload指向用户传入的数据地址。
reference：引用，指向。

err_t
netbuf_ref(struct netbuf *buf, const void *dataptr, u16_t size)
{LWIP_ERROR("netbuf_ref: invalid buf", (buf != NULL), return ERR_ARG;);if (buf->p != NULL) {pbuf_free(buf->p);}buf->p = pbuf_alloc(PBUF_TRANSPORT, 0, PBUF_REF);if (buf->p == NULL) {buf->ptr = NULL;return ERR_MEM;}((struct pbuf_rom *)buf->p)->payload = dataptr;buf->p->len = buf->p->tot_len = size;buf->ptr = buf->p;return ERR_OK;
}

netbuf_chain(）

将指针tail指向的pbuf添加到h指向的head链表的末尾，然后tail会被释放
pbuf_cat()的cat是Concatenate的缩写，中文意思是 “连接” 或 “拼接”。

void
netbuf_chain(struct netbuf *head, struct netbuf *tail)
{LWIP_ERROR("netbuf_chain: invalid head", (head != NULL), return;);LWIP_ERROR("netbuf_chain: invalid tail", (tail != NULL), return;);pbuf_cat(head->p, tail->p);head->ptr = head->p;memp_free(MEMP_NETBUF, tail);
}

netbuf_data(）

将netbuf中ptr指向的pbuf里数据的起始地址填写到dataptr，并将数据长度填写到len。
netbuf中的p指向的是pbuf链表的首个pbuf，ptr指向的是当前pbuf，如果想移动ptr可以用netbuf_next()函数或者netbuf_first()函数。

err_t
netbuf_data(struct netbuf *buf, void **dataptr, u16_t *len)
{LWIP_ERROR("netbuf_data: invalid buf", (buf != NULL), return ERR_ARG;);LWIP_ERROR("netbuf_data: invalid dataptr", (dataptr != NULL), return ERR_ARG;);LWIP_ERROR("netbuf_data: invalid len", (len != NULL), return ERR_ARG;);if (buf->ptr == NULL) {return ERR_BUF;}*dataptr = buf->ptr->payload;*len = buf->ptr->len;return ERR_OK;
}

netbuf_next(）

将netbuf的ptr移动到pbuf链表的下一个pbuf。

s8_t
netbuf_next(struct netbuf *buf)
{LWIP_ERROR("netbuf_next: invalid buf", (buf != NULL), return -1;);if (buf->ptr->next == NULL) {return -1;}buf->ptr = buf->ptr->next;if (buf->ptr->next == NULL) {return 1;}return 0;
}

netbuf_first(）

将netbuf的ptr指向pbuf链表的首个pbuf，也就是p指向的pbuf。

void
netbuf_first(struct netbuf *buf)
{LWIP_ERROR("netbuf_first: invalid buf", (buf != NULL), return;);buf->ptr = buf->p;
}
