SAP PP BOM批量创建功能分享

news 2025/10/31 17:42:46

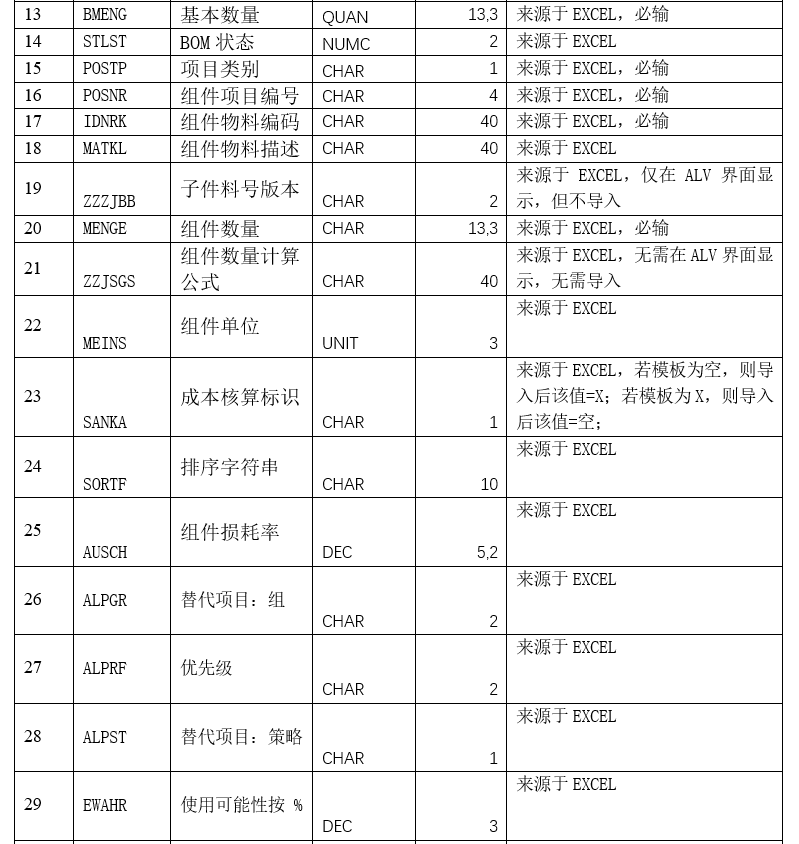

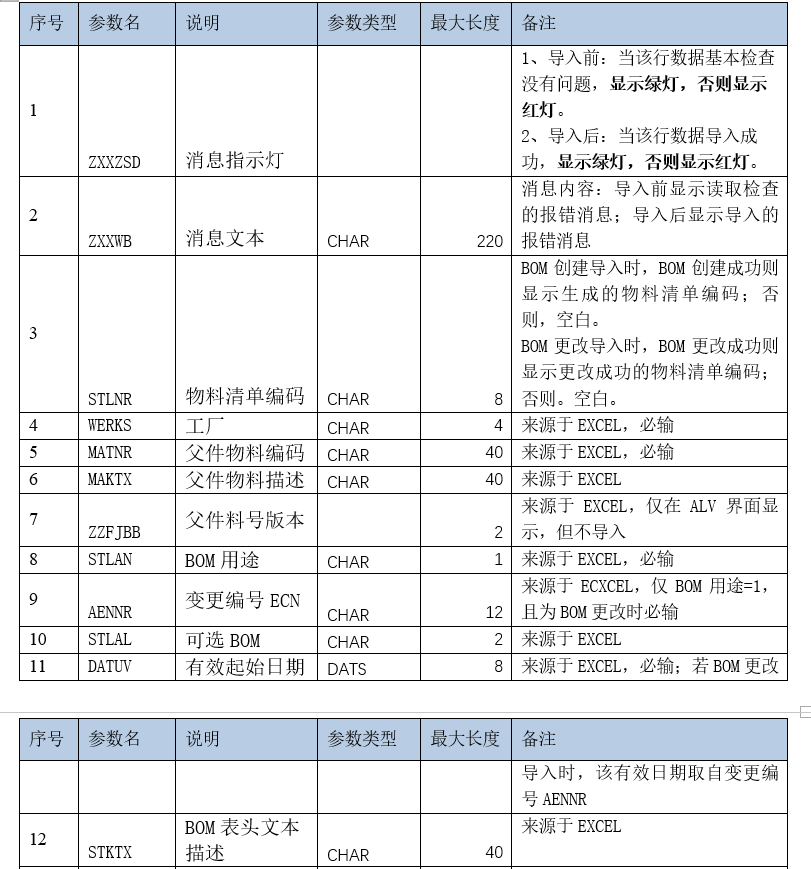

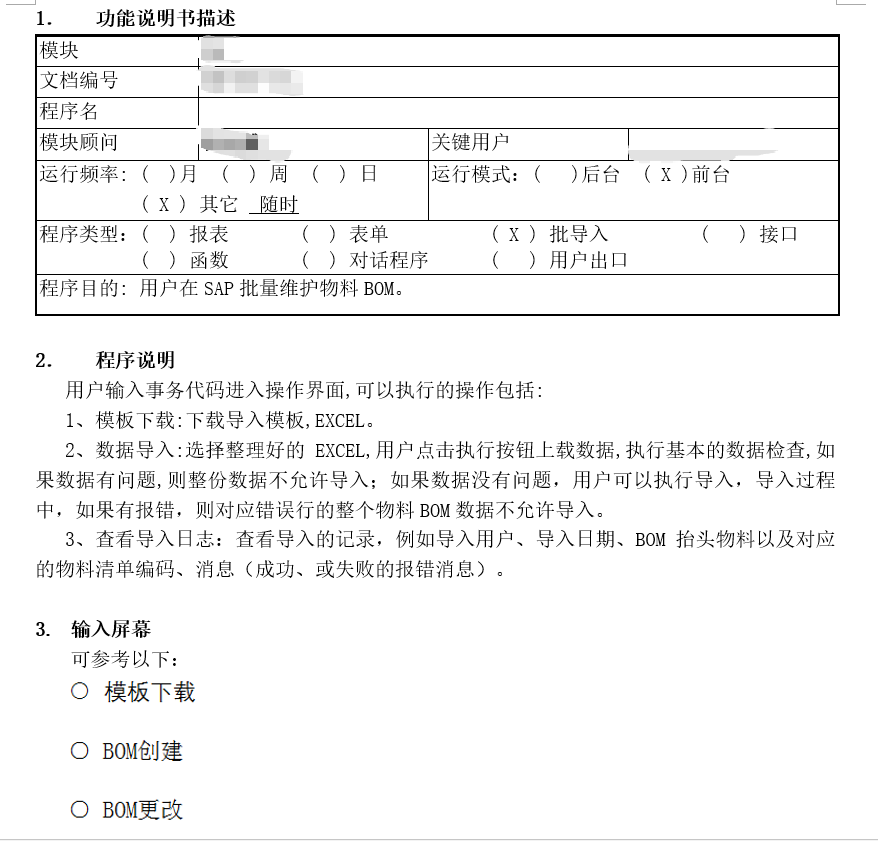

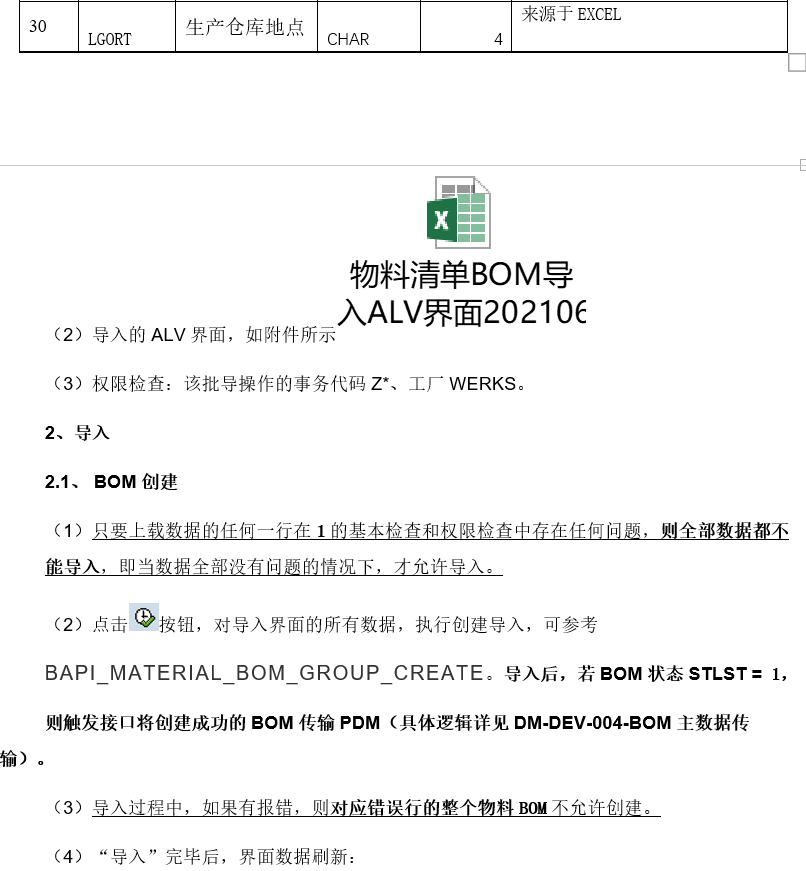

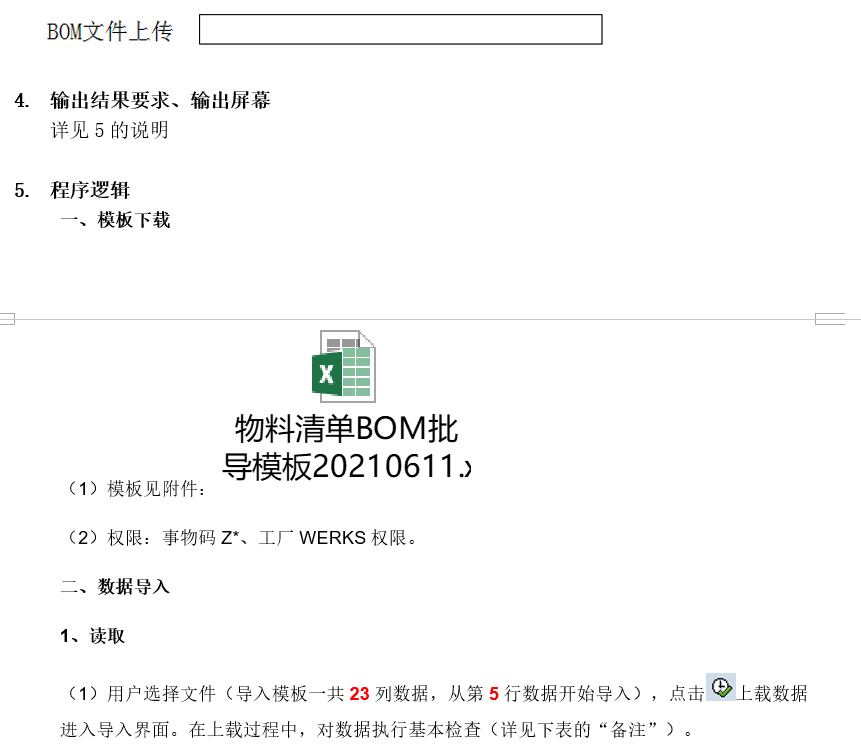

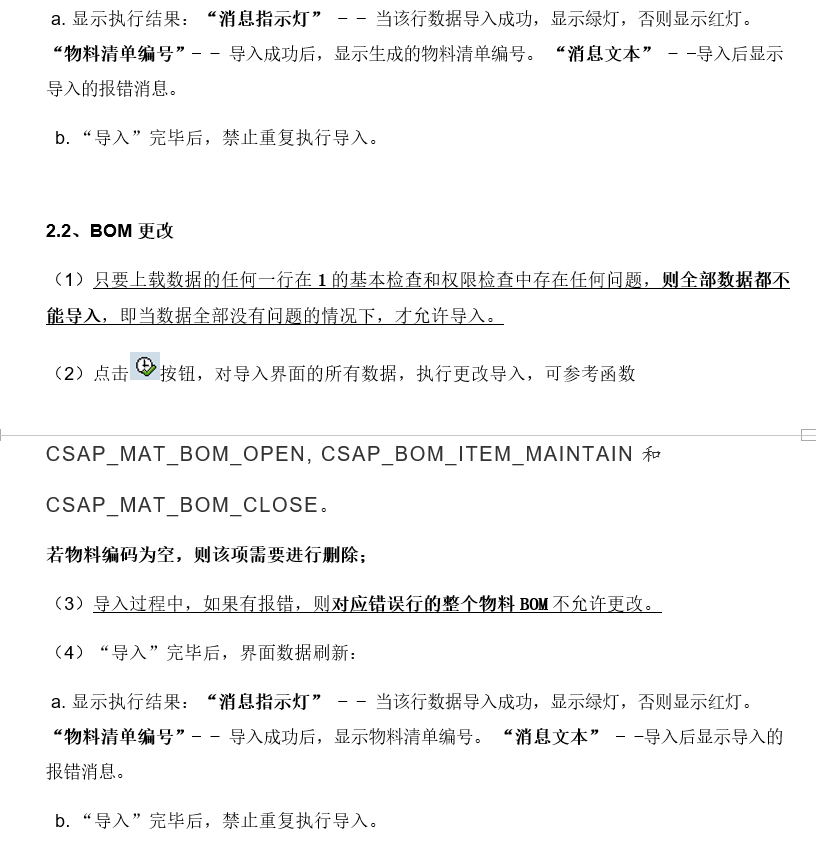

一、功能逻辑

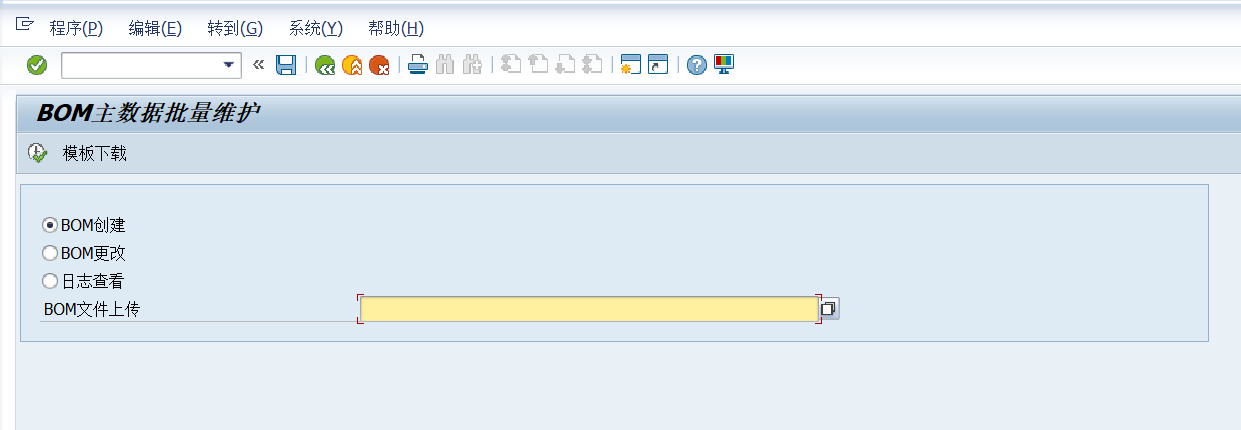

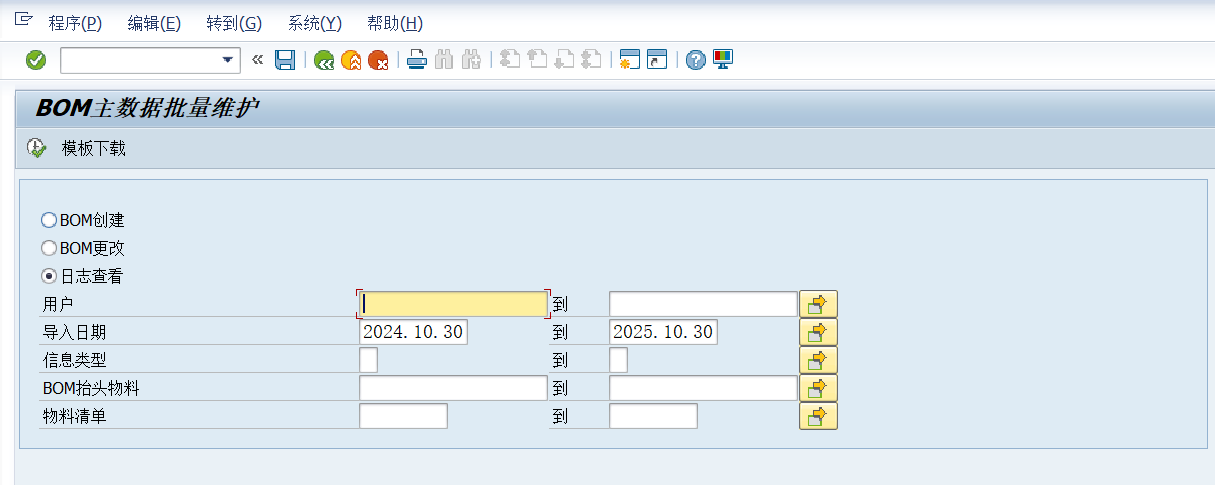

二、功能界面

三、功能代码

*&---------------------------------------------------------------------*
*& Report ZRPPP_0003
*&---------------------------------------------------------------------*
*& 09.06.2021 10:00:55 By Guoxj  BOM主数据批量维护
*&---------------------------------------------------------------------*
REPORT zrppp_0003.
TABLES: marc,mara,mast,stko,stpo,ztpp003_log,
  sscrfields ,ICON.
TYPE-POOLS:slis.

DATA: gr_table TYPE REF TO cl_salv_table.
DATA: gr_layout TYPE REF TO cl_salv_layout.
DATA: gs_program TYPE salv_s_layout_key.
DATA: gr_columns TYPE REF TO cl_salv_columns_table.
DATA: gr_column TYPE REF TO cl_salv_column_table.
DATA: gr_display TYPE REF TO cl_salv_display_settings.
DATA: gr_functions TYPE REF TO cl_salv_functions.

TYPES: BEGIN OF ty_head  ,
  werks TYPE mast-werks,
  matnr TYPE mast-matnr,
  maktx TYPE makt-maktx,
  ver01 TYPE char2,
  stlan TYPE mast-stlan,
  aennr TYPE stko-aennr,
  stlal TYPE stko-stlal,
  datuv TYPE stko-datuv,
  stktx TYPE stko-stktx,
  bmeng TYPE stko-bmeng,
  bmein TYPE  basme , "父料的单位
  stlst TYPE stko-stlst,
END OF ty_head .

TYPES: BEGIN OF ty_item  ,
  postp  TYPE stpo-postp,
  posnr  TYPE stpo-posnr,
  idnrk  TYPE stpo-idnrk,
  matkl  TYPE makt-maktx,
  ver02  TYPE char2,
  menge  TYPE stpo-menge,
  zjsljs TYPE char10,
  meins  TYPE stpo-meins,
  sortf  TYPE stpo-sortf,
  ausch  TYPE stpo-ausch,
  sanka  TYPE stpo-sanka,
  alpgr  TYPE stpo-alpgr,
  alprf  TYPE stpo-alprf,
  alpst  TYPE stpo-alpst,
  ewahr  TYPE stpo-ewahr,
  lgort  TYPE stpo-lgort,
END OF ty_item .

TYPES: BEGIN OF ty_info  ,
  stlnr  TYPE mast-stlnr,
  status TYPE zde_status,
  msg    TYPE bapi_msg,
  ztype  TYPE bapi_mtype,
END OF ty_info .

DATA:BEGIN OF gt_tab OCCURS 0 .
  INCLUDE TYPE ty_head .
  INCLUDE TYPE ty_item .
  INCLUDE TYPE ty_info .
  DATA:
END OF gt_tab .

DATA:BEGIN OF alttab OCCURS 0 .
  DATA: stlal TYPE stlal,
END OF alttab .

DATA:BEGIN OF gw_info.
  DATA: ztype     TYPE bapi_mtype,
        zmsg      TYPE bapi_msg,
        zauth_wrk TYPE char1, "工厂权限
*      zauth_prs TYPE char1, "价格权限
END OF gw_info .

DATA:flg_submit TYPE C .

SELECTION-SCREEN BEGIN OF BLOCK part1 WITH FRAME TITLE TEXT-001.

  PARAMETERS:rd1 RADIOBUTTON GROUP gp1 USER-COMMAND cmd DEFAULT 'X',
  rd2 RADIOBUTTON GROUP gp1,
  rd3 RADIOBUTTON GROUP gp1.

  PARAMETERS: p_file TYPE rlgrap-filename  MODIF ID g1 MEMORY ID p03 .

  SELECT-OPTIONS:
  s_uname FOR ztpp003_log-uname MODIF ID g2 ,
  s_datum FOR ztpp003_log-datum MODIF ID g2 ,
  s_ztype FOR ztpp003_log-ztype MODIF ID g2 ,
  s_matnr FOR ztpp003_log-matnr MODIF ID g2 ,
  s_stlnr FOR ztpp003_log-stlnr MODIF ID g2 .

SELECTION-SCREEN END OF BLOCK part1.

*SELECTION-SCREEN PUSHBUTTON /1(20) btntxt1 USER-COMMAND but1 MODIF ID g1  .

SELECTION-SCREEN FUNCTION KEY 1.

AT SELECTION-SCREEN OUTPUT.
LOOP AT SCREEN.
  IF rd3 = 'X'.
    IF SCREEN-group1 = 'G1'.
      SCREEN-active = 0.
    ENDIF.
  ELSE.
    IF SCREEN-group1 = 'G2'.
      SCREEN-active = 0.
    ENDIF.
  ENDIF.
  MODIFY SCREEN.
ENDLOOP.

INITIALIZATION.
*  btntxt1 = '模板下载' .
sscrfields-functxt_01 = '模板下载'.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR p_file.
CALL FUNCTION 'F4_FILENAME'
EXPORTING
  program_name  = syst-cprog
  dynpro_number = syst-dynnr
  field_name    = ' '
IMPORTING
  file_name     = p_file.

AT SELECTION-SCREEN.
SEARCH 'FC01' FOR sscrfields-ucomm .
CHECK sy-subrc = 0 .
PERFORM frm_down_model USING sscrfields-ucomm .

CLASS l_cl_handle_events DEFINITION.
  PUBLIC SECTION.
  METHODS: on_user_command FOR EVENT added_function OF cl_salv_events_table
  IMPORTING e_salv_function.
ENDCLASS.

CLASS l_cl_handle_events IMPLEMENTATION.
  METHOD on_user_command.
    PERFORM handle_user_command USING e_salv_function.
  ENDMETHOD.
ENDCLASS.

START-OF-SELECTION.
IF rd3 = 'X'. "日志查看
  PERFORM frm_show_log .
ELSE.
  IF p_file IS INITIAL.
    MESSAGE '请选择要上传的模板文件' TYPE 'S' DISPLAY LIKE  'E'.
    RETURN .
  ENDIF.

  PERFORM frm_upload_file.

*    CHECK gw_info-ztype NE 'E'.

  PERFORM frm_show_alv .

ENDIF.
*&---------------------------------------------------------------------*
*& Form frm_show_alv
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_show_alv .
  TRY.
    cl_salv_table=>factory(
    IMPORTING
      r_salv_table = gr_table
    CHANGING
      t_table      = gt_tab[]
      ).
  CATCH cx_salv_msg.
  ENDTRY.

  gr_columns = gr_table->get_columns( ).
  gr_columns->set_optimize( 'X' ).

  gr_functions = gr_table->get_functions( ).
  gr_functions->set_all( 'X' ).

  DEFINE mcr_undisplay.
    TRY.
      gr_column ?= gr_columns->get_column( &1 ).
      gr_column->set_visible( cl_salv_column_table=>false ).
      gr_column->set_technical( 'X' ) .
    CATCH cx_salv_not_found .
    ENDTRY.
  END-OF-DEFINITION.

*  mcr_undisplay: ''.
  DEFINE mcr_setcoltext.
    TRY.
      gr_column ?= gr_columns->get_column( &1 ).
      gr_column->set_short_text( &2 ).
      gr_column->set_long_text( &2 ).
      gr_column->set_medium_text( &2 ).

    CATCH cx_salv_not_found .
    ENDTRY.
  END-OF-DEFINITION.
  mcr_undisplay: 'ZJSLJS' .
  mcr_setcoltext: 'WERKS' '工厂',
  'MATNR' '父件物料编码',
  'MAKTX' '父件物料描述',
  'STLAN' 'BOM用途',
  'AENNR' '变更编号',
  'STLAL' '可选BOM',
  'DATUV' '有效起始日期',
  'STKTX' 'BOM表头文本描述',
  'BMENG' '基本数量',
  'BMEIN' '基本计量单位',
  'STLST' 'BOM状态',
  'POSTP' '项目类别',
  'POSNR' '组件项目编号',
  'IDNRK' '组件物料编码',
  'MATKL' '组件物料描述',
  'MENGE' '组件数量',
  'MEINS' '组件单位',
  'SORTF' '排序字符串',
  'AUSCH' '损耗率',
  'SANKA' '成本核算标识',
  'ALPGR'  '替代项目：组',
  'ALPRF'  '优先级',
  'ALPST'  '替代项目：策略',
  'EWAHR'  '使用可能性按 %',
  'LGORT' '生产仓库地点',
  'STLNR' '物料清单编码',
  'VER01' '父件料号版本',
  'VER02' '子件料号版本'.

  TRY.
    DATA lv_status TYPE sypfkey .
    lv_status = 'STANDARD' .
    CALL METHOD gr_table->set_screen_status
    EXPORTING
      REPORT        = sy-repid
      pfstatus      = lv_status
      set_functions = gr_table->c_functions_all.
  CATCH cx_sy_arithmetic_error INTO DATA(exc).
  ENDTRY.

  gr_layout = gr_table->get_layout( ).
  gs_program-REPORT = sy-repid.
  gr_layout->set_key( gs_program ).
  gr_layout->set_save_restriction( cl_salv_layout=>restrict_none ).
  gr_layout->set_default( 'X' ).
*  DATA lv_variant TYPE slis_vari .
*  lv_variant = '/DEFAULT' .
*  gr_layout->set_initial_layout( lv_variant ) .

  "=====获取事件对象
  DATA: lr_event TYPE REF TO cl_salv_events_table.
  lr_event = gr_table->get_event( ).

  "=====事件注册
  DATA: lr_handle_event TYPE REF TO l_cl_handle_events.
  CREATE OBJECT lr_handle_event.
  SET HANDLER lr_handle_event->on_user_command FOR lr_event.

  DATA(lv_title) = ':创建' .
  IF rd2 = 'X'.
    lv_title = ':更改' .
  ENDIF.
  SET TITLEBAR 'TITLE' WITH 'BOM主数据批量维护' lv_title .
  gr_table->display( ).
ENDFORM.
*&---------------------------------------------------------------------*
*& Form frm_check_input
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_check_input .

  "检查输入
  CLEAR:gw_info .

  SELECT marc~matnr, marc~werks ,marc~lvorm AS wrk_lvorm ,mara~lvorm, mara~meins ,marc~ausme ,mara~bstme INTO TABLE @DATA(lt_mat)
        FROM marc INNER JOIN mara ON marc~matnr = mara~matnr
        FOR ALL ENTRIES IN @gt_tab
        WHERE ( marc~matnr = @gt_tab-matnr OR marc~matnr = @gt_tab-idnrk )
        AND marc~werks = @gt_tab-werks.
  DATA:lw_mat LIKE LINE OF lt_mat .

  SELECT DISTINCT matnr, werks ,stlan ,stlnr , stlal INTO TABLE @DATA(lt_mast)
        FROM mast FOR ALL ENTRIES IN @gt_tab
        WHERE matnr = @gt_tab-matnr AND werks = @gt_tab-werks AND stlan = @gt_tab-stlan .
  DATA:lw_mast LIKE LINE OF lt_mast .

  "判断权限
  gw_info-zauth_wrk = 'X'.
  LOOP AT gt_tab.

    CALL FUNCTION 'SAPGUI_PROGRESS_INDICATOR'
    EXPORTING
      percentage = 50
      TEXT       = '检查数据...'.

    AUTHORITY-CHECK OBJECT 'ZAOPP_WRK'
    ID 'ZWERKS' FIELD gt_tab-werks
    ID 'ZACTIVE' FIELD 'X'.
    IF sy-subrc <> 0.
      gw_info-ztype = 'E'.
      gw_info-zmsg = '您没有此工厂' && gt_tab-werks && '的权限' .
      gw_info-zauth_wrk = ''.
    ENDIF.

    "父阶物料
    DATA(lv_matnr) =   |{ gt_tab-matnr ALPHA = OUT }| .
    CONDENSE lv_matnr NO-GAPS .

    "创建时可选BOM为空,自动生成
    IF gt_tab-stlal IS INITIAL AND rd1 = 'X' .
      CLEAR:alttab[].
      LOOP AT lt_mast INTO lw_mast WHERE matnr = gt_tab-matnr.
        alttab-stlal = lw_mast-stlal .
        APPEND alttab .
      ENDLOOP.
      SORT alttab .
      PERFORM alt_find_next CHANGING gt_tab
