reverse学习
一.[WUSTCTF2020]level4
ida打开之后是
int __fastcall main(int argc, const char **argv, const char **envp)
{
puts("Practice my Data Structure code.....");
puts("Typing....Struct.....char....*left....*right............emmmmm...OK!");
init("Typing....Struct.....char....*left....*right............emmmmm...OK!", argv);
puts("Traversal!");
printf("Traversal type 1:");
type1(&unk_601290); // 二叉树的中序遍历
printf("\nTraversal type 2:");
type2(&unk_601290); // 二叉树的后序遍历
printf("\nTraversal type 3:");
puts(" //type3(&x[22]); No way!");
puts(&byte_400A37);
return 0;
}我们一个一个看,发现二叉树的代码
__int64 __fastcall type1(char *a1)
{
__int64 result; // rax
if ( a1 )
{
type1(*(a1 + 1));
putchar(*a1);
return type1(*(a1 + 2));
}
return result;
}int __fastcall type2(char *a1)
{
int result; // eax
if ( a1 )
{
type2(*(a1 + 1));
type2(*(a1 + 2));
return putchar(*a1);
}
return result;

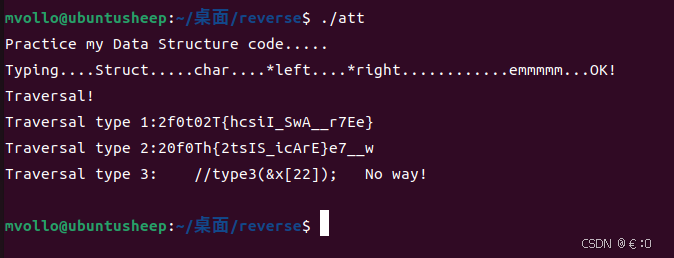

}我们需要已知两种二叉树的遍历结果才可以确定二叉树的结构,而原文给出了中序遍历和后序遍历的代码,我们运行ELF文件得到运行后的结果
所以得到了中序遍历和后序遍历的结果
2f0t02T{hcsiI_SwA__r7Ee}
20f0Th{2tsIS_icArE}e7__w
之后我们写代码找到前序排列的结果
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
typedef struct TreeNode {
char data;
struct TreeNode* left;
struct TreeNode* right;
} TreeNode;
// ´´½¨½Úµã
TreeNode* createNode(char data) {
TreeNode* node = (TreeNode*)malloc(sizeof(TreeNode));
node->data = data;
node->left = NULL;
node->right = NULL;
return node;
}
// ÔÚÖÐÐò±éÀúÖÐÕÒµ½¸ù½ÚµãµÄλÖÃ
int findIndex(const char* inorder, char rootVal, int start, int end) {
for (int i = start; i <= end; i++) {
if (inorder[i] == rootVal) return i;
}
return -1;
}
// ´ÓºóÐòºÍÖÐÐò±éÀú¹¹½¨¶þ²æÊ÷
TreeNode* buildTree(const char* postorder, const char* inorder, int start, int end, int* postIndex) {
if (start > end) return NULL;
char rootVal = postorder[*postIndex];
(*postIndex)--;
TreeNode* root = createNode(rootVal);
int inIndex = findIndex(inorder, rootVal, start, end);
root->right = buildTree(postorder, inorder, inIndex + 1, end, postIndex);
root->left = buildTree(postorder, inorder, start, inIndex - 1, postIndex);
return root;
}
// Ç°Ðò±éÀú
void preorderTraversal(TreeNode* root) {
if (root == NULL) return;
printf("%c", root->data);
preorderTraversal(root->left);
preorderTraversal(root->right);
}
int main() {
const char* inorder = "2f0t02T{hcsiI_SwA__r7Ee}";
const char* postorder = "20f0Th{2tsIS_icArE}e7__w";
int postIndex = strlen(postorder) - 1;
TreeNode* root = buildTree(postorder, inorder, 0, strlen(inorder) - 1, &postIndex);
printf("Preorder traversal: ");
preorderTraversal(root);
printf("\n");
return 0;

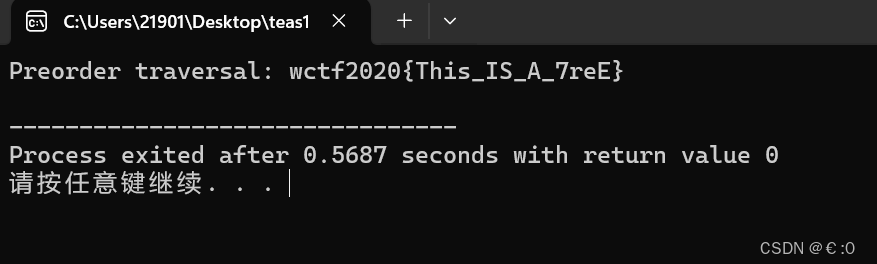

}其实不太熟悉二叉树,这是ai帮忙写的代码,至少是对的
wctf2020{This_IS_A_7reE}
二.[羊城杯 2020]easyre

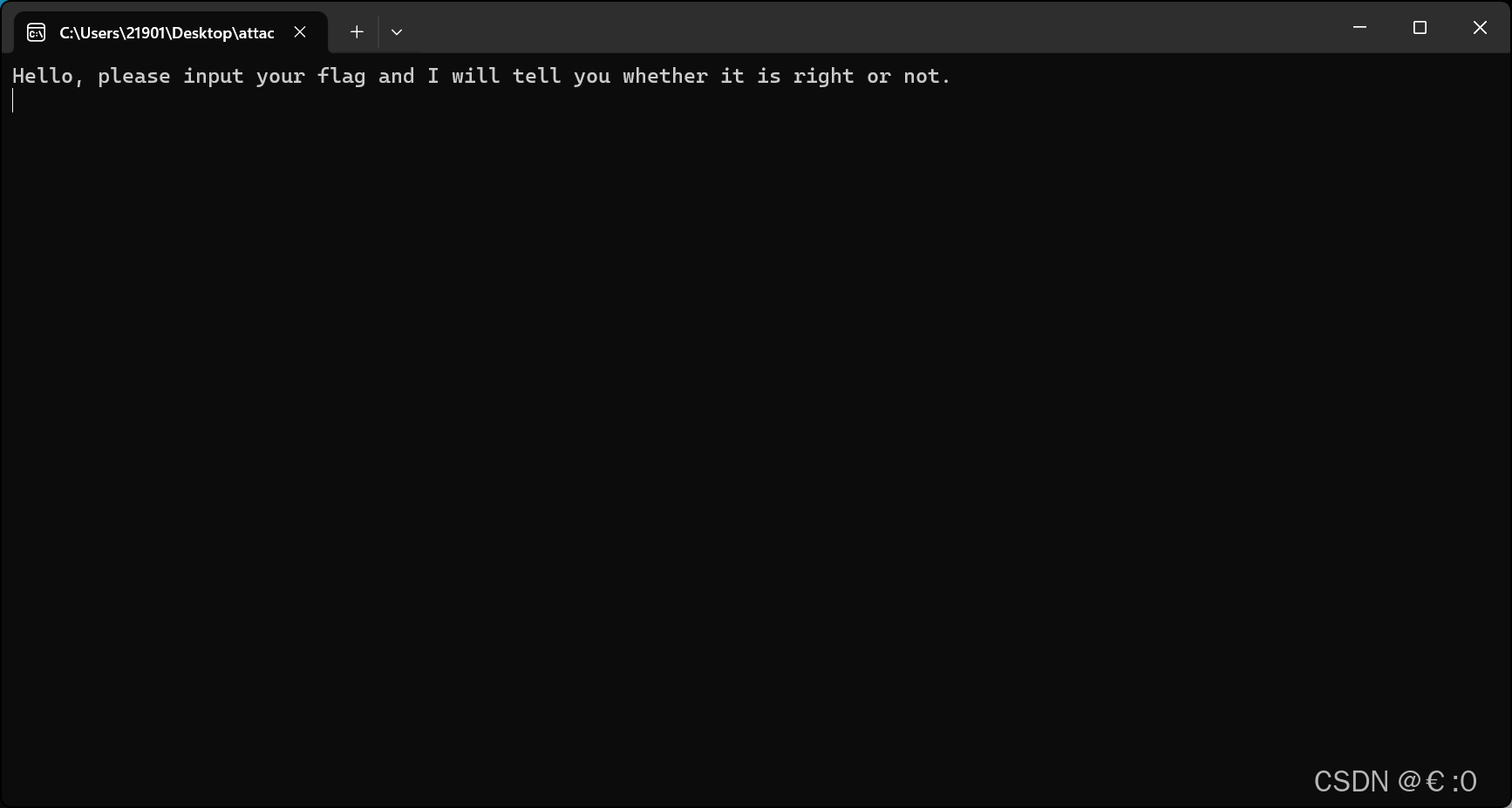

是exe文件直接运行一下,提示输入flag
查壳是64位,ida打开,
int __fastcall main(int argc, const char **argv, const char **envp)
{
int v3; // eax
int v4; // eax
int v5; // eax
char Str[48]; // [rsp+20h] [rbp-60h] BYREF
char Str1[64]; // [rsp+50h] [rbp-30h] BYREF
char v9[64]; // [rsp+90h] [rbp+10h] BYREF
char v10[64]; // [rsp+D0h] [rbp+50h] BYREF
char Str2[60]; // [rsp+110h] [rbp+90h] BYREF
int v12; // [rsp+14Ch] [rbp+CCh] BYREF
_main();
strcpy(Str2, "EmBmP5Pmn7QcPU4gLYKv5QcMmB3PWHcP5YkPq3=cT6QckkPckoRG");// 密文EmBmP5Pmn7QcPU4gLYKv5QcMmB3PWHcP5YkPq3=cT6QckkPckoRG
puts("Hello, please input your flag and I will tell you whether it is right or not.");
scanf("%38s", Str);
if ( strlen(Str) != 38
|| (v3 = strlen(Str), encode_one(Str, v3, v10, &v12))// base64ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/
|| (v4 = strlen(v10), encode_two(v10, v4, v9, &v12))// 赋值
|| (v5 = strlen(v9), encode_three(v9, v5, Str1, &v12))// 凯撒加密3
|| strcmp(Str1, Str2) )
{
printf("Something wrong. Keep going.");
return 0;
} // 38
//
else
{
puts("you are right!");
return 0;
}
}代码很清晰是分三部加密,我们一个一个看
有str2最后和str1比较,有encode三个加密,传入的都是明文,长度和密文缓冲区,我们分析代码即可
__int64 __fastcall encode_one(char *a1, int a2, char *a3, int *a4)
{
int v5; // esi
int v6; // esi
int v7; // esi
int v8; // [rsp+34h] [rbp-1Ch]
int v9; // [rsp+38h] [rbp-18h]
int v11; // [rsp+48h] [rbp-8h]
int i; // [rsp+4Ch] [rbp-4h]
unsigned __int8 *v13; // [rsp+70h] [rbp+20h]
v13 = a1;
if ( !a1 || !a2 )
return 0xFFFFFFFFi64;
v11 = 0;
if ( a2 % 3 )
v11 = 3 - a2 % 3;
v9 = a2 + v11;
v8 = 8 * (a2 + v11) / 6;
for ( i = 0; i < v9; i += 3 )
{
*a3 = alphabet[*v13 >> 2];
if ( a2 + v11 - 3 == i && v11 )
{
if ( v11 == 1 )
{
v5 = cmove_bits(*v13, 6u, 2u);
a3[1] = alphabet[v5 + cmove_bits(v13[1], 0, 4u)];
a3[2] = alphabet[cmove_bits(v13[1], 4u, 2u)];
a3[3] = 61;
}
else if ( v11 == 2 )
{
a3[1] = alphabet[cmove_bits(*v13, 6u, 2u)];
a3[2] = 61;
a3[3] = 61;
}
}
else
{
v6 = cmove_bits(*v13, 6u, 2u);
a3[1] = alphabet[v6 + cmove_bits(v13[1], 0, 4u)];
v7 = cmove_bits(v13[1], 4u, 2u);
a3[2] = alphabet[v7 + cmove_bits(v13[2], 0, 6u)];
a3[3] = alphabet[v13[2] & 0x3F];
}
a3 += 4;
v13 += 3;
}
if ( a4 )
*a4 = v8;
return 0i64;

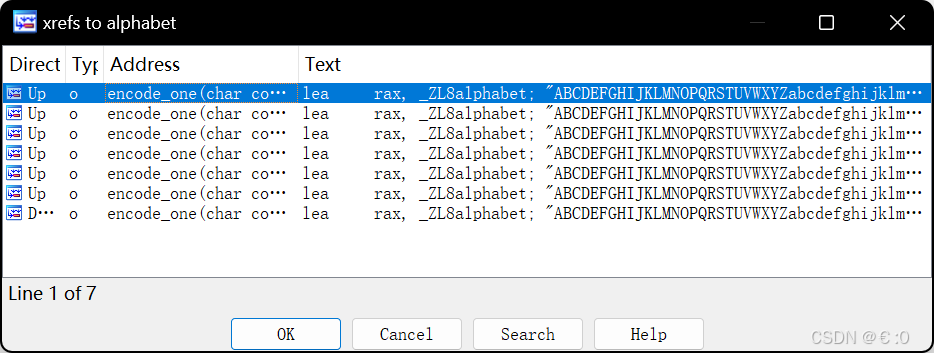

}第一个明显是base64加密,再查看alphabet有没有被修改和变表,

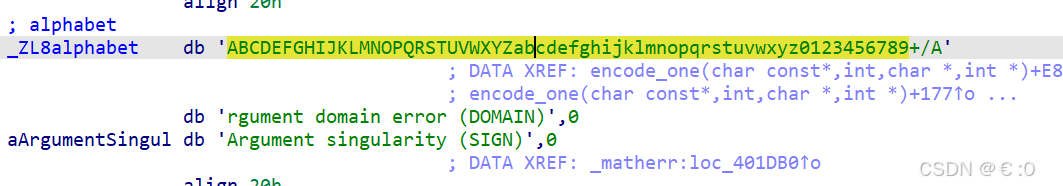

(其中后面的A是和下面的rgument组合的Argument,,在 IDA 中，Argument domain error (DOMAIN) 通常指的是函数参数的类型或值超出了预期的范围或定义域，导致 IDA 在分析或反编译过程中无法正确处理。我们不用管)
可知没有,注释一下,分析下一个
__int64 __fastcall encode_two(const char *a1, int a2, char *a3, int *a4)
{
if ( !a1 || !a2 )
return 0xFFFFFFFFi64;
strncpy(a3, a1 + 26, 0xDui64);
strncpy(a3 + 13, a1, 0xDui64);
strncpy(a3 + 26, a1 + 39, 0xDui64);
strncpy(a3 + 39, a1 + 13, 0xDui64);
return 0i64;
}猜测是互换位置,我们由后面的代码可知str2是明文的base64加密后的结果,我们看str2长度是52而这里的每一组是13个一共4组13*4==52个正好,所以我们写代码交换位置即可
之后看第三个
__int64 __fastcall encode_three(const char *a1, int a2, char *a3, int *a4)
{
char v5; // [rsp+Fh] [rbp-11h]
int i; // [rsp+14h] [rbp-Ch]
const char *v8; // [rsp+30h] [rbp+10h]
v8 = a1;
if ( !a1 || !a2 )
return 0xFFFFFFFFi64;
for ( i = 0; i < a2; ++i )
{
v5 = *v8;
if ( *v8 <= 64 || v5 > 90 )
{
if ( v5 <= 96 || v5 > 122 )
{
if ( v5 <= 47 || v5 > 57 )
*a3 = v5;
else
*a3 = (v5 - 48 + 3) % 10 + 48; // 数字
}
else
{
*a3 = (v5 - 97 + 3) % 26 + 97; // 小写
}
}
else
{
*a3 = (v5 - 65 + 3) % 26 + 65; // 大写
}
++a3;
++v8;
}
return 0i64;
}后两个我们很熟悉是凯撒加密偏移量是3位,可是中间有一个47~57的我们查一下ascll可知这是数字0~9,所以如果是数字的话也要偏移三位,因为数字比较少,为了方便,我们找网站先偏移字母再手动偏移数字,之后写交换的代码让后找网站base64解码即可
#include<stdio.h>
#include<string.h>
int main()
{
char enc[]="BjYjM2Mjk4NzMR1dIVHs2NzJjY0MTEzM2VhMn0=zQ3NzhhMzhlOD";
//52 13/
printf("%d\n",strlen(enc));
char enc1[100];
strncpy(enc1+26,enc,13);
strncpy(enc1,enc+13,13);
strncpy(enc1+39,enc+26,13);
strncpy(enc1+13,enc+39,13);
puts(enc1);
}
//EmBmP5Pmn7QcPU4gLYKv5QcMmB3PWHcP5YkPq3=cT6QckkPckoRG
//EmBmP2Pmn4QcPU1gLYKv2QcMmB0PWHcP2YkPq0=cT3QckkPckoRG
//BjYjM5Mjk7NzM
//R4dIVHs5NzJjY
//3MTEzM5VhMn3=
//zQ6NzhhMzhlOD

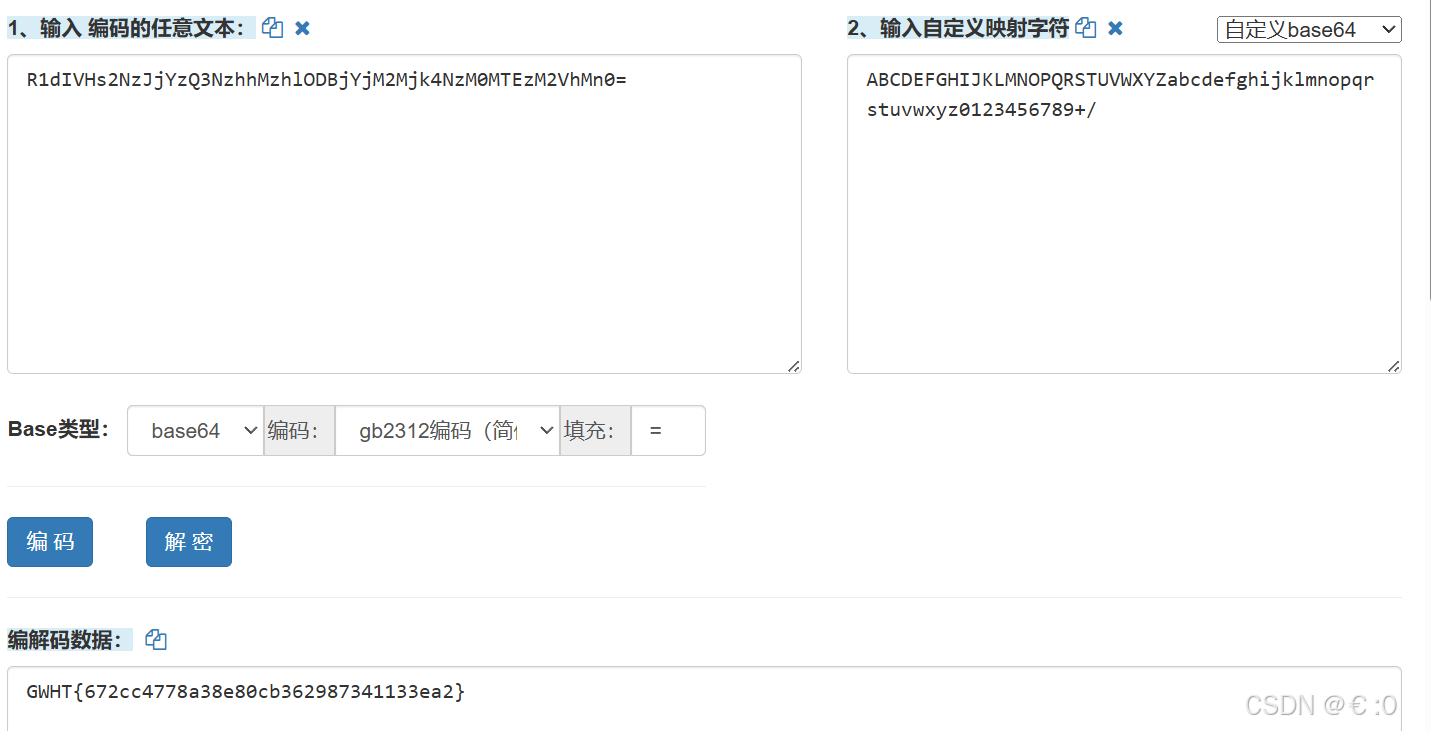

//R1dIVHs2NzJjYzQ3NzhhMzhlODBjYjM2Mjk4NzM0MTEzM2VhMn0=得到flag{672cc4778a38e80cb362987341133ea2}
我们运行文件输入GWHT{672cc4778a38e80cb362987341133ea2}得到right
