51——DS18B20

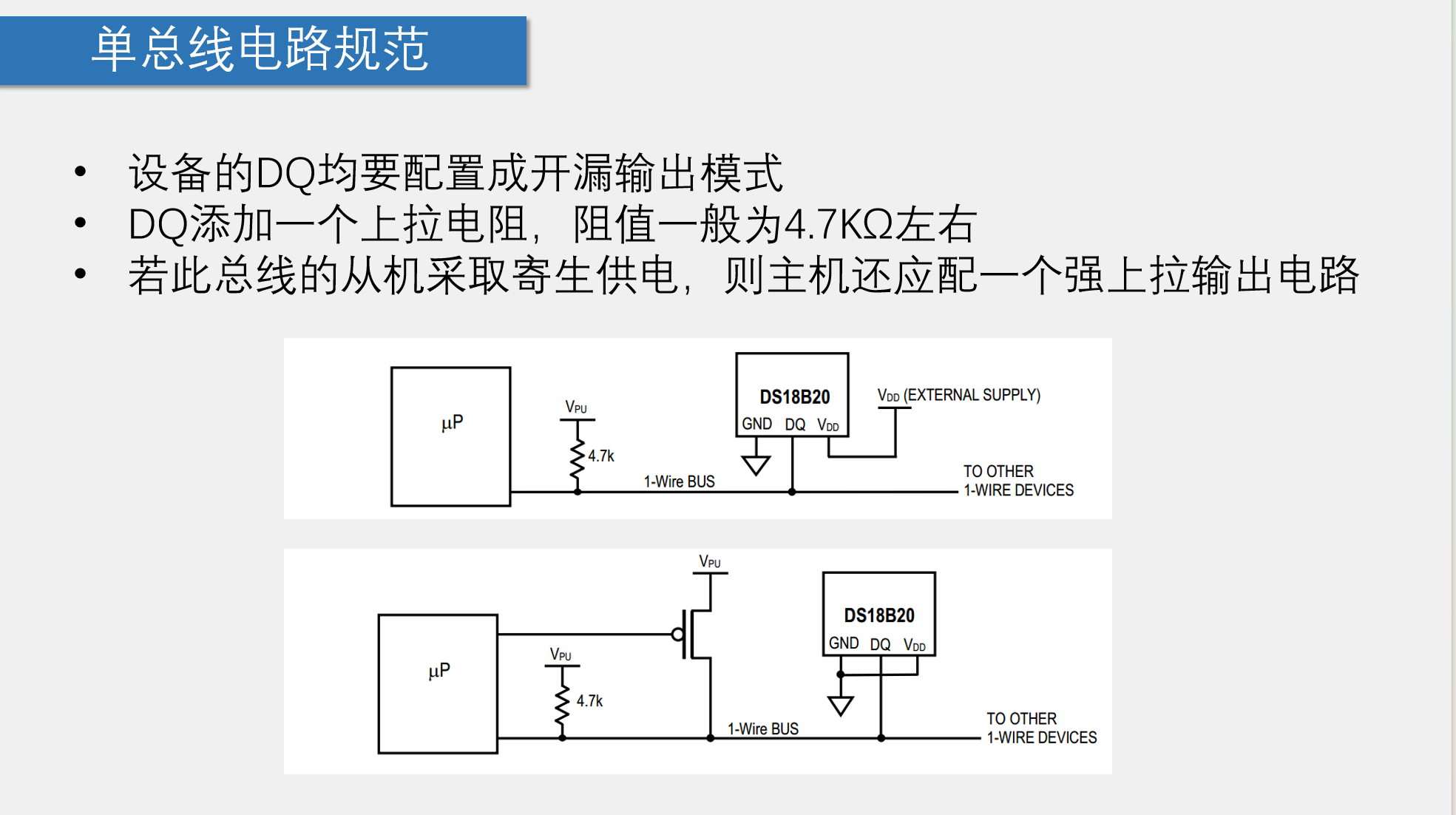

1. 单总线介绍

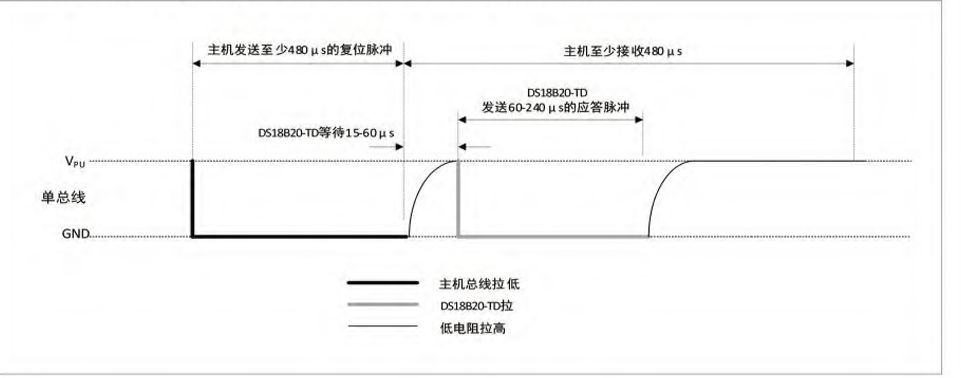

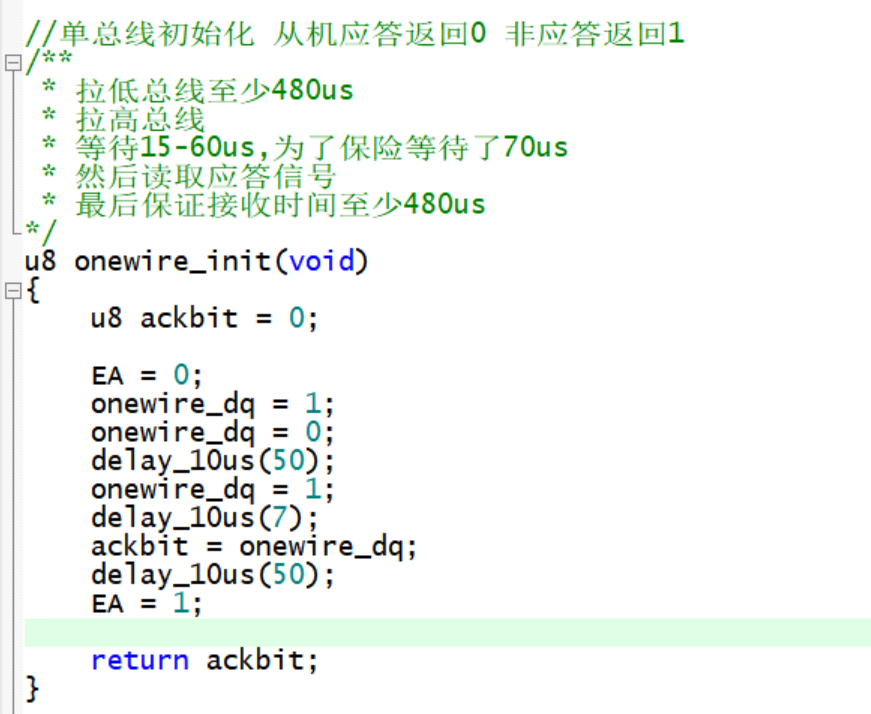

2. 单总线初始化

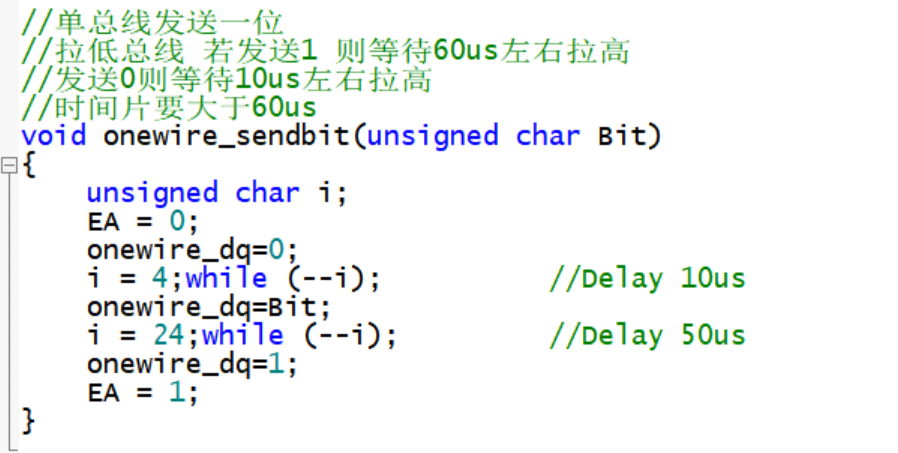

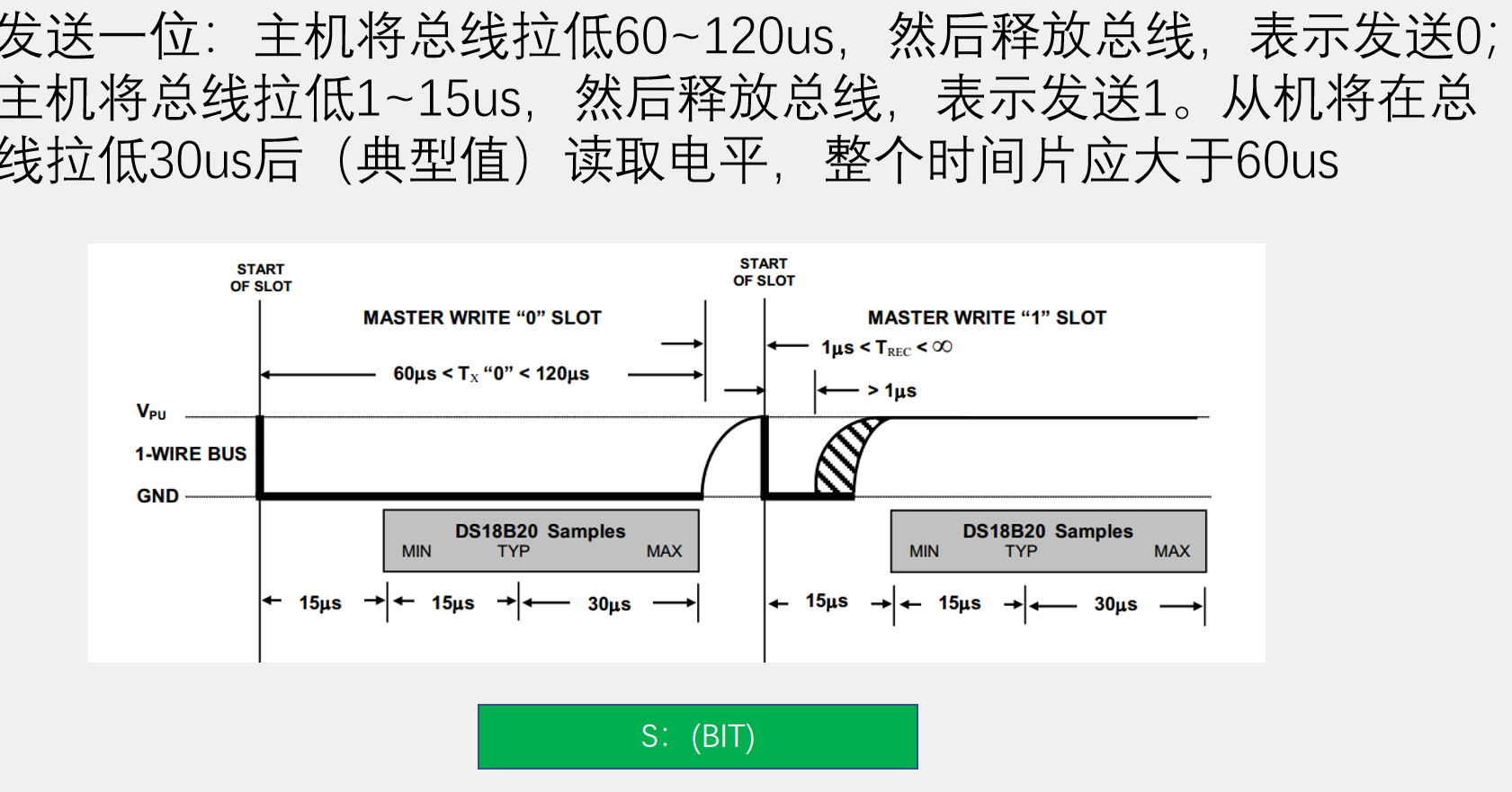

3. 单总线发送一位

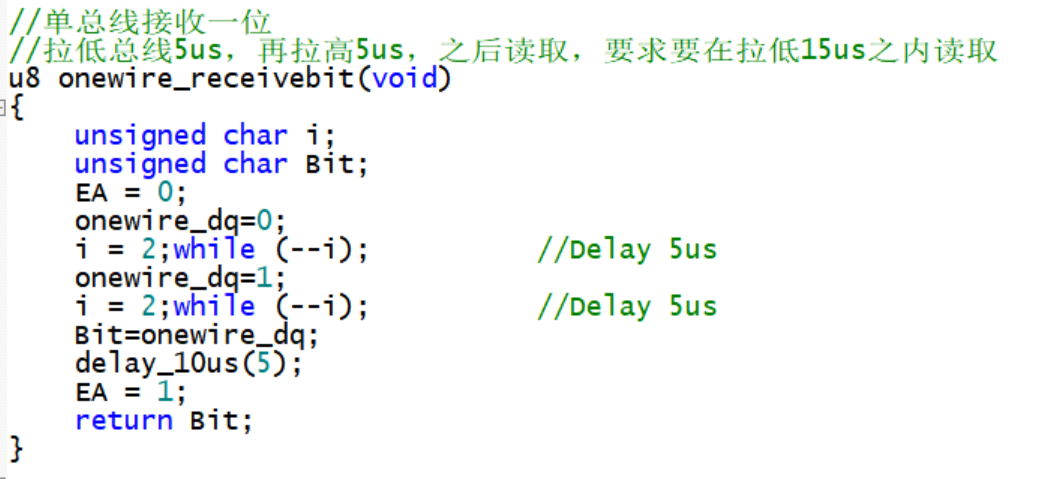

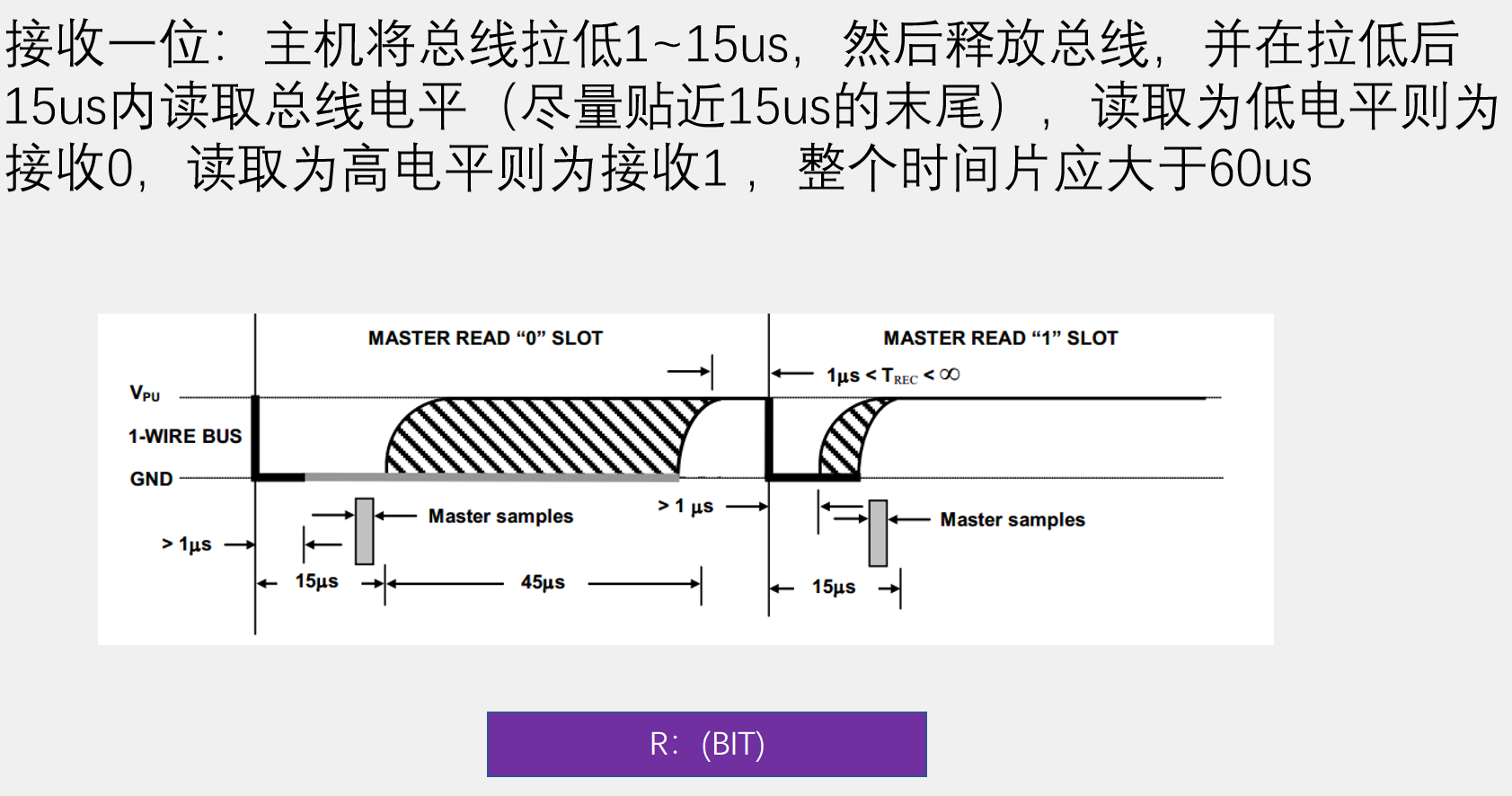

4. 单总线接收一位

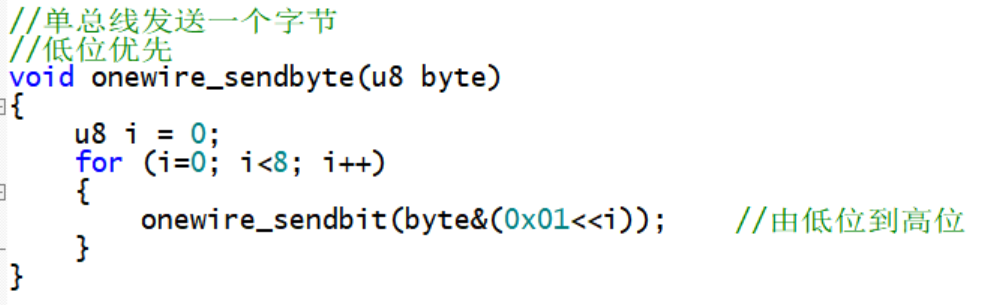

5. 单总线发送一个字节(低位在前)

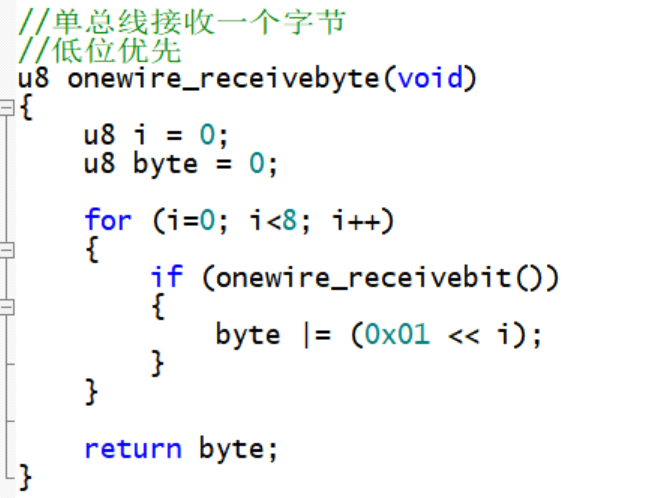

6. 单总线接收一个字节(低位在前)

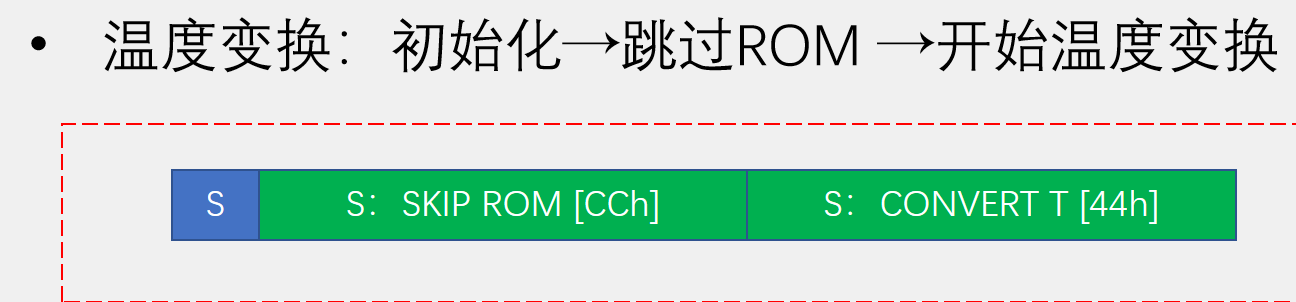

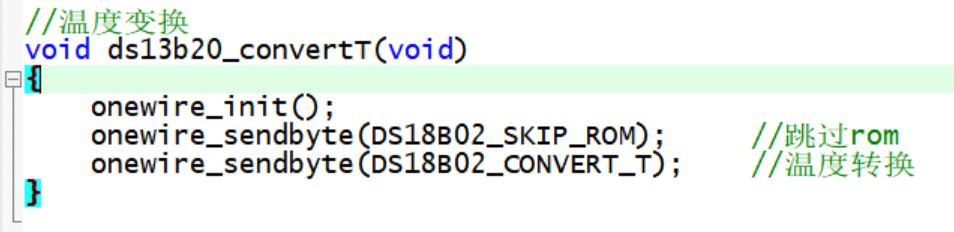

7. DS18B20温度变换

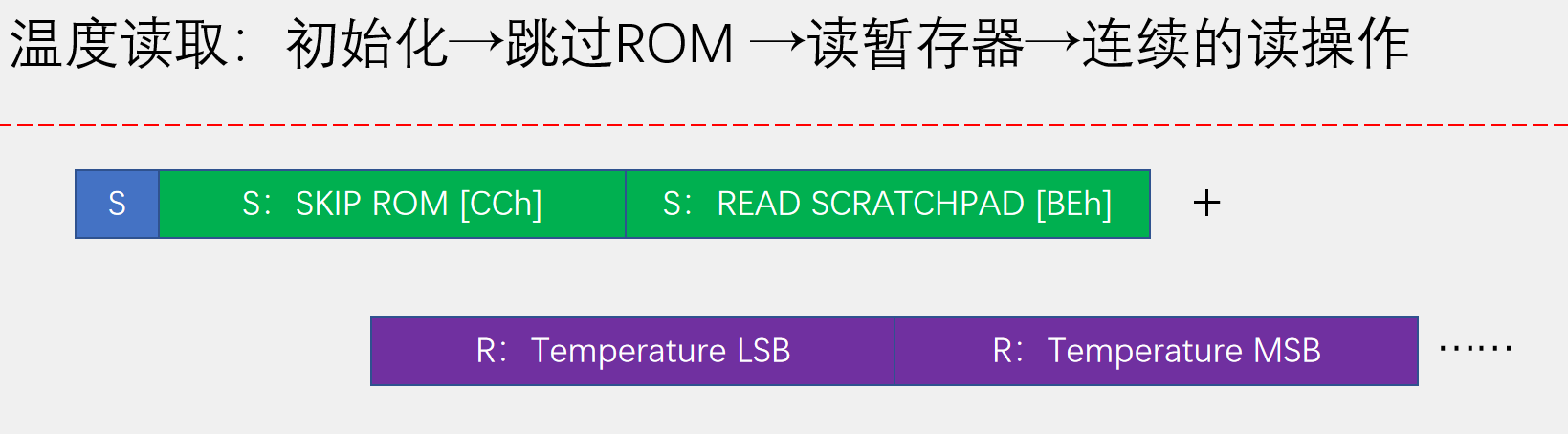

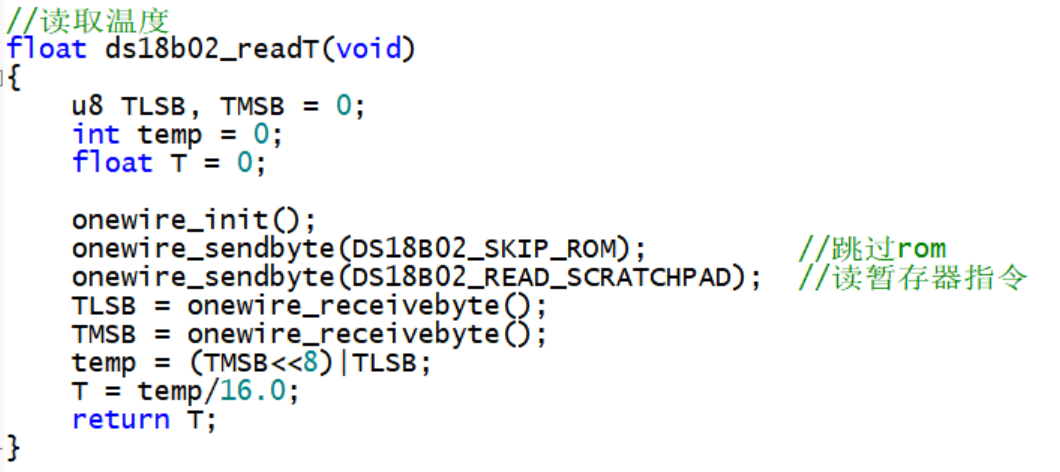

8. DS18B20温度读取

9. 定时器扫描按键

#include "keytime.h"

unsigned char KeyValue = 0;

//获取按键键码
unsigned char KeyTimeScan(void)
{
unsigned char temp = 0;
temp = KeyValue;
KeyValue = 0;
return temp;
}
//获取当前按键状态
unsigned char KeyGetState(void)
{
unsigned char KeyState = 0;

if (key1 == 0) {KeyState = 1;}
if (key2 == 0) {KeyState = 2;}
if (key3 == 0) {KeyState = 3;}
if (key4 == 0) {KeyState = 4;}

return KeyState;
}
//按键驱动 在中断中调用
void KeyLoop(void)
{
static unsigned char NowState, LastState;
LastState = NowState;

NowState = KeyGetState();
if (LastState == 1 && NowState == 0)
{
KeyValue = 1;
}
if (LastState == 2 && NowState == 0)
{
KeyValue = 2;
}
if (LastState == 3 && NowState == 0)
{
KeyValue = 3;
}
if (LastState == 4 && NowState == 0)
{
KeyValue = 4;
}
}
