防火墙旁挂负载分担组网实验

一.拓扑信息

二.需求分析

二层交换配置（MSTP+VRRP）

核心层（VRF+OSPF+重发布+路由策略）

交换机和防火墙交互（静态路由+双机热备）

   四组VGMP就是 8个VRRP，四个是防火墙身上的，一个是运行VGMP，VGMP真正管理的是VRRP，运行VRRP，实现跨网段传输；一个是运行VRRP，转发ARP报文，防火墙修改交换机的MAC地址，要实现负载分担，还需要两个VRRP组。

   四个是交换机身上的，目的是为了让防火墙指定下一跳。

核心到边界

三.详细配置信息

二层交换配置（MSTP+VRRP）

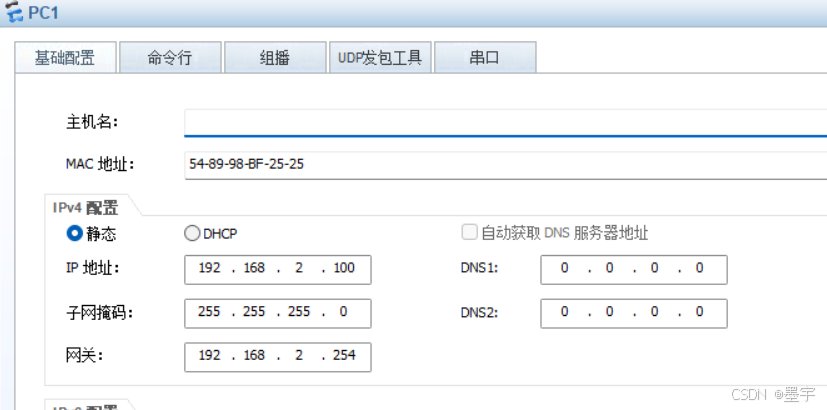

PC1配置

PC2配置

 SW3的配置（VLAN+MSTP+VRRP）：

stp默认开启

[sw3]vlan batch 2 3
[sw3]interface g0/0/4
[sw3-GigabitEthernet0/0/4]port link-type trunk
[sw3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 3
[sw3]interface g0/0/3
[sw3-GigabitEthernet0/0/3]port link-type trunk
[sw3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 3

[sw3]stp enable
[sw3]stp mode mstp
[sw3]stp region-configuration
[sw3-mst-region]region-name aa
[sw3-mst-region]instance 1 vlan  2
[sw3-mst-region]instance 2 vlan 3
[sw3-mst-region]active region-configuration
[sw3]stp instance 0 root primary
[sw3]stp instance 1 root primary
[sw3]stp instance 2 root secondary

[sw3]interface Vlanif 2
[sw3-Vlanif2]ip add 192.168.2.1 24
[sw3-Vlanif2]vrrp vrid 2 priority 120
[sw3-Vlanif2]vrrp vrid 2 virtual-ip 192.168.2.254
[sw3-Vlanif2]vrrp vrid 2 preempt-mode timer delay 10
[sw3-Vlanif2]vrrp vrid 2 track interface g0/0/1 reduced 15
[sw3-Vlanif2]vrrp vrid 2 track interface g0/0/2 reduced 15
[sw3]interface Vlanif 3
[sw3-Vlanif3]ip add 192.168.3.1 24
[sw3]interface Vlanif 3
[sw3-Vlanif3]vrrp vrid 2 virtual-ip 192.168.3.254

 SW4的配置（VLAN+MSTP+VRRP）：

[sw4]vlan batch 2 to 3
[sw4]interface g0/0/4
[sw4-GigabitEthernet0/0/4]port link-type trunk
[sw4-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 3
[sw4]interface  g0/0/3
[sw4-GigabitEthernet0/0/3]port link-type trunk
[sw4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 to 3

[sw4]stp enable
[sw4]stp mode mstp
[sw4]stp region-configuration
[sw4-mst-region]region-name aa
[sw4-mst-region]instance 1 vlan 2
[sw4-mst-region]instance 2 vlan 3
[sw4-mst-region]active region-configuration
[sw4]stp instance 0 root primary
[sw4]stp instance 1 root secondary
[sw4]stp instance 2 root primary

[sw4]interface Vlanif 2
[sw4-Vlanif2]ip add 192.168.2.2 24
[sw4-Vlanif2]vrrp vrid 2 virtual-ip 192.168.2.254
[sw4]interface Vlanif 3
[sw4-Vlanif3]ip add 192.168.3.2 24
[sw4-Vlanif3]vrrp vrid 2 virtual-ip 192.168.3.254
[sw4-Vlanif3]vrrp vrid 2 priority 120
[sw4-Vlanif3]vrrp vrid 2 preempt-mode timer delay 10
[sw4-Vlanif3]vrrp vrid 2 track interface g0/0/1 reduced 15
[sw4-Vlanif3]vrrp vrid 2 track interface g0/0/2 reduced 15

  SW5的配置(VLAN+MSTP)：

[sw5]vlan batch 2 3
[sw5]interface g0/0/3
[sw5-GigabitEthernet0/0/3]port link-type  access
[sw5-GigabitEthernet0/0/3]port default vlan 2
[sw5]interface g0/0/4
[sw5-GigabitEthernet0/0/4]port link-type  access
[sw5-GigabitEthernet0/0/4]port default vlan 3
[sw5]interface g0/0/1
[sw5-GigabitEthernet0/0/1]port link-type trunk
[sw5-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 to 3
[sw5]interface g0/0/2
[sw5-GigabitEthernet0/0/2]port link-type trunk
[sw5-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 to 3

[sw5]stp enable
[sw5]stp mode mstp
[sw5]stp region-configuration
[sw5-mst-region]region-name aa
[sw5-mst-region]instance 1 vlan 2
[sw5-mst-region]instance 2 vlan 3
[sw5-mst-region]active region-configuration

核心层配置

SW3的配置（VLAN+OSPF+安全策略）：

这里要关闭stp，stp运行在二层设备上面，跟三层设备没有关系，stp支持在接口关闭。

静默接口：因为sw3和sw4身上就有vlan2和vlan3的信息，没必要运行ospf

[sw3]vlan batch 103 203
[sw3]interface GigabitEthernet 0/0/1
[sw3-GigabitEthernet0/0/1]port link-type access
[sw3-GigabitEthernet0/0/1]port default  vlan 103
[sw3-GigabitEthernet0/0/1]undo  stp enable
[sw3]interface g0/0/2
[sw3-GigabitEthernet0/0/2]port link-type  access
[sw3-GigabitEthernet0/0/2]port default vlan 203
[sw3-GigabitEthernet0/0/2]undo stp enable
[sw3]interface Vlanif 103
[sw3-Vlanif103]ip add 10.10.3.3 24
[sw3]interface Vlanif 203
[sw3-Vlanif203]ip add 10.20.3.3 24

[sw3]ospf 1 router-id 3.3.3.3
[sw3-ospf-1]area 0
[sw3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[sw3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[sw3]interface Vlanif 203
[sw3-Vlanif203]ospf cost 5

[sw3]ip ip-prefix aa permit 192.168.2.0 24
[sw3]ip ip-prefix bb permit 192.168.3.0 24
[sw3]route-policy bb permit  node 10
[sw3-route-policy]if-match  ip-prefix bb
[sw3-route-policy]apply cost 5
[sw3]route-policy bb permit node 20
[sw3-route-policy]if-match ip-prefix aa
[sw3]ospf 1
[sw3-ospf-1]import-route  direct route-policy bb

[sw3-ospf-1]silent-interface Vlanif 2
[sw3-ospf-1]silent-interface Vlanif 3

SW4的配置：

[sw4]interface g0/0/1
[sw4-GigabitEthernet0/0/1]port link-type access
[sw4-GigabitEthernet0/0/1]port default vlan 204
[sw4-GigabitEthernet0/0/1]undo stp enable
[sw4]interface g0/0/2
[sw4-GigabitEthernet0/0/2]port link-type access
[sw4-GigabitEthernet0/0/2]port default vlan 104
[sw4-GigabitEthernet0/0/2]undo stp enable
[sw4]interface Vlanif 104
[sw4-Vlanif104]ip add 10.10.4.4 24
[sw4]interface Vlanif 204
[sw4-Vlanif204]ip add 10.20.4.4 24

[sw4]ospf 1 router-id 4.4.4.4
[sw4-ospf-1]area 0
[sw4-ospf-1-area-0.0.0.0]network 10.10.4.4 0.0.0.0
[sw4-ospf-1-area-0.0.0.0]network 10.20.4.4 0.0.0.0
[sw4]interface Vlanif 104
[sw4-Vlanif104]ospf cost 5

[sw4]ip ip-prefix aa permit 192.168.3.0 24
[sw4]ip ip-prefix bb permit 192.168.2.0 24
[sw4]route-policy bb permit  node  10
[sw4-route-policy]if-match ip-prefix bb
[sw4-route-policy]apply  cost 5
[sw4]route-policy bb permit  node 20
[sw4-route-policy]if-match ip-prefix aa
[sw4]ospf 1
[sw4-ospf-1]import-route direct route-policy bb

[sw4-ospf-1]silent-interface Vlanif 2
[sw4-ospf-1]silent-interface Vlanif 3

 SW1的配置：

[sw1]ip vpn-instance vrf
[sw1-vpn-instance-vrf]route-distinguisher 100:1
[sw1-vpn-instance-vrf-af-ipv4]vpn-target 100:1 both

[sw1]vlan batch 102 103 104
[sw1]interface g0/0/4
[sw1-GigabitEthernet0/0/4]port link-type  trunk
[sw1-GigabitEthernet0/0/4]port trunk allow-pass vlan 102
[sw1-GigabitEthernet0/0/4]undo port trunk allow-pass vlan  1
[sw1-GigabitEthernet0/0/4]undo stp enable
[sw1]interface g0/0/5
[sw1-GigabitEthernet0/0/5]port link-type  access
[sw1-GigabitEthernet0/0/5]port default vlan 103
[sw1-GigabitEthernet0/0/5]undo stp enable
[sw1]interface g0/0/6
[sw1-GigabitEthernet0/0/6]port link-type access
[sw1-GigabitEthernet0/0/6]port default vlan 104
[sw1-GigabitEthernet0/0/6]undo stp enable

[sw1]interface Vlanif 102
[sw1-Vlanif102]ip binding vpn-instance vrf
[sw1-Vlanif102]ip add 10.10.2.1 24
[sw1]interface Vlanif 103
[sw1-Vlanif103]ip binding vpn-instance vrf
[sw1-Vlanif103]ip add 10.10.3.1 24
[sw1]interface Vlanif 104
[sw1-Vlanif104]ip binding vpn-instance vrf
[sw1-Vlanif104]ip add 10.10.4.1 24

[sw1]ospf 1 router-id 1.1.1.1 vpn-instance vrf
[sw1-ospf-1]area 0
[sw1-ospf-1-area-0.0.0.0]network 10.10.2.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.10.3.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.10.4.1 0.0.0.0

 SW2的配置：

[sw2]ip vpn-instance vrf
[sw2-vpn-instance-vrf]route-distinguisher 100:1
[sw2-vpn-instance-vrf-af-ipv4]vpn-target 100:1 both
[sw2]vlan  batch 102 203 204
[sw2]interface g0/0/4
[sw2-GigabitEthernet0/0/4]port link-type  trunk
[sw2-GigabitEthernet0/0/4]port trunk allow-pass vlan 102
[sw2-GigabitEthernet0/0/4]undo port trunk allow-pass vlan 1
[sw2-GigabitEthernet0/0/4]undo stp enable
[sw2]interface g0/0/5
[sw2-GigabitEthernet0/0/5]port link-type access
[sw2-GigabitEthernet0/0/5]port default vlan 204
[sw2-GigabitEthernet0/0/5]undo stp enable
[sw2]interface g0/0/6
[sw2-GigabitEthernet0/0/6]port link-type access
[sw2-GigabitEthernet0/0/6]port default vlan 203
[sw2-GigabitEthernet0/0/6]undo stp enable

[sw2]interface Vlanif 102
[sw2-Vlanif102]ip binding vpn-instance vrf
[sw2-Vlanif102]ip add 10.10.2.2 24
[sw2]interface Vlanif 203
[sw2-Vlanif203]ip binding vpn-instance vrf
[sw2-Vlanif203]ip add 10.20.3.2
[sw2]interface Vlanif 204
[sw2-Vlanif204]ip binding vpn-instance vrf
[sw2-Vlanif204]ip add 10.20.4.2 24

[sw2]ospf 1 router-id 2.2.2.2 vpn-instance vrf
[sw2-ospf-1]area 0
[sw2-ospf-1-area-0.0.0.0]network 10.10.2.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.20.3.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.20.4.2 0.0.0.0

交换机和防火墙交互

SW1的配置：

[sw1]vlan batch 401 402
[sw1]interface g0/0/3
[sw1-GigabitEthernet0/0/3]port link-type trunk
[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[sw1]interface g0/0/4
[sw1-GigabitEthernet0/0/4]port link-type trunk
[sw1-GigabitEthernet0/0/4]port trunk allow-pass vlan 401 402
[sw1]interface Vlanif401
[sw1-Vlanif401]ip binding vpn-instance vrf
[sw1-Vlanif401]ip add 10.40.1.1 24
[sw1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[sw1-Vlanif401]vrrp vrid 1 priority 120
[sw1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[sw1-Vlanif401]vrrp vrid 1
[sw1-Vlanif401]vrrp vrid 1 track interface g0/0/3 reduced 30
[sw1]interface Vlanif 402
[sw1-Vlanif402]ip binding vpn-instance vrf
[sw1-Vlanif402]ip add 10.40.2.1 24
[sw1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

PUBLIC：
[sw1]vlan batch 403 404
[sw1]interface g0/0/1
[sw1-GigabitEthernet0/0/1]port link-type trunk
[sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan 403 404
[sw1]interface  g0/0/2
[sw1-GigabitEthernet0/0/2]port link-type trunk
[sw1-GigabitEthernet0/0/2]port trunk allow-pass  vlan 403 404
[sw1]interface Vlanif 403
[sw1-Vlanif403]ip binding vpn-instance vrf
[sw1-Vlanif403]ip add 10.40.3.1 24
[sw1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[sw1-Vlanif403]vrrp vrid 3 priority 120
[sw1-Vlanif403]vrrp vrid 3 preempt-mode  timer delay 60
[sw1-Vlanif403]vrrp vrid 3 track  interface g0/0/1 reduced 30
[sw1]interface Vlanif 404
[sw1-Vlanif404]ip binding  vpn-instance vrf
[sw1-Vlanif404]ip add 10.40.4.1 24
[sw1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100

[sw1]ip route-static vpn-instance vrf 0.0.0.0 0 10.40.1.200
[sw1]ip route-static vpn-instance vrf 0.0.0.0 0 10.40.2.200 preference 70
[sw1]ip route-static 192.168.0.0 16 10.40.3.200
[sw1]ip route-static 192.168.0.0 16 10.40.4.200 preference 70

 SW2的配置：

[sw2]vlan batch 401 402
[sw2]interface g0/0/3
[sw2-GigabitEthernet0/0/3]port link-type trunk
[sw2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[sw2]interface g0/0/4
[sw2-GigabitEthernet0/0/4]port link-type trunk
[sw2-GigabitEthernet0/0/4]port trunk allow-pass vlan 401 402

[sw2]interface Vlanif 401
[sw2-Vlanif401]ip binding  vpn-instance vrf
[sw2-Vlanif401]ip add 10.40.1.2 24
[sw2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[sw2]interface Vlanif 402
[sw2-Vlanif402]ip binding vpn-instance  vrf
[sw2-Vlanif402]ip add 10.40.2.2 24
[sw2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[sw2-Vlanif402]vrrp vrid 2 priority 120
[sw2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[sw2-Vlanif402]vrrp vrid 2 track interface g0/0/3 reduced 30

PUBLIC：
[sw2]vlan batch 403 404
[sw2]interface g0/0/1
[sw2-GigabitEthernet0/0/1]port link-type  trunk
[sw2-GigabitEthernet0/0/1]port trunk allow-pass  vlan 403 404
[sw2]interface g0/0/2
[sw2-GigabitEthernet0/0/2]port link-type  trunk
[sw2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404

[sw2]interface Vlanif 403
[sw2-Vlanif403]ip binding  vpn-instance  vrf
[sw2-Vlanif403]ip add 10.40.3.2 24
[sw2-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[sw2]interface Vlanif 404
[sw2-Vlanif404]ip binding  vpn-instance vrf
[sw2-Vlanif404]ip address 10.40.4.2 24
[sw2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[sw2-Vlanif404]vrrp vrid 4 priority 120
[sw2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 120
[sw2-Vlanif404]vrrp vrid 4 track interface g0/0/1 reduced  30

[sw2]ip route-static vpn-instance vrf 0.0.0.0 0 10.40.1.200 preference 70
[sw2]ip route-static vpn-instance vrf 0.0.0.0 0 10.40.2.200
[sw2]ip route-static 192.168.0.0 16 10.10.3.200 preference 70
[sw2]ip route-static 192.168.0.0 16 10.10.4.200

 FW1的配置：

[FW1]interface g1/0/2.1
[FW1-GigabitEthernet1/0/2.1]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/2.1]vlan-type dot1q 401
[FW1]interface g1/0/2.2
[FW1-GigabitEthernet1/0/2.2]ip add 10.40.2.10 24
[FW1-GigabitEthernet1/0/2.2]vlan-type dot1q 402
[FW1]interface g1/0/3.1
[FW1-GigabitEthernet1/0/3.1]ip add 10.40.3.10 24
[FW1-GigabitEthernet1/0/3.1]vlan-type dot1q 403
[FW1]interface g1/0/3.2
[FW1-GigabitEthernet1/0/3.2]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/3.2]vlan-type dot1q 404
[FW1]int g1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30

[FW1]firewall zone trust
[FW1-zone-trust]add interface g1/0/2.1
[FW1-zone-trust]add interface g1/0/2.2
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface g1/0/0
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface g1/0/3.1
[FW1-zone-dmz]add interface g1/0/3.2

[FW1]interface g1/0/2.1
[FW1-GigabitEthernet1/0/2.1]vrrp vrid 5 virtual-ip 10.40.1.200 active
[FW1]interface g1/0/2.2
[FW1-GigabitEthernet1/0/2.2]vrrp vrid 6 virtual-ip 10.40.2.200 standby
[FW1]interface g1/0/3.1
[FW1-GigabitEthernet1/0/3.1]vrrp vrid 7 virtual-ip 10.40.3.200  active
[FW1]interface g1/0/3.2
[FW1-GigabitEthernet1/0/3.2]vrrp vrid 8 virtual-ip 10.40.4.200 standby

[FW1]hrp mirror session enable
[FW1]hrp  interface g1/0/0 remote 10.10.10.2
[FW1]hrp  enable

HRP_M[FW1]ip route-static 0.0.0.0 0 10.40.3.100
HRP_M[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.1.100
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.2.100  preference 70

 FW2的配置：

[FW2]vlan  batch 401 402 403 404
[FW2]interface g1/0/2.1
[FW2-GigabitEthernet1/0/2.1]ip add 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.1]vlan-type dot1q 401
[FW2]interface g1/0/2.1
[FW2]interface g1/0/2.2
[FW2-GigabitEthernet1/0/2.2]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.2]vlan-type dot1q  402
[FW2]interface g1/0/3.1
[FW2-GigabitEthernet1/0/3.1]vlan-type dot1q 403
[FW2]interface g1/0/3.2
[FW2-GigabitEthernet1/0/3.2]ip add
[FW2-GigabitEthernet1/0/3.2]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/3.2]vlan-type dot1q 404
[FW2]interface g1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30

[FW2]firewall zone trust
[FW2-zone-trust]add interface g1/0/2.1
[FW2-zone-trust]add interface g1/0/2.2
[FW2]firewall zone untrust
[FW2-zone-untrust]add interface  g1/0/3.1
[FW2-zone-untrust]add interface  g1/0/3.2
[FW2]firewall zone dmz
[FW2-zone-dmz]add int g1/0/0

[FW2]interface g1/0/2.1
[FW2-GigabitEthernet1/0/2.1]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2]interface g1/0/2.2
[FW2-GigabitEthernet1/0/2.2]vrrp vrid 6 virtual-ip 10.40.2.200 active
[FW2]interface g1/0/3.1
[FW2-GigabitEthernet1/0/3.1]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2]interface g1/0/3.2
[FW2-GigabitEthernet1/0/3.2]vrrp vrid 8 virtual-ip 10.40.4.200 active

[FW2]hrp mirror session enable
[FW2]hrp interface g1/0/0 remote 10.10.10.1
[FW2]hrp enable

HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.4.100
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.2.100

安全策略：

HRP_M[FW1]security-policy  (+B)
HRP_M[FW1-policy-security]rule name  t_to_u (+B)
HRP_M[FW1-policy-security-rule-t_to_u]source-zone trust  (+B)
HRP_M[FW1-policy-security-rule-t_to_u]destination-zone untrust  (+B)
HRP_M[FW1-policy-security-rule-t_to_u]source-address 192.168.0.0 16 (+B)
HRP_M[FW1-policy-security-rule-t_to_u]action permit  (+B)

核心到边界配置

SW1的配置：

[sw1]vlan batch 201 105
[sw1]interface g0/0/2
[sw1-GigabitEthernet0/0/2]port trunk allow-pass  vlan 201
[sw1-GigabitEthernet0/0/2]undo stp enable
[sw1]interface g0/0/7
[sw1-GigabitEthernet0/0/7]port link-type access
[sw1-GigabitEthernet0/0/7]port default  vlan 105
[sw1-GigabitEthernet0/0/7]undo stp enable
[sw1]interface Vlanif 201
[sw1-Vlanif201]ip add 10.20.1.1 24
[sw1]interface  Vlanif 105
[sw1-Vlanif105]ip add 10.10.5.1 24

OSPF：
[sw1]ospf 2 router-id 1.1.1.1
[sw1-ospf-2-area-0.0.0.0]network 10.20.1.1 0.0.0.0
[sw1-ospf-2-area-0.0.0.0]network 10.10.5.1 0.0.0.0

[sw1]ospf 2
[sw1-ospf-2]import-route static

SW2的配置（）：

[sw2]vlan batch 201 206
[sw2]interface g0/0/2
[sw2-GigabitEthernet0/0/2]port trunk allow-pass vlan 201
[sw2-GigabitEthernet0/0/2]undo stp enable
[sw2]interface g0/0/7
[sw2-GigabitEthernet0/0/7]port link-type access
[sw2-GigabitEthernet0/0/7]port default vlan 206
[sw2-GigabitEthernet0/0/7]undo stp enable
[sw2]interface Vlanif 201
[sw2-Vlanif201]ip add 10.20.1.2 24
[sw2]interface Vlanif 206
[sw2-Vlanif206]ip add 10.20.6.1 24

OSPF：
[sw2]ospf 2 router-id 2.2.2.2
[sw2-ospf-2]area 0
[sw2-ospf-2-area-0.0.0.0]network 10.20.1.2 0.0.0.0
[sw2-ospf-2-area-0.0.0.0]network 10.20.6.1 0.0.0.0

[sw2]ospf 2
[sw2-ospf-2]import-route static

 R5的配置：

[R5]interface g0/0/0
[R5-GigabitEthernet0/0/0]ip add 10.10.5.2 24
[R5]interface g0/0/1
[R5-GigabitEthernet0/0/1]ip add 10.56.0.1 24
[R5-GigabitEthernet0/0/2]ip add 12.0.0.1 24

OSPF：
[R5]ospf 1 router-id 5.5.5.5
[R5-ospf-1-area-0.0.0.0]network 10.56.0.1 0.0.0.0
[R5-ospf-1-area-0.0.0.0]network 10.10.5.2 0.0.0.0
[R5]ip route-static 0.0.0.0 0 12.0.0.2
[R5-ospf-1]default-route-advertise

[R5]acl 2000
[R5-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R5]interface g0/0/2
[R5-GigabitEthernet0/0/2]nat outbound 2000

 R6的配置：

[R6]interface g0/0/0
[R6-GigabitEthernet0/0/0]ip add 10.20.6.2 24
[R6]int g0/0/1
[R6-GigabitEthernet0/0/1]ip add 10.56.0.2 24
[R6-GigabitEthernet0/0/2]ip add 13.0.0.1 24

OSPF：
[R6]ospf 1 router-id 6.6.6.6
[R6-ospf-1]area 0
[R6-ospf-1-area-0.0.0.0]network 10.56.0.2 0.0.0.0
[R6-ospf-1-area-0.0.0.0]network 10.20.6.2 0.0.0.0
[R6]ip route-static 0.0.0.0 0 13.0.0.2
[R6-ospf-1]default-route-advertise


[R6]acl 2000
[R6-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R6]interface g0/0/2
[R6-GigabitEthernet0/0/2]nat outbound 2000

 ISP的配置：

[ISP]interface g0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.2 24
[ISP]int g0/0/1
[ISP-GigabitEthernet0/0/1]ip address 13.0.0.2 24
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1

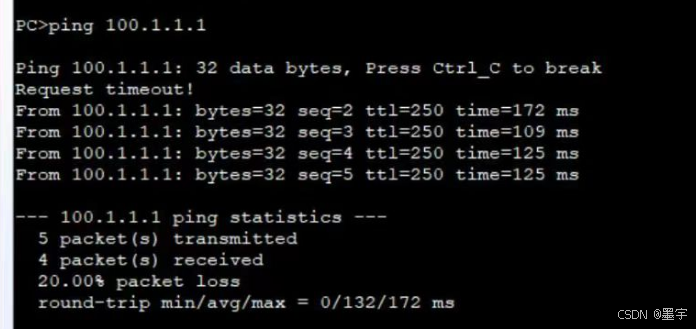

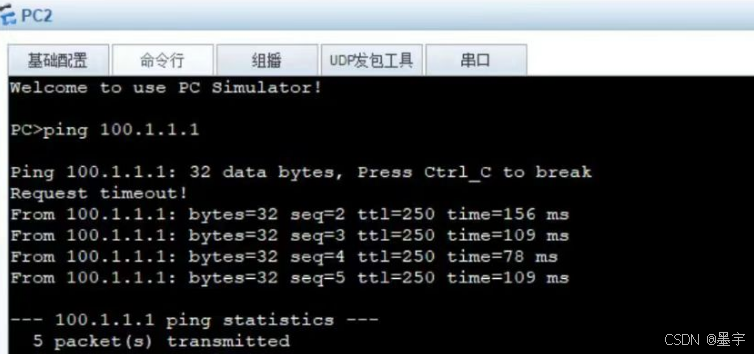

测试：
