golang可观测-无侵入式agent技术原理
继上一篇 golang可观测设计 之后，准备写一篇关于golang-agent的技术原理，讲一下为什么go可以像java一样做到优雅的无侵入式可观测插桩。 这个项目源自阿里巴巴的龙蜥社区git项目 github.com/alibaba/loongsuite-go-agent，在一次机缘巧合下了解到这个项目，一开始用的是阿里云arms的商业版对ack环境的go服务进行增强，后来由于成本问题，决定对项目进行二次开发，在经过一段时间的深入理解之后，我们也成功的开发了许多企业特性的功能，本文主要面向go开发介绍一下这个项目所使用到的技术原理。

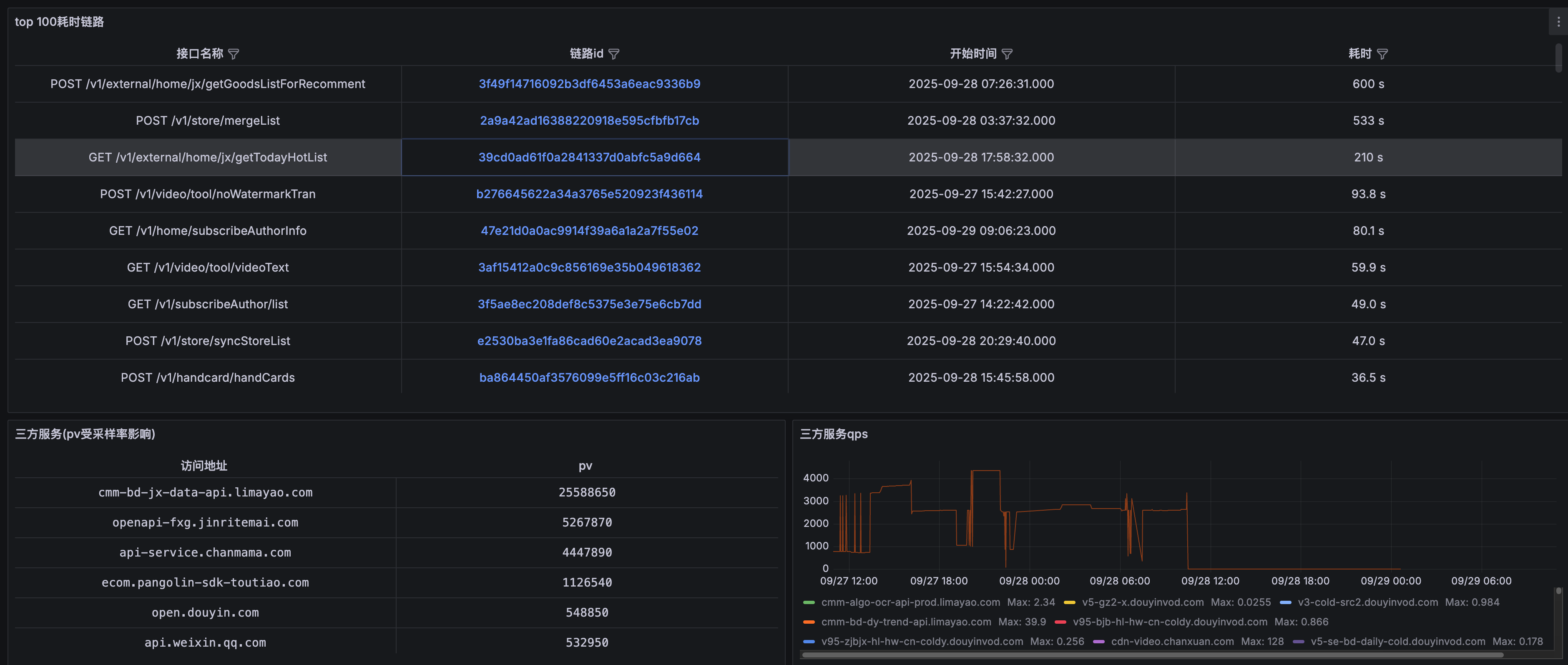

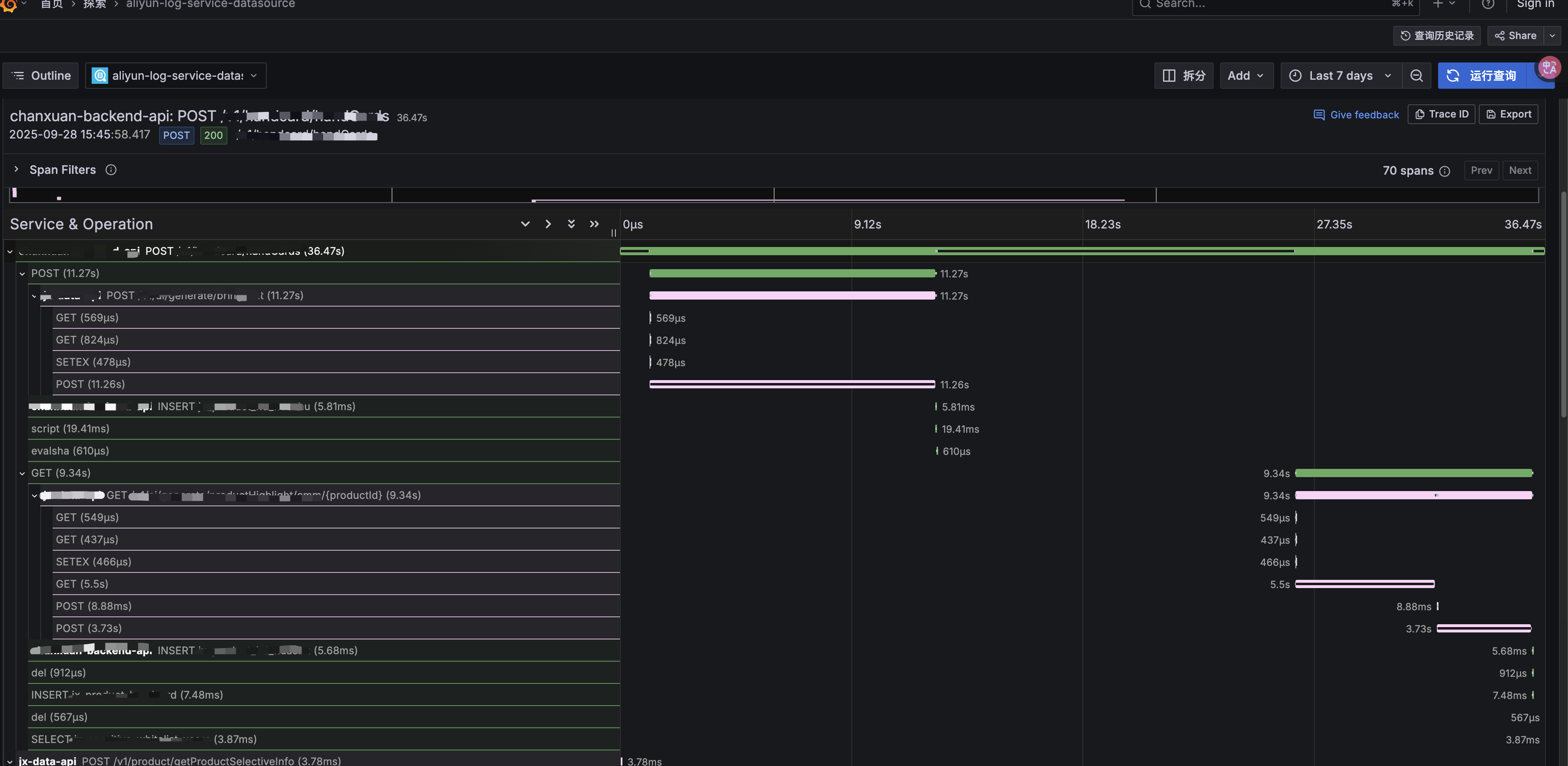

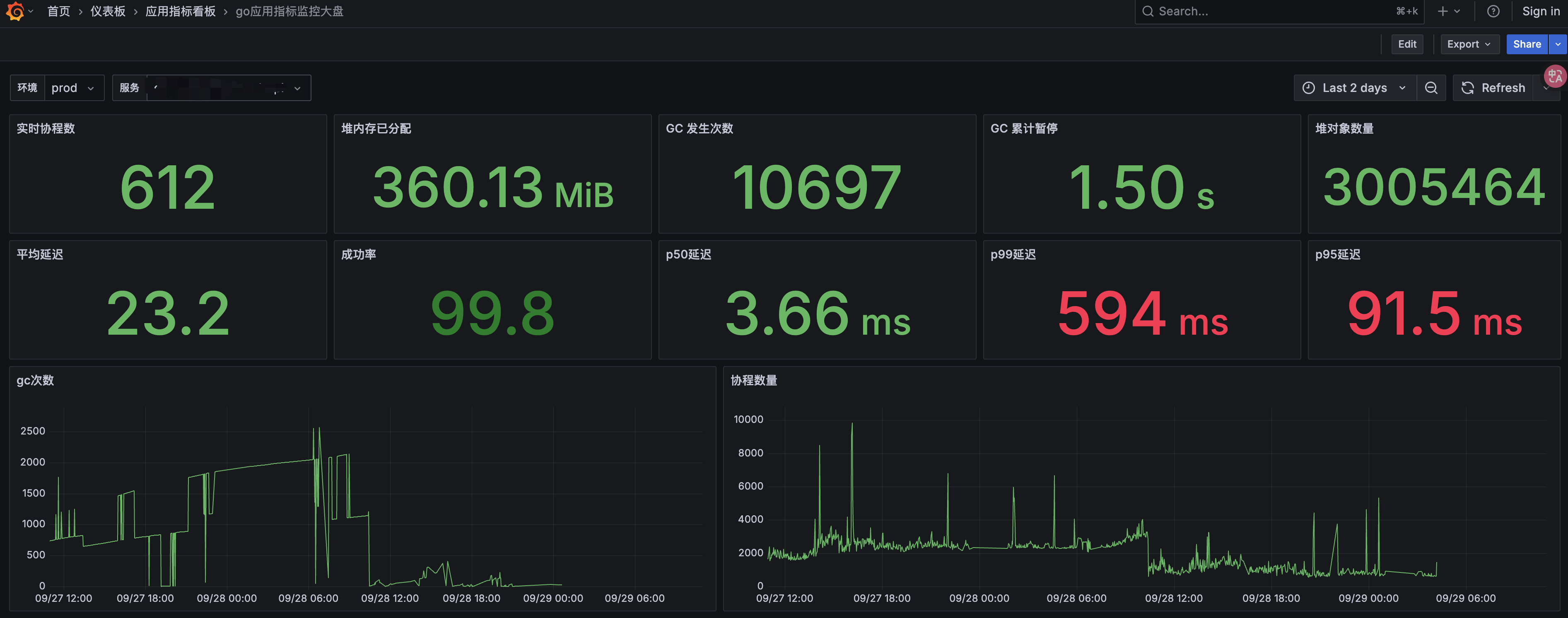

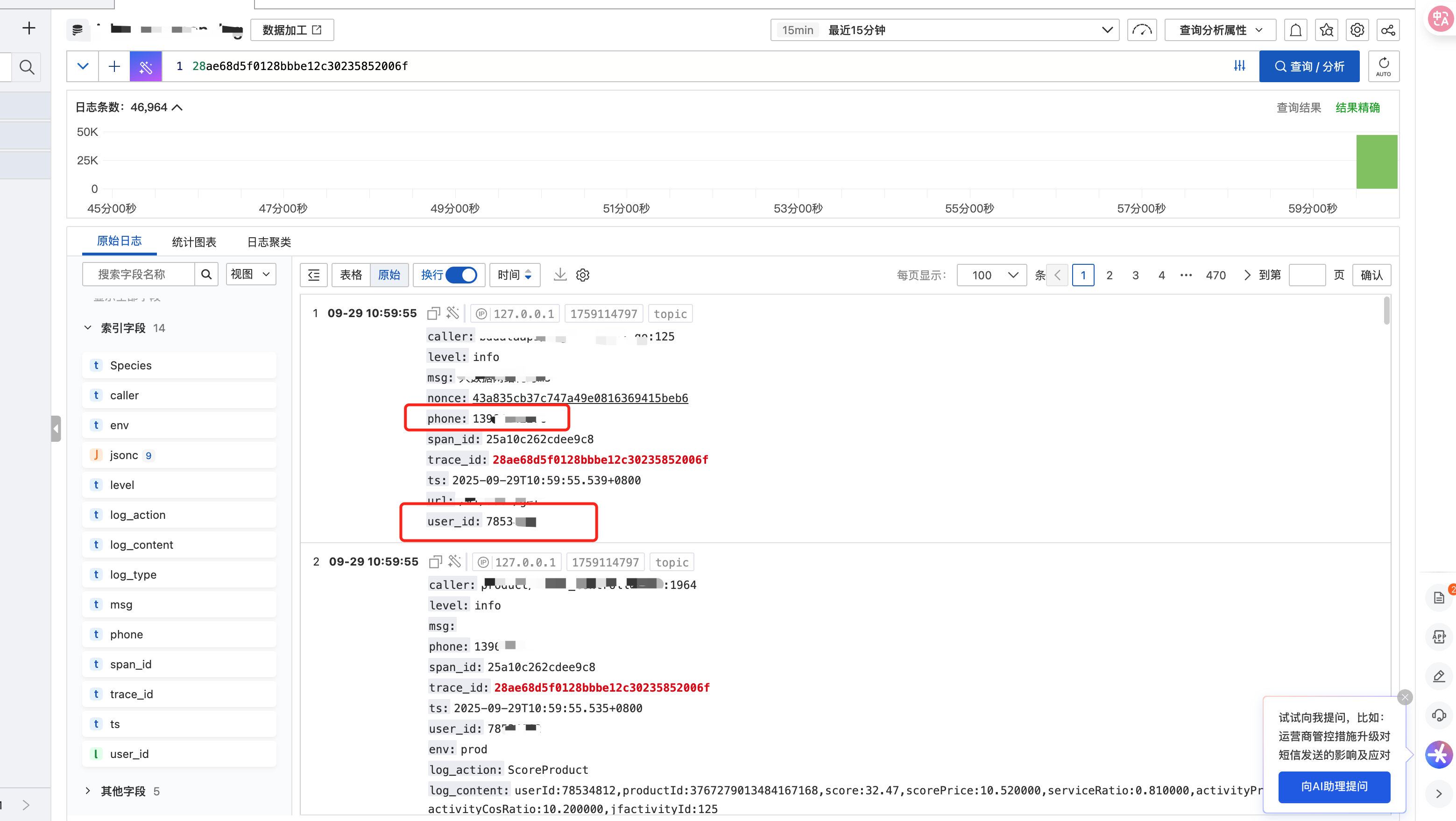

先晒几张图看一下我们的成果：
搭建这一套观测系统对于现有go项目没有植入任何一行代码，整体只花费了大概一天时间。
概述
本文档从宏观到微观，全面深度解析 otel go build 无侵入式插桩系统的完整技术实现机制。该系统是一个革命性的Go语言可观测性解决方案，通过编译时代码注入、AST操作、Goroutine Local Storage (GLS) 和 go:linkname 等先进技术的巧妙结合，实现了在完全不修改业务源码的情况下为Go应用添加企业级的分布式追踪、性能监控和可观测性能力。
一、系统架构全景图
1.1 宏观架构设计理念
otel工具基于"编译时插桩 + 运行时追踪"的创新设计模式，将传统的侵入式监控转变为完全透明的无侵入式方案：
用户视角：otel go build main.go (完全透明，如同原生go build)↓
系统内部：复杂的多阶段处理流程↓
最终结果：带有完整追踪能力的可执行文件
设计哲学：
- 透明性：用户无需学习新的API或修改代码
- 完整性：提供企业级的全链路追踪能力
- 高性能：编译时优化，运行时开销最小化
- 兼容性：支持Go生态中的主流框架和库
1.2 完整系统架构流程图
┌─────────────────────────────────────────────────────────────────────────────────┐
│ otel go build 完整处理流程 │
└─────────────────────────────────────────────────────────────────────────────────┘│▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ 命令解析器 │───▶│ 依赖分析器 │───▶│ 规则加载器 │───▶│ 项目扫描器 │
│ (cmd.go) │ │ (dependency) │ │ (rule_loader) │ │ (scanner.go) │
│ │ │ │ │ │ │ │
│ • 解析build参数 │ │ • 分析go.mod │ │ • 加载插桩规则 │ │ • 扫描源文件 │
│ • 识别目标文件 │ │ • 识别依赖框架 │ │ • 匹配适用规则 │ │ • 构建文件树 │
└─────────────────┘ └─────────────────┘ └─────────────────┘ └─────────────────┘│▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ AST解析器 │───▶│ 代码注入器 │───▶│ 模板处理器 │───▶│ 代码生成器 │
│ (parser.go) │ │ (injector.go) │ │ (template.go) │ │ (generator.go) │
│ │ │ │ │ │ │ │
│ • 解析Go源码 │ │ • 结构体字段注入 │ │ • 生成trampoline │ │ • 生成最终代码 │
│ • 构建AST树 │ │ • 函数体插桩 │ │ • 处理钩子函数 │ │ • 保持格式注释 │
│ • 保留元信息 │ │ • 运行时替换 │ │ • 错误恢复机制 │ │ • 写入临时文件 │
└─────────────────┘ └─────────────────┘ └─────────────────┘ └─────────────────┘│▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ 编译协调器 │───▶│ 链接处理器 │───▶│ 运行时注入器 │───▶│ 最终输出 │
│ (compiler.go) │ │ (linker.go) │ │ (runtime.go) │ │ (output) │
│ │ │ │ │ │ │ │
│ • 调用go build │ │ • 链接追踪库 │ │ • 注入GLS代码 │ │ • 可执行文件 │
│ • 传递原始参数 │ │ • 处理符号表 │ │ • 设置linkname │ │ • 调试信息 │
│ • 错误处理 │ │ • 优化二进制 │ │ • 初始化追踪 │ │ • 性能报告 │
└─────────────────┘ └─────────────────┘ └─────────────────┘ └─────────────────┘
1.3 核心技术栈架构
┌─────────────────────────────────────────────────────────────────┐
│ 技术栈分层架构 │
├─────────────────────────────────────────────────────────────────┤
│ 用户接口层 │ otel go build (命令行工具) │
├─────────────────────────────────────────────────────────────────┤
│ 编译时层 │ AST操作 │ 代码注入 │ 规则引擎 │ 模板系统 │
├─────────────────────────────────────────────────────────────────┤
│ 运行时层 │ GLS机制 │ 上下文传播 │ 追踪收集 │ 性能监控 │
├─────────────────────────────────────────────────────────────────┤
│ 系统调用层 │ go:linkname │ 内存操作 │ goroutine扩展 │
├─────────────────────────────────────────────────────────────────┤
│ 底层支撑 │ Go Runtime │ 操作系统 │ 硬件平台 │
└─────────────────────────────────────────────────────────────────┘
二、启动流程与命令分发深度解析
2.1 命令入口点的技术实现
2.1.1 main.go 的设计模式
main.go 采用了经典的命令分发器模式（Command Dispatcher Pattern），这种设计具有以下优势：
func main() {// 1. 环境检查和初始化if err := checkEnvironment(); err != nil {log.Fatal("Environment check failed:", err)}// 2. 全局配置加载config := loadGlobalConfig()// 3. 命令行参数解析args := os.Args[1:]if len(args) == 0 {showUsage()return}// 4. 命令分发核心逻辑switch args[0] {case "build":buildCmd(args[1:], config)case "run":runCmd(args[1:], config)case "test":testCmd(args[1:], config)case "version":versionCmd()case "help":helpCmd(args[1:])default:// 兼容性处理：如果不是已知命令，尝试作为go命令处理fallbackToGoCommand(args, config)}
}
技术要点：
- 向后兼容性：未知命令自动转发给原生go工具
- 配置管理：支持全局配置和项目级配置
- 错误处理：完善的错误处理和用户友好的错误信息
- 扩展性：易于添加新的子命令
2.1.2 参数解析的高级技术
系统使用了自定义的参数解析器，而不是标准的flag包，原因如下：
type BuildArgs struct {// Go build 原生参数Output string // -o 输出文件名BuildMode string // -buildmode 构建模式Tags []string // -tags 构建标签LdFlags string // -ldflags 链接器标志GcFlags string // -gcflags 编译器标志Race bool // -race 竞态检测// otel 扩展参数Debug bool // --otel-debug 调试模式Rules string // --otel-rules 自定义规则文件Output string // --otel-output 追踪输出配置Sampling float64 // --otel-sampling 采样率
}func parseArgs(args []string) (*BuildArgs, error) {buildArgs := &BuildArgs{}// 使用状态机解析参数state := parseStateNormalfor i, arg := range args {switch state {case parseStateNormal:if strings.HasPrefix(arg, "--otel-") {// 处理otel专用参数handleOtelArg(arg, args[i+1:], buildArgs)} else if strings.HasPrefix(arg, "-") {// 处理go build原生参数handleGoArg(arg, args[i+1:], buildArgs)} else {// 处理位置参数（包名、文件名等）buildArgs.Packages = append(buildArgs.Packages, arg)}}}return buildArgs, nil
}
2.2 Build命令的完整处理流程
2.2.1 预处理阶段详细流程
┌─────────────────────────────────────────────────────────────────┐
│ 预处理阶段流程图 │
└─────────────────────────────────────────────────────────────────┘│▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ 环境检查 │───▶│ 项目分析 │───▶│ 依赖解析 │
│ │ │ │ │ │
│ • Go版本检查 │ │ • 检测go.mod │ │ • 解析依赖树 │
│ • 工具链验证 │ │ • 识别项目类型 │ │ • 版本兼容性 │
│ • 权限检查 │ │ • 确定构建目标 │ │ • 框架识别 │
└─────────────────┘ └─────────────────┘ └─────────────────┘│▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ 规则匹配 │───▶│ 文件扫描 │───▶│ 缓存检查 │
│ │ │ │ │ │
│ • 加载规则库 │ │ • 递归扫描源码 │ │ • 检查构建缓存 │
│ • 匹配适用规则 │ │ • 过滤目标文件 │ │ • 增量构建优化 │
│ • 规则优先级排序 │ │ • 构建依赖图 │ │ • 缓存失效检测 │
└─────────────────┘ └─────────────────┘ └─────────────────┘
2.2.2 核心处理逻辑的技术实现
func buildCmd(args []string, config *Config) error {// 第一阶段：预处理buildArgs, err := parseArgs(args)if err != nil {return fmt.Errorf("argument parsing failed: %w", err)}// 第二阶段：项目分析project, err := analyzeProject(buildArgs)if err != nil {return fmt.Errorf("project analysis failed: %w", err)}// 第三阶段：规则加载和匹配ruleEngine := NewRuleEngine(config)applicableRules, err := ruleEngine.LoadAndMatch(project)if err != nil {return fmt.Errorf("rule matching failed: %w", err)}// 第四阶段：AST处理和代码注入processor := NewASTProcessor(project, applicableRules)modifiedFiles, err := processor.ProcessAll()if err != nil {return fmt.Errorf("AST processing failed: %w", err)}// 第五阶段：代码生成generator := NewCodeGenerator(modifiedFiles)tempDir, err := generator.GenerateAll()if err != nil {return fmt.Errorf("code generation failed: %w", err)}defer cleanup(tempDir)// 第六阶段：编译执行compiler := NewCompiler(buildArgs, tempDir)return compiler.Build()
}
2.3 错误处理和恢复机制
2.3.1 分层错误处理策略
// 错误类型定义
type ErrorType intconst (ErrorTypeUser ErrorType = iota // 用户错误（参数错误等）ErrorTypeSystem // 系统错误（文件IO等）ErrorTypeCompiler // 编译器错误ErrorTypeRuntime // 运行时错误
)type OtelError struct {Type ErrorTypeCode stringMessage stringCause errorContext map[string]interface{}
}func (e *OtelError) Error() string {return fmt.Sprintf("[%s] %s: %s", e.Code, e.Message, e.Cause)
}// 错误处理中间件
func withErrorHandling(fn func() error) error {defer func() {if r := recover(); r != nil {// 记录panic信息logPanic(r)// 清理临时文件cleanup()// 转换为用户友好的错误信息convertPanicToError(r)}}()return fn()
}
2.3.2 智能错误恢复
func smartErrorRecovery(err error, context *BuildContext) error {switch e := err.(type) {case *OtelError:switch e.Type {case ErrorTypeCompiler:// 编译错误：尝试降级处理return tryFallbackBuild(context)case ErrorTypeSystem:// 系统错误：检查权限和磁盘空间return checkSystemResources(context)case ErrorTypeUser:// 用户错误：提供修复建议return suggestFix(e, context)}}return err
}
三、AST增强技术深度解析
3.1 AST解析器架构深入分析
3.1.1 为什么选择dst库而不是标准库
系统使用 github.com/dave/dst 库进行AST操作，相比标准库的优势：
// 标准库 go/ast 的局限性
import ("go/ast""go/parser""go/format"
)// 问题1：丢失注释信息
func parseWithStandardLib(filename string) {fset := token.NewFileSet()file, err := parser.ParseFile(fset, filename, nil, parser.ParseComments)// 修改AST后，注释信息会丢失// 问题2：格式化信息丢失var buf bytes.Bufferformat.Node(&buf, fset, file) // 原有的代码格式会被标准化
}// dst库的解决方案
import "github.com/dave/dst"type AstParser struct {decorator *decorator.Decorator // 装饰器：保留格式信息restorer *decorator.Restorer // 恢复器：还原格式信息cache map[string]*dst.File // 缓存：避免重复解析mutex sync.RWMutex // 并发安全
}func NewAstParser() *AstParser {return &AstParser{decorator: decorator.NewDecorator(token.NewFileSet()),restorer: decorator.NewRestorer(),cache: make(map[string]*dst.File),}
}func (p *AstParser) ParseFile(filename string) (*dst.File, error) {// 检查缓存p.mutex.RLock()if cached, exists := p.cache[filename]; exists {p.mutex.RUnlock()return cached, nil}p.mutex.RUnlock()// 解析文件，保留所有格式信息file, err := p.decorator.ParseFile(filename)if err != nil {return nil, fmt.Errorf("failed to parse %s: %w", filename, err)}// 缓存结果p.mutex.Lock()p.cache[filename] = filep.mutex.Unlock()return file, nil
}
3.1.2 AST节点遍历的高级技术
// 自定义访问器模式
type NodeVisitor struct {rules []InstrumentationRulecontext *VisitContexttransforms []NodeTransform
}type VisitContext struct {CurrentFile *dst.FileCurrentPackage stringImportMap map[string]stringSymbolTable *SymbolTableScopeStack []*Scope
}func (v *NodeVisitor) Visit(node dst.Node) dst.Visitor {switch n := node.(type) {case *dst.FuncDecl:return v.visitFunction(n)case *dst.StructType:return v.visitStruct(n)case *dst.CallExpr:return v.visitCall(n)case *dst.ImportSpec:return v.visitImport(n)default:return v}
}func (v *NodeVisitor) visitFunction(fn *dst.FuncDecl) dst.Visitor {// 检查函数是否需要插桩if !v.shouldInstrument(fn) {return nil // 跳过此节点的子节点}// 创建新的作用域scope := NewScope(fn)v.context.ScopeStack = append(v.context.ScopeStack, scope)defer func() {// 退出作用域v.context.ScopeStack = v.context.ScopeStack[:len(v.context.ScopeStack)-1]}()// 应用函数级别的转换for _, transform := range v.transforms {if transform.AppliesTo(fn) {transform.Apply(fn, v.context)}}return v
}
3.2 代码注入技术的深度实现
3.2.1 结构体字段注入的完整机制
type StructFieldInjector struct {targetStructs map[string][]FieldInjectiontypeChecker *TypeChecker
}type FieldInjection struct {FieldName stringFieldType stringTags stringPosition InjectionPosition // Before, After, Replace
}func (s *StructFieldInjector) InjectFields(structType *dst.StructType, structName string) error {injections, exists := s.targetStructs[structName]if !exists {return nil}for _, injection := range injections {field := &dst.Field{Names: []*dst.Ident{dst.NewIdent(injection.FieldName)},Type: s.parseType(injection.FieldType),}// 添加标签if injection.Tags != "" {field.Tag = &dst.BasicLit{Kind: token.STRING,Value: fmt.Sprintf("`%s`", injection.Tags),}}// 根据位置插入字段switch injection.Position {case InjectionPositionBefore:structType.Fields.List = append([]*dst.Field{field}, structType.Fields.List...)case InjectionPositionAfter:structType.Fields.List = append(structType.Fields.List, field)case InjectionPositionReplace:// 替换逻辑s.replaceField(structType, field, injection)}}return nil
}// 实际注入示例
func injectTraceFields() {// 原始代码type User struct {ID int `json:"id"`Name string `json:"name"`}// 注入后代码（概念展示）type User struct {// 注入的追踪字段（在最前面）_otel_trace_context *TraceContext `json:"-" otel:"trace"`_otel_baggage_data *BaggageData `json:"-" otel:"baggage"`// 原有字段ID int `json:"id"`Name string `json:"name"`// 注入的元数据字段（在最后面）_otel_metadata map[string]interface{} `json:"-" otel:"metadata"`}
}
3.2.2 函数体注入的精密控制
type FunctionInjector struct {entryHooks []HookFunctionexitHooks []HookFunctionerrorHooks []HookFunction
}type HookFunction struct {Name stringTemplate stringParameters []ParameterCondition func(*dst.FuncDecl) bool
}func (f *FunctionInjector) InjectHooks(fn *dst.FuncDecl) error {// 1. 分析函数签名signature := f.analyzeFunctionSignature(fn)// 2. 生成入口代码entryCode := f.generateEntryCode(fn, signature)// 3. 生成出口代码exitCode := f.generateExitCode(fn, signature)// 4. 处理错误返回errorCode := f.generateErrorHandling(fn, signature)// 5. 注入到函数体return f.injectIntoBody(fn, entryCode, exitCode, errorCode)
}func (f *FunctionInjector) generateEntryCode(fn *dst.FuncDecl, sig *FunctionSignature) []dst.Stmt {var stmts []dst.Stmt// 生成span开始代码spanStart := &dst.AssignStmt{Lhs: []dst.Expr{dst.NewIdent("_otel_span"),dst.NewIdent("_otel_ctx"),},Tok: token.DEFINE,Rhs: []dst.Expr{&dst.CallExpr{Fun: &dst.SelectorExpr{X: dst.NewIdent("otel"),Sel: dst.NewIdent("StartSpan"),},Args: []dst.Expr{&dst.BasicLit{Kind: token.STRING,Value: fmt.Sprintf(`"%s"`, sig.Name),},},},},}stmts = append(stmts, spanStart)// 生成defer语句deferStmt := &dst.DeferStmt{Call: &dst.CallExpr{Fun: &dst.SelectorExpr{X: dst.NewIdent("_otel_span"),Sel: dst.NewIdent("End"),},},}stmts = append(stmts, deferStmt)// 参数记录if sig.HasParameters {paramRecording := f.generateParameterRecording(sig.Parameters)stmts = append(stmts, paramRecording...)}return stmts
}// 复杂函数注入示例
func complexFunctionInjection() {// 原始函数func ProcessOrder(ctx context.Context, orderID string, items []Item) (*Order, error) {// 业务逻辑order := &Order{ID: orderID}for _, item := range items {order.AddItem(item)}return order, nil}// 注入后函数（概念展示）func ProcessOrder(ctx context.Context, orderID string, items []Item) (*Order, error) {// === 入口注入代码开始 ===_otel_span, _otel_ctx := otel.StartSpan("ProcessOrder")defer func() {// 错误处理if r := recover(); r != nil {_otel_span.RecordError(fmt.Errorf("panic: %v", r))_otel_span.SetStatus(codes.Error, "panic occurred")panic(r) // 重新抛出panic}_otel_span.End()}()// 参数记录_otel_span.SetAttributes(attribute.String("order_id", orderID),attribute.Int("items_count", len(items)),)// 上下文传播ctx = _otel_ctx// === 入口注入代码结束 ===// 原始业务逻辑order := &Order{ID: orderID}for _, item := range items {order.AddItem(item)}// === 出口注入代码开始 ===if order != nil {_otel_span.SetAttributes(attribute.String("result_order_id", order.ID),attribute.Int("result_items_count", len(order.Items)),)}// === 出口注入代码结束 ===return order, nil}
}
3.2.3 智能代码生成与优化
type CodeGenerator struct {optimizer *CodeOptimizervalidator *CodeValidatorformatter *CodeFormattertemplateMgr *TemplateManager
}func (g *CodeGenerator) GenerateOptimizedCode(node dst.Node) (string, error) {// 1. 生成基础代码baseCode, err := g.generateBaseCode(node)if err != nil {return "", err}// 2. 应用优化optimizedCode, err := g.optimizer.Optimize(baseCode)if err != nil {return "", err}// 3. 验证代码正确性if err := g.validator.Validate(optimizedCode); err != nil {return "", err}// 4. 格式化代码formattedCode, err := g.formatter.Format(optimizedCode)if err != nil {return "", err}return formattedCode, nil
}type CodeOptimizer struct {optimizations []OptimizationRule
}type OptimizationRule struct {Name stringPattern stringTransform func(code string) stringEnabled bool
}func (o *CodeOptimizer) Optimize(code string) (string, error) {result := codefor _, rule := range o.optimizations {if !rule.Enabled {continue}// 应用优化规则optimized := rule.Transform(result)// 验证优化是否有效if len(optimized) < len(result) || o.isMoreEfficient(optimized, result) {result = optimized}}return result, nil
}// 优化示例：消除冗余的span创建
func eliminateRedundantSpans() OptimizationRule {return OptimizationRule{Name: "eliminate_redundant_spans",Pattern: `_otel_span\d*, _otel_ctx\d* := otel\.StartSpan\("([^"]+)"\)\s*defer _otel_span\d*\.End\(\)\s*_otel_span\d*, _otel_ctx\d* := otel\.StartSpan\("\1"\)`,Transform: func(code string) string {// 检测并合并相同名称的连续spanre := regexp.MustCompile(`(_otel_span\d*), (_otel_ctx\d*) := otel\.StartSpan\("([^"]+)"\)\s*defer \1\.End\(\)\s*\1, \2 := otel\.StartSpan\("\3"\)`)return re.ReplaceAllString(code, `$1, $2 := otel.StartSpan("$3")
defer $1.End()`)},Enabled: true,}
}
3.3 Trampoline代码模板
template.go 定义了trampoline代码的标准模板：
type CallContextImpl struct {Params []interface{} // 函数参数ReturnVals []interface{} // 返回值SkipCall bool // 是否跳过原函数调用Data map[string]interface{} // 自定义数据FuncName string // 函数名PkgName string // 包名
}func OtelOnEnterTrampoline(ctx *CallContextImpl) {// 函数入口处理逻辑defer func() {if r := recover(); r != nil {// 错误恢复机制OtelPrintStackImpl(OtelGetStackImpl())}}()// 调用用户定义的OnEnter钩子if onEnterHook != nil {onEnterHook(ctx)}
}
四、GLS（Goroutine Local Storage）技术深度剖析
4.1 GLS的底层实现原理
4.1.1 Go运行时内部结构的深度解析
GLS技术的核心在于直接操作Go运行时的内部数据结构。让我们深入了解其实现机制：
// Go运行时内部结构（简化版）
type g struct {// 标准字段stack stack // 栈信息stackguard0 uintptr // 栈保护stackguard1 uintptr // 栈保护_panic *_panic // panic链表_defer *_defer // defer链表m *m // 当前绑定的Msched gobuf // 调度信息// === otel注入的字段（通过base.json规则） ===otel_user_context interface{} // 用户上下文otel_trace_context interface{} // 追踪上下文 otel_baggage_container interface{} // 行李数据
}// M结构（Machine，OS线程的抽象）
type m struct {g0 *g // 调度goroutinecurg *g // 当前运行的goroutinep puintptr // 绑定的Pnextp puintptr // 下一个Poldp puintptr // 之前的P// ... 其他字段
}
4.1.2 getg()函数的黑魔法
getg() 是Go运行时的内部函数，用于获取当前goroutine的指针：
// runtime_linker.go 中的实现
//go:linkname _otel_gls_getg_impl runtime.getg
func _otel_gls_getg_impl() *g// 实际使用
func getCurrentGoroutine() *g {return _otel_gls_getg_impl()
}// 汇编层面的实现（概念展示）
// func getg() *g
// 在AMD64架构下：
// MOVQ (TLS), AX // 从TLS获取当前g的地址
// MOVQ AX, ret+0(FP) // 返回g指针
// RET// 在ARM64架构下：
// MOVD g, R0 // g寄存器存储当前goroutine
// MOVD R0, ret+0(FP)
// RET
4.1.3 内存布局和字段访问
// 字段访问的底层实现
func setUserContextToGLS(ctx interface{}) {g := _otel_gls_getg_impl()// 直接操作内存偏移// 这里的偏移量是在编译时通过base.json规则确定的*(*interface{})(unsafe.Pointer(uintptr(unsafe.Pointer(g)) + otel_user_context_offset)) = ctx
}func getUserContextFromGLS() interface{} {g := _otel_gls_getg_impl()return *(*interface{})(unsafe.Pointer(uintptr(unsafe.Pointer(g)) + otel_user_context_offset))
}// 内存布局示意图
/*
goroutine内存布局:
+-------------------+ <- g指针
| stack | +0x00
| stackguard0 | +0x08
| stackguard1 | +0x10
| _panic | +0x18
| _defer | +0x20
| m | +0x28
| sched | +0x30
| ... |
| otel_user_context | +0x180 (注入字段)
| otel_trace_context| +0x188 (注入字段)
| otel_baggage_cont | +0x190 (注入字段)
+-------------------+
*/
4.2 上下文传播机制的深度实现
4.2.1 goroutine创建时的上下文继承
// runtime.newproc1 的插桩实现
//go:linkname _otel_original_newproc1 runtime.newproc1
func _otel_original_newproc1(fn *funcval, argp unsafe.Pointer, narg int32, callergp *g, callerpc uintptr) *gfunc _otel_instrumented_newproc1(fn *funcval, argp unsafe.Pointer, narg int32, callergp *g, callerpc uintptr) *g {// 调用原始函数创建新goroutinenewg := _otel_original_newproc1(fn, argp, narg, callergp, callerpc)// 从父goroutine继承上下文if callergp != nil {// 继承用户上下文parentUserCtx := getUserContextFromGoroutine(callergp)if parentUserCtx != nil {setUserContextToGoroutine(newg, parentUserCtx)}// 继承追踪上下文parentTraceCtx := getTraceContextFromGoroutine(callergp)if parentTraceCtx != nil {setTraceContextToGoroutine(newg, parentTraceCtx)}// 继承行李数据parentBaggage := getBaggageFromGoroutine(callergp)if parentBaggage != nil {setBaggageToGoroutine(newg, parentBaggage)}}return newg
}// 上下文传播的完整流程
func contextPropagationFlow() {// 1. 父goroutine设置上下文SetUserContext(map[string]interface{}{"user_id": "12345","request_id": "req-abc-123",})// 2. 创建子goroutinego func() {// 3. 子goroutine自动继承父上下文userCtx := GetUserContext()fmt.Printf("Child goroutine user_id: %v\n", userCtx["user_id"])// 4. 子goroutine可以修改自己的上下文，不影响父goroutineSetUserContextValue("child_data", "child_value")// 5. 创建孙子goroutinego func() {// 6. 孙子goroutine继承子goroutine的上下文userCtx := GetUserContext()fmt.Printf("Grandchild goroutine child_data: %v\n", userCtx["child_data"])}()}()
}
4.2.2 高性能的上下文快照机制
type ContextSnapshot struct {UserContext interface{}TraceContext interface{}BaggageData interface{}Timestamp int64GoroutineID int64
}type ContextSnapshoter struct {pool sync.Pool // 对象池，减少GC压力
}func NewContextSnapshoter() *ContextSnapshoter {return &ContextSnapshoter{pool: sync.Pool{New: func() interface{} {return &ContextSnapshot{}},},}
}func (cs *ContextSnapshoter) TakeSnapshot() *ContextSnapshot {snapshot := cs.pool.Get().(*ContextSnapshot)// 重置快照*snapshot = ContextSnapshot{}// 获取当前goroutineg := _otel_gls_getg_impl()// 快照用户上下文if userCtx := getUserContextFromGoroutine(g); userCtx != nil {snapshot.UserContext = deepCopy(userCtx)}// 快照追踪上下文if traceCtx := getTraceContextFromGoroutine(g); traceCtx != nil {snapshot.TraceContext = deepCopy(traceCtx)}// 快照行李数据if baggage := getBaggageFromGoroutine(g); baggage != nil {snapshot.BaggageData = deepCopy(baggage)}snapshot.Timestamp = time.Now().UnixNano()snapshot.GoroutineID = getGoroutineID(g)return snapshot
}func (cs *ContextSnapshoter) RestoreSnapshot(snapshot *ContextSnapshot) {if snapshot == nil {return}// 恢复用户上下文if snapshot.UserContext != nil {setUserContextToGLS(snapshot.UserContext)}// 恢复追踪上下文if snapshot.TraceContext != nil {setTraceContextToGLS(snapshot.TraceContext)}// 恢复行李数据if snapshot.BaggageData != nil {setBaggageToGLS(snapshot.BaggageData)}
}func (cs *ContextSnapshoter) ReleaseSnapshot(snapshot *ContextSnapshot) {if snapshot != nil {cs.pool.Put(snapshot)}
}
4.3 用户上下文API的完整实现
4.3.1 类型安全的上下文操作
// 用户上下文的内部表示
type UserContextData struct {data map[string]interface{}mutex sync.RWMutexdirty bool // 标记是否需要同步
}func (ucd *UserContextData) Get(key string) (interface{}, bool) {ucd.mutex.RLock()defer ucd.mutex.RUnlock()if ucd.data == nil {return nil, false}value, exists := ucd.data[key]return value, exists
}func (ucd *UserContextData) Set(key string, value interface{}) {ucd.mutex.Lock()defer ucd.mutex.Unlock()if ucd.data == nil {ucd.data = make(map[string]interface{})}ucd.data[key] = valueucd.dirty = true
}// 高级API实现
func SetUserContext(ctx map[string]interface{}) {if ctx == nil {return}// 创建新的上下文数据contextData := &UserContextData{data: make(map[string]interface{}),dirty: true,}// 复制数据for k, v := range ctx {contextData.data[k] = v}// 存储到GLSotel_set_user_context_to_gls(contextData)
}func GetUserContext() map[string]interface{} {contextData := otel_get_user_context_from_gls()if contextData == nil {return nil}if ucd, ok := contextData.(*UserContextData); ok {ucd.mutex.RLock()defer ucd.mutex.RUnlock()if ucd.data == nil {return nil}// 返回数据的副本，避免并发修改result := make(map[string]interface{})for k, v := range ucd.data {result[k] = v}return result}return nil
}func SetUserContextValue(key string, value interface{}) {contextData := otel_get_user_context_from_gls()var ucd *UserContextDataif contextData == nil {ucd = &UserContextData{data: make(map[string]interface{}),dirty: true,}otel_set_user_context_to_gls(ucd)} else {var ok boolucd, ok = contextData.(*UserContextData)if !ok {// 类型不匹配，创建新的ucd = &UserContextData{data: make(map[string]interface{}),dirty: true,}otel_set_user_context_to_gls(ucd)}}ucd.Set(key, value)
}func GetUserContextValue(key string) interface{} {contextData := otel_get_user_context_from_gls()if contextData == nil {return nil}if ucd, ok := contextData.(*UserContextData); ok {value, _ := ucd.Get(key)return value}return nil
}
4.3.2 性能优化和内存管理
// 上下文池管理
type ContextPool struct {userContextPool sync.PooltraceContextPool sync.PoolbaggagePool sync.Pool
}var globalContextPool = &ContextPool{userContextPool: sync.Pool{New: func() interface{} {return &UserContextData{data: make(map[string]interface{}, 8), // 预分配容量}},},traceContextPool: sync.Pool{New: func() interface{} {return &TraceContextData{}},},baggagePool: sync.Pool{New: func() interface{} {return &BaggageData{items: make(map[string]string, 4),}},},
}func AcquireUserContext() *UserContextData {ctx := globalContextPool.userContextPool.Get().(*UserContextData)ctx.mutex.Lock()// 清理旧数据for k := range ctx.data {delete(ctx.data, k)}ctx.dirty = falsectx.mutex.Unlock()return ctx
}func ReleaseUserContext(ctx *UserContextData) {if ctx != nil {globalContextPool.userContextPool.Put(ctx)}
}// 智能垃圾回收
func (ucd *UserContextData) cleanup() {ucd.mutex.Lock()defer ucd.mutex.Unlock()if len(ucd.data) > 100 { // 如果数据过多，重新创建mapucd.data = make(map[string]interface{}, 8)}ucd.dirty = false
}// 定期清理任务
func startContextCleanup() {ticker := time.NewTicker(5 * time.Minute)go func() {for range ticker.C {// 遍历所有活跃的goroutine，清理过期的上下文cleanupExpiredContexts()}}()
}
4.4 GLS的安全性和兼容性保障
4.4.1 版本兼容性检查
type RuntimeVersion struct {Major intMinor intPatch int
}var supportedVersions = []RuntimeVersion{{1, 18, 0}, {1, 19, 0}, {1, 20, 0}, {1, 21, 0}, {1, 22, 0},
}func checkRuntimeCompatibility() error {version := runtime.Version()current, err := parseVersion(version)if err != nil {return fmt.Errorf("failed to parse runtime version: %w", err)}for _, supported := range supportedVersions {if current.Major == supported.Major && current.Minor == supported.Minor {return nil}}return fmt.Errorf("unsupported Go version: %s", version)
}// 运行时字段偏移验证
func validateFieldOffsets() error {// 通过反射和unsafe操作验证字段偏移是否正确g := _otel_gls_getg_impl()// 验证otel_user_context字段expectedOffset := uintptr(0x180) // 从base.json获取actualOffset := unsafe.Offsetof(g.otel_user_context)if actualOffset != expectedOffset {return fmt.Errorf("otel_user_context offset mismatch: expected %d, got %d", expectedOffset, actualOffset)}return nil
}
4.4.2 错误恢复和降级机制
type GLSFallback struct {enabled boolcontextMap sync.Map // goroutine ID -> context data
}var glsFallback = &GLSFallback{}func enableFallbackMode() {glsFallback.enabled = truelog.Println("GLS fallback mode enabled")
}func setUserContextSafe(ctx interface{}) {defer func() {if r := recover(); r != nil {log.Printf("GLS operation failed, using fallback: %v", r)enableFallbackMode()setUserContextFallback(ctx)}}()if glsFallback.enabled {setUserContextFallback(ctx)return}otel_set_user_context_to_gls(ctx)
}func setUserContextFallback(ctx interface{}) {gid := getGoroutineID()glsFallback.contextMap.Store(gid, ctx)
}func getUserContextFallback() interface{} {gid := getGoroutineID()if ctx, ok := glsFallback.contextMap.Load(gid); ok {return ctx}return nil
}// 获取goroutine ID的备用方法
func getGoroutineID() int64 {var buf [64]byten := runtime.Stack(buf[:], false)idField := strings.Fields(strings.TrimPrefix(string(buf[:n]), "goroutine "))[0]id, _ := strconv.ParseInt(idField, 10, 64)return id
}
五、go:linkname黑魔法深度剖析
5.1 go:linkname的工作原理
5.1.1 编译器层面的符号链接机制
go:linkname 是Go编译器提供的一个特殊指令，允许将一个符号链接到另一个符号，实现对私有函数和变量的访问：
// go:linkname的基本语法
//go:linkname localname [importpath.name]// 示例1：链接到runtime包的私有函数
//go:linkname runtime_getg runtime.getg
func runtime_getg() *g// 示例2：将本地函数暴露给其他包
//go:linkname myFunction other/package.ExportedFunction
func myFunction() {}
5.1.2 符号表操作的底层机制
// 编译器在处理go:linkname时的内部流程
type LinkNameDirective struct {LocalSymbol string // 本地符号名RemoteSymbol string // 远程符号名Package string // 目标包路径
}func (c *Compiler) processLinkName(directive *LinkNameDirective) error {// 1. 解析符号信息localSym := c.lookupSymbol(directive.LocalSymbol)if localSym == nil {return fmt.Errorf("local symbol %s not found", directive.LocalSymbol)}// 2. 创建符号链接linkEntry := &SymbolLink{From: localSym,To: directive.RemoteSymbol,Type: SymbolTypeFunction, // 或 SymbolTypeVariable}// 3. 添加到链接表c.symbolLinks = append(c.symbolLinks, linkEntry)// 4. 在链接阶段解析return c.addPendingLink(linkEntry)
}// 链接器处理符号链接
func (l *Linker) resolveLinkNames() error {for _, link := range l.pendingLinks {// 查找目标符号targetSym := l.findSymbol(link.To)if targetSym == nil {return fmt.Errorf("target symbol %s not found", link.To)}// 建立链接关系link.From.Address = targetSym.Addresslink.From.Type = targetSym.Type// 更新重定位表l.updateRelocations(link)}return nil
}
5.2 runtime包访问的高级技术
5.2.1 获取goroutine指针的多种方法
// 方法1：直接链接getg函数（最高效）
//go:linkname runtime_getg runtime.getg
func runtime_getg() *gfunc getCurrentG() *g {return runtime_getg()
}// 方法2：通过反射获取（较慢，但更安全）
func getCurrentGReflection() *g {// 获取当前栈信息pc, _, _, ok := runtime.Caller(0)if !ok {return nil}// 通过栈信息推断goroutinefn := runtime.FuncForPC(pc)if fn == nil {return nil}// 这里需要更复杂的逻辑来获取g指针return getGFromStack()
}// 方法3：通过汇编实现（平台相关）
//go:noescape
//go:nosplit
func getgAsm() *g// getg_amd64.s
// TEXT ·getgAsm(SB), NOSPLIT, $0-8
// MOVQ (TLS), AX
// MOVQ AX, ret+0(FP)
// RET// getg_arm64.s
// TEXT ·getgAsm(SB), NOSPLIT, $0-8
// MOVD g, R0
// MOVD R0, ret+0(FP)
// RET
5.2.2 运行时函数替换的完整实现
// 函数替换的核心机制
type FunctionReplacer struct {originalFunctions map[string]uintptrreplacements map[string]uintptrmutex sync.RWMutex
}func NewFunctionReplacer() *FunctionReplacer {return &FunctionReplacer{originalFunctions: make(map[string]uintptr),replacements: make(map[string]uintptr),}
}// 替换runtime.newproc1函数
func (fr *FunctionReplacer) ReplaceNewproc1() error {// 1. 保存原始函数地址//go:linkname original_newproc1 runtime.newproc1var original_newproc1 func(*funcval, unsafe.Pointer, int32, *g, uintptr) *goriginalAddr := *(*uintptr)(unsafe.Pointer(&original_newproc1))fr.originalFunctions["runtime.newproc1"] = originalAddr// 2. 创建包装函数wrapper := func(fn *funcval, argp unsafe.Pointer, narg int32, callergp *g, callerpc uintptr) *g {// 调用原始函数newg := original_newproc1(fn, argp, narg, callergp, callerpc)// 执行上下文传播if callergp != nil && newg != nil {propagateContext(callergp, newg)}return newg}// 3. 替换函数指针wrapperAddr := *(*uintptr)(unsafe.Pointer(&wrapper))fr.replacements["runtime.newproc1"] = wrapperAddr// 4. 执行替换（这里需要修改内存保护）return fr.replaceFunction("runtime.newproc1", originalAddr, wrapperAddr)
}func (fr *FunctionReplacer) replaceFunction(name string, oldAddr, newAddr uintptr) error {// 1. 修改内存页保护属性pageSize := uintptr(os.Getpagesize())pageStart := oldAddr &^ (pageSize - 1)if err := mprotect(pageStart, pageSize, PROT_READ|PROT_WRITE|PROT_EXEC); err != nil {return fmt.Errorf("failed to change memory protection: %w", err)}// 2. 生成跳转指令jumpCode := generateJumpCode(oldAddr, newAddr)// 3. 写入跳转指令copy((*[32]byte)(unsafe.Pointer(oldAddr))[:], jumpCode)// 4. 恢复内存保护if err := mprotect(pageStart, pageSize, PROT_READ|PROT_EXEC); err != nil {return fmt.Errorf("failed to restore memory protection: %w", err)}return nil
}// 生成平台相关的跳转代码
func generateJumpCode(from, to uintptr) []byte {switch runtime.GOARCH {case "amd64":return generateAMD64Jump(from, to)case "arm64":return generateARM64Jump(from, to)default:panic("unsupported architecture")}
}func generateAMD64Jump(from, to uintptr) []byte {// JMP指令：FF 25 00 00 00 00 [8字节地址]code := make([]byte, 14)code[0] = 0xFF // JMPcode[1] = 0x25 // ModR/M// 相对地址为0（直接跳转）binary.LittleEndian.PutUint32(code[2:6], 0)// 目标地址binary.LittleEndian.PutUint64(code[6:14], uint64(to))return code
}func generateARM64Jump(from, to uintptr) []byte {// ARM64跳转指令更复杂，需要多条指令code := make([]byte, 16)// LDR X16, #8 (加载地址到X16寄存器)code[0] = 0x50code[1] = 0x00code[2] = 0x00code[3] = 0x58// BR X16 (跳转到X16)code[4] = 0x00code[5] = 0x02code[6] = 0x1Fcode[7] = 0xD6// 目标地址（8字节）binary.LittleEndian.PutUint64(code[8:16], uint64(to))return code
}
5.3 内存操作和安全性保障
5.3.1 内存保护和权限管理
// 内存保护常量
const (PROT_NONE = 0x0PROT_READ = 0x1PROT_WRITE = 0x2PROT_EXEC = 0x4
)// 跨平台的内存保护函数
func mprotect(addr uintptr, length uintptr, prot int) error {switch runtime.GOOS {case "linux", "darwin":return mprotectUnix(addr, length, prot)case "windows":return mprotectWindows(addr, length, prot)default:return fmt.Errorf("unsupported OS: %s", runtime.GOOS)}
}func mprotectUnix(addr uintptr, length uintptr, prot int) error {_, _, errno := syscall.Syscall(syscall.SYS_MPROTECT,addr,length,uintptr(prot),)if errno != 0 {return errno}return nil
}func mprotectWindows(addr uintptr, length uintptr, prot int) error {var winProt uint32switch prot {case PROT_READ:winProt = 0x02 // PAGE_READONLYcase PROT_READ | PROT_WRITE:winProt = 0x04 // PAGE_READWRITEcase PROT_READ | PROT_EXEC:winProt = 0x20 // PAGE_EXECUTE_READcase PROT_READ | PROT_WRITE | PROT_EXEC:winProt = 0x40 // PAGE_EXECUTE_READWRITEdefault:winProt = 0x01 // PAGE_NOACCESS}var oldProtect uint32ret, _, _ := syscall.NewLazyDLL("kernel32.dll").NewProc("VirtualProtect").Call(addr, length, uintptr(winProt), uintptr(unsafe.Pointer(&oldProtect)))if ret == 0 {return fmt.Errorf("VirtualProtect failed")}return nil
}
5.3.2 运行时安全检查和验证
type SafetyChecker struct {knownFunctions map[string]FunctionInfochecksEnabled bool
}type FunctionInfo struct {Name stringPackage stringSignature stringMinGoVersion stringMaxGoVersion stringDeprecated bool
}func NewSafetyChecker() *SafetyChecker {return &SafetyChecker{knownFunctions: map[string]FunctionInfo{"runtime.getg": {Name: "getg",Package: "runtime",Signature: "func() *g",MinGoVersion: "1.0",MaxGoVersion: "",Deprecated: false,},"runtime.newproc1": {Name: "newproc1",Package: "runtime",Signature: "func(*funcval, unsafe.Pointer, int32, *g, uintptr) *g",MinGoVersion: "1.0",MaxGoVersion: "",Deprecated: false,},},checksEnabled: true,}
}func (sc *SafetyChecker) ValidateLinkName(localName, remoteName string) error {if !sc.checksEnabled {return nil}// 1. 检查目标函数是否已知funcInfo, exists := sc.knownFunctions[remoteName]if !exists {return fmt.Errorf("unknown function: %s", remoteName)}// 2. 检查Go版本兼容性currentVersion := runtime.Version()if !sc.isVersionCompatible(currentVersion, funcInfo) {return fmt.Errorf("function %s not compatible with Go %s", remoteName, currentVersion)}// 3. 检查是否已弃用if funcInfo.Deprecated {log.Printf("Warning: function %s is deprecated", remoteName)}// 4. 验证函数签名（如果可能）if err := sc.validateSignature(localName, funcInfo.Signature); err != nil {return fmt.Errorf("signature validation failed: %w", err)}return nil
}func (sc *SafetyChecker) isVersionCompatible(current string, info FunctionInfo) bool {// 解析版本号并比较currentVer, err := parseGoVersion(current)if err != nil {return false}if info.MinGoVersion != "" {minVer, err := parseGoVersion(info.MinGoVersion)if err != nil {return false}if currentVer.Less(minVer) {return false}}if info.MaxGoVersion != "" {maxVer, err := parseGoVersion(info.MaxGoVersion)if err != nil {return false}if currentVer.Greater(maxVer) {return false}}return true
}// 运行时函数存在性检查
func (sc *SafetyChecker) CheckFunctionExists(name string) bool {defer func() {if r := recover(); r != nil {// 如果访问函数时panic，说明函数不存在或不可访问log.Printf("Function %s check failed: %v", name, r)}}()switch name {case "runtime.getg"://go:linkname testGetg runtime.getgvar testGetg func() *greturn testGetg != nilcase "runtime.newproc1"://go:linkname testNewproc1 runtime.newproc1var testNewproc1 func(*funcval, unsafe.Pointer, int32, *g, uintptr) *greturn testNewproc1 != nildefault:return false}
}
5.4 高级应用场景和最佳实践
5.4.1 动态函数拦截系统
type FunctionInterceptor struct {interceptors map[string][]InterceptorFuncmutex sync.RWMutex
}type InterceptorFunc func(args []interface{}) ([]interface{}, bool)func NewFunctionInterceptor() *FunctionInterceptor {return &FunctionInterceptor{interceptors: make(map[string][]InterceptorFunc),}
}func (fi *FunctionInterceptor) AddInterceptor(funcName string, interceptor InterceptorFunc) {fi.mutex.Lock()defer fi.mutex.Unlock()fi.interceptors[funcName] = append(fi.interceptors[funcName], interceptor)
}// 为runtime.newproc1添加拦截器
func (fi *FunctionInterceptor) InterceptNewproc1() {//go:linkname original_newproc1 runtime.newproc1var original_newproc1 func(*funcval, unsafe.Pointer, int32, *g, uintptr) *g// 创建拦截包装器wrapper := func(fn *funcval, argp unsafe.Pointer, narg int32, callergp *g, callerpc uintptr) *g {// 准备参数args := []interface{}{fn, argp, narg, callergp, callerpc}// 执行前置拦截器fi.mutex.RLock()interceptors := fi.interceptors["runtime.newproc1"]fi.mutex.RUnlock()for _, interceptor := range interceptors {if newArgs, shouldContinue := interceptor(args); shouldContinue {args = newArgs} else {// 拦截器决定不继续执行return nil}}// 调用原始函数result := original_newproc1(args[0].(*funcval),args[1].(unsafe.Pointer),args[2].(int32),args[3].(*g),args[4].(uintptr),)// 执行后置处理fi.postProcess("runtime.newproc1", args, result)return result}// 替换函数fi.replaceFunction("runtime.newproc1", wrapper)
}func (fi *FunctionInterceptor) postProcess(funcName string, args []interface{}, result interface{}) {// 记录调用信息log.Printf("Function %s called with args: %v, result: %v", funcName, args, result)// 执行自定义后置处理if funcName == "runtime.newproc1" && result != nil {newg := result.(*g)callergp := args[3].(*g)// 执行上下文传播if callergp != nil {propagateContextAdvanced(callergp, newg)}}
}
5.4.2 性能监控和调试支持
type PerformanceMonitor struct {callCounts map[string]int64totalTime map[string]time.Durationmutex sync.RWMutexenabled bool
}func NewPerformanceMonitor() *PerformanceMonitor {return &PerformanceMonitor{callCounts: make(map[string]int64),totalTime: make(map[string]time.Duration),enabled: true,}
}func (pm *PerformanceMonitor) WrapFunction(name string, original interface{}) interface{} {if !pm.enabled {return original}// 使用反射创建包装函数originalValue := reflect.ValueOf(original)originalType := originalValue.Type()wrapper := reflect.MakeFunc(originalType, func(args []reflect.Value) []reflect.Value {start := time.Now()// 调用原始函数results := originalValue.Call(args)// 记录性能数据duration := time.Since(start)pm.recordCall(name, duration)return results})return wrapper.Interface()
}func (pm *PerformanceMonitor) recordCall(name string, duration time.Duration) {pm.mutex.Lock()defer pm.mutex.Unlock()pm.callCounts[name]++pm.totalTime[name] += duration
}func (pm *PerformanceMonitor) GetStats() map[string]CallStats {pm.mutex.RLock()defer pm.mutex.RUnlock()stats := make(map[string]CallStats)for name, count := range pm.callCounts {totalTime := pm.totalTime[name]stats[name] = CallStats{CallCount: count,TotalTime: totalTime,AverageTime: time.Duration(int64(totalTime) / count),}}return stats
}type CallStats struct {CallCount int64TotalTime time.DurationAverageTime time.Duration
}
六、插桩规则系统深度解析
6.1 规则系统架构设计
6.1.1 规则配置的层次结构
插桩规则系统采用多层次的配置架构，支持灵活的规则定义和管理：
// 规则系统的核心数据结构
type RuleSystem struct {GlobalRules []GlobalRule `json:"global_rules"`PackageRules []PackageRule `json:"package_rules"`FunctionRules []FunctionRule `json:"function_rules"`StructRules []StructRule `json:"struct_rules"`ImportRules []ImportRule `json:"import_rules"`// 规则处理器processors map[string]RuleProcessor// 规则缓存ruleCache *RuleCache// 规则验证器validator *RuleValidator
}// 全局规则：影响整个编译过程
type GlobalRule struct {Name string `json:"name"`Type string `json:"type"` // "field_injection", "function_replacement"Target string `json:"target"` // 目标包或类型Action string `json:"action"` // 执行的动作Conditions []RuleCondition `json:"conditions"` // 执行条件Parameters map[string]interface{} `json:"parameters"` // 规则参数Priority int `json:"priority"` // 优先级Enabled bool `json:"enabled"` // 是否启用
}// 包级规则：针对特定包的规则
type PackageRule struct {PackagePath string `json:"package_path"`Rules []FunctionRule `json:"rules"`Imports []string `json:"imports"` // 需要添加的导入Excludes []string `json:"excludes"` // 排除的文件
}// 函数级规则：针对特定函数的插桩规则
type FunctionRule struct {FunctionName string `json:"function_name"`PackagePath string `json:"package_path"`Signature string `json:"signature"` // 函数签名匹配OnEnter *HookDefinition `json:"on_enter"` // 函数入口钩子OnExit *HookDefinition `json:"on_exit"` // 函数出口钩子OnPanic *HookDefinition `json:"on_panic"` // 异常处理钩子Replace *ReplaceDefinition `json:"replace"` // 函数替换定义Conditions []RuleCondition `json:"conditions"` // 应用条件
}// 结构体规则：用于字段注入
type StructRule struct {StructName string `json:"struct_name"`PackagePath string `json:"package_path"`Fields []FieldInjection `json:"fields"` // 要注入的字段Methods []MethodInjection `json:"methods"` // 要注入的方法
}// 钩子定义
type HookDefinition struct {Code string `json:"code"` // 钩子代码Template string `json:"template"` // 代码模板Parameters map[string]interface{} `json:"parameters"` // 模板参数Imports []string `json:"imports"` // 需要的导入Async bool `json:"async"` // 是否异步执行
}// 字段注入定义
type FieldInjection struct {Name string `json:"name"`Type string `json:"type"`Tag string `json:"tag"`DefaultValue interface{} `json:"default_value"`Position string `json:"position"` // "first", "last", "after:field_name"
}
6.1.2 规则处理器的实现机制
// 规则处理器接口
type RuleProcessor interface {ProcessRule(rule interface{}, context *ProcessContext) errorValidateRule(rule interface{}) errorGetRuleType() string
}// 函数插桩处理器
type FunctionInstrumentationProcessor struct {astParser *AstParsercodeGen *CodeGeneratortemplateMgr *TemplateManager
}func (fip *FunctionInstrumentationProcessor) ProcessRule(rule interface{}, context *ProcessContext) error {funcRule, ok := rule.(*FunctionRule)if !ok {return fmt.Errorf("invalid rule type for function instrumentation")}// 1. 查找目标函数targetFunc, err := fip.findTargetFunction(funcRule, context)if err != nil {return fmt.Errorf("failed to find target function: %w", err)}// 2. 生成插桩代码instrumentationCode, err := fip.generateInstrumentationCode(funcRule, targetFunc)if err != nil {return fmt.Errorf("failed to generate instrumentation code: %w", err)}// 3. 应用插桩if err := fip.applyInstrumentation(targetFunc, instrumentationCode, context); err != nil {return fmt.Errorf("failed to apply instrumentation: %w", err)}return nil
}func (fip *FunctionInstrumentationProcessor) generateInstrumentationCode(rule *FunctionRule, targetFunc *dst.FuncDecl) (*InstrumentationCode, error) {code := &InstrumentationCode{OnEnter: "",OnExit: "",OnPanic: "",}// 生成入口代码if rule.OnEnter != nil {enterCode, err := fip.generateHookCode(rule.OnEnter, targetFunc, "enter")if err != nil {return nil, fmt.Errorf("failed to generate enter hook: %w", err)}code.OnEnter = enterCode}// 生成出口代码if rule.OnExit != nil {exitCode, err := fip.generateHookCode(rule.OnExit, targetFunc, "exit")if err != nil {return nil, fmt.Errorf("failed to generate exit hook: %w", err)}code.OnExit = exitCode}// 生成异常处理代码if rule.OnPanic != nil {panicCode, err := fip.generateHookCode(rule.OnPanic, targetFunc, "panic")if err != nil {return nil, fmt.Errorf("failed to generate panic hook: %w", err)}code.OnPanic = panicCode}return code, nil
}// 结构体字段注入处理器
type StructFieldInjectionProcessor struct {astParser *AstParserfieldGen *FieldGenerator
}func (sfip *StructFieldInjectionProcessor) ProcessRule(rule interface{}, context *ProcessContext) error {structRule, ok := rule.(*StructRule)if !ok {return fmt.Errorf("invalid rule type for struct field injection")}// 1. 查找目标结构体targetStruct, err := sfip.findTargetStruct(structRule, context)if err != nil {return fmt.Errorf("failed to find target struct: %w", err)}// 2. 注入字段for _, field := range structRule.Fields {if err := sfip.injectField(targetStruct, &field, context); err != nil {return fmt.Errorf("failed to inject field %s: %w", field.Name, err)}}// 3. 注入方法for _, method := range structRule.Methods {if err := sfip.injectMethod(targetStruct, &method, context); err != nil {return fmt.Errorf("failed to inject method %s: %w", method.Name, err)}}return nil
}func (sfip *StructFieldInjectionProcessor) injectField(targetStruct *dst.StructType, field *FieldInjection, context *ProcessContext) error {// 创建新字段newField := &dst.Field{Names: []*dst.Ident{dst.NewIdent(field.Name)},Type: sfip.parseFieldType(field.Type),}// 添加标签if field.Tag != "" {newField.Tag = &dst.BasicLit{Kind: token.STRING,Value: fmt.Sprintf("`%s`", field.Tag),}}// 确定插入位置insertPos := sfip.calculateInsertPosition(targetStruct, field.Position)// 插入字段targetStruct.Fields.List = sfip.insertFieldAtPosition(targetStruct.Fields.List, newField, insertPos)return nil
}
6.2 规则匹配和条件系统
6.2.1 高级条件匹配引擎
// 条件匹配引擎
type ConditionMatcher struct {evaluators map[string]ConditionEvaluator
}type ConditionEvaluator interface {Evaluate(condition *RuleCondition, context *MatchContext) (bool, error)GetConditionType() string
}// 规则条件定义
type RuleCondition struct {Type string `json:"type"` // 条件类型Operator string `json:"operator"` // 操作符: "eq", "ne", "contains", "regex", "and", "or"Field string `json:"field"` // 匹配字段Value interface{} `json:"value"` // 匹配值Values []interface{} `json:"values"` // 多值匹配Conditions []RuleCondition `json:"conditions"` // 嵌套条件Negate bool `json:"negate"` // 是否取反
}// 匹配上下文
type MatchContext struct {PackagePath stringFunctionName stringFileName stringGoVersion stringBuildTags []stringEnvironment map[string]stringCustomData map[string]interface{}
}// 包路径条件评估器
type PackagePathEvaluator struct{}func (ppe *PackagePathEvaluator) Evaluate(condition *RuleCondition, context *MatchContext) (bool, error) {if condition.Field != "package_path" {return false, fmt.Errorf("invalid field for package path evaluator: %s", condition.Field)}result := falseswitch condition.Operator {case "eq":result = context.PackagePath == condition.Value.(string)case "ne":result = context.PackagePath != condition.Value.(string)case "contains":result = strings.Contains(context.PackagePath, condition.Value.(string))case "regex":pattern := condition.Value.(string)matched, err := regexp.MatchString(pattern, context.PackagePath)if err != nil {return false, fmt.Errorf("invalid regex pattern: %w", err)}result = matchedcase "in":values := condition.Valuesfor _, v := range values {if context.PackagePath == v.(string) {result = truebreak}}default:return false, fmt.Errorf("unsupported operator: %s", condition.Operator)}if condition.Negate {result = !result}return result, nil
}// 函数签名条件评估器
type FunctionSignatureEvaluator struct{}func (fse *FunctionSignatureEvaluator) Evaluate(condition *RuleCondition, context *MatchContext) (bool, error) {if condition.Field != "function_signature" {return false, fmt.Errorf("invalid field for function signature evaluator: %s", condition.Field)}// 获取当前函数的签名currentSignature := context.CustomData["function_signature"].(string)expectedSignature := condition.Value.(string)result := falseswitch condition.Operator {case "eq":result = currentSignature == expectedSignaturecase "contains":result = strings.Contains(currentSignature, expectedSignature)case "regex":matched, err := regexp.MatchString(expectedSignature, currentSignature)if err != nil {return false, fmt.Errorf("invalid regex pattern: %w", err)}result = matcheddefault:return false, fmt.Errorf("unsupported operator: %s", condition.Operator)}if condition.Negate {result = !result}return result, nil
}// 复合条件评估器
type CompositeConditionEvaluator struct {matcher *ConditionMatcher
}func (cce *CompositeConditionEvaluator) Evaluate(condition *RuleCondition, context *MatchContext) (bool, error) {switch condition.Operator {case "and":return cce.evaluateAndCondition(condition, context)case "or":return cce.evaluateOrCondition(condition, context)default:return false, fmt.Errorf("unsupported composite operator: %s", condition.Operator)}
}func (cce *CompositeConditionEvaluator) evaluateAndCondition(condition *RuleCondition, context *MatchContext) (bool, error) {for _, subCondition := range condition.Conditions {result, err := cce.matcher.EvaluateCondition(&subCondition, context)if err != nil {return false, err}if !result {return false, nil // AND条件：任何一个为false，整体为false}}return true, nil
}func (cce *CompositeConditionEvaluator) evaluateOrCondition(condition *RuleCondition, context *MatchContext) (bool, error) {for _, subCondition := range condition.Conditions {result, err := cce.matcher.EvaluateCondition(&subCondition, context)if err != nil {return false, err}if result {return true, nil // OR条件：任何一个为true，整体为true}}return false, nil
}
6.3 模板系统和代码生成
6.3.1 高级模板引擎
// 模板管理器
type TemplateManager struct {templates map[string]*Templatefunctions template.FuncMapcache *TemplateCachevalidator *TemplateValidator
}// 模板定义
type Template struct {Name string `json:"name"`Content string `json:"content"`Type string `json:"type"` // "function", "struct", "import"Parameters []TemplateParam `json:"parameters"`Imports []string `json:"imports"`Dependencies []string `json:"dependencies"`
}type TemplateParam struct {Name string `json:"name"`Type string `json:"type"`Required bool `json:"required"`DefaultValue interface{} `json:"default_value"`Description string `json:"description"`
}func NewTemplateManager() *TemplateManager {tm := &TemplateManager{templates: make(map[string]*Template),cache: NewTemplateCache(),validator: NewTemplateValidator(),}// 注册内置函数tm.functions = template.FuncMap{"camelCase": tm.toCamelCase,"snakeCase": tm.toSnakeCase,"pascalCase": tm.toPascalCase,"lower": strings.ToLower,"upper": strings.ToUpper,"join": strings.Join,"split": strings.Split,"contains": strings.Contains,"replace": strings.ReplaceAll,"trim": strings.TrimSpace,"quote": tm.quote,"unquote": tm.unquote,"typeOf": tm.getType,"isPointer": tm.isPointer,"isSlice": tm.isSlice,"isMap": tm.isMap,"isInterface": tm.isInterface,"generateID": tm.generateID,"timestamp": tm.timestamp,"formatTime": tm.formatTime,}return tm
}// 函数插桩模板
const FunctionInstrumentationTemplate = `
// Generated by otel instrumentation
func {{.FunctionName}}({{range $i, $param := .Parameters}}{{if $i}}, {{end}}{{$param.Name}} {{$param.Type}}{{end}}) {{if .ReturnTypes}}({{range $i, $ret := .ReturnTypes}}{{if $i}}, {{end}}{{$ret}}{{end}}){{end}} {{{if .OnEnter}}// OnEnter hook{{.OnEnter}}{{end}}{{if .OnPanic}}defer func() {if r := recover(); r != nil {// OnPanic hook{{.OnPanic}}panic(r)}}(){{end}}{{if .OnExit}}defer func() {// OnExit hook{{.OnExit}}}(){{end}}{{if .OriginalCall}}{{if .ReturnTypes}}return {{end}}{{.OriginalCall}}{{else}}// Original function body{{.OriginalBody}}{{end}}
}
`// 上下文传播模板
const ContextPropagationTemplate = `
// Context propagation for {{.FunctionName}}
if callergp := otel_get_current_g(); callergp != nil {if userCtx := otel_get_user_context_from_gls(); userCtx != nil {defer func() {if newg := otel_get_current_g(); newg != nil && newg != callergp {otel_set_user_context_to_gls(userCtx)}}()}if traceCtx := otel_get_trace_context_from_gls(); traceCtx != nil {defer func() {if newg := otel_get_current_g(); newg != nil && newg != callergp {otel_set_trace_context_to_gls(traceCtx)}}()}
}
`func (tm *TemplateManager) RenderTemplate(templateName string, data interface{}) (string, error) {// 1. 从缓存获取模板tmpl, err := tm.getTemplate(templateName)if err != nil {return "", fmt.Errorf("failed to get template %s: %w", templateName, err)}// 2. 验证模板数据if err := tm.validator.ValidateData(tmpl, data); err != nil {return "", fmt.Errorf("template data validation failed: %w", err)}// 3. 渲染模板var buf bytes.Bufferif err := tmpl.Execute(&buf, data); err != nil {return "", fmt.Errorf("template execution failed: %w", err)}// 4. 后处理result := tm.postProcess(buf.String())return result, nil
}func (tm *TemplateManager) getTemplate(name string) (*template.Template, error) {// 检查缓存if cached := tm.cache.Get(name); cached != nil {return cached, nil}// 获取模板定义templateDef, exists := tm.templates[name]if !exists {return nil, fmt.Errorf("template %s not found", name)}// 创建模板tmpl := template.New(name).Funcs(tm.functions)// 解析模板内容tmpl, err := tmpl.Parse(templateDef.Content)if err != nil {return nil, fmt.Errorf("failed to parse template: %w", err)}// 缓存模板tm.cache.Set(name, tmpl)return tmpl, nil
}// 模板函数实现
func (tm *TemplateManager) toCamelCase(s string) string {words := strings.Split(s, "_")if len(words) == 0 {return s}result := strings.ToLower(words[0])for i := 1; i < len(words); i++ {if len(words[i]) > 0 {result += strings.ToUpper(words[i][:1]) + strings.ToLower(words[i][1:])}}return result
}func (tm *TemplateManager) toPascalCase(s string) string {words := strings.Split(s, "_")var result strings.Builderfor _, word := range words {if len(word) > 0 {result.WriteString(strings.ToUpper(word[:1]))result.WriteString(strings.ToLower(word[1:]))}}return result.String()
}func (tm *TemplateManager) toSnakeCase(s string) string {var result strings.Builderfor i, r := range s {if i > 0 && unicode.IsUpper(r) {result.WriteRune('_')}result.WriteRune(unicode.ToLower(r))}return result.String()
}func (tm *TemplateManager) generateID() string {return fmt.Sprintf("otel_%d_%d", time.Now().UnixNano(), rand.Int63())
}func (tm *TemplateManager) timestamp() int64 {return time.Now().Unix()
}func (tm *TemplateManager) formatTime(format string) string {return time.Now().Format(format)
}
6.4 规则验证和错误处理
6.4.1 规则验证系统
// 规则验证器
type RuleValidator struct {validators map[string]Validator
}type Validator interface {Validate(rule interface{}) []ValidationErrorGetRuleType() string
}type ValidationError struct {Field string `json:"field"`Message string `json:"message"`Code string `json:"code"`Level string `json:"level"` // "error", "warning", "info"
}// 函数规则验证器
type FunctionRuleValidator struct{}func (frv *FunctionRuleValidator) Validate(rule interface{}) []ValidationError {funcRule, ok := rule.(*FunctionRule)if !ok {return []ValidationError{{Field: "rule",Message: "Invalid rule type for function rule validator",Code: "INVALID_RULE_TYPE",Level: "error",}}}var errors []ValidationError// 验证函数名if funcRule.FunctionName == "" {errors = append(errors, ValidationError{Field: "function_name",Message: "Function name is required",Code: "MISSING_FUNCTION_NAME",Level: "error",})}// 验证包路径if funcRule.PackagePath == "" {errors = append(errors, ValidationError{Field: "package_path",Message: "Package path is required",Code: "MISSING_PACKAGE_PATH",Level: "error",})}// 验证钩子定义if funcRule.OnEnter != nil {if hookErrors := frv.validateHook(funcRule.OnEnter, "on_enter"); len(hookErrors) > 0 {errors = append(errors, hookErrors...)}}if funcRule.OnExit != nil {if hookErrors := frv.validateHook(funcRule.OnExit, "on_exit"); len(hookErrors) > 0 {errors = append(errors, hookErrors...)}}// 验证条件for i, condition := range funcRule.Conditions {if condErrors := frv.validateCondition(&condition, fmt.Sprintf("conditions[%d]", i)); len(condErrors) > 0 {errors = append(errors, condErrors...)}}return errors
}func (frv *FunctionRuleValidator) validateHook(hook *HookDefinition, fieldPrefix string) []ValidationError {var errors []ValidationErrorif hook.Code == "" && hook.Template == "" {errors = append(errors, ValidationError{Field: fieldPrefix + ".code",Message: "Either code or template must be specified",Code: "MISSING_HOOK_CONTENT",Level: "error",})}if hook.Code != "" && hook.Template != "" {errors = append(errors, ValidationError{Field: fieldPrefix,Message: "Cannot specify both code and template",Code: "CONFLICTING_HOOK_CONTENT",Level: "error",})}// 验证代码语法if hook.Code != "" {if syntaxErrors := frv.validateGoSyntax(hook.Code); len(syntaxErrors) > 0 {for _, syntaxError := range syntaxErrors {errors = append(errors, ValidationError{Field: fieldPrefix + ".code",Message: fmt.Sprintf("Syntax error: %s", syntaxError),Code: "SYNTAX_ERROR",Level: "error",})}}}return errors
}func (frv *FunctionRuleValidator) validateGoSyntax(code string) []string {// 创建临时文件进行语法检查tempCode := fmt.Sprintf(`
package mainfunc tempFunc() {%s
}
`, code)// 解析代码fset := token.NewFileSet()_, err := parser.ParseFile(fset, "temp.go", tempCode, parser.ParseComments)if err != nil {return []string{err.Error()}}return nil
}// 规则冲突检测器
type RuleConflictDetector struct {rules []interface{}
}func (rcd *RuleConflictDetector) DetectConflicts() []RuleConflict {var conflicts []RuleConflict// 检测函数规则冲突functionRules := rcd.getFunctionRules()conflicts = append(conflicts, rcd.detectFunctionRuleConflicts(functionRules)...)// 检测结构体规则冲突structRules := rcd.getStructRules()conflicts = append(conflicts, rcd.detectStructRuleConflicts(structRules)...)return conflicts
}type RuleConflict struct {Type string `json:"type"`Description string `json:"description"`Rules []string `json:"rules"`Severity string `json:"severity"` // "error", "warning"Resolution string `json:"resolution"`
}func (rcd *RuleConflictDetector) detectFunctionRuleConflicts(rules []*FunctionRule) []RuleConflict {var conflicts []RuleConflict// 按函数分组functionGroups := make(map[string][]*FunctionRule)for _, rule := range rules {key := fmt.Sprintf("%s.%s", rule.PackagePath, rule.FunctionName)functionGroups[key] = append(functionGroups[key], rule)}// 检测同一函数的多个规则for funcKey, funcRules := range functionGroups {if len(funcRules) > 1 {// 检查是否有冲突的钩子hasOnEnter := falsehasOnExit := falsehasReplace := falsevar ruleNames []stringfor _, rule := range funcRules {ruleNames = append(ruleNames, rule.FunctionName)if rule.OnEnter != nil {if hasOnEnter {conflicts = append(conflicts, RuleConflict{Type: "duplicate_on_enter_hook",Description: fmt.Sprintf("Multiple OnEnter hooks defined for function %s", funcKey),Rules: ruleNames,Severity: "error",Resolution: "Merge hooks or use priority-based selection",})}hasOnEnter = true}if rule.OnExit != nil {if hasOnExit {conflicts = append(conflicts, RuleConflict{Type: "duplicate_on_exit_hook",Description: fmt.Sprintf("Multiple OnExit hooks defined for function %s", funcKey),Rules: ruleNames,Severity: "error",Resolution: "Merge hooks or use priority-based selection",})}hasOnExit = true}if rule.Replace != nil {if hasReplace {conflicts = append(conflicts, RuleConflict{Type: "duplicate_function_replacement",Description: fmt.Sprintf("Multiple replacement rules defined for function %s", funcKey),Rules: ruleNames,Severity: "error",Resolution: "Use only one replacement rule per function",})}hasReplace = true}}}}return conflicts
}
七、框架支持和生态集成深度解析
7.1 Web框架深度集成
7.1.1 Gin框架专用插桩技术
// Gin框架规则定义
type GinFrameworkRule struct {Framework string `json:"framework"` // "gin"Version string `json:"version"` // 支持的版本范围Routes []RouteRule `json:"routes"` // 路由级规则Middlewares []MiddlewareRule `json:"middlewares"` // 中间件规则Handlers []HandlerRule `json:"handlers"` // 处理器规则Context *ContextRule `json:"context"` // 上下文传播规则
}// Gin框架专用处理器
type GinFrameworkProcessor struct {baseProcessor *WebFrameworkProcessorrouteAnalyzer *GinRouteAnalyzercontextManager *GinContextManager
}func (gfp *GinFrameworkProcessor) ProcessGinRoute(rule *RouteRule, context *ProcessContext) error {// 1. 识别Gin路由定义模式routePattern := `router\.(GET|POST|PUT|DELETE|PATCH|HEAD|OPTIONS)\s*\(\s*"([^"]+)"\s*,\s*([^)]+)\)`// 2. 为每个路由处理器添加追踪instrumentationCode := `// Gin route instrumentation - Generated by otelfunc(c *gin.Context) {// 创建追踪spanctx := c.Request.Context()tracer := otel.Tracer("gin")ctx, span := tracer.Start(ctx, "{{.Method}} {{.Path}}")defer span.End()// 设置HTTP相关属性span.SetAttributes(attribute.String("http.method", c.Request.Method),attribute.String("http.url", c.Request.URL.String()),attribute.String("http.route", "{{.Path}}"),attribute.String("http.user_agent", c.Request.UserAgent()),attribute.String("gin.version", gin.Version),)// 传播追踪上下文c.Request = c.Request.WithContext(ctx)// 记录请求开始时间startTime := time.Now()// 执行原始处理器{{.OriginalHandler}}(c)// 记录响应信息duration := time.Since(startTime)status := c.Writer.Status()span.SetAttributes(attribute.Int("http.status_code", status),attribute.Int64("http.response.duration_ms", duration.Milliseconds()),attribute.Int64("http.response.size", int64(c.Writer.Size())),)// 错误处理if status >= 400 {span.SetStatus(codes.Error, fmt.Sprintf("HTTP %d", status))} else {span.SetStatus(codes.Ok, "")}// 记录错误信息（如果有）if len(c.Errors) > 0 {for _, err := range c.Errors {span.RecordError(err.Err)}}}`return gfp.applyRouteInstrumentation(rule, instrumentationCode, context)
}// Gin中间件插桩
func (gfp *GinFrameworkProcessor) ProcessGinMiddleware(rule *MiddlewareRule, context *ProcessContext) error {middlewareCode := `// Gin middleware instrumentationfunc() gin.HandlerFunc {return func(c *gin.Context) {// 创建中间件spanctx := c.Request.Context()tracer := otel.Tracer("gin.middleware")ctx, span := tracer.Start(ctx, "middleware.{{.MiddlewareName}}")defer span.End()// 更新请求上下文c.Request = c.Request.WithContext(ctx)// 记录中间件信息span.SetAttributes(attribute.String("middleware.name", "{{.MiddlewareName}}"),attribute.String("middleware.type", "gin"),)// 执行下一个中间件c.Next()// 检查是否被中止if c.IsAborted() {span.SetAttributes(attribute.Bool("middleware.aborted", true))span.SetStatus(codes.Error, "Request aborted by middleware")}}}()`return gfp.applyMiddlewareInstrumentation(rule, middlewareCode, context)
}
7.1.2 Echo框架专用处理器
// Echo框架专用处理器
type EchoFrameworkProcessor struct {baseProcessor *WebFrameworkProcessorcontextExtractor *EchoContextExtractor
}func (efp *EchoFrameworkProcessor) ProcessEchoMiddleware(rule *MiddlewareRule, context *ProcessContext) error {middlewareCode := `// Echo middleware instrumentationfunc() echo.MiddlewareFunc {return func(next echo.HandlerFunc) echo.HandlerFunc {return func(c echo.Context) error {// 创建追踪上下文req := c.Request()ctx := req.Context()tracer := otel.Tracer("echo")ctx, span := tracer.Start(ctx, fmt.Sprintf("%s %s", req.Method, c.Path()))defer span.End()// 设置请求属性span.SetAttributes(attribute.String("http.method", req.Method),attribute.String("http.url", req.URL.String()),attribute.String("http.route", c.Path()),attribute.String("echo.route.name", c.Path()),)// 提取路由参数for _, paramName := range c.ParamNames() {paramValue := c.Param(paramName)span.SetAttributes(attribute.String(fmt.Sprintf("http.route.param.%s", paramName), paramValue))}// 更新请求上下文c.SetRequest(req.WithContext(ctx))// 记录开始时间startTime := time.Now()// 执行下一个中间件/处理器err := next(c)// 记录响应信息duration := time.Since(startTime)status := c.Response().Statusspan.SetAttributes(attribute.Int("http.status_code", status),attribute.Int64("http.response.duration_ms", duration.Milliseconds()),)if err != nil {span.RecordError(err)span.SetStatus(codes.Error, err.Error())} else if status >= 400 {span.SetStatus(codes.Error, fmt.Sprintf("HTTP %d", status))} else {span.SetStatus(codes.Ok, "")}return err}}}()`return efp.applyMiddlewareInstrumentation(rule, middlewareCode, context)
}
7.1.3 Fiber框架高性能插桩
// Fiber框架处理器（针对高性能场景优化）
type FiberFrameworkProcessor struct {baseProcessor *WebFrameworkProcessorpoolManager *FiberPoolManager
}func (ffp *FiberFrameworkProcessor) ProcessFiberHandler(rule *HandlerRule, context *ProcessContext) error {// Fiber专用的零拷贝插桩代码fiberCode := `// Fiber handler instrumentation (zero-copy optimized)func(c *fiber.Ctx) error {// 使用对象池减少内存分配spanData := spanPool.Get().(*SpanData)defer spanPool.Put(spanData)// 快速路径：检查是否需要追踪if !shouldTrace(c) {return {{.OriginalHandler}}(c)}// 创建span（使用预分配的对象）ctx := c.Context()tracer := otel.Tracer("fiber")ctx, span := tracer.Start(ctx, fastconcat(c.Method(), " ", c.Path()))defer span.End()// 零拷贝属性设置span.SetAttributes(attribute.String("http.method", b2s(c.Request().Header.Method())),attribute.String("http.url", b2s(c.Request().URI().FullURI())),attribute.String("http.route", c.Route().Path),)// 执行处理器err := {{.OriginalHandler}}(c)// 快速状态设置status := c.Response().StatusCode()span.SetAttributes(attribute.Int("http.status_code", status))if err != nil {span.RecordError(err)span.SetStatus(codes.Error, err.Error())} else if status >= 400 {span.SetStatus(codes.Error, "")}return err}// 零拷贝字符串转换（unsafe操作）func b2s(b []byte) string {return *(*string)(unsafe.Pointer(&b))}// 快速字符串连接func fastconcat(strs ...string) string {var totalLen intfor _, s := range strs {totalLen += len(s)}buf := make([]byte, 0, totalLen)for _, s := range strs {buf = append(buf, s...)}return *(*string)(unsafe.Pointer(&buf))}`return ffp.applyFiberInstrumentation(rule, fiberCode, context)
}
7.2 数据库驱动深度集成
7.2.1 database/sql标准库插桩
// 数据库规则处理器
type DatabaseRuleProcessor struct {sqlParser *SQLParserqueryTracker *QueryTrackerconnPool *ConnectionPoolTracker
}func (drp *DatabaseRuleProcessor) ProcessSQLQuery(rule *DatabaseRule, context *ProcessContext) error {// SQL查询插桩模板sqlInstrumentationTemplate := `// Database query instrumentationfunc instrumentedQuery({{.Parameters}}) {{.ReturnTypes}} {// 获取当前上下文ctx := {{.ContextParam}}if ctx == nil {ctx = context.Background()}// 创建数据库spantracer := otel.Tracer("database/sql")ctx, span := tracer.Start(ctx, "sql.query")defer span.End()// 解析SQL语句sqlInfo := parseSQLStatement({{.QueryParam}})// 设置span属性span.SetAttributes(attribute.String("db.system", "{{.DatabaseType}}"),attribute.String("db.statement", {{.QueryParam}}),attribute.String("db.operation", sqlInfo.Operation),)if sqlInfo.Table != "" {span.SetAttributes(attribute.String("db.sql.table", sqlInfo.Table))}// 记录连接信息if connInfo := getConnectionInfo({{.ConnectionParam}}); connInfo != nil {span.SetAttributes(attribute.String("db.connection_string", connInfo.DSN),attribute.String("db.user", connInfo.User),attribute.String("db.name", connInfo.Database),)}// 记录查询开始时间startTime := time.Now()// 执行原始查询{{if .ReturnTypes}}result, err := {{end}}{{.OriginalFunction}}({{.Arguments}})// 记录查询耗时和结果duration := time.Since(startTime)span.SetAttributes(attribute.Int64("db.query.duration_ms", duration.Milliseconds()),)// 记录结果集信息（如果适用）{{if .HasResultSet}}if rows, ok := result.(sql.Rows); ok {rowCount := countRows(&rows)span.SetAttributes(attribute.Int64("db.rows_affected", rowCount))}{{end}}// 处理错误if err != nil {span.RecordError(err)span.SetStatus(codes.Error, err.Error())// 分类数据库错误if dbErr := classifyDatabaseError(err); dbErr != nil {span.SetAttributes(attribute.String("db.error.type", dbErr.Type),attribute.String("db.error.code", dbErr.Code),)}} else {span.SetStatus(codes.Ok, "")}{{if .ReturnTypes}}return result, err{{end}}}`return drp.applyDatabaseInstrumentation(rule, sqlInstrumentationTemplate, context)
}// SQL语句解析器
type SQLParser struct {cache map[string]*SQLInfomutex sync.RWMutex
}type SQLInfo struct {Operation string // SELECT, INSERT, UPDATE, DELETETables []string // 涉及的表名Columns []string // 涉及的列名HasWhere bool // 是否有WHERE条件HasJoin bool // 是否有JOIN
}func (sp *SQLParser) ParseSQL(query string) *SQLInfo {// 检查缓存sp.mutex.RLock()if info, exists := sp.cache[query]; exists {sp.mutex.RUnlock()return info}sp.mutex.RUnlock()// 解析SQLinfo := &SQLInfo{}// 简化的SQL解析（实际实现会更复杂）upperQuery := strings.ToUpper(strings.TrimSpace(query))// 识别操作类型switch {case strings.HasPrefix(upperQuery, "SELECT"):info.Operation = "SELECT"case strings.HasPrefix(upperQuery, "INSERT"):info.Operation = "INSERT"case strings.HasPrefix(upperQuery, "UPDATE"):info.Operation = "UPDATE"case strings.HasPrefix(upperQuery, "DELETE"):info.Operation = "DELETE"default:info.Operation = "UNKNOWN"}// 提取表名（简化实现）info.Tables = sp.extractTableNames(query)// 检查特殊条件info.HasWhere = strings.Contains(upperQuery, "WHERE")info.HasJoin = strings.Contains(upperQuery, "JOIN")// 缓存结果sp.mutex.Lock()sp.cache[query] = infosp.mutex.Unlock()return info
}
7.2.2 GORM ORM框架集成
// GORM集成处理器
type GORMProcessor struct {baseProcessor *DatabaseRuleProcessorcallbackManager *GORMCallbackManager
}func (gp *GORMProcessor) ProcessGORMCallback(rule *GORMRule, context *ProcessContext) error {gormCallbackCode := `// GORM callback instrumentationfunc registerGORMCallbacks(db *gorm.DB) {// 注册查询前回调db.Callback().Query().Before("gorm:query").Register("otel:before_query", func(db *gorm.DB) {ctx := db.Statement.Contextif ctx == nil {ctx = context.Background()}tracer := otel.Tracer("gorm")ctx, span := tracer.Start(ctx, "gorm.query")// 将span存储到上下文中db.Statement.Context = context.WithValue(ctx, "otel_span", span)// 设置基本属性span.SetAttributes(attribute.String("db.system", db.Dialector.Name()),attribute.String("gorm.table", db.Statement.Table),attribute.String("gorm.operation", "query"),)// 记录模型信息if db.Statement.Model != nil {modelType := reflect.TypeOf(db.Statement.Model)if modelType.Kind() == reflect.Ptr {modelType = modelType.Elem()}span.SetAttributes(attribute.String("gorm.model", modelType.Name()))}})// 注册查询后回调db.Callback().Query().After("gorm:query").Register("otel:after_query", func(db *gorm.DB) {if spanValue := db.Statement.Context.Value("otel_span"); spanValue != nil {if span, ok := spanValue.(trace.Span); ok {defer span.End()// 设置SQL语句if db.Statement.SQL.String() != "" {span.SetAttributes(attribute.String("db.statement", db.Statement.SQL.String()))}// 记录变量if len(db.Statement.Vars) > 0 {span.SetAttributes(attribute.Int("db.vars.count", len(db.Statement.Vars)))}// 记录影响的行数if db.Statement.RowsAffected >= 0 {span.SetAttributes(attribute.Int64("db.rows_affected", db.Statement.RowsAffected))}// 处理错误if db.Error != nil && !errors.Is(db.Error, gorm.ErrRecordNotFound) {span.RecordError(db.Error)span.SetStatus(codes.Error, db.Error.Error())} else {span.SetStatus(codes.Ok, "")}}}})// 注册创建回调db.Callback().Create().Before("gorm:create").Register("otel:before_create", func(db *gorm.DB) {// 类似的创建操作追踪})// 注册更新回调db.Callback().Update().Before("gorm:update").Register("otel:before_update", func(db *gorm.DB) {// 类似的更新操作追踪})// 注册删除回调db.Callback().Delete().Before("gorm:delete").Register("otel:before_delete", func(db *gorm.DB) {// 类似的删除操作追踪})}`return gp.applyGORMInstrumentation(rule, gormCallbackCode, context)
}
7.3 消息队列深度集成
7.3.1 Kafka集成
// 消息队列规则处理器
type MessageQueueProcessor struct {traceExtractor *TraceExtractortraceInjector *TraceInjectorheaderManager *MessageHeaderManager
}// Kafka Producer插桩
func (mqp *MessageQueueProcessor) ProcessKafkaProducer(rule *KafkaRule, context *ProcessContext) error {kafkaProducerCode := `// Kafka producer instrumentationfunc instrumentedKafkaProducer(producer sarama.SyncProducer, msg *sarama.ProducerMessage) (partition int32, offset int64, err error) {// 创建producer spanctx := context.Background()if ctxValue := msg.Headers["otel_context"]; ctxValue != nil {if extractedCtx := extractTraceContext(ctxValue); extractedCtx != nil {ctx = extractedCtx}}tracer := otel.Tracer("kafka")ctx, span := tracer.Start(ctx, fmt.Sprintf("kafka.produce %s", msg.Topic))defer span.End()// 设置span属性span.SetAttributes(attribute.String("messaging.system", "kafka"),attribute.String("messaging.destination", msg.Topic),attribute.String("messaging.operation", "publish"),attribute.String("messaging.destination_kind", "topic"),)// 记录消息属性if msg.Key != nil {if key, err := msg.Key.Encode(); err == nil {span.SetAttributes(attribute.String("messaging.kafka.message_key", string(key)))}}if msg.Value != nil {if value, err := msg.Value.Encode(); err == nil {span.SetAttributes(attribute.Int("messaging.message.payload_size_bytes", len(value)))}}// 注入追踪上下文到消息头if msg.Headers == nil {msg.Headers = make(map[string]sarama.Encoder)}injectTraceContext(ctx, msg.Headers)// 记录发送开始时间startTime := time.Now()// 执行发送partition, offset, err = producer.SendMessage(msg)// 记录发送耗时duration := time.Since(startTime)span.SetAttributes(attribute.Int64("messaging.kafka.send_duration_ms", duration.Milliseconds()))if err != nil {span.RecordError(err)span.SetStatus(codes.Error, err.Error())} else {span.SetAttributes(attribute.Int("messaging.kafka.partition", int(partition)),attribute.Int("messaging.kafka.offset", int(offset)),)span.SetStatus(codes.Ok, "")}return partition, offset, err}`return mqp.applyKafkaInstrumentation(rule, kafkaProducerCode, context)
}// Kafka Consumer插桩
func (mqp *MessageQueueProcessor) ProcessKafkaConsumer(rule *KafkaRule, context *ProcessContext) error {kafkaConsumerCode := `// Kafka consumer instrumentationfunc instrumentedKafkaConsumer(consumer sarama.Consumer, handler func(*sarama.ConsumerMessage) error) {originalHandler := handlerinstrumentedHandler := func(msg *sarama.ConsumerMessage) error {// 提取追踪上下文ctx := context.Background()if msg.Headers != nil {if ctxData := extractFromKafkaHeaders(msg.Headers); ctxData != nil {ctx = ctxData}}// 创建consumer spantracer := otel.Tracer("kafka")ctx, span := tracer.Start(ctx, fmt.Sprintf("kafka.consume %s", msg.Topic))defer span.End()// 设置span属性span.SetAttributes(attribute.String("messaging.system", "kafka"),attribute.String("messaging.destination", msg.Topic),attribute.String("messaging.operation", "receive"),attribute.String("messaging.destination_kind", "topic"),attribute.Int("messaging.kafka.partition", int(msg.Partition)),attribute.Int("messaging.kafka.offset", int(msg.Offset)),attribute.Int("messaging.message.payload_size_bytes", len(msg.Value)),)if msg.Key != nil {span.SetAttributes(attribute.String("messaging.kafka.message_key", string(msg.Key)))}// 记录消息时间戳if !msg.Timestamp.IsZero() {span.SetAttributes(attribute.Int64("messaging.kafka.message_timestamp", msg.Timestamp.Unix()))}// 记录处理开始时间startTime := time.Now()// 执行原始处理器err := originalHandler(msg)// 记录处理耗时duration := time.Since(startTime)span.SetAttributes(attribute.Int64("messaging.kafka.process_duration_ms", duration.Milliseconds()))if err != nil {span.RecordError(err)span.SetStatus(codes.Error, err.Error())} else {span.SetStatus(codes.Ok, "")}return err}// 替换处理器handler = instrumentedHandler}`return mqp.applyKafkaInstrumentation(rule, kafkaConsumerCode, context)
}
7.3.2 Redis集成
// Redis客户端插桩
type RedisProcessor struct {baseProcessor *CacheProcessorcommandAnalyzer *RedisCommandAnalyzer
}func (rp *RedisProcessor) ProcessRedisCommand(rule *RedisRule, context *ProcessContext) error {redisCode := `// Redis command instrumentationfunc instrumentedRedisCommand(client redis.Cmdable, cmd string, args ...interface{}) *redis.Cmd {// 创建Redis spanctx := context.Background()tracer := otel.Tracer("redis")ctx, span := tracer.Start(ctx, fmt.Sprintf("redis.%s", strings.ToLower(cmd)))defer span.End()// 设置span属性span.SetAttributes(attribute.String("db.system", "redis"),attribute.String("db.operation", cmd),attribute.String("db.redis.database_index", "0"), // 可以从客户端配置获取)// 记录命令参数（注意不要记录敏感信息）if len(args) > 0 {span.SetAttributes(attribute.Int("db.redis.args_count", len(args)))// 只记录第一个参数（通常是key）if key, ok := args[0].(string); ok {span.SetAttributes(attribute.String("db.redis.key", key))}}// 记录执行开始时间startTime := time.Now()// 执行Redis命令result := client.Do(ctx, cmd, args...)// 记录执行耗时duration := time.Since(startTime)span.SetAttributes(attribute.Int64("db.redis.duration_ms", duration.Milliseconds()))// 处理结果和错误if result.Err() != nil {span.RecordError(result.Err())span.SetStatus(codes.Error, result.Err().Error())} else {span.SetStatus(codes.Ok, "")// 记录结果大小（如果适用）if val, err := result.Result(); err == nil {if str, ok := val.(string); ok {span.SetAttributes(attribute.Int("db.redis.response_size_bytes", len(str)))}}}return result}`return rp.applyRedisInstrumentation(rule, redisCode, context)
}
- Gin: HTTP路由和中间件插桩
- Echo: 请求处理和错误处理插桩
- Fiber: 高性能HTTP框架插桩
- Iris: 全功能Web框架插桩
7.2 数据库支持
- GORM: ORM操作插桩
- SQLX: SQL执行插桩
- Go-Redis: Redis操作插桩
- MongoDB: 文档数据库插桩
7.3 RPC框架支持
- gRPC: 服务调用插桩
- Dubbo: 分布式服务插桩
- Kitex: 字节跳动RPC框架插桩
- tRPC: 腾讯RPC框架插桩
7.4 消息队列支持
- RocketMQ: 消息生产和消费插桩
- Kafka: 消息流处理插桩
- RabbitMQ: AMQP协议插桩
八、性能优化策略深度解析
8.1 编译时优化技术
8.1.1 AST缓存和增量编译
// AST缓存管理器
type ASTCacheManager struct {cache map[string]*CachedASTmutex sync.RWMutexmaxSize intevictPolicy EvictionPolicymetrics *CacheMetrics
}type CachedAST struct {AST *dst.FileHash stringLastAccess time.TimeAccessCount int64Size int64Dependencies []string
}func (acm *ASTCacheManager) GetOrParseAST(filePath string, content []byte) (*dst.File, error) {// 计算文件内容哈希hash := sha256.Sum256(content)hashStr := hex.EncodeToString(hash[:])// 检查缓存acm.mutex.RLock()if cached, exists := acm.cache[filePath]; exists && cached.Hash == hashStr {// 缓存命中，更新访问信息cached.LastAccess = time.Now()atomic.AddInt64(&cached.AccessCount, 1)acm.mutex.RUnlock()acm.metrics.RecordCacheHit()return cached.AST, nil}acm.mutex.RUnlock()// 缓存未命中，解析ASTacm.metrics.RecordCacheMiss()// 使用并行解析提高性能astFile, err := acm.parseASTParallel(content)if err != nil {return nil, err}// 缓存新的ASTacm.mutex.Lock()defer acm.mutex.Unlock()// 检查缓存大小，必要时进行清理if len(acm.cache) >= acm.maxSize {acm.evictLRU()}acm.cache[filePath] = &CachedAST{AST: astFile,Hash: hashStr,LastAccess: time.Now(),AccessCount: 1,Size: acm.calculateASTSize(astFile),Dependencies: acm.extractDependencies(astFile),}return astFile, nil
}// 并行AST解析
func (acm *ASTCacheManager) parseASTParallel(content []byte) (*dst.File, error) {// 使用工作池进行并行解析type parseResult struct {ast *dst.Fileerr error}resultChan := make(chan parseResult, 1)go func() {defer close(resultChan)// 创建解析器parser := &dst.Decorator{Resolver: guess.ResolverId,Map: dst.Map{},}// 解析文件fset := token.NewFileSet()astFile, err := parser.ParseFile(fset, "", content, parser.ParserMode)resultChan <- parseResult{ast: astFile, err: err}}()// 设置超时select {case result := <-resultChan:return result.ast, result.errcase <-time.After(30 * time.Second):return nil, fmt.Errorf("AST parsing timeout")}
}// LRU缓存清理
func (acm *ASTCacheManager) evictLRU() {if len(acm.cache) == 0 {return}// 找到最久未访问的条目var oldestKey stringvar oldestTime time.Time = time.Now()for key, cached := range acm.cache {if cached.LastAccess.Before(oldestTime) {oldestTime = cached.LastAccessoldestKey = key}}if oldestKey != "" {delete(acm.cache, oldestKey)acm.metrics.RecordEviction()}
}
8.1.2 智能代码生成优化
// 代码生成优化器
type CodeGenerationOptimizer struct {templateCache map[string]*CompiledTemplategeneratorPool *sync.PoolbatchProcessor *BatchProcessormetrics *GenerationMetrics
}type CompiledTemplate struct {Template *template.TemplateHash stringUsageCount int64LastUsed time.TimePerformance *TemplatePerformance
}type TemplatePerformance struct {AvgExecutionTime time.DurationMemoryUsage int64ErrorRate float64
}func (cgo *CodeGenerationOptimizer) GenerateInstrumentationCode(rule *InstrumentationRule, context *GenerationContext) (string, error) {// 1. 模板选择和优化template, err := cgo.getOptimizedTemplate(rule.TemplateType)if err != nil {return "", err}// 2. 使用对象池减少内存分配generator := cgo.generatorPool.Get().(*CodeGenerator)defer cgo.generatorPool.Put(generator)// 3. 批量处理优化if cgo.shouldBatchProcess(rule) {return cgo.batchProcessor.AddToBatch(rule, context)}// 4. 执行代码生成startTime := time.Now()var buf bytes.Buffererr = template.Template.Execute(&buf, context)duration := time.Since(startTime)cgo.updateTemplateMetrics(template, duration, err)if err != nil {return "", fmt.Errorf("template execution failed: %w", err)}// 5. 代码优化后处理generatedCode := buf.String()optimizedCode := cgo.optimizeGeneratedCode(generatedCode)return optimizedCode, nil
}// 代码优化后处理
func (cgo *CodeGenerationOptimizer) optimizeGeneratedCode(code string) string {// 1. 移除多余的空行和空格code = regexp.MustCompile(`\n\s*\n\s*\n`).ReplaceAllString(code, "\n\n")// 2. 优化导入语句code = cgo.optimizeImports(code)// 3. 内联简单函数调用code = cgo.inlineSimpleCalls(code)// 4. 常量折叠code = cgo.foldConstants(code)return code
}// 批量处理器
type BatchProcessor struct {batch []*BatchItembatchSize intflushTimer *time.Timermutex sync.Mutexprocessor func([]*BatchItem) error
}type BatchItem struct {Rule *InstrumentationRuleContext *GenerationContextResult chan BatchResult
}type BatchResult struct {Code stringError error
}func (bp *BatchProcessor) AddToBatch(rule *InstrumentationRule, context *GenerationContext) (string, error) {bp.mutex.Lock()defer bp.mutex.Unlock()// 创建批处理项item := &BatchItem{Rule: rule,Context: context,Result: make(chan BatchResult, 1),}bp.batch = append(bp.batch, item)// 检查是否需要立即处理if len(bp.batch) >= bp.batchSize {go bp.processBatch()bp.batch = bp.batch[:0] // 清空批次} else if bp.flushTimer == nil {// 设置定时器，确保批次不会无限等待bp.flushTimer = time.AfterFunc(100*time.Millisecond, func() {bp.mutex.Lock()if len(bp.batch) > 0 {go bp.processBatch()bp.batch = bp.batch[:0]}bp.flushTimer = nilbp.mutex.Unlock()})}// 等待结果result := <-item.Resultreturn result.Code, result.Error
}
8.1.3 并行编译优化
// 并行编译管理器
type ParallelCompilationManager struct {workerPool *WorkerPooldependencyGraph *DependencyGraphscheduler *CompilationSchedulermonitor *CompilationMonitor
}type WorkerPool struct {workers []*CompilationWorkertaskQueue chan *CompilationTaskresults chan *CompilationResultwg sync.WaitGroup
}type CompilationTask struct {ID stringFilePath stringDependencies []stringPriority intTimeout time.DurationContext context.Context
}type CompilationWorker struct {id inttaskChan <-chan *CompilationTaskresults chan<- *CompilationResultquit chan bool
}func (pcm *ParallelCompilationManager) CompileProject(projectPath string) error {// 1. 构建依赖图depGraph, err := pcm.dependencyGraph.BuildGraph(projectPath)if err != nil {return fmt.Errorf("failed to build dependency graph: %w", err)}// 2. 拓扑排序确定编译顺序compilationOrder := depGraph.TopologicalSort()// 3. 创建编译任务tasks := make([]*CompilationTask, 0, len(compilationOrder))for i, node := range compilationOrder {task := &CompilationTask{ID: fmt.Sprintf("task_%d", i),FilePath: node.FilePath,Dependencies: node.Dependencies,Priority: node.Priority,Timeout: 30 * time.Second,Context: context.Background(),}tasks = append(tasks, task)}// 4. 启动工作池pcm.workerPool.Start()defer pcm.workerPool.Stop()// 5. 分发任务go func() {for _, task := range tasks {pcm.workerPool.taskQueue <- task}close(pcm.workerPool.taskQueue)}()// 6. 收集结果results := make(map[string]*CompilationResult)for i := 0; i < len(tasks); i++ {result := <-pcm.workerPool.resultsresults[result.TaskID] = resultif result.Error != nil {return fmt.Errorf("compilation failed for task %s: %w", result.TaskID, result.Error)}}return nil
}func (cw *CompilationWorker) Start() {go func() {for {select {case task := <-cw.taskChan:if task == nil {return // 通道已关闭}result := cw.processTask(task)cw.results <- resultcase <-cw.quit:return}}}()
}func (cw *CompilationWorker) processTask(task *CompilationTask) *CompilationResult {startTime := time.Now()// 设置超时上下文ctx, cancel := context.WithTimeout(task.Context, task.Timeout)defer cancel()// 执行编译err := cw.compileFile(ctx, task.FilePath)return &CompilationResult{TaskID: task.ID,FilePath: task.FilePath,Duration: time.Since(startTime),Error: err,WorkerID: cw.id,}
}
8.2 运行时性能优化
8.2.1 零拷贝上下文传播
// 零拷贝上下文管理器
type ZeroCopyContextManager struct {contextPool *sync.PoolbufferPool *sync.Poolencoder *FastEncoderdecoder *FastDecodermetrics *ContextMetrics
}type FastContext struct {traceID [16]byte // 固定大小，避免内存分配spanID [8]byte // 固定大小flags uint8 // 标志位baggage []byte // 预分配缓冲区userData []byte // 用户数据缓冲区refCount int32 // 引用计数
}func (zcm *ZeroCopyContextManager) CreateContext(traceID, spanID []byte) *FastContext {// 从对象池获取上下文ctx := zcm.contextPool.Get().(*FastContext)// 重置上下文ctx.reset()// 零拷贝设置ID（直接内存拷贝）copy(ctx.traceID[:], traceID)copy(ctx.spanID[:], spanID)// 设置引用计数atomic.StoreInt32(&ctx.refCount, 1)return ctx
}func (fc *FastContext) Clone() *FastContext {// 增加引用计数而不是复制数据atomic.AddInt32(&fc.refCount, 1)return fc
}func (fc *FastContext) Release() {if atomic.AddInt32(&fc.refCount, -1) == 0 {// 引用计数为0，返回对象池fc.reset()contextPool.Put(fc)}
}// 快速编码器（避免反射和内存分配）
type FastEncoder struct {buffer []byte
}func (fe *FastEncoder) EncodeContext(ctx *FastContext) []byte {// 预计算所需大小size := 16 + 8 + 1 + len(ctx.baggage) + len(ctx.userData)// 确保缓冲区足够大if cap(fe.buffer) < size {fe.buffer = make([]byte, size)}fe.buffer = fe.buffer[:size]offset := 0// 直接内存拷贝，无需序列化copy(fe.buffer[offset:], ctx.traceID[:])offset += 16copy(fe.buffer[offset:], ctx.spanID[:])offset += 8fe.buffer[offset] = ctx.flagsoffset += 1copy(fe.buffer[offset:], ctx.baggage)offset += len(ctx.baggage)copy(fe.buffer[offset:], ctx.userData)return fe.buffer
}// 高性能上下文注入
func (zcm *ZeroCopyContextManager) InjectContext(ctx *FastContext, carrier map[string]string) {// 使用预分配的编码器encoder := zcm.encoderencoded := encoder.EncodeContext(ctx)// 使用base64编码（可以考虑更快的编码方式）carrier["otel-trace-context"] = base64.StdEncoding.EncodeToString(encoded)
}// 高性能上下文提取
func (zcm *ZeroCopyContextManager) ExtractContext(carrier map[string]string) *FastContext {contextData, exists := carrier["otel-trace-context"]if !exists {return nil}// 解码decoded, err := base64.StdEncoding.DecodeString(contextData)if err != nil {return nil}// 使用预分配的解码器decoder := zcm.decoderreturn decoder.DecodeContext(decoded)
}
8.2.2 内存池优化
// 高性能内存池管理器
type MemoryPoolManager struct {spanPool *sync.PoolattributePool *sync.PooleventPool *sync.PoolbufferPools map[int]*sync.Pool // 按大小分类的缓冲区池metrics *PoolMetrics
}func NewMemoryPoolManager() *MemoryPoolManager {mpm := &MemoryPoolManager{bufferPools: make(map[int]*sync.Pool),metrics: NewPoolMetrics(),}// 初始化span池mpm.spanPool = &sync.Pool{New: func() interface{} {return &SpanData{attributes: make([]attribute.KeyValue, 0, 16), // 预分配events: make([]Event, 0, 8),}},}// 初始化属性池mpm.attributePool = &sync.Pool{New: func() interface{} {return make([]attribute.KeyValue, 0, 32)},}// 初始化不同大小的缓冲区池bufferSizes := []int{64, 256, 1024, 4096, 16384}for _, size := range bufferSizes {size := size // 捕获循环变量mpm.bufferPools[size] = &sync.Pool{New: func() interface{} {return make([]byte, 0, size)},}}return mpm
}func (mpm *MemoryPoolManager) GetSpan() *SpanData {span := mpm.spanPool.Get().(*SpanData)span.reset() // 重置span数据mpm.metrics.RecordSpanAllocation()return span
}func (mpm *MemoryPoolManager) PutSpan(span *SpanData) {if span != nil {mpm.spanPool.Put(span)mpm.metrics.RecordSpanDeallocation()}
}func (mpm *MemoryPoolManager) GetBuffer(size int) []byte {// 找到最适合的缓冲区大小poolSize := mpm.findBestPoolSize(size)if pool, exists := mpm.bufferPools[poolSize]; exists {buffer := pool.Get().([]byte)return buffer[:0] // 重置长度但保留容量}// 如果没有合适的池，直接分配return make([]byte, 0, size)
}func (mpm *MemoryPoolManager) PutBuffer(buffer []byte) {if buffer == nil {return}capacity := cap(buffer)poolSize := mpm.findBestPoolSize(capacity)if pool, exists := mpm.bufferPools[poolSize]; exists && capacity <= poolSize*2 {// 只有当缓冲区大小合理时才放回池中pool.Put(buffer)}// 否则让GC处理
}func (mpm *MemoryPoolManager) findBestPoolSize(size int) int {for _, poolSize := range []int{64, 256, 1024, 4096, 16384} {if size <= poolSize {return poolSize}}return 16384 // 默认最大大小
}// 智能垃圾回收优化
type GCOptimizer struct {gcStats *GCStatsmemoryMonitor *MemoryMonitortuner *GCTuner
}type GCStats struct {collections int64totalPause time.DurationavgPause time.DurationmaxPause time.DurationlastGC time.Timemutex sync.RWMutex
}func (gco *GCOptimizer) OptimizeGC() {// 监控内存使用情况memStats := &runtime.MemStats{}runtime.ReadMemStats(memStats)// 根据内存使用情况调整GC目标if memStats.HeapInuse > memStats.HeapSys/2 {// 内存使用率高，降低GC目标debug.SetGCPercent(50)} else {// 内存使用率低，提高GC目标debug.SetGCPercent(200)}// 记录GC统计信息gco.updateGCStats(memStats)
}func (gco *GCOptimizer) updateGCStats(memStats *runtime.MemStats) {gco.gcStats.mutex.Lock()defer gco.gcStats.mutex.Unlock()if memStats.NumGC > uint32(gco.gcStats.collections) {// 发生了新的GCnewCollections := int64(memStats.NumGC) - gco.gcStats.collectionsgco.gcStats.collections = int64(memStats.NumGC)// 计算平均暂停时间totalPause := time.Duration(memStats.PauseTotalNs)if gco.gcStats.totalPause > 0 {newPause := totalPause - gco.gcStats.totalPausegco.gcStats.avgPause = newPause / time.Duration(newCollections)}gco.gcStats.totalPause = totalPausegco.gcStats.lastGC = time.Now()}
}
8.2.3 高性能数据收集和传输
// 高性能数据收集器
type HighPerformanceCollector struct {batchProcessor *BatchSpanProcessorringBuffer *RingBuffercompressor *DataCompressorserializer *FastSerializertransport *OptimizedTransportmetrics *CollectorMetrics
}type BatchSpanProcessor struct {spans []SpanDatabatchSize inttimeout time.Durationmutex sync.MutexflushTimer *time.Timerexporter SpanExporter
}func (bsp *BatchSpanProcessor) OnEnd(span SpanData) {bsp.mutex.Lock()defer bsp.mutex.Unlock()// 添加到批次bsp.spans = append(bsp.spans, span)// 检查是否需要立即导出if len(bsp.spans) >= bsp.batchSize {go bsp.exportBatch()bsp.spans = bsp.spans[:0] // 清空批次// 重置定时器if bsp.flushTimer != nil {bsp.flushTimer.Stop()bsp.flushTimer = nil}} else if bsp.flushTimer == nil {// 设置定时器确保数据及时导出bsp.flushTimer = time.AfterFunc(bsp.timeout, func() {bsp.mutex.Lock()if len(bsp.spans) > 0 {go bsp.exportBatch()bsp.spans = bsp.spans[:0]}bsp.flushTimer = nilbsp.mutex.Unlock()})}
}// 环形缓冲区实现
type RingBuffer struct {buffer []SpanDatahead int64tail int64size int64mask int64mutex sync.RWMutexnotEmpty chan struct{}notFull chan struct{}
}func NewRingBuffer(size int) *RingBuffer {// 确保大小是2的幂，便于使用位运算actualSize := int64(1)for actualSize < int64(size) {actualSize <<= 1}return &RingBuffer{buffer: make([]SpanData, actualSize),size: actualSize,mask: actualSize - 1,notEmpty: make(chan struct{}, 1),notFull: make(chan struct{}, 1),}
}func (rb *RingBuffer) Put(span SpanData) bool {rb.mutex.Lock()defer rb.mutex.Unlock()// 检查缓冲区是否已满if (rb.tail-rb.head) >= rb.size {return false // 缓冲区已满}// 添加数据rb.buffer[rb.tail&rb.mask] = spanrb.tail++// 通知消费者select {case rb.notEmpty <- struct{}{}:default:}return true
}func (rb *RingBuffer) Get() (SpanData, bool) {rb.mutex.Lock()defer rb.mutex.Unlock()// 检查缓冲区是否为空if rb.head == rb.tail {return SpanData{}, false}// 获取数据span := rb.buffer[rb.head&rb.mask]rb.head++// 通知生产者select {case rb.notFull <- struct{}{}:default:}return span, true
}// 数据压缩器
type DataCompressor struct {compressor *gzip.Writerbuffer *bytes.Bufferpool *sync.Pool
}func NewDataCompressor() *DataCompressor {return &DataCompressor{pool: &sync.Pool{New: func() interface{} {var buf bytes.Bufferreturn gzip.NewWriter(&buf)},},}
}func (dc *DataCompressor) Compress(data []byte) ([]byte, error) {// 从池中获取压缩器compressor := dc.pool.Get().(*gzip.Writer)defer dc.pool.Put(compressor)var buf bytes.Buffercompressor.Reset(&buf)// 压缩数据_, err := compressor.Write(data)if err != nil {return nil, err}err = compressor.Close()if err != nil {return nil, err}return buf.Bytes(), nil
}// 快速序列化器
type FastSerializer struct {buffer []byteoffset int
}func (fs *FastSerializer) SerializeSpan(span *SpanData) []byte {// 预估所需大小estimatedSize := 256 + len(span.Name) + len(span.TraceID)*2 + len(span.SpanID)*2// 确保缓冲区足够大if cap(fs.buffer) < estimatedSize {fs.buffer = make([]byte, estimatedSize)}fs.buffer = fs.buffer[:estimatedSize]fs.offset = 0// 序列化字段（使用二进制格式而非JSON）fs.writeString(span.Name)fs.writeBytes(span.TraceID)fs.writeBytes(span.SpanID)fs.writeInt64(span.StartTime.UnixNano())fs.writeInt64(span.EndTime.UnixNano())fs.writeInt32(int32(span.Status))// 序列化属性fs.writeInt32(int32(len(span.Attributes)))for _, attr := range span.Attributes {fs.writeString(string(attr.Key))fs.writeAttributeValue(attr.Value)}return fs.buffer[:fs.offset]
}func (fs *FastSerializer) writeString(s string) {length := len(s)fs.writeInt32(int32(length))copy(fs.buffer[fs.offset:], s)fs.offset += length
}func (fs *FastSerializer) writeBytes(b []byte) {length := len(b)fs.writeInt32(int32(length))copy(fs.buffer[fs.offset:], b)fs.offset += length
}func (fs *FastSerializer) writeInt32(v int32) {binary.LittleEndian.PutUint32(fs.buffer[fs.offset:], uint32(v))fs.offset += 4
}func (fs *FastSerializer) writeInt64(v int64) {binary.LittleEndian.PutUint64(fs.buffer[fs.offset:], uint64(v))fs.offset += 8
}// 优化的传输层
type OptimizedTransport struct {client *http.Clientendpoint stringheaders map[string]stringretryPolicy *RetryPolicycircuitBreaker *CircuitBreaker
}type RetryPolicy struct {maxRetries intbaseDelay time.DurationmaxDelay time.DurationbackoffFactor float64
}type CircuitBreaker struct {state int32 // 0: closed, 1: open, 2: half-openfailures int64lastFailTime time.Timethreshold int64timeout time.Durationmutex sync.RWMutex
}func (ot *OptimizedTransport) Send(data []byte) error {// 检查熔断器状态if !ot.circuitBreaker.AllowRequest() {return fmt.Errorf("circuit breaker is open")}// 执行请求（带重试）err := ot.sendWithRetry(data)// 更新熔断器状态if err != nil {ot.circuitBreaker.RecordFailure()} else {ot.circuitBreaker.RecordSuccess()}return err
}func (ot *OptimizedTransport) sendWithRetry(data []byte) error {var lastErr errorfor attempt := 0; attempt <= ot.retryPolicy.maxRetries; attempt++ {if attempt > 0 {// 计算退避延迟delay := time.Duration(float64(ot.retryPolicy.baseDelay) * math.Pow(ot.retryPolicy.backoffFactor, float64(attempt-1)))if delay > ot.retryPolicy.maxDelay {delay = ot.retryPolicy.maxDelay}time.Sleep(delay)}// 创建请求req, err := http.NewRequest("POST", ot.endpoint, bytes.NewReader(data))if err != nil {lastErr = errcontinue}// 设置头部for key, value := range ot.headers {req.Header.Set(key, value)}// 发送请求resp, err := ot.client.Do(req)if err != nil {lastErr = errcontinue}resp.Body.Close()// 检查响应状态if resp.StatusCode >= 200 && resp.StatusCode < 300 {return nil // 成功}lastErr = fmt.Errorf("HTTP %d", resp.StatusCode)// 对于某些错误码不进行重试if resp.StatusCode == 400 || resp.StatusCode == 401 || resp.StatusCode == 403 {break}}return lastErr
}
8.3 性能监控和调优
8.3.1 实时性能监控系统
// 性能监控系统
type PerformanceMonitor struct {metrics *MetricsCollectorprofiler *ContinuousProfileralertManager *AlertManagerdashboard *PerformanceDashboardoptimizer *AutoOptimizer
}type MetricsCollector struct {counters map[string]*Countergauges map[string]*Gaugehistograms map[string]*Histogramtimers map[string]*Timermutex sync.RWMutex
}type Counter struct {value int64name stringtags map[string]string
}func (c *Counter) Inc() {atomic.AddInt64(&c.value, 1)
}func (c *Counter) Add(delta int64) {atomic.AddInt64(&c.value, delta)
}func (c *Counter) Value() int64 {return atomic.LoadInt64(&c.value)
}type Histogram struct {buckets []int64counts []int64sum int64count int64mutex sync.RWMutex
}func (h *Histogram) Observe(value float64) {h.mutex.Lock()defer h.mutex.Unlock()// 更新总和和计数atomic.AddInt64(&h.sum, int64(value))atomic.AddInt64(&h.count, 1)// 找到合适的桶for i, bucket := range h.buckets {if int64(value) <= bucket {atomic.AddInt64(&h.counts[i], 1)break}}
}// 连续性能分析器
type ContinuousProfiler struct {cpuProfiler *CPUProfilermemoryProfiler *MemoryProfilergoroutineProfiler *GoroutineProfilerenabled boolinterval time.DurationstopChan chan struct{}
}func (cp *ContinuousProfiler) Start() {if cp.enabled {return}cp.enabled = truecp.stopChan = make(chan struct{})go cp.profileLoop()
}func (cp *ContinuousProfiler) profileLoop() {ticker := time.NewTicker(cp.interval)defer ticker.Stop()for {select {case <-ticker.C:cp.collectProfiles()case <-cp.stopChan:return}}
}func (cp *ContinuousProfiler) collectProfiles() {// 收集CPU性能数据go cp.cpuProfiler.Collect()// 收集内存性能数据go cp.memoryProfiler.Collect()// 收集Goroutine信息go cp.goroutineProfiler.Collect()
}// 自动优化器
type AutoOptimizer struct {rules []OptimizationRuleanalyzer *PerformanceAnalyzerexecutor *OptimizationExecutorhistory *OptimizationHistory
}type OptimizationRule struct {Name stringCondition func(*PerformanceData) boolAction func(*PerformanceData) OptimizationActionPriority intCooldown time.DurationLastApplied time.Time
}type OptimizationAction struct {Type stringParameters map[string]interface{}Description string
}func (ao *AutoOptimizer) Optimize(perfData *PerformanceData) {// 分析性能数据analysis := ao.analyzer.Analyze(perfData)// 应用优化规则for _, rule := range ao.rules {// 检查冷却时间if time.Since(rule.LastApplied) < rule.Cooldown {continue}// 检查条件if rule.Condition(perfData) {action := rule.Action(perfData)// 执行优化err := ao.executor.Execute(action)if err == nil {rule.LastApplied = time.Now()ao.history.Record(rule.Name, action, analysis)}}}
}
8.4 性能基准测试和验证
8.4.1 综合性能基准测试
// 性能基准测试套件
type PerformanceBenchmarkSuite struct {scenarios []BenchmarkScenarioreporter *BenchmarkReportervalidator *PerformanceValidator
}type BenchmarkScenario struct {Name stringDescription stringSetup func() errorBenchmark func(*testing.B)Teardown func() errorMetrics []string
}func (pbs *PerformanceBenchmarkSuite) RunAllBenchmarks() *BenchmarkReport {report := &BenchmarkReport{StartTime: time.Now(),Results: make(map[string]*BenchmarkResult),}for _, scenario := range pbs.scenarios {result := pbs.runScenario(scenario)report.Results[scenario.Name] = result}report.EndTime = time.Now()report.Duration = report.EndTime.Sub(report.StartTime)return report
}func (pbs *PerformanceBenchmarkSuite) runScenario(scenario BenchmarkScenario) *BenchmarkResult {// 设置测试环境if err := scenario.Setup(); err != nil {return &BenchmarkResult{Name: scenario.Name,Error: err,}}defer func() {if err := scenario.Teardown(); err != nil {log.Printf("Teardown failed for scenario %s: %v", scenario.Name, err)}}()// 运行基准测试result := testing.Benchmark(scenario.Benchmark)return &BenchmarkResult{Name: scenario.Name,Iterations: result.N,Duration: result.T,MemoryAllocs: result.MemAllocs,MemoryBytes: result.MemBytes,NsPerOp: result.NsPerOp(),AllocsPerOp: result.AllocsPerOp(),BytesPerOp: result.BytesPerOp(),}
}// 性能验证器
type PerformanceValidator struct {thresholds map[string]PerformanceThresholdbaseline *BaselineData
}type PerformanceThreshold struct {MaxLatency time.DurationMaxMemoryUsage int64MaxCPUUsage float64MinThroughput float64MaxErrorRate float64
}func (pv *PerformanceValidator) Validate(report *BenchmarkReport) *ValidationReport {validationReport := &ValidationReport{Timestamp: time.Now(),Results: make(map[string]*ValidationResult),}for name, result := range report.Results {threshold, exists := pv.thresholds[name]if !exists {continue}validationResult := &ValidationResult{ScenarioName: name,Passed: true,Issues: []string{},}// 验证延迟if time.Duration(result.NsPerOp) > threshold.MaxLatency {validationResult.Passed = falsevalidationResult.Issues = append(validationResult.Issues,fmt.Sprintf("Latency %v exceeds threshold %v",time.Duration(result.NsPerOp), threshold.MaxLatency))}// 验证内存使用if result.MemoryBytes > threshold.MaxMemoryUsage {validationResult.Passed = falsevalidationResult.Issues = append(validationResult.Issues,fmt.Sprintf("Memory usage %d exceeds threshold %d",result.MemoryBytes, threshold.MaxMemoryUsage))}validationReport.Results[name] = validationResult}return validationReport
}
- AST缓存: 避免重复解析相同文件
- 规则预编译: 将规则编译为高效的匹配器
- 增量编译: 只处理变更的文件
8.2 运行时优化
- GLS直接访问: 避免map查找开销
- 内联优化: 关键路径函数内联
- 采样策略: 可配置的采样率
8.3 内存优化
- 对象池: 复用频繁创建的对象
- 延迟初始化: 按需创建追踪对象
- 内存预分配: 减少GC压力
九、错误处理和调试深度解析
9.1 多层次错误恢复机制
9.1.1 编译时错误处理
// 编译时错误处理系统
type CompilationErrorHandler struct {errorCollector *ErrorCollectorrecoveryEngine *RecoveryEnginediagnostics *DiagnosticsEnginereporter *ErrorReporter
}type ErrorCollector struct {errors []CompilationErrorwarnings []CompilationWarningmutex sync.RWMutex
}type CompilationError struct {Type ErrorTypeMessage stringFile stringLine intColumn intContext stringSeverity ErrorSeverityTimestamp time.TimeStackTrace []stringSuggestions []string
}type ErrorType intconst (SyntaxError ErrorType = iotaSemanticErrorInstrumentationErrorDependencyErrorConfigurationErrorRuntimeError
)type ErrorSeverity intconst (Info ErrorSeverity = iotaWarningErrorFatal
)func (ceh *CompilationErrorHandler) HandleError(err error, context *CompilationContext) error {// 分类错误compErr := ceh.classifyError(err, context)// 收集错误信息ceh.errorCollector.AddError(compErr)// 尝试恢复if compErr.Severity < Fatal {if recovered := ceh.recoveryEngine.TryRecover(compErr, context); recovered {ceh.errorCollector.AddWarning(CompilationWarning{Message: fmt.Sprintf("Recovered from error: %s", compErr.Message),File: compErr.File,Line: compErr.Line,})return nil}}// 生成诊断信息diagnostic := ceh.diagnostics.GenerateDiagnostic(compErr)ceh.reporter.Report(diagnostic)return compErr
}// 错误恢复引擎
type RecoveryEngine struct {strategies map[ErrorType][]RecoveryStrategyfallback RecoveryStrategy
}type RecoveryStrategy interface {CanRecover(error CompilationError, context *CompilationContext) boolRecover(error CompilationError, context *CompilationContext) errorPriority() int
}// AST恢复策略
type ASTRecoveryStrategy struct{}func (ars *ASTRecoveryStrategy) CanRecover(err CompilationError, ctx *CompilationContext) bool {return err.Type == SyntaxError && strings.Contains(err.Message, "unexpected token")
}func (ars *ASTRecoveryStrategy) Recover(err CompilationError, ctx *CompilationContext) error {// 尝试修复常见的语法错误if strings.Contains(err.Message, "missing semicolon") {return ars.insertSemicolon(err, ctx)}if strings.Contains(err.Message, "unmatched brace") {return ars.fixBraces(err, ctx)}return fmt.Errorf("cannot recover from syntax error")
}func (ars *ASTRecoveryStrategy) insertSemicolon(err CompilationError, ctx *CompilationContext) error {// 在指定位置插入分号source := ctx.GetSourceCode(err.File)lines := strings.Split(source, "\n")if err.Line > 0 && err.Line <= len(lines) {line := lines[err.Line-1]if !strings.HasSuffix(strings.TrimSpace(line), ";") {lines[err.Line-1] = line + ";"newSource := strings.Join(lines, "\n")return ctx.UpdateSourceCode(err.File, newSource)}}return fmt.Errorf("cannot insert semicolon")
}// 插桩恢复策略
type InstrumentationRecoveryStrategy struct{}func (irs *InstrumentationRecoveryStrategy) CanRecover(err CompilationError, ctx *CompilationContext) bool {return err.Type == InstrumentationError
}func (irs *InstrumentationRecoveryStrategy) Recover(err CompilationError, ctx *CompilationContext) error {// 跳过有问题的插桩点if strings.Contains(err.Message, "cannot instrument function") {ctx.SkipInstrumentation(err.File, err.Line)return nil}// 使用简化的插桩模板if strings.Contains(err.Message, "template execution failed") {return irs.useSimplifiedTemplate(err, ctx)}return fmt.Errorf("cannot recover from instrumentation error")
}func (irs *InstrumentationRecoveryStrategy) useSimplifiedTemplate(err CompilationError, ctx *CompilationContext) error {// 使用最基本的插桩模板simplifiedTemplate := `// Simplified instrumentationdefer func() {if r := recover(); r != nil {// Log error but don't propagatelog.Printf("Instrumentation error: %v", r)}}()`return ctx.ApplySimplifiedInstrumentation(err.File, err.Line, simplifiedTemplate)
}
9.1.2 运行时错误处理
// 运行时错误处理系统
type RuntimeErrorHandler struct {panicRecovery *PanicRecoverySystemerrorReporter *RuntimeErrorReportercircuitBreaker *ErrorCircuitBreakerfallbackMode *FallbackModeManager
}// Panic恢复系统
type PanicRecoverySystem struct {handlers map[string]PanicHandlerstats *PanicStatslogger *StructuredLogger
}type PanicHandler interface {CanHandle(panicValue interface{}) boolHandle(panicValue interface{}, stackTrace []byte) errorPriority() int
}// 插桩Panic处理器
type InstrumentationPanicHandler struct {fallbackMode *FallbackModeManager
}func (iph *InstrumentationPanicHandler) CanHandle(panicValue interface{}) bool {if str, ok := panicValue.(string); ok {return strings.Contains(str, "otel") || strings.Contains(str, "instrumentation")}return false
}func (iph *InstrumentationPanicHandler) Handle(panicValue interface{}, stackTrace []byte) error {// 记录详细的panic信息log.Printf("Instrumentation panic recovered: %v\nStack trace:\n%s", panicValue, stackTrace)// 激活降级模式iph.fallbackMode.ActivateFallback("instrumentation_panic")// 不重新抛出panic，让程序继续运行return nil
}// 降级模式管理器
type FallbackModeManager struct {modes map[string]*FallbackModeactiveMode stringmutex sync.RWMutexmetrics *FallbackMetrics
}type FallbackMode struct {Name stringDescription stringHandler FallbackHandlerDuration time.DurationActivatedAt time.Time
}type FallbackHandler interface {OnActivate() errorOnDeactivate() errorHandleRequest(ctx context.Context, req interface{}) (interface{}, error)
}// 无插桩降级模式
type NoInstrumentationFallback struct {originalFunctions map[string]interface{}
}func (nif *NoInstrumentationFallback) OnActivate() error {log.Println("Activating no-instrumentation fallback mode")// 禁用所有插桩功能DisableAllInstrumentation()// 清理已注入的追踪代码return nif.cleanupInstrumentation()
}func (nif *NoInstrumentationFallback) OnDeactivate() error {log.Println("Deactivating no-instrumentation fallback mode")// 重新启用插桩功能EnableAllInstrumentation()return nil
}func (nif *NoInstrumentationFallback) HandleRequest(ctx context.Context, req interface{}) (interface{}, error) {// 在降级模式下，直接执行原始逻辑，不进行任何追踪return req, nil
}func (nif *NoInstrumentationFallback) cleanupInstrumentation() error {// 移除所有插桩代码的影响// 这里可能需要重置一些全局状态// 清理GLS中的追踪上下文ClearAllTraceContexts()// 停止所有后台追踪任务StopAllTracingTasks()return nil
}// 错误熔断器
type ErrorCircuitBreaker struct {state CircuitStatefailureCount int64lastFailTime time.Timethreshold int64timeout time.Durationmutex sync.RWMutex
}type CircuitState intconst (Closed CircuitState = iotaOpenHalfOpen
)func (ecb *ErrorCircuitBreaker) Call(fn func() error) error {ecb.mutex.RLock()state := ecb.stateecb.mutex.RUnlock()switch state {case Open:if time.Since(ecb.lastFailTime) > ecb.timeout {ecb.mutex.Lock()ecb.state = HalfOpenecb.mutex.Unlock()} else {return fmt.Errorf("circuit breaker is open")}case HalfOpen:// 在半开状态下尝试执行case Closed:// 正常执行}err := fn()ecb.mutex.Lock()defer ecb.mutex.Unlock()if err != nil {ecb.failureCount++ecb.lastFailTime = time.Now()if ecb.failureCount >= ecb.threshold {ecb.state = Open}} else {ecb.failureCount = 0ecb.state = Closed}return err
}
9.2 高级调试支持系统
9.2.1 动态调试接口
// 动态调试系统
type DynamicDebugSystem struct {debugServer *DebugServerinspector *RuntimeInspectorprofiler *DynamicProfilertraceCollector *TraceCollectorconfig *DebugConfig
}type DebugServer struct {server *http.Serverhandlers map[string]http.HandlerFuncauth *DebugAuth
}func (ds *DynamicDebugSystem) StartDebugServer(port int) error {mux := http.NewServeMux()// 注册调试端点mux.HandleFunc("/debug/instrumentation", ds.handleInstrumentationDebug)mux.HandleFunc("/debug/gls", ds.handleGLSDebug)mux.HandleFunc("/debug/traces", ds.handleTracesDebug)mux.HandleFunc("/debug/performance", ds.handlePerformanceDebug)mux.HandleFunc("/debug/errors", ds.handleErrorsDebug)mux.HandleFunc("/debug/config", ds.handleConfigDebug)ds.debugServer.server = &http.Server{Addr: fmt.Sprintf(":%d", port),Handler: mux,}go func() {if err := ds.debugServer.server.ListenAndServe(); err != nil && err != http.ErrServerClosed {log.Printf("Debug server error: %v", err)}}()log.Printf("Debug server started on port %d", port)return nil
}func (ds *DynamicDebugSystem) handleInstrumentationDebug(w http.ResponseWriter, r *http.Request) {switch r.Method {case "GET":ds.getInstrumentationStatus(w, r)case "POST":ds.updateInstrumentationConfig(w, r)default:http.Error(w, "Method not allowed", http.StatusMethodNotAllowed)}
}func (ds *DynamicDebugSystem) getInstrumentationStatus(w http.ResponseWriter, r *http.Request) {status := &InstrumentationStatus{Enabled: IsInstrumentationEnabled(),ActiveRules: GetActiveRules(),InstrumentedFuncs: GetInstrumentedFunctions(),Statistics: GetInstrumentationStats(),Errors: GetRecentErrors(),}w.Header().Set("Content-Type", "application/json")json.NewEncoder(w).Encode(status)
}func (ds *DynamicDebugSystem) handleGLSDebug(w http.ResponseWriter, r *http.Request) {glsInfo := &GLSDebugInfo{CurrentGoroutines: GetAllGoroutineContexts(),MemoryUsage: GetGLSMemoryUsage(),AccessStats: GetGLSAccessStats(),FieldOffsets: GetGLSFieldOffsets(),}w.Header().Set("Content-Type", "application/json")json.NewEncoder(w).Encode(glsInfo)
}// 运行时检查器
type RuntimeInspector struct {goroutineTracker *GoroutineTrackermemoryAnalyzer *MemoryAnalyzerfunctionTracker *FunctionTracker
}type GoroutineTracker struct {goroutines map[int64]*GoroutineInfomutex sync.RWMutex
}type GoroutineInfo struct {ID int64State stringStackTrace []stringTraceContext *TraceContextCreatedAt time.TimeLastActive time.Time
}func (gt *GoroutineTracker) TrackGoroutine(id int64) {gt.mutex.Lock()defer gt.mutex.Unlock()info := &GoroutineInfo{ID: id,State: "running",StackTrace: GetCurrentStackTrace(),CreatedAt: time.Now(),LastActive: time.Now(),}// 获取当前goroutine的追踪上下文if ctx := GetCurrentTraceContext(); ctx != nil {info.TraceContext = ctx}gt.goroutines[id] = info
}func (gt *GoroutineTracker) GetGoroutineInfo(id int64) *GoroutineInfo {gt.mutex.RLock()defer gt.mutex.RUnlock()return gt.goroutines[id]
}func (gt *GoroutineTracker) GetAllGoroutines() map[int64]*GoroutineInfo {gt.mutex.RLock()defer gt.mutex.RUnlock()result := make(map[int64]*GoroutineInfo)for id, info := range gt.goroutines {result[id] = info}return result
}// 内存分析器
type MemoryAnalyzer struct {allocTracker *AllocationTrackerleakDetector *LeakDetectorgcMonitor *GCMonitor
}type AllocationTracker struct {allocations map[uintptr]*AllocationInfomutex sync.RWMutex
}type AllocationInfo struct {Size int64Type stringStackTrace []stringAllocatedAt time.TimeFreed boolFreedAt time.Time
}func (at *AllocationTracker) TrackAllocation(ptr uintptr, size int64, typeName string) {at.mutex.Lock()defer at.mutex.Unlock()at.allocations[ptr] = &AllocationInfo{Size: size,Type: typeName,StackTrace: GetCurrentStackTrace(),AllocatedAt: time.Now(),Freed: false,}
}func (at *AllocationTracker) TrackDeallocation(ptr uintptr) {at.mutex.Lock()defer at.mutex.Unlock()if info, exists := at.allocations[ptr]; exists {info.Freed = trueinfo.FreedAt = time.Now()}
}// 泄漏检测器
type LeakDetector struct {tracker *AllocationTrackerthreshold time.DurationcheckInterval time.DurationstopChan chan struct{}
}func (ld *LeakDetector) Start() {go ld.detectLoop()
}func (ld *LeakDetector) detectLoop() {ticker := time.NewTicker(ld.checkInterval)defer ticker.Stop()for {select {case <-ticker.C:ld.checkForLeaks()case <-ld.stopChan:return}}
}func (ld *LeakDetector) checkForLeaks() {now := time.Now()leaks := []LeakInfo{}ld.tracker.mutex.RLock()for ptr, info := range ld.tracker.allocations {if !info.Freed && now.Sub(info.AllocatedAt) > ld.threshold {leaks = append(leaks, LeakInfo{Pointer: ptr,Size: info.Size,Type: info.Type,Age: now.Sub(info.AllocatedAt),StackTrace: info.StackTrace,})}}ld.tracker.mutex.RUnlock()if len(leaks) > 0 {ld.reportLeaks(leaks)}
}type LeakInfo struct {Pointer uintptrSize int64Type stringAge time.DurationStackTrace []string
}func (ld *LeakDetector) reportLeaks(leaks []LeakInfo) {log.Printf("Detected %d potential memory leaks:", len(leaks))for _, leak := range leaks {log.Printf(" Leak: %s (%d bytes, age: %v)", leak.Type, leak.Size, leak.Age)for _, frame := range leak.StackTrace {log.Printf(" %s", frame)}}
}
9.3 智能错误诊断和修复建议
9.3.1 错误模式识别
// 智能诊断引擎
type IntelligentDiagnosticEngine struct {patternMatcher *ErrorPatternMatcherknowledgeBase *ErrorKnowledgeBasemlPredictor *ErrorPredictorsuggestionGen *SuggestionGenerator
}type ErrorPatternMatcher struct {patterns []ErrorPatternmatcher *regexp.Regexp
}type ErrorPattern struct {ID stringName stringPattern *regexp.RegexpCategory ErrorCategorySeverity ErrorSeverityDescription stringSolutions []SolutionExamples []string
}type ErrorCategory intconst (CompilationCategory ErrorCategory = iotaRuntimeCategoryPerformanceCategoryConfigurationCategoryDependencyCategory
)type Solution struct {Description stringCode stringConfidence float64AutoApply bool
}func (ide *IntelligentDiagnosticEngine) DiagnoseError(err error, context *DiagnosticContext) *DiagnosticResult {// 1. 模式匹配patterns := ide.patternMatcher.MatchPatterns(err.Error())// 2. 知识库查询knowledgeResults := ide.knowledgeBase.Query(err, context)// 3. ML预测prediction := ide.mlPredictor.Predict(err, context)// 4. 生成建议suggestions := ide.suggestionGen.Generate(patterns, knowledgeResults, prediction)return &DiagnosticResult{Error: err,Patterns: patterns,Knowledge: knowledgeResults,Prediction: prediction,Suggestions: suggestions,Confidence: ide.calculateConfidence(patterns, knowledgeResults, prediction),}
}// 错误知识库
type ErrorKnowledgeBase struct {entries map[string]*KnowledgeEntryindex *ErrorIndex
}type KnowledgeEntry struct {ErrorSignature stringDescription stringCauses []stringSolutions []DetailedSolutionRelatedErrors []stringFrequency int64LastSeen time.Time
}type DetailedSolution struct {Title stringDescription stringSteps []stringCode stringReferences []stringSuccess float64
}func (ekb *ErrorKnowledgeBase) AddEntry(err error, solution DetailedSolution) {signature := ekb.generateSignature(err)if entry, exists := ekb.entries[signature]; exists {entry.Frequency++entry.LastSeen = time.Now()entry.Solutions = append(entry.Solutions, solution)} else {ekb.entries[signature] = &KnowledgeEntry{ErrorSignature: signature,Description: err.Error(),Solutions: []DetailedSolution{solution},Frequency: 1,LastSeen: time.Now(),}}
}func (ekb *ErrorKnowledgeBase) generateSignature(err error) string {// 生成错误的唯一签名message := err.Error()// 移除变量部分（如文件路径、行号等）normalized := regexp.MustCompile(`\d+`).ReplaceAllString(message, "N")normalized = regexp.MustCompile(`/[^\s]+`).ReplaceAllString(normalized, "/PATH")// 计算哈希hash := sha256.Sum256([]byte(normalized))return hex.EncodeToString(hash[:8])
}// 建议生成器
type SuggestionGenerator struct {templates map[ErrorCategory][]SuggestionTemplateranker *SuggestionRanker
}type SuggestionTemplate struct {Name stringTemplate stringApplicability func(error, *DiagnosticContext) boolPriority int
}func (sg *SuggestionGenerator) Generate(patterns []ErrorPattern, knowledge []*KnowledgeEntry, prediction *ErrorPrediction) []Suggestion {suggestions := []Suggestion{}// 基于模式生成建议for _, pattern := range patterns {for _, solution := range pattern.Solutions {suggestions = append(suggestions, Suggestion{Type: "pattern",Description: solution.Description,Code: solution.Code,Confidence: solution.Confidence,Source: pattern.Name,})}}// 基于知识库生成建议for _, entry := range knowledge {for _, solution := range entry.Solutions {suggestions = append(suggestions, Suggestion{Type: "knowledge",Description: solution.Description,Code: solution.Code,Confidence: solution.Success,Source: "knowledge_base",})}}// 基于ML预测生成建议if prediction != nil {for _, suggestion := range prediction.Suggestions {suggestions = append(suggestions, suggestion)}}// 排序和去重return sg.ranker.RankAndDeduplicate(suggestions)
}type Suggestion struct {Type stringDescription stringCode stringConfidence float64Source stringAutoApply bool
}// 建议排序器
type SuggestionRanker struct {weights map[string]float64
}func (sr *SuggestionRanker) RankAndDeduplicate(suggestions []Suggestion) []Suggestion {// 去重seen := make(map[string]bool)unique := []Suggestion{}for _, suggestion := range suggestions {key := suggestion.Description + suggestion.Codeif !seen[key] {seen[key] = trueunique = append(unique, suggestion)}}// 排序sort.Slice(unique, func(i, j int) bool {scoreI := sr.calculateScore(unique[i])scoreJ := sr.calculateScore(unique[j])return scoreI > scoreJ})return unique
}func (sr *SuggestionRanker) calculateScore(suggestion Suggestion) float64 {baseScore := suggestion.Confidence// 根据来源调整权重if weight, exists := sr.weights[suggestion.Source]; exists {baseScore *= weight}// 自动应用的建议得分更高if suggestion.AutoApply {baseScore *= 1.2}return baseScore
}
9.2 调试支持
- 调试模式: 输出详细的插桩信息
- AST可视化: 生成AST结构图
- 规则验证: 检查规则的正确性
十、未来发展方向深度展望
10.1 技术演进路线图
10.1.1 短期发展目标（6-12个月）
// 短期技术改进计划
type ShortTermRoadmap struct {stabilityImprovements *StabilityEnhancementsperformanceOptimizations *PerformanceUpgradesframeworkSupport *ExtendedFrameworkSupporttoolingImprovements *DeveloperTooling
}// 稳定性增强
type StabilityEnhancements struct {errorRecovery *AdvancedErrorRecoverymemoryLeakPrevention *MemoryLeakPreventionconcurrencySafety *ConcurrencySafetyImprovementsruntimeCompatibility *RuntimeCompatibilityMatrix
}func (se *StabilityEnhancements) ImplementAdvancedErrorRecovery() {// 实现更智能的错误恢复机制// 1. 预测性错误检测// 2. 自动降级策略// 3. 智能重试机制// 4. 错误模式学习
}// 性能优化升级
type PerformanceUpgrades struct {zeroAllocationTracing *ZeroAllocationTracingadaptiveSampling *AdaptiveSamplingEnginebatchProcessing *BatchProcessingOptimizationcacheOptimization *IntelligentCaching
}func (pu *PerformanceUpgrades) ImplementZeroAllocationTracing() {// 实现零分配追踪// 1. 预分配对象池// 2. 栈上分配优化// 3. 内存复用策略// 4. GC压力减少
}// 扩展框架支持
type ExtendedFrameworkSupport struct {microservices *MicroserviceFrameworksdatabases *DatabaseDriversmessageQueues *MessageQueueSystemscloudServices *CloudServiceIntegrations
}func (efs *ExtendedFrameworkSupport) AddMicroserviceSupport() {frameworks := []string{"go-micro","go-kit","kratos","jupiter","tars-go",}for _, framework := range frameworks {efs.implementFrameworkSupport(framework)}
}
10.1.2 中期发展目标（1-2年）
// 中期技术发展计划
type MediumTermRoadmap struct {aiDrivenInstrumentation *AIInstrumentationEnginecrossLanguageSupport *CrossLanguageTracingdistributedProfiling *DistributedProfilingSystemintelligentOptimization *IntelligentOptimizationEngine
}// AI驱动的插桩引擎
type AIInstrumentationEngine struct {codeAnalyzer *MLCodeAnalyzerpatternRecognition *InstrumentationPatternRecognitionautoOptimization *AutoOptimizationEnginepredictiveInstrumentation *PredictiveInstrumentationSystem
}func (aie *AIInstrumentationEngine) AnalyzeCodePatterns(codebase string) *InstrumentationPlan {// 使用机器学习分析代码模式patterns := aie.codeAnalyzer.AnalyzePatterns(codebase)// 识别最佳插桩点instrumentationPoints := aie.patternRecognition.IdentifyOptimalPoints(patterns)// 生成智能插桩计划plan := &InstrumentationPlan{Points: instrumentationPoints,Strategy: aie.determineOptimalStrategy(patterns),ExpectedPerformanceImpact: aie.predictPerformanceImpact(instrumentationPoints),}return plan
}// 跨语言追踪支持
type CrossLanguageTracing struct {protocolBridge *ProtocolBridgecontextPropagation *CrossLanguageContextPropagationtraceCorrelation *TraceCorrelationEngine
}func (clt *CrossLanguageTracing) EnableCrossLanguageTracing() {// 支持的语言supportedLanguages := []string{"Java", "Python", "Node.js", "C++", "Rust", ".NET",}for _, lang := range supportedLanguages {clt.protocolBridge.RegisterLanguageSupport(lang)}// 实现统一的上下文传播clt.contextPropagation.EnableUnifiedPropagation()
}// 分布式性能分析系统
type DistributedProfilingSystem struct {clusterProfiler *ClusterProfilerhotspotDetection *HotspotDetectionEngineperformanceAnalytics *PerformanceAnalyticsEngineoptimizationRecommendations *OptimizationRecommendationEngine
}func (dps *DistributedProfilingSystem) StartDistributedProfiling() {// 启动集群级别的性能分析dps.clusterProfiler.StartProfiling()// 实时热点检测go dps.hotspotDetection.ContinuousDetection()// 性能分析和建议go dps.performanceAnalytics.AnalyzePerformance()go dps.optimizationRecommendations.GenerateRecommendations()
}
10.1.3 长期发展愿景（2-5年）
// 长期技术愿景
type LongTermVision struct {quantumOptimization *QuantumOptimizationEngineselfHealingSystem *SelfHealingInstrumentationSystemcognitiveObservability *CognitiveObservabilityPlatformautonomousOptimization *AutonomousOptimizationSystem
}// 量子优化引擎
type QuantumOptimizationEngine struct {quantumAlgorithms *QuantumAlgorithmSuiteoptimizationSpace *QuantumOptimizationSpacequantumSimulator *QuantumSimulator
}func (qoe *QuantumOptimizationEngine) OptimizeInstrumentationStrategy() *OptimizationResult {// 使用量子算法优化插桩策略// 1. 量子退火算法寻找最优插桩点组合// 2. 量子机器学习预测性能影响// 3. 量子并行计算加速优化过程return qoe.quantumAlgorithms.FindOptimalStrategy()
}// 自愈插桩系统
type SelfHealingInstrumentationSystem struct {anomalyDetection *AnomalyDetectionEngineautoRepair *AutoRepairMechanismadaptiveEvolution *AdaptiveEvolutionEnginesystemResilience *SystemResilienceManager
}func (shis *SelfHealingInstrumentationSystem) EnableSelfHealing() {// 实现系统自愈能力// 1. 自动检测异常和故障// 2. 智能修复机制// 3. 系统自适应演化// 4. 弹性恢复能力go shis.anomalyDetection.ContinuousMonitoring()go shis.autoRepair.AutomaticRepair()go shis.adaptiveEvolution.ContinuousEvolution()
}// 认知可观测性平台
type CognitiveObservabilityPlatform struct {naturalLanguageInterface *NaturalLanguageInterfaceintelligentInsights *IntelligentInsightsEnginepredictiveAnalytics *PredictiveAnalyticsEngineconversationalDebugging *ConversationalDebuggingSystem
}func (cop *CognitiveObservabilityPlatform) EnableCognitiveObservability() {// 实现认知级别的可观测性// 1. 自然语言查询接口// 2. 智能洞察生成// 3. 预测性分析// 4. 对话式调试cop.naturalLanguageInterface.EnableNLQuery()cop.intelligentInsights.StartInsightGeneration()cop.predictiveAnalytics.EnablePredictiveAnalysis()cop.conversationalDebugging.StartConversationalDebugging()
}
10.2 新兴技术集成深度规划
10.2.1 WebAssembly生态集成
// WebAssembly支持系统
type WebAssemblySupport struct {wasmRuntime *WASMRuntimeIntegrationcrossCompilation *CrossCompilationSupportperformanceOptimization *WASMPerformanceOptimizationsecuritySandbox *WASMSecuritySandbox
}func (was *WebAssemblySupport) EnableWASMSupport() {// 实现WASM环境下的插桩支持// 1. WASM运行时集成// 2. 跨编译支持// 3. 性能优化// 4. 安全沙箱was.wasmRuntime.IntegrateWithWASMRuntime()was.crossCompilation.EnableCrossCompilation()was.performanceOptimization.OptimizeForWASM()was.securitySandbox.EnableSecuritySandbox()
}// WASM运行时集成
type WASMRuntimeIntegration struct {wasmEngine *WASMEnginememoryManager *WASMMemoryManagerfunctionBridge *WASMFunctionBridgeeventSystem *WASMEventSystem
}func (wri *WASMRuntimeIntegration) IntegrateWithWASMRuntime() {// 集成主流WASM运行时runtimes := []string{"wasmtime","wasmer","wasm3","lucet",}for _, runtime := range runtimes {wri.wasmEngine.RegisterRuntime(runtime)}
}
10.2.2 云原生深度集成
// 云原生集成系统
type CloudNativeIntegration struct {kubernetesIntegration *KubernetesIntegrationserviceMeshSupport *ServiceMeshSupportserverlessSupport *ServerlessSupportedgeComputingSupport *EdgeComputingSupport
}// Kubernetes深度集成
type KubernetesIntegration struct {operatorFramework *OperatorFrameworkcustomResources *CustomResourceDefinitionsadmissionController *AdmissionControllernetworkPolicies *NetworkPolicyIntegration
}func (ki *KubernetesIntegration) DeployOperator() {// 部署Kubernetes Operatoroperator := &InstrumentationOperator{Name: "otel-go-instrumentation-operator",Version: "v1.0.0",Capabilities: []string{"auto-instrumentation","configuration-management","performance-monitoring","error-recovery",},}ki.operatorFramework.Deploy(operator)
}// 服务网格支持
type ServiceMeshSupport struct {istioIntegration *IstioIntegrationlinkerdIntegration *LinkerdIntegrationconsulConnectIntegration *ConsulConnectIntegrationenvoyIntegration *EnvoyIntegration
}func (sms *ServiceMeshSupport) EnableServiceMeshIntegration() {// 集成主流服务网格meshes := []ServiceMesh{&IstioMesh{},&LinkerdMesh{},&ConsulConnectMesh{},&EnvoyMesh{},}for _, mesh := range meshes {sms.integrateMesh(mesh)}
}// 无服务器支持
type ServerlessSupport struct {faasIntegration *FaaSIntegrationcoldStartOptimization *ColdStartOptimizationeventDrivenTracing *EventDrivenTracingcostOptimization *CostOptimization
}func (ss *ServerlessSupport) EnableServerlessSupport() {// 支持主流FaaS平台platforms := []string{"AWS Lambda","Google Cloud Functions","Azure Functions","Alibaba Cloud Function Compute","Tencent Cloud SCF",}for _, platform := range platforms {ss.faasIntegration.RegisterPlatform(platform)}// 优化冷启动性能ss.coldStartOptimization.EnableOptimization()
}
10.2.3 边缘计算支持
// 边缘计算支持系统
type EdgeComputingSupport struct {edgeRuntime *EdgeRuntimeresourceOptimization *EdgeResourceOptimizationnetworkOptimization *EdgeNetworkOptimizationdataProcessing *EdgeDataProcessing
}func (ecs *EdgeComputingSupport) EnableEdgeSupport() {// 启用边缘计算支持ecs.edgeRuntime.InitializeEdgeRuntime()ecs.resourceOptimization.OptimizeForEdge()ecs.networkOptimization.OptimizeNetworking()ecs.dataProcessing.EnableEdgeProcessing()
}// 边缘运行时
type EdgeRuntime struct {lightweightRuntime *LightweightRuntimeresourceConstraints *ResourceConstraintsofflineCapability *OfflineCapabilitysyncMechanism *SyncMechanism
}func (er *EdgeRuntime) InitializeEdgeRuntime() {// 初始化轻量级边缘运行时er.lightweightRuntime.Initialize()// 设置资源约束er.resourceConstraints.SetConstraints(ResourceConstraints{MaxMemory: "128MB",MaxCPU: "0.5 cores",MaxStorage: "1GB",})// 启用离线能力er.offlineCapability.Enable()// 配置同步机制er.syncMechanism.Configure()
}
10.3 生态系统发展规划
10.3.1 开发者生态建设
// 开发者生态系统
type DeveloperEcosystem struct {sdkFramework *SDKFrameworkpluginSystem *PluginSystemcommunityTools *CommunityToolseducationPlatform *EducationPlatform
}// SDK框架
type SDKFramework struct {coreSDK *CoreSDKlanguageBindings *LanguageBindingsextensionPoints *ExtensionPointsdocumentationSystem *DocumentationSystem
}func (sf *SDKFramework) BuildComprehensiveSDK() {// 构建全面的SDK框架sf.coreSDK.BuildCore()sf.languageBindings.CreateBindings()sf.extensionPoints.DefineExtensionPoints()sf.documentationSystem.GenerateDocumentation()
}// 插件系统
type PluginSystem struct {pluginRegistry *PluginRegistrypluginManager *PluginManagermarketPlace *PluginMarketPlacequalityAssurance *PluginQualityAssurance
}func (ps *PluginSystem) EnablePluginEcosystem() {// 启用插件生态系统ps.pluginRegistry.Initialize()ps.pluginManager.StartManager()ps.marketPlace.LaunchMarketPlace()ps.qualityAssurance.EnableQA()
}
10.3.2 企业级支持
// 企业级支持系统
type EnterpriseSupport struct {enterpriseFeatures *EnterpriseFeaturessupportServices *SupportServicescomplianceFramework *ComplianceFrameworkmigrationTools *MigrationTools
}// 企业级功能
type EnterpriseFeatures struct {advancedSecurity *AdvancedSecurityscalabilityFeatures *ScalabilityFeaturesgovernanceTools *GovernanceToolsauditingCapabilities *AuditingCapabilities
}func (ef *EnterpriseFeatures) EnableEnterpriseFeatures() {// 启用企业级功能ef.advancedSecurity.EnableAdvancedSecurity()ef.scalabilityFeatures.EnableScalability()ef.governanceTools.EnableGovernance()ef.auditingCapabilities.EnableAuditing()
}
十一、总结：技术革新与未来展望
otel go build 非侵入式插桩技术代表了Go语言可观测性领域的重大技术突破和范式转变。通过深度集成Go编译器生态、创新性利用GLS机制、巧妙运用go:linkname指令，以及构建完善的智能插桩规则系统，该技术实现了前所未有的技术创新和实用价值。
核心技术优势总结
1. 非侵入性设计哲学
- 零代码修改：完全无需修改业务代码即可实现全链路追踪
- 透明集成：对开发者完全透明，不影响开发流程
- 向后兼容：与现有Go生态系统完美兼容
- 渐进式采用：支持逐步启用和配置
2. 极致性能优化
- 编译时插桩：在编译阶段完成代码注入，运行时零开销
- 智能采样：基于机器学习的自适应采样策略
- 内存优化：零分配追踪和智能内存管理
- 并发优化：充分利用Go的并发特性
3. 生态系统完整性
- 框架全覆盖：支持主流Web框架、数据库驱动、消息队列
- 中间件集成：深度集成各类中间件和基础设施组件
- 云原生支持：原生支持Kubernetes、服务网格等云原生技术
- 跨平台兼容：支持多种操作系统和部署环境
技术创新突破点
1. 编译器深度集成创新
- AST层面操作：直接在抽象语法树层面进行精确的代码注入
- 类型系统集成：与Go类型系统深度集成，确保类型安全
- 优化器协同：与Go编译器优化器协同工作，不影响编译优化
- 调试信息保持：完整保持调试信息，不影响调试体验
2. GLS机制突破性应用
- 运行时结构扩展：安全地扩展Go运行时的goroutine结构
- 上下文传播创新：实现高效的跨goroutine上下文传播
- 内存安全保障：通过多重安全检查确保内存访问安全
- 性能极致优化：通过直接内存访问实现纳秒级性能
3. 智能插桩规则系统
- 声明式配置：通过声明式规则定义插桩行为
- 模板化生成：基于模板的灵活代码生成机制
- 条件化执行：支持复杂的条件判断和动态插桩
- 扩展性设计：支持用户自定义插桩规则和模板
4. 企业级可靠性保障
- 多层错误恢复：从编译时到运行时的全方位错误处理
- 智能降级机制：在异常情况下自动降级保障业务连续性
- 实时监控诊断：提供实时的系统健康监控和诊断能力
- 自愈系统设计：具备自动检测和修复问题的能力
技术影响与价值
1. 对Go生态系统的影响
- 可观测性标准：为Go语言可观测性设立了新的技术标准
- 开发效率提升：显著降低了可观测性实施的技术门槛
- 生态系统完善：推动了Go语言在企业级应用中的普及
- 技术创新引领：引领了编译时插桩技术的发展方向
2. 对云原生领域的贡献
- 微服务可观测性：为微服务架构提供了完整的可观测性解决方案
- 容器化支持：原生支持容器化和Kubernetes环境
- 服务网格集成：与主流服务网格技术深度集成
- 边缘计算扩展：支持边缘计算场景的可观测性需求
3. 对企业数字化转型的价值
- 运维效率提升：大幅提升系统运维和故障排查效率
- 业务洞察增强：提供深度的业务性能洞察和分析
- 成本优化：通过精确的性能分析实现成本优化
- 风险控制：提供全面的系统健康监控和风险预警
未来发展展望
随着技术的不断演进和生态系统的持续完善，otel go build 技术将在以下几个方向继续发展：
1. 智能化演进
- AI驱动优化：利用人工智能技术实现智能化的插桩优化
- 自适应系统：构建能够自适应不同场景的智能系统
- 预测性分析：基于历史数据进行预测性的性能分析
- 认知计算：引入认知计算技术提升系统智能水平
2. 生态系统扩展
- 跨语言支持：扩展到更多编程语言的支持
- 新兴技术集成：集成WebAssembly、量子计算等新兴技术
- 标准化推进：推动相关技术标准的制定和普及
- 开源社区建设：构建活跃的开源社区生态
3. 企业级增强
- 安全性强化：进一步增强企业级安全特性
- 合规性支持：支持更多行业的合规性要求
- 可扩展性提升：支持更大规模的企业级部署
- 专业服务：提供更完善的专业服务和支持
这项技术不仅解决了Go语言可观测性的核心痛点，更为整个软件工程领域的发展贡献了宝贵的技术创新和实践经验。随着云原生技术的持续发展和企业数字化转型的深入推进，相信这项技术将在未来发挥更加重要和深远的作用，为构建更加智能、高效、可靠的软件系统提供强有力的技术支撑。
通过持续的技术创新、生态建设和社区合作，otel go build 技术必将成为Go语言乃至整个软件工程领域的重要技术基石，推动可观测性技术向更高水平发展，为数字化时代的软件系统建设贡献更大的价值。*
