记录NVIDIA Orin启动流程，镜像文件，AB双分区，ota升级

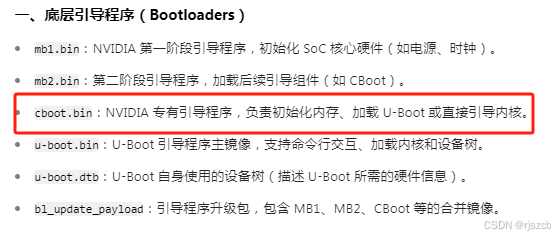

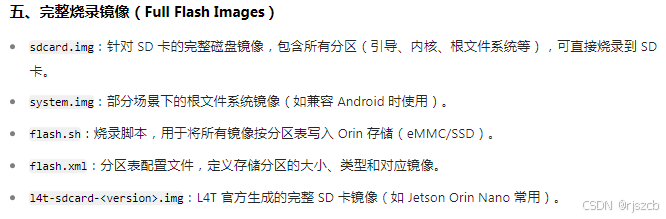

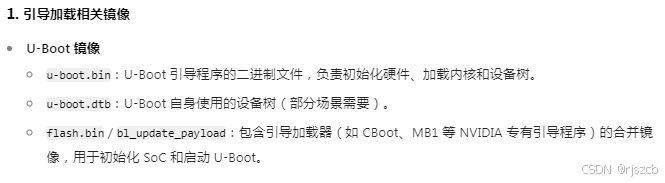

一、Orin 核心镜像文件

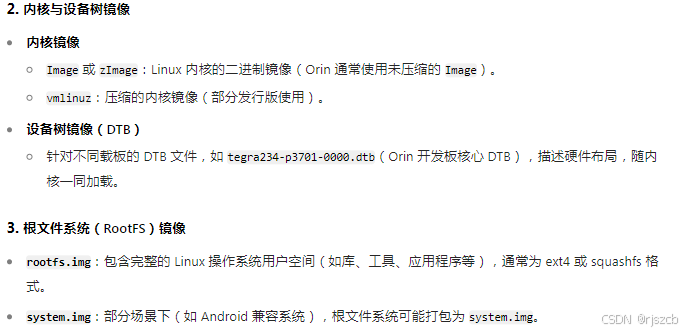

在 NVIDIA Orin 平台开发中，构建完整系统镜像时会生成一系列核心镜像文件，涵盖启动引导、内核、根文件系统及辅助组件。以下是主要镜像及其作用：

以下是 NVIDIA Orin 开发中构建完整系统时常见的核心镜像文件清单，按功能分类列出，涵盖引导、内核、根文件系统及烧录相关组件：

除了这些orin分区，还有很多客户自定义的分区

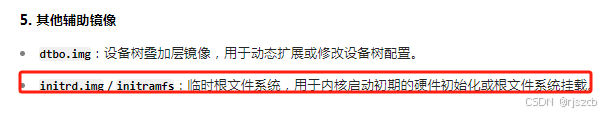

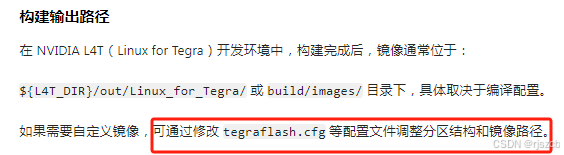

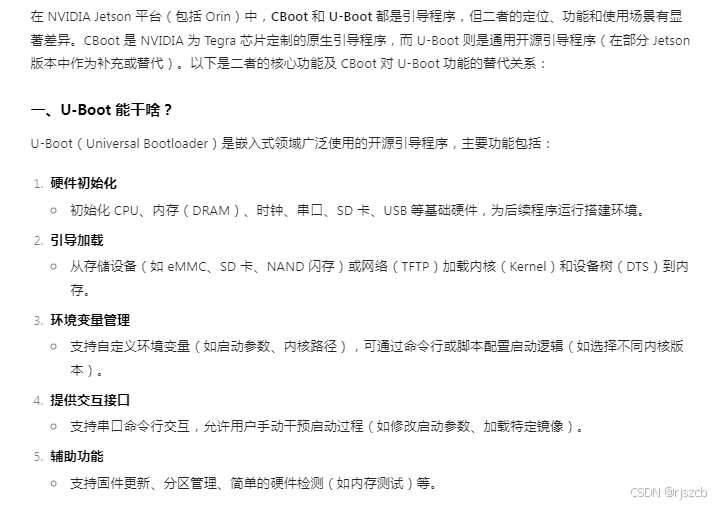

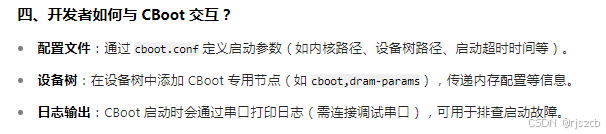

二、cboot镜像的作用

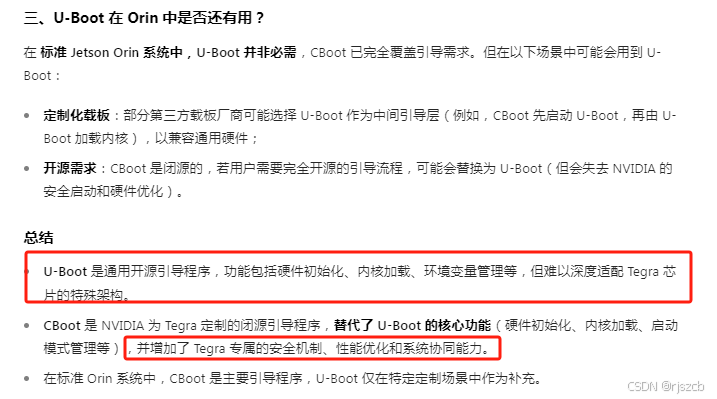

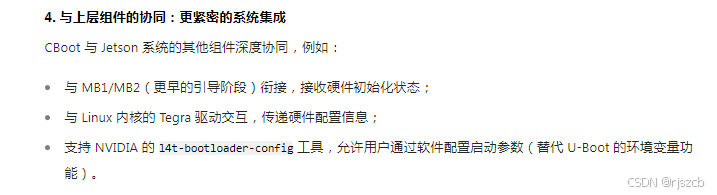

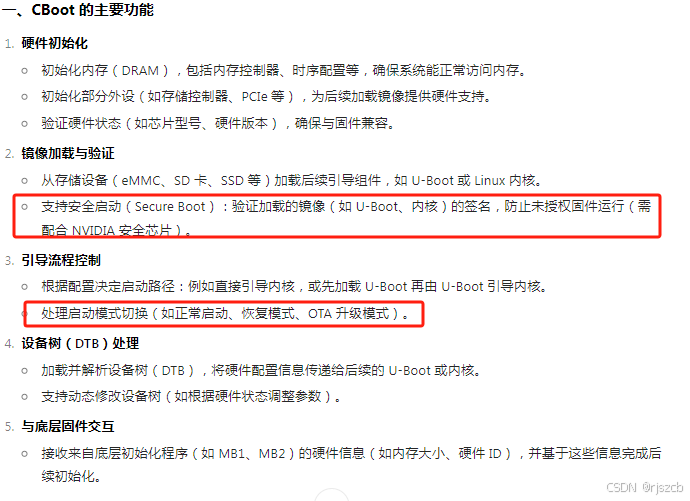

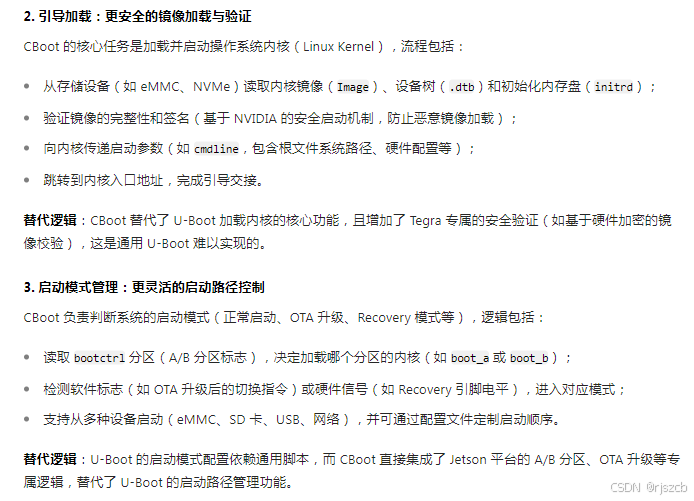

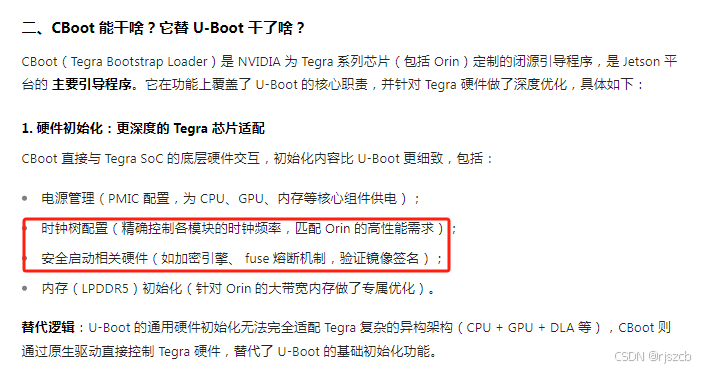

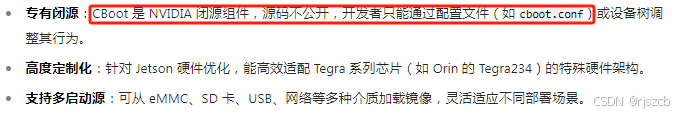

CBoot 是 NVIDIA 为 Jetson 系列平台（包括 Orin、Xavier、TX2 等）开发的专有引导程序，全称为 Core Bootloader，是系统启动流程中的关键环节。它介于底层硬件初始化程序（如 MB1、MB2）和上层引导程序（如 U-Boot）或内核之间，负责完成系统启动的核心初始化工作。。

每次换ddr型号时，需要找NVIDIA合作，修改这部分代码

启动顺序

硬件上电 → MB1（第一阶段初始化） → MB2（第二阶段初始化） → CBoot → U-Boot / 内核 → 根文件系统

三、ABF分区ota升级

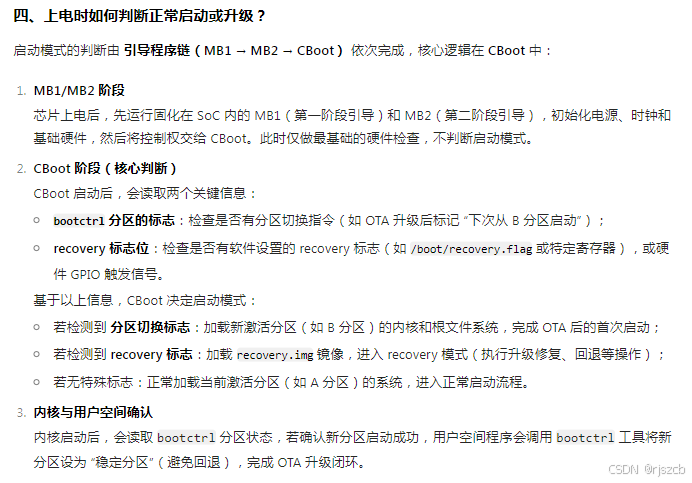

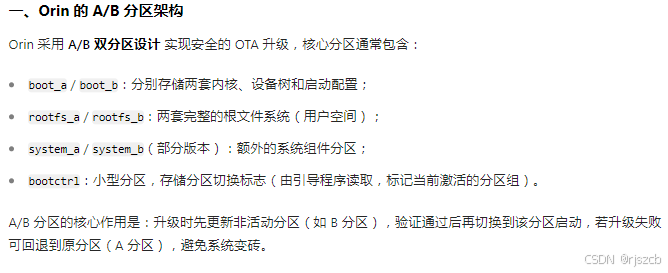

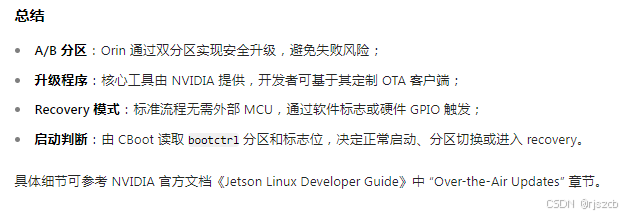

NVIDIA Jetson Orin 的 OTA 升级机制基于 Linux for Tegra (L4T) 系统的设计，结合了双分区（A/B Partition）、引导程序控制和用户空间工具，整体流程如下：

软件触发（主流方式）
OTA 升级失败或需要强制恢复时，可通过用户空间程序设置标志位（如写入 /proc 或特定分区），引导程序（CBoot）下次启动时检测到标志，自动进入 recovery 模式（加载 recovery 镜像，执行修复逻辑）

其实升级过程，烧录完毕后，会写入结构体flag,l类似下面
stuct
{
partA = active
partB = active

successA = true
successB = true
}

当处于a，升级b时，会重新激活b，partB = active，successB = false，然后重启，完成首次启动，按流程启动kernel，init启动后，重新successB = true，置为true，如若超时未启动kernel，rootfs，则置为false，显示更新失败。
会重新激活partA = active，重启，cboot判断从a启动。

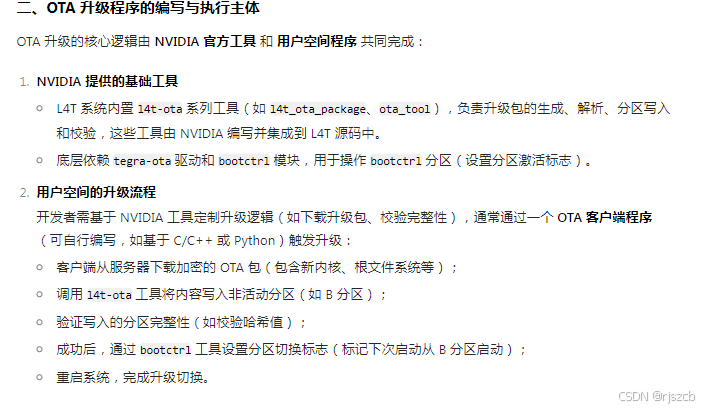

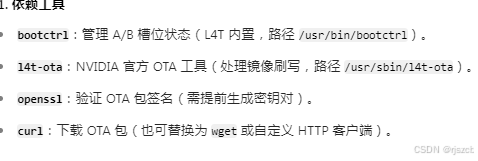

下面是nvidia平台，ota开发流程记录，依赖这些命令，nvidia以及编译提供了

#include <iostream>
#include <fstream>
#include <string>
#include <cstdio>
#include <cstring>
#include <unistd.h>// 日志工具
#define LOG_INFO(msg) std::cout << "[INFO] " << msg << std::endl
#define LOG_ERROR(msg) std::cerr << "[ERROR] " << msg << std::endl// 执行系统命令并返回结果
std::string exec_command(const char* cmd) {char buffer[128];std::string result = "";FILE* pipe = popen(cmd, "r");if (!pipe) {return "ERROR";}while (fgets(buffer, sizeof(buffer), pipe) != nullptr) {result += buffer;}pclose(pipe);return result;
}// 1. 获取当前激活槽位（A/B）
char get_active_slot() {std::string output = exec_command("bootctrl get-active-boot-slot");if (output.empty() || output.find("ERROR") != std::string::npos) {LOG_ERROR("Failed to get active slot");return ' ';}return output[0]; // 返回 'A' 或 'B'
}// 2. 下载 OTA 升级包
bool download_ota_package(const std::string& url, const std::string& save_path) {LOG_INFO("Downloading OTA package from: " << url);std::string cmd = "curl -f -o " + save_path + " " + url; // -f 失败时返回非0int ret = system(cmd.c_str());if (ret != 0) {LOG_ERROR("Download failed");return false;}LOG_INFO("Download completed: " << save_path);return true;
}// 3. 验证 OTA 包签名（使用 openssl）
bool verify_ota_signature(const std::string& ota_path, const std::string& pub_key_path) {LOG_INFO("Verifying OTA package signature");std::string cmd = "openssl dgst -sha256 -verify " + pub_key_path + " -signature " + ota_path + ".sig " + ota_path;int ret = system(cmd.c_str());if (ret != 0) {LOG_ERROR("Signature verification failed");return false;}LOG_INFO("Signature verified");return true;
}// 4. 刷写非活动槽位（调用 l4t-ota）
bool flash_inactive_slot(const std::string& ota_path, char target_slot) {LOG_INFO("Flashing target slot: " << target_slot);std::string cmd = "sudo l4t-ota --flash-only --target_slot " + std::string(1, target_slot) + " " + ota_path;int ret = system(cmd.c_str());if (ret != 0) {LOG_ERROR("Flash failed for slot " << target_slot);return false;}LOG_INFO("Flash completed for slot " << target_slot);return true;
}// 5. 设置下次启动槽位
bool set_boot_slot(char target_slot) {LOG_INFO("Setting next boot slot to: " << target_slot);std::string cmd = "sudo bootctrl set-active-boot-slot " + std::string(1, target_slot);int ret = system(cmd.c_str());if (ret != 0) {LOG_ERROR("Failed to set boot slot");return false;}// 设置重试次数（最多3次）system("sudo bootctrl set-retries 3");return true;
}// 6. 重启设备
void reboot_device() {LOG_INFO("Rebooting to apply update...");system("sudo reboot");
}// 7. 新系统启动后验证（首次启动时执行）
bool verify_new_system() {LOG_INFO("Verifying new system...");// 检查关键服务（示例：检查 nvargus-daemon 是否运行）std::string output = exec_command("pgrep nvargus-daemon");if (output.empty()) {LOG_ERROR("Critical service not running");// 标记当前槽位启动失败system("sudo bootctrl mark-boot-failed");return false;}// 标记当前槽位启动成功system("sudo bootctrl mark-successful");LOG_INFO("New system verified successfully");return true;
}int main(int argc, char* argv[]) {// 检查权限（需要 root）if (getuid() != 0) {LOG_ERROR("This program requires root privileges");return 1;}// 配置参数std::string ota_url = "http://your-server/ota_v2.0.zip"; // OTA包URLstd::string ota_local_path = "/tmp/ota_v2.0.zip";       // 本地保存路径std::string pub_key = "/etc/nvidia/ota_pub.key";        // 公钥路径// 步骤1：获取当前激活槽位char current_slot = get_active_slot();if (current_slot != 'A' && current_slot != 'B') {return 1;}char target_slot = (current_slot == 'A') ? 'B' : 'A';LOG_INFO("Current slot: " << current_slot << ", Target slot: " << target_slot);// 步骤2：下载OTA包if (!download_ota_package(ota_url, ota_local_path)) {return 1;}// 步骤3：验证签名if (!verify_ota_signature(ota_local_path, pub_key)) {remove(ota_local_path.c_str()); // 删除无效包return 1;}// 步骤4：刷写目标槽位if (!flash_inactive_slot(ota_local_path, target_slot)) {return 1;}// 步骤5：设置启动槽位if (!set_boot_slot(target_slot)) {return 1;}// 步骤6：重启（新系统启动后会执行 verify_new_system）reboot_device();return 0;
}

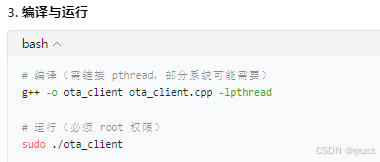

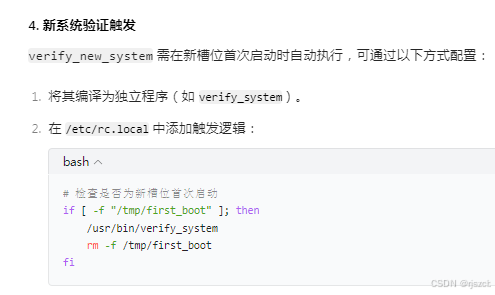

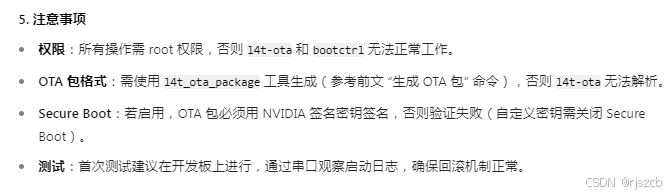

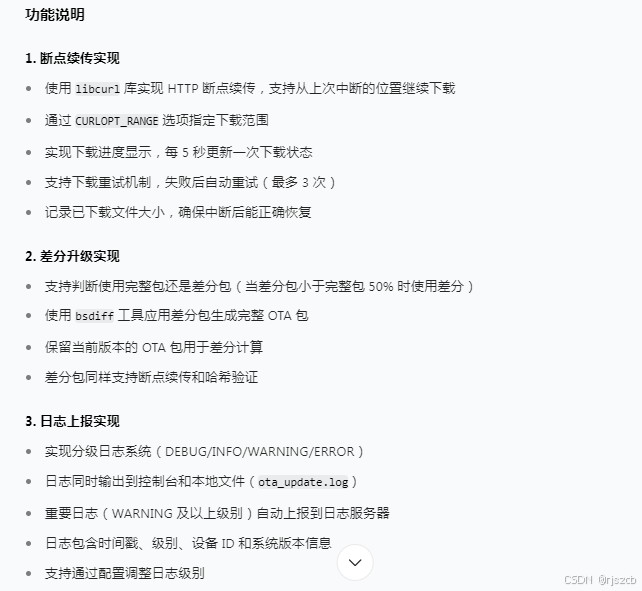

NVIDIA Jetson 的 OTA 升级通过命令行工具链实现，开发者无需直接调用底层 API，而是通过封装这些工具构建客户端。上述代码涵盖了完整流程，可根据实际需求扩展（如添加断点续传、差分升级、日志上报等功能）。核心是利用 l4t-ota 处理镜像刷写，bootctrl 管理槽位状态，确保升级安全与可回滚。
