【datax系列】datax-web容器化部署搭建(①)

前提是需要有安装docker环境,这块非常简单,大家可以自行处理解决

这里是官网相关安装包部署文档

https://github.com/WeiYe-Jing/datax-web/blob/master/doc/datax-web/datax-web-deploy.md

简单介绍

这里引用datax-web作者的介绍,大家就知道了。

DataX Web是在DataX之上开发的分布式数据同步工具,提供简单易用的 操作界面,降低用户使用DataX的学习成本,缩短任务配置时间,避免配置过程中出错。用户可通过页面选择数据源即可创建数据同步任务,支持RDBMS、Hive、HBase、ClickHouse、MongoDB等数据源,RDBMS数据源可批量创建数据同步任务,支持实时查看数据同步进度及日志并提供终止同步功能,集成并二次开发xxl-job可根据时间、自增主键增量同步数据。

DataX阿里开源的一款离线数据同步工具,功能也是非常强悍,只是使用者操作麻烦,不容易上手,才有了datax-web的诞生。

镜像拉取

docker pull linshellfeng/datax_web:3.0.1

初始化脚本

因为data-web是基于xxl-job二次开发,所以需要单独的数据库来保存初始化数据,需要找个已建立好的数据库中执行以下脚本

https://github.com/WeiYe-Jing/datax-web/tree/master/bin/db

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 50725
 Source Host           : localhost:3306
 Source Schema         : datax_web

 Target Server Type    : MySQL
 Target Server Version : 50725
 File Encoding         : 65001

 Date: 15/12/2019 22:27:10
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for job_group
-- ----------------------------
DROP TABLE IF EXISTS `job_group`;
CREATE TABLE `job_group`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `app_name` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '执行器AppName',
  `title` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '执行器名称',
  `order` int(11) NOT NULL DEFAULT 0 COMMENT '排序',
  `address_type` tinyint(4) NOT NULL DEFAULT 0 COMMENT '执行器地址类型:0=自动注册、1=手动录入',
  `address_list` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器地址列表,多地址逗号分隔',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of job_group
-- ----------------------------
INSERT INTO `job_group` VALUES (1, 'datax-executor', 'datax执行器', 1, 0, NULL);

-- ----------------------------
-- Table structure for job_info
-- ----------------------------
DROP TABLE IF EXISTS `job_info`;
CREATE TABLE `job_info`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
  `job_cron` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '任务执行CRON',
  `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `add_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL,
  `author` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '作者',
  `alarm_email` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '报警邮件',
  `executor_route_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器路由策略',
  `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
  `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务参数',
  `executor_block_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '阻塞处理策略',
  `executor_timeout` int(11) NOT NULL DEFAULT 0 COMMENT '任务执行超时时间,单位秒',
  `executor_fail_retry_count` int(11) NOT NULL DEFAULT 0 COMMENT '失败重试次数',
  `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE类型',
  `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
  `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE备注',
  `glue_updatetime` datetime(0) NULL DEFAULT NULL COMMENT 'GLUE更新时间',
  `child_jobid` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '子任务ID,多个逗号分隔',
  `trigger_status` tinyint(4) NOT NULL DEFAULT 0 COMMENT '调度状态:0-停止,1-运行',
  `trigger_last_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '上次调度时间',
  `trigger_next_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '下次调度时间',
  `job_json` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT 'datax运行脚本',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;


-- ----------------------------
-- Table structure for job_jdbc_datasource
-- ----------------------------
DROP TABLE IF EXISTS `job_jdbc_datasource`;
CREATE TABLE `job_jdbc_datasource`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `datasource_name` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '数据源名称',
  `datasource_group` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT 'Default' COMMENT '数据源分组',
  `jdbc_username` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '用户名',
  `jdbc_password` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '密码',
  `jdbc_url` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'jdbc url',
  `jdbc_driver_class` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'jdbc驱动类',
  `status` tinyint(1) NOT NULL DEFAULT 1 COMMENT '状态:0删除 1启用 2禁用',
  `create_by` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '创建人',
  `create_date` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT '创建时间',
  `update_by` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '更新人',
  `update_date` datetime(0) NULL DEFAULT NULL COMMENT '更新时间',
  `comments` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 6 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = 'jdbc数据源配置' ROW_FORMAT = Dynamic;


-- ----------------------------
-- Table structure for job_lock
-- ----------------------------
DROP TABLE IF EXISTS `job_lock`;
CREATE TABLE `job_lock`  (
  `lock_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '锁名称',
  PRIMARY KEY (`lock_name`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of job_lock
-- ----------------------------
INSERT INTO `job_lock` VALUES ('schedule_lock');

-- ----------------------------
-- Table structure for job_log
-- ----------------------------
DROP TABLE IF EXISTS `job_log`;
CREATE TABLE `job_log`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
  `job_id` int(11) NOT NULL COMMENT '任务,主键ID',
  `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `executor_address` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器地址,本次执行的地址',
  `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
  `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务参数',
  `executor_sharding_param` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务分片参数,格式如 1/2',
  `executor_fail_retry_count` int(11) NULL DEFAULT 0 COMMENT '失败重试次数',
  `trigger_time` datetime(0) NULL DEFAULT NULL COMMENT '调度-时间',
  `trigger_code` int(11) NOT NULL COMMENT '调度-结果',
  `trigger_msg` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT '调度-日志',
  `handle_time` datetime(0) NULL DEFAULT NULL COMMENT '执行-时间',
  `handle_code` int(11) NOT NULL COMMENT '执行-状态',
  `handle_msg` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT '执行-日志',
  `alarm_status` tinyint(4) NOT NULL DEFAULT 0 COMMENT '告警状态:0-默认、1-无需告警、2-告警成功、3-告警失败',
  `process_id` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'datax进程Id',
  `max_id` bigint(20) NULL DEFAULT NULL COMMENT '增量表max id',
  PRIMARY KEY (`id`) USING BTREE,
  INDEX `I_trigger_time`(`trigger_time`) USING BTREE,
  INDEX `I_handle_code`(`handle_code`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 0 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for job_log_report
-- ----------------------------
DROP TABLE IF EXISTS `job_log_report`;
CREATE TABLE `job_log_report`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `trigger_day` datetime(0) NULL DEFAULT NULL COMMENT '调度-时间',
  `running_count` int(11) NOT NULL DEFAULT 0 COMMENT '运行中-日志数量',
  `suc_count` int(11) NOT NULL DEFAULT 0 COMMENT '执行成功-日志数量',
  `fail_count` int(11) NOT NULL DEFAULT 0 COMMENT '执行失败-日志数量',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `i_trigger_day`(`trigger_day`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 28 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of job_log_report
-- ----------------------------
INSERT INTO `job_log_report` VALUES (20, '2019-12-07 00:00:00', 0, 0, 0);
INSERT INTO `job_log_report` VALUES (21, '2019-12-10 00:00:00', 77, 52, 23);
INSERT INTO `job_log_report` VALUES (22, '2019-12-11 00:00:00', 9, 2, 11);
INSERT INTO `job_log_report` VALUES (23, '2019-12-13 00:00:00', 9, 48, 74);
INSERT INTO `job_log_report` VALUES (24, '2019-12-12 00:00:00', 10, 8, 30);
INSERT INTO `job_log_report` VALUES (25, '2019-12-14 00:00:00', 78, 45, 66);
INSERT INTO `job_log_report` VALUES (26, '2019-12-15 00:00:00', 24, 76, 9);
INSERT INTO `job_log_report` VALUES (27, '2019-12-16 00:00:00', 23, 85, 10);

-- ----------------------------
-- Table structure for job_logglue
-- ----------------------------
DROP TABLE IF EXISTS `job_logglue`;
CREATE TABLE `job_logglue`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `job_id` int(11) NOT NULL COMMENT '任务,主键ID',
  `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE类型',
  `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
  `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE备注',
  `add_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for job_registry
-- ----------------------------
DROP TABLE IF EXISTS `job_registry`;
CREATE TABLE `job_registry`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `registry_group` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `registry_key` varchar(191) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `registry_value` varchar(191) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  INDEX `i_g_k_v`(`registry_group`, `registry_key`, `registry_value`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 26 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;



-- ----------------------------
-- Table structure for job_user
-- ----------------------------
DROP TABLE IF EXISTS `job_user`;
CREATE TABLE `job_user`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '账号',
  `password` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '密码',
  `role` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '角色:0-普通用户、1-管理员',
  `permission` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '权限:执行器ID列表,多个逗号分割',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `i_username`(`username`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 10 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of job_user
-- ----------------------------
INSERT INTO `job_user` VALUES (1, 'admin', '$2a$10$2KCqRbra0Yn2TwvkZxtfLuWuUP5KyCWsljO/ci5pLD27pqR3TV1vy', 'ROLE_ADMIN', NULL);



/**
v2.1.1脚本更新
*/
ALTER TABLE `job_info`
ADD COLUMN `replace_param` VARCHAR(100) NULL DEFAULT NULL COMMENT '动态参数' AFTER `job_json`,
ADD COLUMN `jvm_param` VARCHAR(200) NULL DEFAULT NULL COMMENT 'jvm参数' AFTER `replace_param`,
ADD COLUMN `time_offset` INT(11) NULL DEFAULT '0'COMMENT '时间偏移量'  AFTER `jvm_param`;
/**
增量改版脚本更新
 */
ALTER TABLE `job_info` DROP COLUMN `time_offset`;
ALTER TABLE `job_info`
ADD COLUMN `inc_start_time` DATETIME NULL DEFAULT NULL COMMENT '增量初始时间' AFTER `jvm_param`;

-- ----------------------------
-- Table structure for job_template
-- ----------------------------
DROP TABLE IF EXISTS `job_template`;
CREATE TABLE `job_template`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `job_group` int(11) NOT NULL COMMENT '执行器主键ID',
  `job_cron` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '任务执行CRON',
  `job_desc` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `add_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL,
  `user_id` int(11) NOT NULL COMMENT '修改用户',
  `alarm_email` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '报警邮件',
  `executor_route_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器路由策略',
  `executor_handler` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器任务handler',
  `executor_param` varchar(512) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '执行器参数',
  `executor_block_strategy` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '阻塞处理策略',
  `executor_timeout` int(11) NOT NULL DEFAULT 0 COMMENT '任务执行超时时间,单位秒',
  `executor_fail_retry_count` int(11) NOT NULL DEFAULT 0 COMMENT '失败重试次数',
  `glue_type` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT 'GLUE类型',
  `glue_source` mediumtext CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL COMMENT 'GLUE源代码',
  `glue_remark` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'GLUE备注',
  `glue_updatetime` datetime(0) NULL DEFAULT NULL COMMENT 'GLUE更新时间',
  `child_jobid` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '子任务ID,多个逗号分隔',
  `trigger_last_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '上次调度时间',
  `trigger_next_time` bigint(13) NOT NULL DEFAULT 0 COMMENT '下次调度时间',
  `job_json` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT 'datax运行脚本',
  `jvm_param` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'jvm参数',
  `project_id` int(11) NULL DEFAULT NULL COMMENT '所属项目Id',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 22 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;

/**
添加数据源字段
 */
ALTER TABLE `job_jdbc_datasource`
ADD COLUMN `datasource` VARCHAR(45) NOT NULL COMMENT '数据源' AFTER `datasource_name`;

/**
添加分区字段
 */
ALTER TABLE `job_info`
ADD COLUMN `partition_info` VARCHAR(100) NULL DEFAULT NULL COMMENT '分区信息' AFTER `inc_start_time`;

/**
2.1.1版本新增----------------------------------------------------------------------------------------------
 */

/**
最近一次执行状态
 */
ALTER TABLE `job_info`
ADD COLUMN `last_handle_code` INT(11) NULL DEFAULT '0' COMMENT '最近一次执行状态' AFTER `partition_info`;

/**
zookeeper地址
 */
ALTER TABLE `job_jdbc_datasource`
ADD COLUMN `zk_adress` VARCHAR(200) NULL DEFAULT NULL AFTER `jdbc_driver_class`;

ALTER TABLE `job_info`
CHANGE COLUMN `executor_timeout` `executor_timeout` INT(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间,单位分钟' ;

/**
用户名密码改为非必填
 */
ALTER TABLE `job_jdbc_datasource`
CHANGE COLUMN `jdbc_username` `jdbc_username` VARCHAR(100) CHARACTER SET 'utf8mb4' NULL DEFAULT NULL COMMENT '用户名' ,
CHANGE COLUMN `jdbc_password` `jdbc_password` VARCHAR(200) CHARACTER SET 'utf8mb4' NULL DEFAULT NULL COMMENT '密码' ;
/**
添加mongodb数据库名字段
 */
ALTER TABLE `job_jdbc_datasource`
ADD COLUMN `database_name` VARCHAR(45) NULL DEFAULT NULL COMMENT '数据库名' AFTER `datasource_group`;
/**
添加执行器资源字段
 */
ALTER TABLE `job_registry`
ADD COLUMN `cpu_usage` DOUBLE NULL AFTER `registry_value`,
ADD COLUMN `memory_usage` DOUBLE NULL AFTER `cpu_usage`,
ADD COLUMN `load_average` DOUBLE NULL AFTER `memory_usage`;

-- ----------------------------
-- Table structure for job_permission
-- ----------------------------
DROP TABLE IF EXISTS `job_permission`;
CREATE TABLE `job_permission`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
  `name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '权限名',
  `description` varchar(11) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '权限描述',
  `url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `pid` int(11) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;



ALTER TABLE `job_info`
ADD COLUMN `replace_param_type` varchar(255) NULL COMMENT '增量时间格式' AFTER `last_handle_code`;


ALTER TABLE `job_info`
ADD COLUMN `project_id` int(11) NULL COMMENT '所属项目id' AFTER `job_desc`;

ALTER TABLE `job_info`
ADD COLUMN `reader_table` VARCHAR(255) NULL COMMENT 'reader表名称' AFTER `replace_param_type`,
ADD COLUMN `primary_key` VARCHAR(50) NULL COMMENT '增量表主键' AFTER `reader_table`,
ADD COLUMN `inc_start_id` VARCHAR(20) NULL COMMENT '增量初始id' AFTER `primary_key`,
ADD COLUMN `increment_type` TINYINT(4) NULL COMMENT '增量类型' AFTER `inc_start_id`,
ADD COLUMN `datasource_id` BIGINT(11) NULL COMMENT '数据源id' AFTER `increment_type`;

CREATE TABLE `job_project`  (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'key',
  `name` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT 'project name',
  `description` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL,
  `user_id` int(11) NULL DEFAULT NULL COMMENT 'creator id',
  `flag` tinyint(4) NULL DEFAULT 1 COMMENT '0 not available, 1 available',
  `create_time` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT 'create time',
  `update_time` datetime(0) NULL DEFAULT CURRENT_TIMESTAMP(0) COMMENT 'update time',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;


ALTER TABLE `job_info`
CHANGE COLUMN `author` `user_id` INT(11) NOT NULL COMMENT '修改用户' ;

ALTER TABLE `job_info`
CHANGE COLUMN `increment_type` `increment_type` TINYINT(4) NULL DEFAULT 0 COMMENT '增量类型' ;

docker配置文件挂载

# 创建docker文件挂载目录
mkdir -p  /home/software/datax/datax-admin/conf


# 启动容器
docker run --name datax-web -p 9527:9527  -d linshellfeng/datax_web:3.0.1


# 复制容器属性文件
docker cp datax-web:/home/datax/datax-web-2.1.2/modules/datax-admin/conf/bootstrap.properties /home/softeare/datax/datax-admin/conf/bootstrap.properties

# 停用临时容器
docker stop datax-web

# 删除临时容器
docker rm datax-web

编辑属性配置文件

编辑bootstart.propertis 修改对应datax-web需要的数据库

#Database
DB_HOST=192.168.6.167
DB_PORT=3306
DB_USERNAME=root
DB_PASSWORD=Sino#123456
DB_DATABASE=datax

启动容器访问


docker run --restart=always \
    -p 9527:9527 \
    --name datax-web \
    -v /home/software/datax/datax-admin/conf/bootstrap.properties:/home/datax/datax-web-2.1.2/modules/datax-admin/conf/bootstrap.properties \
    -d  linshellfeng/datax_web:3.0.1

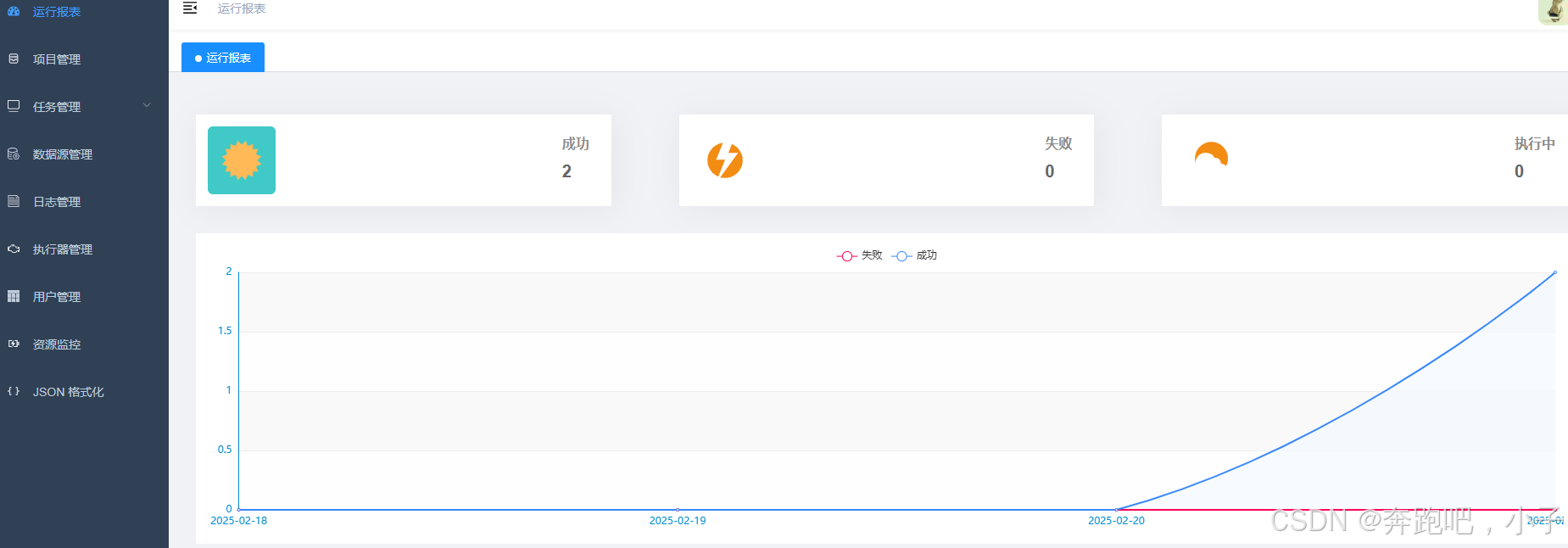

访问系统(默认账号密码)

http://192.168.6.167:9527/index.html
admin
123456

登录进来是不是看到感觉像xxl-job的感觉,既然搭建好了,怎么使用呢,待下一篇来讲解

相关文章:

  • 【20250221更新】WebStorm2024.3.3版本安装+使用方法
  • windwos与linux环境下Iperf3带宽测试工具的安装、使用
  • 【前端开发者如何有效利用 deepSeek 为自己服务】
  • 关于Transparent native-to-ascii conversion
  • 算法很美笔记(Java)——动态规划
  • 重启——二分
  • Windows 下免费开源的多格式文件差异对比工具
  • php处理图片出现内存溢出(Allowed memory size of 134217728 bytes exhausted)
  • Redis存储⑩Redis的事务_弱化的原子性
  • DeepSeek 提示词:定义、作用、分类与设计原则
  • 内容中台架构下智能推荐系统的算法优化与分发策略
  • Vue3 状态管理 - Pinia
  • 基于深度学习模型`U-Net`和`segment_anything`(SAM)库的实现示例
  • DuodooBMS源码解读之 cncw_ledger模块
  • Python连接MySQL数据库图文教程,Python连接数据库MySQL入门教程
  • 我的世界1.20.1forge开发教程(6)——自定义燃料,熔炼规则、配方
  • 【JavaScript】《JavaScript高级程序设计 (第4版) 》笔记-Chapter19-表单脚本
  • 《Python实战进阶》专栏 No.3:Django 项目结构解析与入门DEMO
  • ubuntu磁盘清理垃圾文件
  • LeetCode刷题---二分查找---441
  • 我国成功发射中星3B卫星
  • 【社论】鸿蒙破壁,向最难处攻坚
  • 钱进已任外交部新闻司副司长
  • 减重人生|吃得越少越好?比体重秤上的数字,更有意义的是什么?
  • 鸿蒙电脑正式发布,余承东:国产软件起步晚,基础弱,探索面向未来的电脑体验
  • 夜驾遇东北虎隔窗对视?延吉林业局:村里有牛被咬死,保险公司会理赔
