游戏技能编辑器开发完全指南系统架构设计之技能编辑器整体架构

news 来源：原创 2025/6/18 13:02:35

技能编辑器整体架构

角色资源划分与管理

1. 角色资源结构

角色资源划分与管理

1. 角色资源结构

// 骨骼重定向示例
void RetargetAnimation(Animation& srcAnim, Skeleton& targetSkeleton) {for (int frame = 0; frame < srcAnim.numFrames; ++frame) {for (Bone& bone : targetSkeleton.bones) {if (auto srcBone = srcAnim.skeleton.FindBone(bone.name)) {bone.transform = srcAnim.frames[frame].boneTransforms[srcBone->index];} else {// 使用默认姿势bone.transform = targetSkeleton.bindPose[bone.index];}}}
}

时间轴技能编辑系统

1. 时间轴核心结构

2. 轨道类型设计

轨道类型	可编辑属性	用途
动画轨道	动画片段、混合权重、播放速度	控制角色动作
特效轨道	特效资源、位置偏移、缩放、颜色	管理技能特效
镜头轨道	震动强度、模式、持续时间	控制相机效果
伤害轨道	伤害区域形状、伤害值、Buff效果	技能伤害判定
事件轨道	自定义事件字符串	触发脚本逻辑
音频轨道	音效资源、音量、空间位置	管理技能音效

3. 关键帧数据序列化

{"tracks": [{"type": "Animation","keyframes": [{"time": 0.0,"animClip": "skill_prepare","blendTime": 0.1,"speed": 1.0},{"time": 1.2,"animClip": "skill_attack","blendTime": 0.2,"speed": 1.5}]},{"type": "VFX","keyframes": [{"time": 1.0,"effect": "charge_effect","position": {"x":0,"y":1.5,"z":0.5},"scale": 0.5},{"time": 1.5,"effect": "explosion_effect","position": {"x":0,"y":0,"z":3},"scale": 2.0}]}]
}

特效系统实现

1. 特效类型与参数

特效类型	控制参数	编辑器支持
粒子系统	发射率、生命周期、速度、大小、颜色梯度	实时预览、曲线编辑
网格动画	模型、材质、动画序列	模型导入、动画预览
拖尾渲染	宽度、材质、生命周期	路径编辑、动态预览
贴花投影	投影范围、材质、衰减	场景位置调整
屏幕后效	泛光强度、色差、畸变	参数滑块、实时反馈

2. 镜头效果实现

// 相机震动系统
public class CameraShake {public float intensity = 0.5f;public float frequency = 10f;public float duration = 0.5f;public ShakeMode mode = ShakeMode.Perlin;private float elapsed = 0f;private Vector3 originalPos;public void Update(Camera camera, float deltaTime) {if (elapsed == 0) originalPos = camera.transform.position;elapsed += deltaTime;if (elapsed >= duration) {camera.transform.position = originalPos;return;}float percent = elapsed / duration;float currentIntensity = intensity * (1 - percent);Vector3 offset = CalculateOffset(currentIntensity);camera.transform.position = originalPos + offset;}private Vector3 CalculateOffset(float intensity) {switch (mode) {case ShakeMode.Perlin:float x = Mathf.PerlinNoise(Time.time * frequency, 0) * 2 - 1;float y = Mathf.PerlinNoise(0, Time.time * frequency) * 2 - 1;return new Vector3(x, y, 0) * intensity;case ShakeMode.Random:return Random.insideUnitSphere * intensity;default:return Vector3.zero;}}
}

3. 后处理特效实现

// 技能释放时屏幕扭曲效果
float4 DistortionPass(VS_OUTPUT input) : SV_Target {float2 uv = input.uv;// 基于技能中心点的径向扭曲float2 center = GetSkillCenterUV();float2 dir = uv - center;float dist = length(dir);// 扭曲强度随时间衰减float intensity = GetSkillIntensity() * exp(-dist * 10.0);float timeFactor = sin(_Time.y * 20.0) * 0.5 + 0.5;// 应用扭曲uv += normalize(dir) * intensity * timeFactor * 0.1;return tex2D(_MainTex, uv);
}

伤害系统设计

1. 伤害区域检测

2. 伤害公式系统

class DamageCalculator:def calculate(self, skill, attacker, target):base_dmg = skill.base_damage# 属性修正attr_mod = 1.0 + (attacker.attack_power - target.defense) * 0.01# 暴击计算crit_chance = attacker.critical_chance - target.critical_resistis_critical = random.random() < max(0, min(crit_chance, 0.8))crit_mod = 2.0 if is_critical else 1.0# 元素反应element_mod = self._element_reaction(skill.element, target.element)# 最终伤害final_dmg = base_dmg * attr_mod * crit_mod * element_modreturn final_dmg, is_criticaldef _element_reaction(self, src, target):reactions = {("Fire", "Nature"): 2.0,  # 火克草("Water", "Fire"): 1.5,   # 水克火("Nature", "Water"): 1.5, # 草克水("Light", "Dark"): 2.0,   # 光克暗("Dark", "Light"): 2.0    # 暗克光}return reactions.get((src, target), 1.0)

3. Buff/Debuff系统

class BuffSystem {
public:void ApplyBuff(Entity target, Buff buff) {auto& buffs = target.buffs;// 检查是否已存在同类Buffauto it = find_if(buffs.begin(), buffs.end(), [&](const Buff& b) { return b.id == buff.id; });if (it != buffs.end()) {// 刷新持续时间it->duration = max(it->duration, buff.duration);} else {// 应用新Buffbuffs.push_back(buff);buff.OnApply(target);}}void Update(Entity target, float deltaTime) {for (auto it = target.buffs.begin(); it != target.buffs.end(); ) {it->duration -= deltaTime;it->OnTick(target, deltaTime);if (it->duration <= 0) {it->OnRemove(target);it = target.buffs.erase(it);} else {++it;}}}
};

场景与AI集成

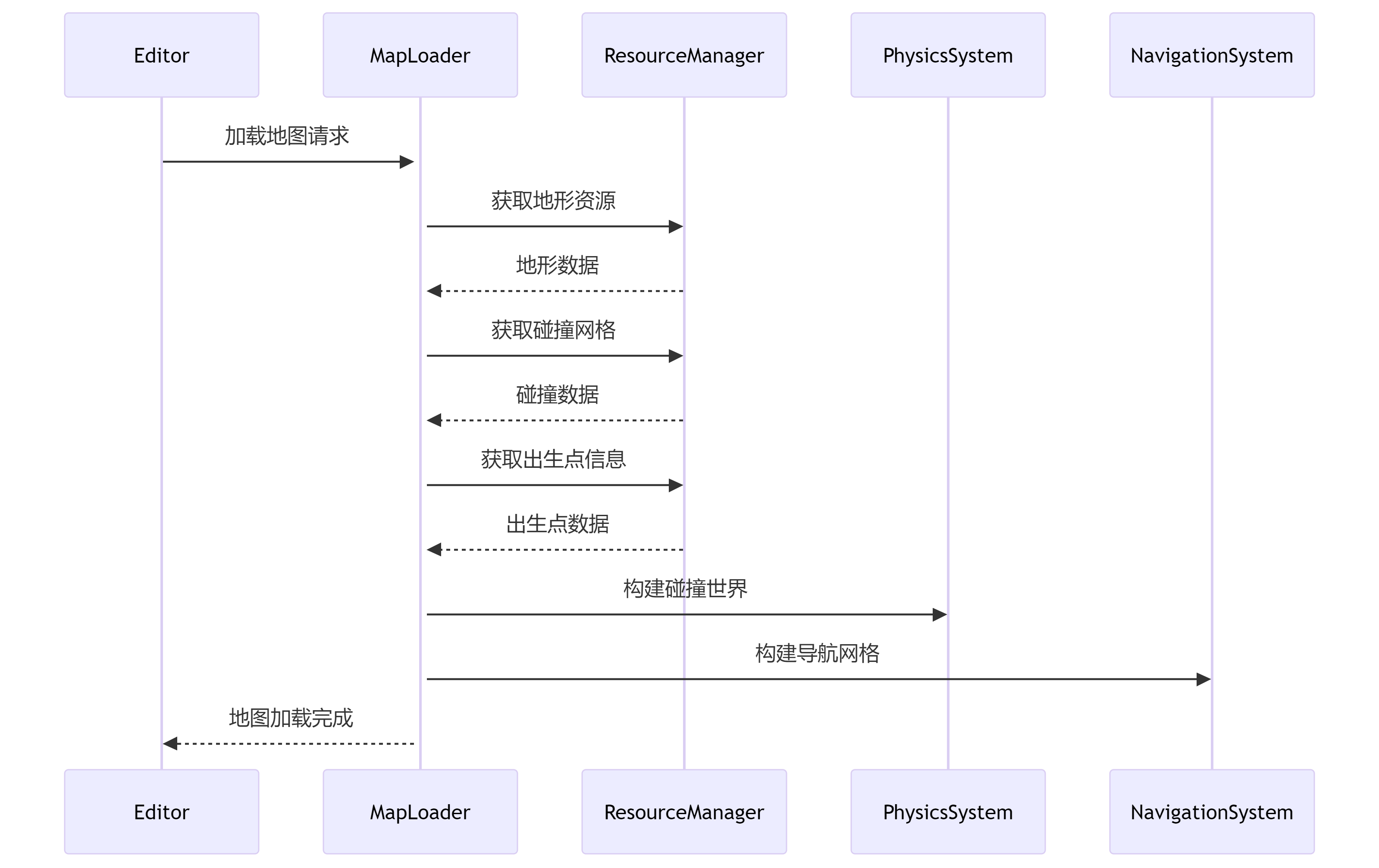

1. 地图加载与管理

2. AI行为模拟系统

public class AISimulator {private List<AIEntity> entities = new List<AIEntity>();public void AddAI(AIEntity entity) {entities.Add(entity);}public void Update(float deltaTime) {foreach (var entity in entities) {entity.Update(deltaTime);// 决策系统if (entity.currentState == null) {entity.ChangeState(SelectState(entity));}// 执行当前状态entity.currentState.Execute(entity);}}private AIState SelectState(AIEntity entity) {// 基于距离、血量等条件选择状态if (entity.target != null) {float dist = Vector3.Distance(entity.position, entity.target.position);if (dist < entity.attackRange) {return new AttackState();} else if (dist < entity.chaseRange) {return new ChaseState();}}return new PatrolState();}
}

编辑器界面设计

1. 主要工作区布局

+------------------------------------------+
| 工具栏 [保存] [加载] [测试] [设置] |
+-------------------+----------------------+
| 资源浏览器 | |
| | |
| - 角色 | 时间轴编辑器 |
| - 动画 | +------------------+ |
| - 特效 | | 动画轨道 | |
| - 地图 | | 特效轨道 | |
| | | 伤害轨道 | |
| | | 镜头轨道 | |
| | +------------------+ |
| | |
| | 3D预览视口 |
| | +------------------+ |
| | | | |
| | | | |
| | | | |
| | +------------------+ |
| | |
+-------------------+ 属性面板 |
| | +------------------+ |
| 事件日志 | | 当前选中项属性 | |
| [信息] [警告] [错误] | | |
| | +------------------+ |
+-------------------+----------------------+

2. 核心功能实现

// Unity编辑器扩展示例
[CustomEditor(typeof(SkillData))]
public class SkillEditor : Editor {private SkillData skill;private TimelineEditor timelineEditor;private PreviewRenderer previewRenderer;private void OnEnable() {skill = (SkillData)target;timelineEditor = new TimelineEditor(skill.timeline);previewRenderer = new PreviewRenderer();}public override void OnInspectorGUI() {// 基础属性skill.skillName = EditorGUILayout.TextField("技能名", skill.skillName);skill.cooldown = EditorGUILayout.FloatField("冷却时间", skill.cooldown);// 时间轴编辑区EditorGUILayout.LabelField("时间轴编辑", EditorStyles.boldLabel);timelineEditor.OnGUI();// 预览窗口EditorGUILayout.Space();EditorGUILayout.LabelField("技能预览", EditorStyles.boldLabel);Rect previewRect = GUILayoutUtility.GetRect(300, 300);previewRenderer.Render(previewRect);// 测试按钮if (GUILayout.Button("测试技能")) {SkillTester.TestSkill(skill);}}
}

数据保存与加载

1. 技能数据格式

// Protobuf定义
message SkillData {string name = 1;float cooldown = 2;repeated Track tracks = 3;message Track {enum TrackType {ANIMATION = 0;VFX = 1;DAMAGE = 2;CAMERA = 3;AUDIO = 4;EVENT = 5;}TrackType type = 1;repeated Keyframe keyframes = 2;}message Keyframe {float time = 1;oneof data {AnimationKeyframe animation = 2;VFXKeyframe vfx = 3;DamageKeyframe damage = 4;CameraKeyframe camera = 5;AudioKeyframe audio = 6;EventKeyframe event = 7;}}// 各种关键帧数据定义...
}

2. 资源管理策略

测试与优化

性能优化要点

最佳实践建议：

通过这样的技能编辑器，设计师可以高效创建复杂的技能效果，而无需程序员介入，大幅提升游戏开发效率。

编辑器优化：
- 异步加载资源
- 分帧处理复杂计算
- 预览质量分级控制

运行时优化：

// 技能实例池
class SkillInstancePool {
public:SkillInstance* Acquire(SkillData* data) {if (auto it = pool.find(data); it != pool.end() && !it->second.empty()) {auto inst = it->second.back();it->second.pop_back();return inst;}return new SkillInstance(data);}void Release(SkillInstance* inst) {auto& list = pool[inst->data];inst->Reset();list.push_back(inst);}private:unordered_map<SkillData*, vector<SkillInstance*>> pool;
};
