【Mini-F5265-OB开发板试用测评】2、移植MultiButton测试按键

移植开源MultiButton来测试按键的几种操作状态。

一、硬件部分

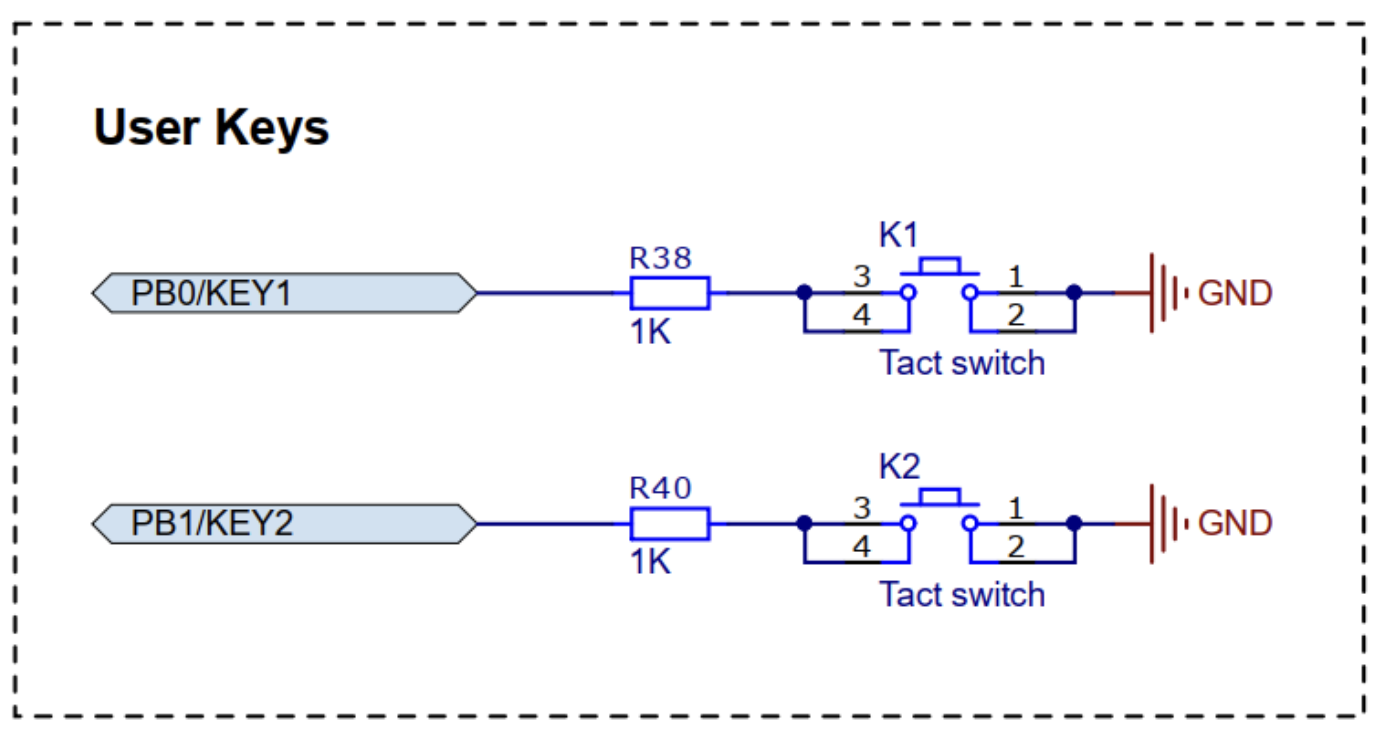

开发板上的按键部分电路图

KEY1和KEY2按键使用了PB0和PB1端口。

二、MultiButton
MultiButton 是一个小巧简单易用的事件驱动型按键驱动模块，可无限量扩展按键，按键事件的回调异步处理方式可以简化你的程序结构，去除冗余的按键处理硬编码，让你的按键业务逻辑更清晰。

下载地址：
https://github.com/0x1abin/MultiButton

按照例程移植程序，即可实现按键的操作。

三、程序部分

3.1、key.c

#include "main.h"uint8_t button_tick_cnt=0;enum Button_IDs
{btn1_id,btn2_id,
};struct Button btn1;
struct Button btn2;uint8_t read_button_gpio(uint8_t button_id)
{switch(button_id){case btn1_id:return GPIO_ReadInputDataBit(KEY1_GPIO_PORT, KEY1_PIN);case btn2_id:return GPIO_ReadInputDataBit(KEY2_GPIO_PORT, KEY2_PIN);default:return 0;}
}//BTN1
void BTN1_PRESS_DOWN_Handler(void* btn)
{printf("KEY1 DOWN! \r\n");
}void BTN1_PRESS_UP_Handler(void* btn)
{printf("KEY1 UP! \r\n");
}void BTN1_PRESS_REPEAT_Handler(void* btn)
{printf("KEY1 PRESS_REPEAT! \r\n");
}void BTN1_SINGLE_Click_Handler(void* btn)
{printf("KEY1 SINGLE_ClICK! \r\n");
}//void BTN2_DOUBLE_Click_Handler(void* btn)
//{
//	printf("KEY2 DOUBLE_ClICK! \r\n");
//}void BTN1_LONG_PRESS_START_Handler(void* btn)
{printf("KEY1 LONG_PRESS_START! \r\n");
}void BTN1_LONG_PRESS_HOLD_Handler(void* btn)
{printf("KEY1 LONG_PRESS_HOLD! \r\n");
}//BTN2
void BTN2_PRESS_DOWN_Handler(void* btn)
{printf("KEY2 DOWN! \r\n");
}void BTN2_PRESS_UP_Handler(void* btn)
{printf("KEY2 UP! \r\n");
}void BTN2_PRESS_REPEAT_Handler(void* btn)
{printf("KEY2 PRESS_REPEAT! \r\n");
}void BTN2_SINGLE_Click_Handler(void* btn)
{printf("KEY2 SINGLE_ClICK! \r\n");
}//void BTN2_DOUBLE_Click_Handler(void* btn)
//{
//	printf("KEY2 DOUBLE_ClICK! \r\n");
//}void BTN2_LONG_PRESS_START_Handler(void* btn)
{printf("KEY2 LONG_PRESS_START! \r\n");
}void BTN2_LONG_PRESS_HOLD_Handler(void* btn)
{printf("KEY2 LONG_PRESS_HOLD! \r\n");
}void button_tick_hdl(void)
{button_tick_cnt++;if(button_tick_cnt>=5){button_tick_cnt=0;button_ticks();}
}void init_key(void)
{GPIO_InitTypeDef GPIO_InitStruct;KEY1_GPIO_CLK_ENABLE();KEY2_GPIO_CLK_ENABLE();GPIO_StructInit(&GPIO_InitStruct);GPIO_InitStruct.GPIO_Pin   = KEY1_PIN;GPIO_InitStruct.GPIO_Mode  = GPIO_Mode_IPU;GPIO_Init(KEY1_GPIO_PORT, &GPIO_InitStruct);GPIO_StructInit(&GPIO_InitStruct);GPIO_InitStruct.GPIO_Pin   = KEY2_PIN;GPIO_InitStruct.GPIO_Mode  = GPIO_Mode_IPU;GPIO_Init(KEY2_GPIO_PORT, &GPIO_InitStruct);	//BTN1button_init(&btn1, read_button_gpio, 0, btn1_id);button_attach(&btn1, PRESS_DOWN,       BTN1_PRESS_DOWN_Handler);button_attach(&btn1, PRESS_UP,         BTN1_PRESS_UP_Handler);button_attach(&btn1, PRESS_REPEAT,     BTN1_PRESS_REPEAT_Handler);
//	button_attach(&btn1, SINGLE_CLICK,     BTN1_SINGLE_Click_Handler);
//	button_attach(&btn1, DOUBLE_CLICK,     BTN1_DOUBLE_Click_Handler);button_attach(&btn1, LONG_PRESS_START, BTN1_LONG_PRESS_START_Handler);button_attach(&btn1, LONG_PRESS_HOLD,  BTN1_LONG_PRESS_HOLD_Handler);button_start(&btn1);//BTN2button_init(&btn2, read_button_gpio, 0, btn2_id);button_attach(&btn2, PRESS_DOWN,       BTN2_PRESS_DOWN_Handler);button_attach(&btn2, PRESS_UP,         BTN2_PRESS_UP_Handler);button_attach(&btn2, PRESS_REPEAT,     BTN2_PRESS_REPEAT_Handler);
//	button_attach(&btn2, SINGLE_CLICK,     BTN2_SINGLE_Click_Handler);
//	button_attach(&btn2, DOUBLE_CLICK,     BTN2_DOUBLE_Click_Handler);button_attach(&btn2, LONG_PRESS_START, BTN2_LONG_PRESS_START_Handler);button_attach(&btn2, LONG_PRESS_HOLD,  BTN2_LONG_PRESS_HOLD_Handler);button_start(&btn2);
}

3.2、key.h

#ifndef __KEY_H
#define __KEY_H#define KEY1_GPIO_CLK                    RCC_AHBPeriph_GPIOB
#define KEY1_GPIO_PORT                   GPIOB
#define KEY1_PIN                         GPIO_Pin_0#define KEY2_GPIO_CLK  								   RCC_AHBPeriph_GPIOB
#define KEY2_GPIO_PORT                   GPIOB
#define KEY2_PIN                         GPIO_Pin_1#define KEY1_GPIO_CLK_ENABLE()          do{ RCC_AHBPeriphClockCmd(KEY1_GPIO_CLK, ENABLE); }while(0)
#define KEY1_GPIO_CLK_DISABLE()         do{ RCC_AHBPeriphClockCmd(KEY1_GPIO_CLK, DISABLE); }while(0)#define KEY2_GPIO_CLK_ENABLE()          do{ RCC_AHBPeriphClockCmd(KEY2_GPIO_CLK, ENABLE); }while(0)
#define KEY2_GPIO_CLK_DISABLE()         do{ RCC_AHBPeriphClockCmd(KEY2_GPIO_CLK, DISABLE); }while(0)#define KEY_UP_PRES    		1
#define KEY_DOWN_PRES    	2
#define KEY_LEFT_PRES    	3
#define KEY_RIGHT_PRES    4
#define KEY_SEL_PRES			5
#define KEY_B2_PRES				6void init_key(void);
void button_tick_hdl(void);#endif

3.3、main.c

#include "main.h"int main(void)
{SysTick_Init();init_usart(115200);init_led();init_key();printf("mm32F5265_ob_printf_test!\r\n");while (1){}
}

3.4、调用计时函数

在systick中断函数中调用计时函数

void SysTick_Handler(void)
{TimingDelay_Decrement();button_tick_hdl();
}

四、程序运行

下载程序后，操作按键，串口输出内容

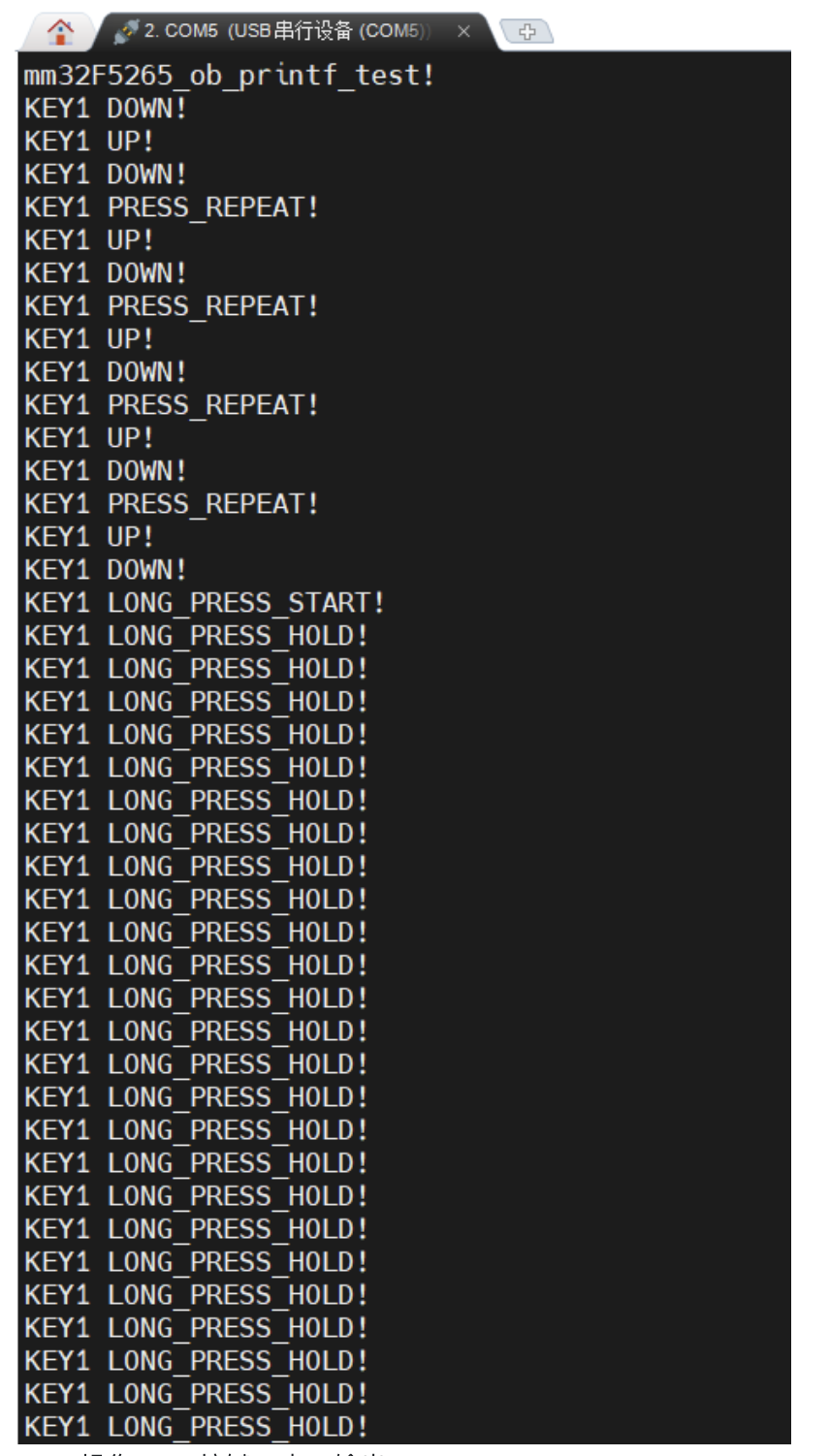

4.1、操作KEY1按键，串口输出

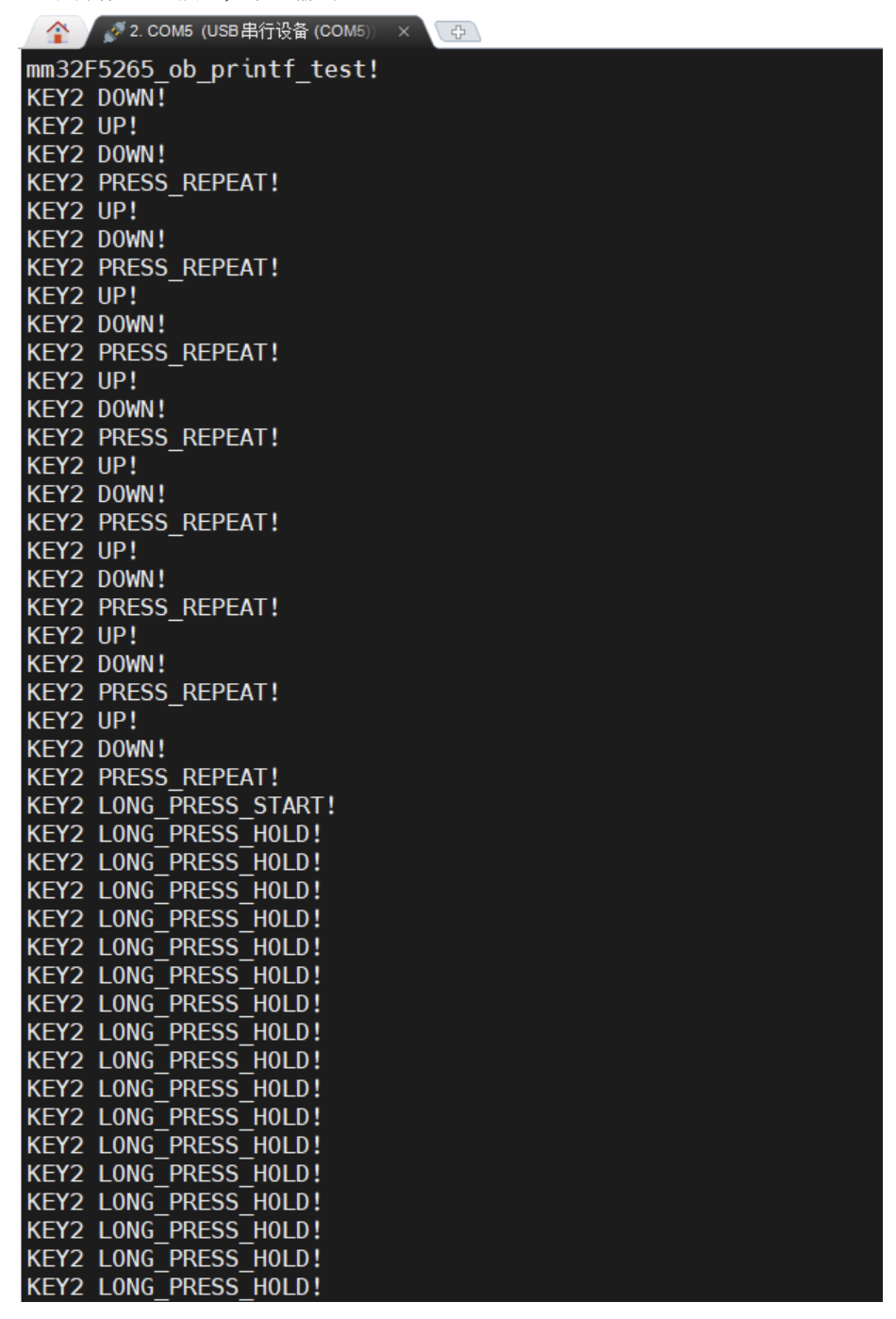

4.2、操作KEY2按键，串口输出
