星闪开发之Server-Client 指令交互控制OLED灯案例

news 来源：原创 2025/6/6 18:12:36

系列文章目录

星闪开发之Server-Client 指令交互控制OLED灯案例

请添加图片描述

文章目录

  • 系列文章目录
  • 前言
  • 一、核心流程
    • 服务端
    • 客户端
  • 二、图片资源
  • 三、源代码
  • 四、在Hispark Studio中配置
    • 将sle_oled-master文件夹下的相sle_oled放在peripheral文件夹下。
    • peripheral目录下的 Kconfig文件中添加如下代码
    • peripheral目录下的 CMakeLists.txt文件中添加如下代码
  • 其他
    • 利用串口工具查看log
    • 效果图
  • 总结

前言

上一篇文章讲解了关于Server-Client 指令交互控制红绿灯的代码，这篇文章在上文的基础上实现控制OLED灯。（开发板基于WS63解决方案）

一、核心流程

由服务端向客户端传输指令HAPPY，SAD，ANGRY。客户端接收指令分析后控制OLED灯显示相关图片。

服务端

static int example_oled_control_task(const char *arg)
{unused(arg);// errcode_t ret = 0;example_control_oled_type_t last_oled_operation = EXAMPLE_CONTORL_OLED_HAPPY;PRINT("[SLE Server] start oled control task\r\n");// 循环发送OLED控制命令while (1){(void)osal_msleep(500); // 根据last_oled_operation状态发送不同的OLED控制命令if (last_oled_operation == EXAMPLE_CONTORL_OLED_HAPPY) {uint8_t write_req_data[] = {'H', 'A', 'P', 'P', 'Y'};example_sle_server_send_notify_by_handle(write_req_data, sizeof(write_req_data));last_oled_operation = EXAMPLE_CONTORL_OLED_SAD;} else if (last_oled_operation == EXAMPLE_CONTORL_OLED_SAD) {uint8_t write_req_data[] = {'S', 'A', 'D'};example_sle_server_send_notify_by_handle(write_req_data, sizeof(write_req_data));last_oled_operation = EXAMPLE_CONTORL_OLED_ANGRY;} else if (last_oled_operation == EXAMPLE_CONTORL_OLED_ANGRY) {uint8_t write_req_data[] = {'A', 'N', 'G', 'R', 'Y'};example_sle_server_send_notify_by_handle(write_req_data, sizeof(write_req_data));last_oled_operation = EXAMPLE_CONTORL_OLED_HAPPY;}}
//    用途：周期性发送OLED控制命令。
// 实现：通过 example_sle_server_send_notify_by_handle 发送通知。return 0;
}

客户端

//OLED通知回调
static void example_oled_notification_cbk(uint8_t client_id, uint16_t conn_id, ssapc_handle_value_t *data)
{// 解析数据并控制OLEDif (data->data_len == strlen("HAPPY") && data->data[0] == 'H' && data->data[1] == 'A' && data->data[2] == 'P' &&data->data[3] == 'P' && data->data[4] == 'Y') {ssd1306_DrawBitmap(myphoto[0],sizeof(myphoto));ssd1306_UpdateScreen();}if (data->data_len == strlen("SAD") && data->data[0] == 'S' && data->data[1] == 'A' &&data->data[2] == 'D') {ssd1306_DrawBitmap(myphoto[1],sizeof(myphoto));ssd1306_UpdateScreen();}if (data->data_len == strlen("ANGRY") && data->data[0] == 'A' && data->data[1] == 'N' && data->data[2] == 'G' &&data->data[3] == 'R' && data->data[4] == 'Y') {ssd1306_DrawBitmap(myphoto[2],sizeof(myphoto));ssd1306_UpdateScreen();}//将OLED状态写回服务器/* 将本端(Cient)的OLED等状态, 通过写请求发送给对端(Server) */ssapc_write_param_t param = {0};param.handle = g_find_service_result.start_hdl;param.type = SSAP_PROPERTY_TYPE_VALUE;param.data_len = data->data_len;param.data = osal_vmalloc(param.data_len);if (param.data == NULL) {PRINT("[SLE Client] write req mem fail\r\n");return;}if (memcpy_s(param.data, param.data_len, data, data->data_len) != EOK) {PRINT("[SLE Client] write req memcpy fail\r\n");osal_vfree(param.data);return;}
// ssapc_write_req(client_id, conn_id, &param);  发送写请求if (ssapc_write_req(client_id, conn_id, &param) != ERRCODE_SUCC) {PRINT("[SLE Client] write req fail\r\n");osal_vfree(param.data);return;}osal_vfree(param.data);return;
}

二、图片资源

图片转换相关问题请参考：星闪开发入门之一篇文章带你玩转OLED灯

uint8_t myphoto[][1024]={//  下面这个没问题 开心{0x1F,0xEF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x0F,0xFF,0xF8,0x1F,0x9F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFC,0x1E,0x1F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFC,0x0F,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0x06,0xFF,0x00,0x00,0x00,0x04,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0x1F,0xFE,0x00,0x00,0x00,0x04,0x00,0x00,0x40,0x00,0x80,0x00,0x00,0x00,0xFF,0xFF,0x1F,0xFE,0x00,0x00,0x00,0x07,0x00,0x00,0x40,0x06,0x00,0x00,0x00,0x00,0xFF,0xFE,0x1F,0xFE,0x00,0x00,0x00,0x07,0x80,0x02,0x80,0x01,0x10,0x00,0x00,0x00,0xBF,0xFE,0x3F,0xF8,0x00,0x00,0x00,0x07,0xC0,0x03,0x20,0x0D,0x30,0x00,0x00,0x00,0x1F,0xFE,0x3F,0xF0,0x00,0x00,0x00,0x03,0xC0,0x06,0x40,0x0F,0xF0,0x00,0x00,0x00,0x3F,0xFF,0x3F,0xF0,0x00,0x00,0x00,0x33,0xE0,0x07,0xD0,0x1F,0xE0,0x00,0x00,0x00,0x21,0xFF,0x7F,0xE0,0x00,0x00,0x00,0x3F,0xF0,0x1F,0x90,0x3F,0x80,0x00,0x00,0x00,0x01,0xFF,0x7F,0xC0,0x00,0x00,0x00,0x1F,0xF8,0x37,0xD0,0x1E,0x00,0x00,0x00,0x00,0xA7,0xFF,0x7F,0x80,0x00,0x00,0x00,0x0F,0xFC,0x7F,0xD0,0x06,0x00,0x00,0x00,0x00,0xBF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0xF9,0xFA,0xE0,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x77,0xE9,0x79,0x00,0x00,0x00,0x00,0x00,0x9F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x2F,0xF9,0x18,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x38,0x67,0x00,0x00,0x00,0x00,0x00,0x00,0x6B,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x78,0x04,0x80,0x00,0x0A,0x00,0x00,0x08,0xEB,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x98,0xA0,0x04,0x00,0x00,0x1C,0x00,0x03,0x8E,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x5F,0x00,0x00,0x00,0x00,0x18,0x00,0x07,0xF6,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x10,0x00,0x1F,0xE2,0x7F,0xFF,0xEF,0xE0,0x00,0x00,0x00,0x3E,0x02,0x00,0x00,0x00,0x00,0x00,0x1F,0xE6,0x7F,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x3E,0x1F,0xC0,0x00,0x00,0x00,0x00,0x1D,0xFC,0x9F,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x7E,0x30,0x20,0x00,0x00,0x0E,0x00,0x1F,0xF8,0x9F,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x7E,0x20,0x00,0x00,0x1C,0x08,0x00,0x0F,0x38,0x7F,0xFF,0xEB,0xF0,0x00,0x00,0x03,0xFE,0x41,0xC0,0x00,0x7E,0x08,0x00,0x00,0x7C,0x3F,0xFF,0xD7,0xE0,0x00,0x00,0x07,0xFE,0x43,0xE0,0x00,0xC1,0x80,0x00,0x00,0x18,0x7F,0xFF,0xE1,0xE0,0x00,0x00,0x00,0xFC,0x47,0xC0,0x00,0x80,0x04,0x00,0x02,0xF3,0x7F,0xFF,0xA3,0xE0,0x00,0x00,0x00,0x1C,0xC7,0xF0,0x00,0x00,0x02,0x00,0x05,0xFF,0x7F,0xFF,0xA3,0xE0,0x00,0x00,0x00,0x3E,0x07,0xF0,0x00,0x00,0x00,0x00,0x0F,0xFF,0x7F,0xFF,0xF7,0xE0,0x00,0x00,0x00,0x7C,0x07,0xE0,0x04,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0x63,0xE0,0x00,0x00,0x00,0xF8,0x03,0xE2,0x04,0x00,0x00,0x00,0x83,0xB3,0xFF,0xDF,0xC1,0xC0,0x00,0x00,0x00,0xF0,0x01,0xC1,0x00,0x00,0x00,0x00,0x83,0x93,0xFF,0x83,0xD3,0xC0,0x00,0x00,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x17,0xA4,0xFF,0x03,0xFF,0xE0,0x00,0x00,0x00,0x70,0x00,0x00,0x01,0x00,0x00,0x00,0x3F,0xAD,0xBF,0x87,0x69,0xE0,0x00,0x00,0x00,0xF0,0x00,0x0E,0x0F,0x00,0x00,0x03,0xFF,0xEF,0xFF,0x0E,0xE1,0xC0,0x00,0x00,0x00,0x10,0x00,0x07,0xFF,0x00,0x00,0x17,0xFF,0xFF,0x1F,0xFC,0xFF,0x80,0x00,0x00,0x00,0x38,0x00,0x07,0x03,0x00,0x00,0x4F,0xFF,0x8F,0x3F,0x3C,0xF0,0x00,0x00,0x00,0x00,0x28,0x00,0x02,0x02,0x00,0x02,0xDF,0xFF,0x0B,0xFE,0x0F,0xF8,0x00,0x00,0x10,0x00,0x78,0x00,0x01,0x8C,0x00,0x01,0x9F,0xF3,0x11,0xFE,0x0D,0xF8,0x00,0x00,0x0C,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x3F,0xFF,0x53,0xBC,0x18,0xFF,0x00,0x00,0x86,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0xFE,0x3B,0x3F,0xE4,0x7F,0x00,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x47,0xE7,0xC2,0x7F,0xFB,0x24,0x00,0x00,0x03,0x80,0x00,0x00,0x00,0x00,0x20,0x18,0x13,0xEF,0x80,0xFE,0x7B,0x02,0x00,0x00,0x03,0x00,0x3E,0x00,0x78,0x00,0x20,0x12,0x01,0xEC,0x01,0xF8,0x1E,0x66,0x60,0x00,0x03,0x00,0xC7,0x01,0xF8,0x00,0x00,0x30,0x01,0x00,0x03,0xF8,0x3A,0xF2,0xD0,0x00,0x03,0x01,0x0F,0x03,0xF8,0x00,0x00,0x60,0x00,0xC0,0x07,0xFC,0x6E,0xF3,0xD8,0x00,0x03,0x02,0x09,0x81,0xF8,0x00,0x00,0xC0,0x00,0x00,0x1F,0x9E,0xB8,0xD0,0xE0,0x00,0x03,0x84,0x08,0xC1,0xF8,0x00,0x03,0x80,0x00,0x00,0xFB,0x13,0xF0,0x50,0xE0,0x80,0x03,0x88,0x08,0xF1,0xF0,0x00,0x00,0x00,0x00,0x00,0xF9,0x18,0xF0,0x00,0x01,0x80,0x07,0x00,0x00,0x7F,0xF0,0x00,0x00,0x00,0x00,0x38,0x7F,0xE8,0xC0,0x00,0x00,0x00,0x07,0x00,0x00,0x27,0xF0,0x00,0x00,0x00,0x03,0xF8,0x72,0x60,0xA0,0x00,0x00,0x00,0x07,0x00,0x00,0x37,0xF0,0x00,0x04,0x00,0x02,0x28,0x92,0xC0,0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x4F,0xF8,0x00,0x01,0x00,0x00,0x78,0xB0,0x40,0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x1F,0xF8,0x00,0x0E,0x00,0x00,0x9E,0xCD,0xC0,0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x1F,0xFC,0x00,0x0E,0x80,0x00,0x7D,0x1F,0x80,0x18,0x00,0x00,0x00,0x07,0x80,0x00,0x1F,0xFE,0x00,0x1F,0x00,0x00,0x82,0x00,0x00,0x38,0x00,0x00,0x00,0x07,0x80,0x01,0xFF,0xFF,0x00,0x3F,0x80,0x01,0x42,0x00,0x00,0x38,0x00,0x00,0x00,0x07,0x80,0x03,0xFF,0xFF,0x80,0x3F,0x80,0x00,0x00,0x00,0x00,0x30,0x8C,0x00,0x00,0x07,0xF8,0x03,0xFF,0xFF,0x80,0x3F,0x00,0x00,0x00,0x00,0x03,0xA3,0x88,0x00,0x00,0x07,0xF8,0x63,0xFF,0xFF,0x80,0x1E,0x00,0x00,0x00,0x00,0x03,0xC6,0x50,0x00,0x00,0x07,0xF8,0xFF,0xFF,0xFF,0x00,0x04,0x80,0x00,0x00,0x00,0x00,0x06,0x20,0x00,0x00,0x03,0xF9,0xFF,0xFF,0x9E,0x00,0x03,0x80,0x00,0x00,0x00,0x00,0x06},//  下面这个没问题 伤心{0x1F,0xFE,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xF8,0x1F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x10,0x0F,0xFF,0xF8,0x9F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x10,0x0F,0xFF,0xF8,0x8F,0xFF,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x80,0x00,0x10,0x0B,0xFF,0xFF,0x4F,0xFF,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x07,0x80,0x00,0x10,0x09,0xFF,0xFF,0x17,0xFE,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x01,0x80,0x00,0x40,0x01,0xFF,0xFF,0x3F,0xFE,0x00,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x20,0x00,0xFF,0xFE,0x3F,0xFE,0x00,0x00,0x00,0x07,0x80,0x00,0x00,0x03,0x90,0x00,0x00,0x00,0xFF,0xFE,0x3F,0xF8,0x00,0x00,0x00,0x07,0xC0,0x00,0x20,0x0F,0x30,0x00,0xE8,0x00,0xBF,0xFE,0x3F,0xF4,0x00,0x00,0x00,0x03,0xC0,0x00,0x40,0x0F,0xF0,0x00,0xA8,0x00,0x3F,0xFF,0x7F,0xE4,0x00,0x00,0x00,0x23,0xE0,0x00,0x00,0x1F,0xE0,0x00,0xA8,0x00,0x23,0xFF,0x7F,0xE0,0x00,0x00,0x00,0x3B,0xF0,0x01,0x10,0x3F,0x80,0x00,0xA0,0x00,0x00,0xFF,0x7F,0xC0,0x00,0x00,0x00,0x3F,0xF8,0x3C,0x10,0x7E,0x00,0x00,0x18,0x00,0x23,0xFF,0xFF,0x80,0x00,0x00,0x00,0x1F,0xFC,0x7F,0xF0,0x7C,0x00,0x00,0x58,0x00,0xBF,0xFF,0xFF,0xA0,0x00,0x00,0x00,0x01,0xFF,0xFF,0xE8,0x3C,0x00,0x00,0x50,0x01,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFC,0x88,0x00,0x00,0x60,0x01,0x9F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x7C,0xFF,0xF8,0xC0,0x02,0x00,0x40,0x01,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x3D,0xFB,0xF9,0xA0,0x0C,0x00,0x00,0x01,0xEB,0xFF,0xFF,0x40,0x00,0x00,0x01,0x00,0x7F,0xFF,0xCF,0x80,0x38,0x00,0x00,0x19,0xEF,0xFF,0xFF,0xC0,0x00,0x00,0x01,0xB8,0xFF,0xFF,0x8F,0xC0,0xF4,0x00,0x07,0xBD,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x01,0xFF,0xFF,0x7F,0x8D,0x00,0xE0,0x00,0x0F,0xF9,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x72,0x00,0x68,0x00,0x0F,0xF6,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0xFF,0xFF,0x3E,0x03,0xE0,0x70,0x00,0x3F,0x27,0xFF,0xFF,0xFF,0xD0,0x00,0x00,0x00,0xFF,0xFD,0xDE,0x00,0x80,0x30,0x00,0x7F,0xFE,0xBF,0xFF,0xFF,0xD0,0x00,0x00,0x00,0x7F,0xF7,0xEC,0x00,0x00,0x30,0x00,0x7F,0xF8,0x9F,0xFF,0xFF,0xF0,0x00,0x00,0x1F,0xFF,0xEC,0x10,0x00,0x00,0x38,0x00,0x1F,0x78,0xFF,0xFF,0xFB,0xE0,0x00,0x00,0x0F,0xFF,0xF8,0x48,0x00,0x78,0x10,0x00,0x0C,0xFE,0xFF,0xFF,0xC7,0xE0,0x00,0x24,0x0B,0xFF,0xF1,0xE0,0x00,0xCE,0x18,0x00,0x00,0x18,0xFF,0xFF,0xF3,0xE0,0x00,0x40,0x00,0xDF,0xF1,0xC0,0x01,0x00,0x0E,0x00,0x00,0xF3,0xFF,0xFF,0x8F,0xE0,0x00,0x00,0x04,0xBF,0xE3,0xF0,0x00,0x00,0x0C,0x00,0x05,0xFF,0xFF,0xFF,0x83,0xE0,0x00,0x00,0x03,0x7F,0xE3,0xF4,0xE3,0x00,0x04,0x00,0x0F,0xFE,0xFF,0xFF,0xEF,0xC0,0x00,0x00,0x00,0xFF,0xE3,0xF1,0x00,0x80,0x00,0x00,0x17,0xFF,0xFF,0xFF,0xE3,0xC0,0x00,0x00,0x03,0x3F,0xE0,0x14,0x02,0x00,0x00,0x00,0x87,0xFF,0xFF,0xFF,0xE3,0xC0,0x00,0x00,0x07,0xFF,0x80,0x01,0x82,0x00,0x00,0x01,0x37,0xB3,0xFF,0x93,0xF3,0xC0,0x00,0x00,0x0F,0x7F,0x00,0x00,0x00,0x00,0x00,0x0B,0x9F,0xEC,0xFF,0x03,0xFF,0xC0,0x00,0x00,0x04,0x7E,0x00,0x00,0x00,0x00,0x02,0x00,0x3F,0xAB,0xFF,0x87,0xB9,0x80,0x00,0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x66,0x7F,0xE7,0xFF,0x1E,0xE3,0x80,0x00,0x00,0x00,0x3C,0x00,0x00,0xFE,0x00,0x00,0xF7,0xFF,0xDF,0x5F,0x3E,0xDF,0x80,0x00,0x00,0x00,0x7C,0x00,0x01,0xFF,0x00,0x01,0xF7,0xFF,0x8E,0x3F,0x7C,0xF8,0x80,0x00,0x00,0x00,0x1C,0x00,0x03,0xFF,0x80,0x07,0xFF,0xFF,0x1F,0xFF,0x1D,0x1C,0x80,0x00,0x7A,0x00,0x0C,0x00,0x07,0xC3,0x80,0x1F,0x9F,0xFB,0x19,0xFC,0x1F,0xFE,0x00,0x00,0x8E,0x00,0x02,0x00,0x07,0x01,0x80,0x00,0x3F,0xF3,0xFB,0xFE,0x0E,0xFF,0x00,0x00,0x06,0x00,0x01,0x00,0x06,0x00,0x00,0x1E,0x3F,0xEE,0xFB,0x7F,0xEC,0xFF,0xC0,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x01,0xB0,0x9F,0xE7,0xAB,0xFF,0xF1,0x7C,0x60,0x00,0x07,0x80,0x00,0x00,0x00,0x00,0x00,0x20,0x0F,0xFF,0xE7,0x9E,0x3B,0x64,0x20,0x00,0x03,0x80,0x3C,0x00,0x00,0x00,0x80,0x40,0x07,0xEA,0x8F,0xF8,0x3E,0xEE,0x62,0x00,0x03,0x00,0xC6,0x00,0xFF,0xF0,0x00,0x40,0x03,0x0D,0x0F,0xF0,0x1C,0xF3,0xF0,0x00,0x03,0x01,0x0B,0x03,0xF8,0x00,0x00,0x80,0x03,0xC0,0x07,0xF8,0x4D,0x92,0x98,0x00,0x06,0x02,0x09,0x83,0xF8,0x00,0x01,0x80,0x01,0x00,0x7F,0xBE,0xBA,0xF9,0xE8,0x00,0x07,0x84,0x09,0xC1,0xF8,0x00,0x03,0x00,0x00,0x0B,0xFE,0x17,0xB0,0x50,0xC0,0x00,0x07,0x88,0x10,0xE1,0xF0,0x00,0x02,0x00,0x00,0x17,0xF8,0x1A,0xE0,0x00,0x40,0x00,0x07,0x10,0x10,0xFB,0xF0,0x00,0x18,0x00,0x00,0x78,0x7F,0xB8,0xD0,0x84,0x60,0x00,0x06,0x00,0x00,0x5F,0xF0,0x00,0x1C,0x00,0x01,0xF8,0xFE,0x20,0xC0,0x00,0x6C,0x00,0x06,0x00,0x00,0x2F,0xF0,0x00,0x1E,0x00,0x03,0xF8,0x93,0xC0,0x00,0x00,0x80,0x00,0x0F,0x80,0x00,0x1F,0xF0,0x00,0x1E,0x00,0x14,0xF8,0x97,0x00,0x00,0x00,0x00,0x00,0x0F,0xC0,0x00,0x3F,0xF8,0x00,0x1F,0x00,0x0C,0x9E,0xEB,0x80,0x00,0x20,0x00,0x00,0x0F,0x80,0x00,0x3F,0xFC,0x00,0x1F,0x00,0x0B,0xFE,0x9F,0x00,0x18,0x38,0x00,0x00,0x0F,0x80,0x00,0x7F,0xFE,0x00,0x1F,0x80,0x09,0xFA,0x00,0x00,0x38,0x00,0x00,0x00,0x0F,0x00,0x03,0xFF,0xFF,0x00,0x3F,0x80,0x0B,0x42,0x00,0x00,0x38,0x00,0x00,0x00,0x0F,0x90,0x03,0xFF,0xFF,0x00,0x3F,0x80,0x00,0x00,0x00,0x07,0x30,0x0C,0x00,0x00,0x07,0xF0,0xC3,0xFF,0xFF,0x80,0x3F,0x80,0x00,0x00,0x00,0x07,0xE3,0x9C,0x00,0x00,0x07,0xF0,0xE7,0xFF,0xFF,0x80,0x1F,0x00,0x00,0x00,0x00,0x03,0xE7,0x50,0x00,0x00,0x07,0xF9,0xFF,0xFF,0xFF,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,0xC6,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFE,0x00,0x03,0x80,0x00,0x00,0x00,0x10,0x2E},//  下面这个没问题 生气{0x61,0xFD,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x8F,0xFF,0xF0,0x61,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x8F,0xFF,0xF0,0xE3,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x06,0x1F,0xFF,0xF8,0xE3,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x0E,0x3F,0xFF,0xF8,0xE3,0xFF,0xF0,0x00,0x00,0x06,0x00,0x00,0x00,0x03,0x80,0x00,0x0C,0xFF,0xFF,0xF8,0xE7,0xFF,0xE0,0x00,0x00,0x0E,0x00,0x00,0x00,0x03,0xC0,0x00,0x01,0x87,0xFF,0xFC,0xC7,0xFF,0xC0,0x00,0x00,0x1C,0x00,0x00,0x00,0x03,0xE0,0x00,0x01,0x87,0xFF,0x9C,0xCF,0xFF,0x80,0x00,0x00,0x3C,0x00,0x00,0x00,0x03,0xE0,0x00,0x01,0x07,0xFF,0xFC,0xCF,0xFF,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x03,0xE0,0x00,0x00,0x07,0xFF,0xFC,0x5F,0xFE,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x03,0xF0,0x00,0x00,0x03,0xFF,0xFE,0xDF,0xFC,0x00,0x00,0x00,0x3C,0x00,0x01,0x00,0x07,0xF0,0x00,0x00,0x03,0xFF,0xFE,0xDF,0xFC,0x00,0x00,0x00,0x7E,0x00,0x01,0x02,0x1F,0xF0,0x00,0x00,0x03,0xFF,0xFE,0xFF,0xF8,0x00,0x00,0x00,0x7F,0x80,0x63,0x02,0x3F,0xF0,0x00,0x00,0x03,0xFF,0xFF,0x3F,0xF8,0x00,0x00,0x00,0x7F,0xF0,0x63,0x80,0x3F,0xE0,0x00,0x00,0x03,0xFF,0xFF,0xBF,0xE0,0x00,0x00,0x00,0x3F,0xF8,0x77,0x22,0x7F,0xE0,0x00,0x00,0x03,0xFF,0xFF,0xFC,0xC0,0x00,0x00,0x00,0x3F,0xFE,0x7F,0x60,0x7F,0x80,0x00,0x00,0x01,0xFF,0xFF,0xFD,0xC0,0x00,0x00,0x00,0x1F,0xFE,0x0F,0xE0,0x7F,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x0F,0xFE,0xB3,0xE0,0x1E,0x00,0x20,0x00,0x01,0xFF,0xFF,0xEF,0x80,0x00,0x00,0x00,0x01,0xF8,0xC9,0xE0,0x0E,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0xF0,0x40,0xC0,0x06,0x01,0x00,0x00,0x01,0xFF,0xFF,0xF7,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF7,0x00,0x00,0x00,0x0F,0x80,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xE6,0x80,0x00,0x00,0x0F,0xF0,0x20,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0xFF,0xFF,0xCF,0xC4,0x00,0x00,0x07,0xFC,0x40,0x00,0x00,0x18,0x10,0x00,0x00,0x00,0xFF,0xFF,0x9F,0x9C,0x00,0x00,0x00,0xFE,0x43,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xBC,0x00,0x00,0x02,0x3F,0x05,0x80,0x00,0x60,0x20,0x00,0x00,0x00,0xFF,0xFF,0x7F,0xFC,0x00,0x00,0x00,0x1F,0x08,0xC0,0x00,0xC0,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x01,0x0F,0x08,0x60,0x01,0xE0,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x01,0x07,0x10,0xF8,0x01,0xE0,0x00,0x00,0x00,0x00,0xFF,0x0F,0xFF,0xF8,0x00,0x00,0x01,0x06,0x10,0xF9,0x99,0xF0,0x00,0x00,0x00,0x00,0xFE,0x02,0xFF,0xF8,0x00,0x00,0x02,0x02,0x10,0xF8,0x61,0xF0,0x00,0x00,0x00,0x00,0xFE,0x00,0x7F,0xF8,0x00,0x00,0x07,0xF9,0xC0,0xF9,0x8D,0xF0,0x00,0x00,0x00,0x00,0xFF,0xC0,0x63,0xF4,0x00,0x00,0x02,0x07,0x70,0xF9,0x88,0xE0,0x00,0x00,0x00,0x02,0xFF,0xF8,0x41,0xF0,0x00,0x00,0x01,0x07,0xF0,0xF0,0x00,0x40,0x00,0x00,0x00,0x0F,0xFF,0x80,0x60,0xF0,0x00,0x00,0x00,0x87,0x80,0x70,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0x00,0xF1,0xF8,0x00,0x00,0x00,0x0F,0x00,0x00,0x12,0x00,0x00,0x00,0x00,0x3F,0xFF,0x70,0xFF,0xF8,0x00,0x00,0x00,0x3E,0x00,0x49,0xBE,0x00,0x00,0x00,0x00,0x7F,0xFF,0xC2,0xE3,0xF8,0x00,0x00,0x05,0xCE,0x00,0x1D,0xFE,0xC0,0x00,0x00,0x00,0x7F,0xFF,0x87,0xC1,0xFC,0x00,0x00,0x02,0x0E,0x00,0x1F,0xFF,0xE0,0x00,0x00,0x00,0xFF,0xFF,0x8F,0xF3,0xF6,0x00,0x00,0x01,0xE6,0x00,0x3F,0xFF,0xE0,0x00,0x00,0x3F,0xFB,0xFF,0xFF,0xFF,0x80,0x00,0x04,0x00,0x06,0x00,0x3E,0x07,0xE0,0x00,0x00,0x7F,0xE3,0xFF,0xFF,0xFF,0x00,0x00,0x02,0x00,0x1E,0x00,0x38,0x01,0xE0,0x00,0x00,0xFF,0xDF,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x79,0x00,0x20,0x00,0x60,0x00,0x2D,0xFE,0x3F,0xFF,0xFF,0x3E,0x00,0x00,0x10,0x00,0x00,0x80,0x20,0x02,0x60,0x01,0xDF,0xFC,0x77,0x9F,0x1F,0x1C,0x00,0x00,0x16,0x00,0x00,0x40,0x30,0x00,0x00,0x1C,0x7F,0xE1,0xEF,0x1F,0x1F,0x08,0x00,0x00,0x0A,0x80,0x00,0x20,0x00,0x00,0x00,0x39,0x1F,0xED,0xDE,0x1F,0x9C,0x00,0x00,0x00,0x02,0x00,0xFC,0x00,0x00,0x00,0x00,0x78,0x4F,0xFF,0xFF,0xE7,0xF2,0x00,0x00,0x00,0x02,0x03,0xFE,0x00,0x00,0x00,0x60,0xC8,0x27,0xFF,0xCF,0xAF,0xFB,0x00,0x20,0x00,0x02,0x07,0xFF,0x00,0x7C,0x00,0x63,0x88,0x03,0xFF,0x9F,0xBF,0xFC,0xA1,0xFE,0x00,0x02,0x1C,0x1F,0xC0,0xFC,0x00,0x0E,0x80,0x01,0xE7,0xFF,0xFF,0xF8,0x20,0xF6,0x00,0x02,0x30,0x1F,0xF9,0xFC,0x00,0x00,0x80,0x00,0xC7,0xFE,0x7F,0xF3,0x5C,0xC0,0x00,0x02,0x60,0x3F,0xFF,0xFC,0x00,0x01,0x00,0x00,0x81,0xFC,0x3D,0x5C,0x3F,0x84,0x00,0x03,0xC0,0x3F,0xFF,0xF8,0x00,0x00,0x00,0x00,0x1F,0xFE,0x7C,0x50,0x30,0x00,0x00,0x03,0x80,0x3F,0xFF,0xF8,0x00,0x04,0x00,0x00,0x7F,0xFD,0x7C,0x00,0x00,0x00,0x00,0x03,0x00,0x23,0xFF,0xF8,0x00,0x04,0x00,0x7F,0xFF,0xFC,0x6C,0x00,0x00,0x00,0x00,0x02,0x78,0x20,0x7F,0xF8,0x00,0x04,0x00,0xFF,0xFF,0xDE,0x00,0x00,0x00,0x00,0x00,0x05,0x02,0x24,0x3F,0xF0,0x00,0x03,0x01,0xAF,0xE0,0x1C,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0xA7,0xDF,0xF0,0x00,0x02,0x21,0x3F,0xC4,0x30,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x68,0x5F,0xF0,0x00,0x02,0xB3,0xFC,0x5E,0xE0,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x70,0x3F,0xF8,0x00,0x02,0x99,0xF0,0xF2,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x20,0x3F,0xFC,0x00,0x07,0x91,0xE3,0x80,0x00,0x00,0x20,0x00,0x00,0x00,0x03,0xC0,0x00,0x3F,0xFE,0x00,0x07,0xC7,0x07,0x80,0x00,0x00,0x10,0x00,0x00,0x00,0x03,0xC0,0x02,0x7F,0xFF,0x00,0x0F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xF0,0x03,0xFF,0xFF,0x80,0x0F,0xC0,0x00,0x00,0x00,0x00,0x00},//  下面这个没问题 兴奋//  {0x1F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x0F,0xFF,0xF8,0x1F,0x9F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x07,0xFF,0xF8,0x1F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x00,0x10,0x07,0xFF,0xF8,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x05,0xFF,0xFD,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x01,0xFF,0xFF,0x3F,0xFE,0x00,0x00,0x00,0x0C,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0xFF,0xFF,0x1F,0xFE,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x1C,0x80,0x00,0x00,0x00,0xFF,0xFE,0x3F,0xFE,0x00,0x00,0x00,0x0C,0x80,0x00,0x00,0x12,0x80,0x00,0x00,0x00,0xFF,0xFE,0x3F,0xF8,0x00,0x00,0x00,0x0F,0x80,0x00,0x20,0x01,0x00,0x00,0x00,0x00,0x6F,0xFE,0x3F,0xF4,0x00,0x00,0x00,0x07,0xC0,0x04,0x10,0x1C,0x00,0x00,0x00,0x00,0x3F,0xFE,0x7F,0xE0,0x00,0x00,0x00,0x07,0xE0,0x24,0x40,0x06,0x00,0x00,0x00,0x00,0x33,0xFF,0x7F,0xE0,0x00,0x00,0x00,0x07,0xE0,0x06,0x80,0x22,0x00,0x00,0x00,0x00,0x01,0xFF,0x7F,0xC0,0x00,0x00,0x00,0x03,0xF8,0x06,0x80,0x32,0x00,0x00,0x00,0x00,0x03,0xFF,0x7F,0x80,0x00,0x00,0x00,0x3F,0xFE,0x1F,0xE4,0x0C,0x00,0x00,0x00,0x00,0xBF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x3F,0xFF,0xBF,0xF0,0x04,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFC,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFC,0x20,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x3F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x7D,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x1F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x7B,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x70,0x00,0x00,0x00,0x00,0x4B,0xFF,0xFE,0x50,0x00,0x00,0x00,0x00,0x03,0xFC,0x00,0x00,0x00,0x00,0x01,0x80,0xFF,0xFF,0xFF,0xE8,0x00,0x00,0x00,0x00,0x0B,0x62,0x00,0x00,0x10,0x00,0x0F,0xE0,0xFF,0xFF,0xFF,0xE8,0x00,0x00,0x00,0x00,0x77,0xC0,0x00,0x00,0x20,0x00,0x1F,0x82,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x40,0x0E,0x80,0x00,0x18,0x20,0x10,0x3F,0xC6,0xEF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x60,0x1F,0x8E,0x00,0x3E,0x00,0x00,0x1D,0xEE,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x76,0x3F,0x8F,0x00,0x62,0x00,0x00,0x7F,0xF8,0x9F,0xFF,0xFF,0xF0,0x00,0x00,0x03,0xFE,0x1F,0x8F,0x00,0x40,0x00,0x00,0x3F,0xFC,0x7F,0xFF,0xFF,0xF1,0x80,0x00,0x03,0xFE,0x07,0x8F,0x00,0x00,0x00,0x10,0x0C,0x7E,0x3F,0xFF,0xC7,0xE3,0xE0,0x00,0x01,0xFE,0x7F,0x8F,0x00,0x00,0x00,0x08,0x00,0x38,0xBF,0xFF,0xF3,0xE5,0xF0,0x00,0x0F,0xFF,0x3E,0x87,0x00,0x00,0x00,0x00,0x00,0xF3,0xFF,0xFF,0xC1,0xEF,0xF0,0x00,0x0F,0xFF,0x1C,0x00,0x01,0x00,0x00,0x00,0x0D,0xFF,0x7F,0xFF,0x81,0xEF,0xF0,0x00,0x03,0xFF,0x9C,0x00,0x20,0x10,0x00,0x00,0x0D,0xFF,0x7F,0xFF,0xEF,0xD0,0x80,0x00,0x00,0x9F,0x4C,0x00,0x00,0x30,0x00,0x00,0x33,0xFF,0x3F,0xFF,0x63,0xC0,0x00,0x00,0x00,0x7F,0xE6,0x01,0xFC,0x70,0x00,0x03,0x43,0xFF,0x7F,0xFF,0xE3,0xC1,0x00,0x00,0x00,0x3F,0xF2,0x00,0xFF,0xF0,0x00,0x05,0xC7,0x93,0x7F,0x97,0xF3,0xC4,0x00,0x00,0x00,0x1F,0xF8,0x00,0xFF,0xF0,0x00,0x07,0x87,0xEC,0x7F,0x03,0xFF,0xC0,0x00,0x00,0x00,0x0F,0xFE,0x00,0x78,0x20,0x00,0x01,0x1F,0xBC,0x7F,0x87,0x7D,0xC0,0x00,0x00,0x00,0x00,0x7F,0x00,0x3C,0x40,0x40,0x03,0x3F,0xCF,0x7F,0x0F,0xE1,0xC0,0x00,0x00,0x00,0x0F,0x7F,0x80,0x18,0x00,0x82,0x0F,0xFF,0xEF,0x1E,0x3C,0xC7,0x80,0x00,0x00,0x00,0x7F,0xFF,0xF8,0x00,0x03,0x03,0x9B,0xFF,0x9A,0x1F,0x7E,0xF9,0x80,0x00,0x00,0x00,0xBF,0xFF,0xDE,0x00,0x0E,0x06,0x47,0xFF,0x8F,0x7F,0x1D,0xE0,0x00,0x00,0x20,0x02,0xFF,0xFF,0xEF,0x00,0x04,0x0C,0x17,0xFF,0x13,0xFE,0x1D,0xF8,0x00,0x00,0x30,0x05,0xC2,0xFF,0xF7,0x00,0x00,0x0C,0x13,0xFB,0x53,0x7E,0x1E,0xFC,0x00,0x00,0x9B,0x0B,0x06,0xFF,0xFF,0x00,0x00,0x18,0x0B,0xFC,0xFF,0x6C,0x08,0xFE,0x00,0x00,0x8C,0x06,0x04,0xFF,0xF9,0x00,0x00,0x38,0x05,0xE4,0xFA,0x87,0xE1,0x7E,0x00,0x00,0x04,0x0C,0x04,0x7F,0xFC,0x00,0x00,0x68,0x01,0xFF,0x80,0x9E,0x7B,0x64,0x00,0x00,0x07,0x18,0x08,0x7F,0xFC,0x00,0x01,0xC8,0x00,0xF8,0x87,0xF8,0x3A,0x26,0x20,0x00,0x07,0x30,0x08,0x7F,0xFC,0x00,0x01,0x88,0x00,0x96,0x08,0xF0,0x3A,0xF6,0xF0,0x00,0x06,0x20,0x08,0x3F,0xF9,0x00,0x01,0x00,0x00,0x64,0x07,0xF8,0x1C,0x41,0x98,0x00,0x06,0x40,0x00,0x3F,0xF9,0x00,0x00,0x80,0x00,0x88,0x27,0xFC,0xE8,0x29,0x38,0x00,0x07,0x40,0x10,0x41,0xEF,0x00,0x00,0x40,0x00,0x01,0xFF,0x13,0xF0,0x40,0xC4,0x00,0x07,0x00,0x10,0x00,0xFA,0x00,0x00,0x00,0x00,0x01,0xF1,0x36,0xE0,0x00,0x41,0x00,0x06,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x30,0x7B,0x38,0xC0,0x00,0x63,0x80,0x07,0x00,0x00,0x03,0xFE,0x00,0x00,0x00,0x0E,0x78,0xFA,0xF0,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x01,0xFE,0x00,0x00,0x00,0x1E,0xC8,0x72,0xC0,0x60,0x00,0x00,0x00,0x07,0x00,0x00,0x1F,0xFC,0x00,0x00,0x00,0x7E,0x09,0xBA,0xC0,0x00,0x30,0x00,0x08,0x0F,0xC0,0x00,0x3F,0xFC,0x00,0x00,0x00,0x04,0x1F,0xC2,0x80,0x00,0x28,0x00,0x00,0x0D,0xC0,0x00,0x1F,0xFC,0x00,0x00,0x00,0x00,0x3E,0x96,0xC0,0x18,0x38,0x00,0x00,0x0F,0x80,0x00,0x1F,0xF8,0x00,0x00,0x00,0x01,0xFF,0x18,0x00,0x38,0x00,0x00,0x00,0x0F,0x80,0x01,0x9F,0xF8,0x00,0x00,0x00,0x0F,0x7C,0x00,0x00,0x38,0x00,0x00,0x00,0x0F,0x00,0x03,0xFF,0xF8,0x00,0x00,0x00,0x76,0x60,0x00,0x00,0x70,0x0C,0x00,0x00,0x0F,0x90,0x03,0xFF,0xF0,0x00,0x00,0x03,0x8A,0x00,0x00,0x03,0x31,0x8C,0x00,0x00,0x07,0xF0,0x43,0xFF,0xF0,0x00,0x03,0x00,0x00,0x00,0x00,0x03,0xA3,0xD8,0x00,0x00,0x06,0xF8,0xE3,0xFF,0xF0,0x00,0x03,0x80,0x00,0x00,0x00,0x01,0xC6,0x20,0x00,0x00,0x05,0xF9,0xFF,0xFF,0xB8,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,0x26}};

三、源代码

星闪开发之Server-Client 指令交互控制OLED灯案例

四、在Hispark Studio中配置

将sle_oled-master文件夹下的相sle_oled放在peripheral文件夹下。

将sle_oled-master中的sle_oled文件夹复制到
|
|
|
fbb_ws63-master\src\application\samples\peripheral文件夹下

peripheral目录下的 Kconfig文件中添加如下代码

config SAMPLE_SUPPORT_SLE_OLEDboolprompt "Support SLE_OLED Sample."default ndepends on ENABLE_PERIPHERAL_SAMPLEhelpThis option means support SLE_OLED Sample.if SAMPLE_SUPPORT_SLE_OLED
menu "SLE_OLED Sample Configuration"osource "application/samples/peripheral/sle_oled/Kconfig"
endmenu
endif

peripheral目录下的 CMakeLists.txt文件中添加如下代码

if(DEFINED CONFIG_SAMPLE_SUPPORT_SLE_OLED)add_subdirectory_if_exist(sle_oled)
endif()

再分别进行编译和烧录。基础教程请跳转至：星闪开发入门级教程之安装编译器与小项目烧录

其他

利用串口工具查看log

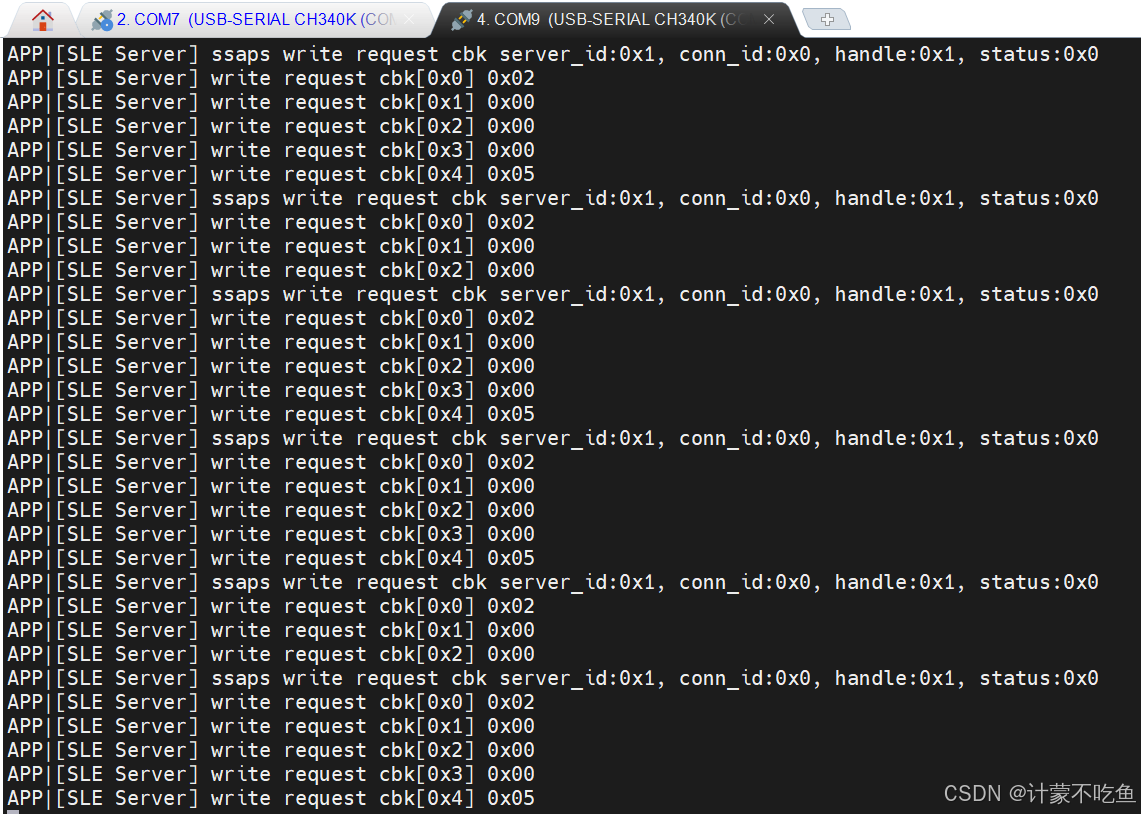

服务端：
请添加图片描述

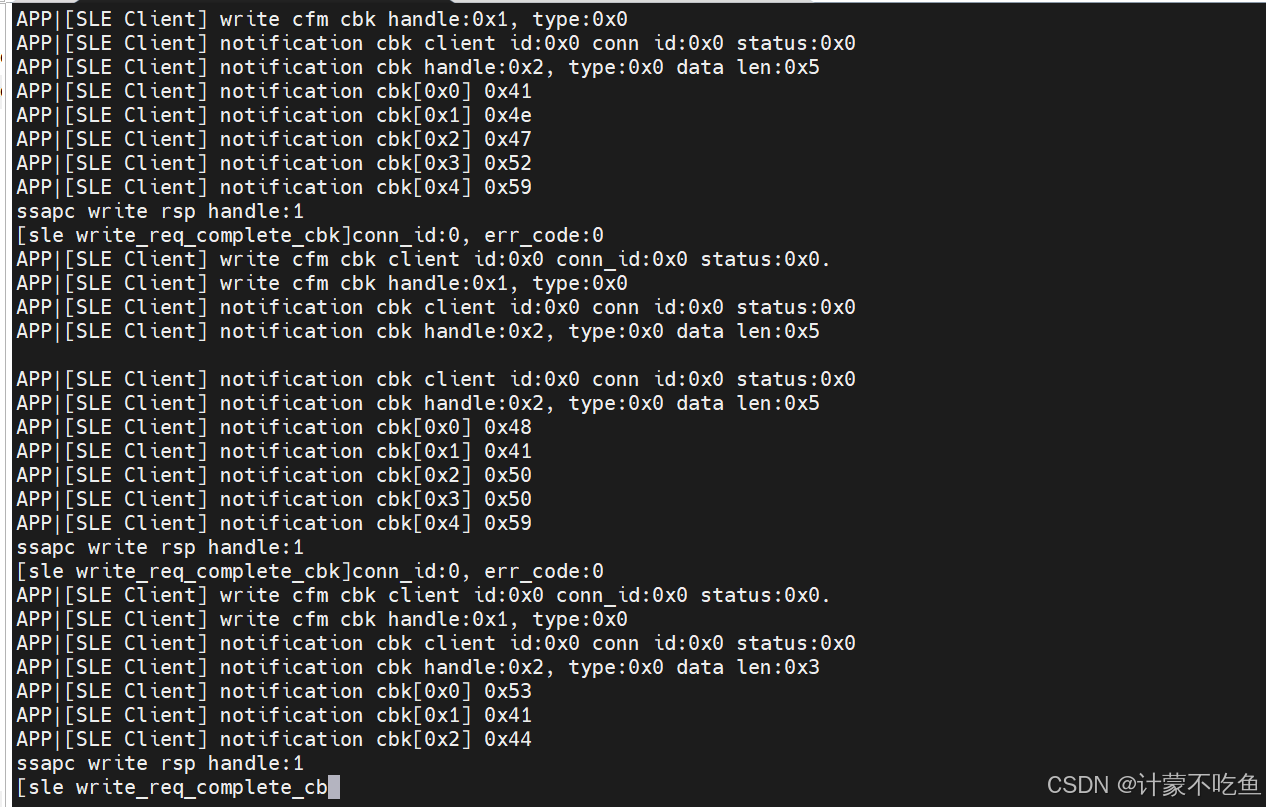

客户端：
请添加图片描述

效果图

请添加图片描述

总结

如有问题还请私信。
