VScode编译调试debug，gpu的cuda程序，Nsight

news 来源：原创 2025/6/4 0:07:52

进行下面操作的前提是，我们的环境已经能跑简单的CUDA程序了。

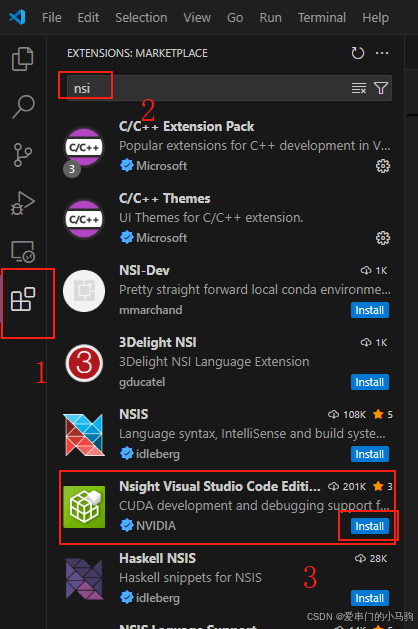

一、安装Nsight

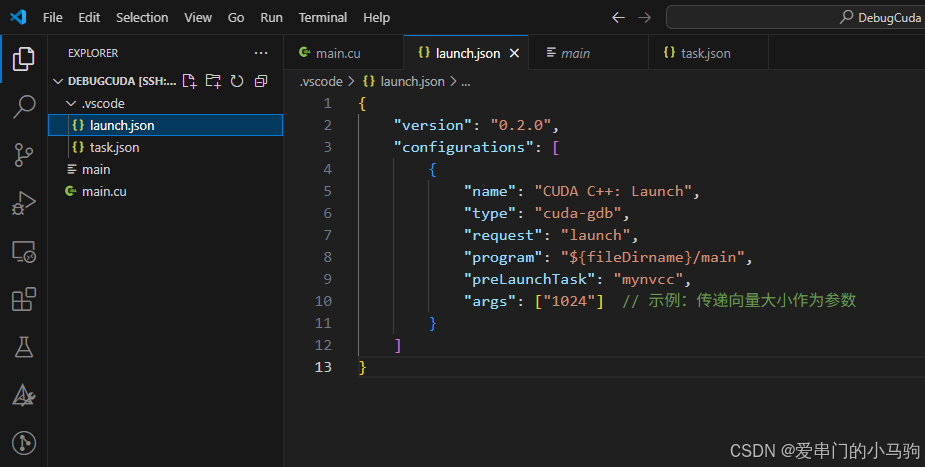

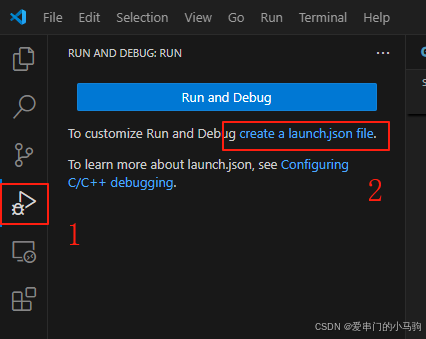

二、创建launch.json文件

{"version": "0.2.0","configurations": [{"name": "CUDA C++: Launch","type": "cuda-gdb","request": "launch","program": "${fileDirname}/main","preLaunchTask": "mynvcc","args": ["1024"]  // 示例：传递向量大小作为参数}]
}

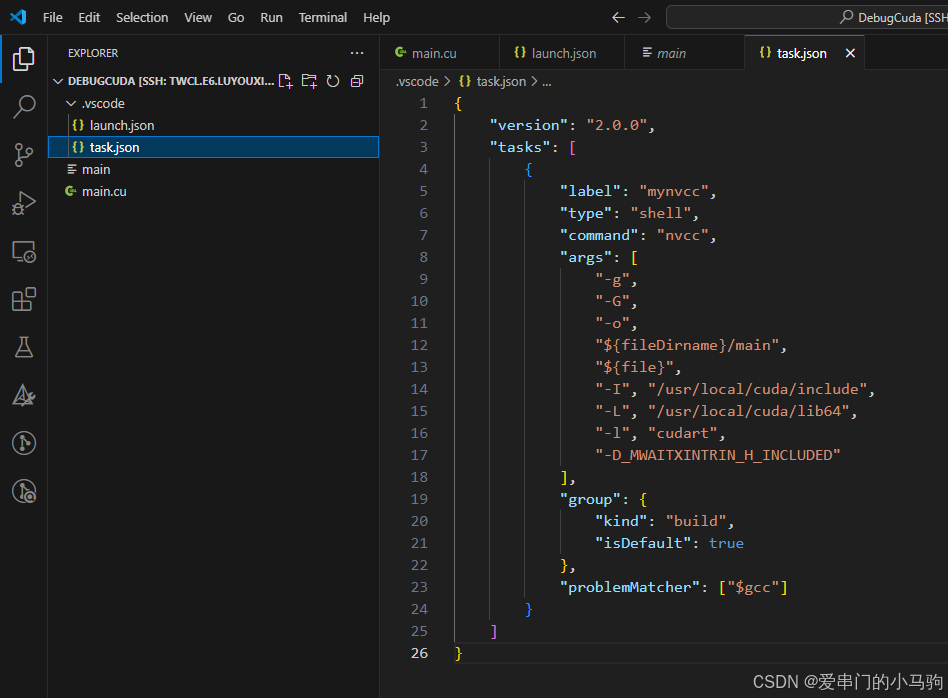

三、创建task.json文件

{"version": "2.0.0","tasks": [{"label": "mynvcc","type": "shell","command": "nvcc","args": ["-g","-G","-o","${fileDirname}/main","${file}","-I", "/usr/local/cuda/include","-L", "/usr/local/cuda/lib64","-l", "cudart","-D_MWAITXINTRIN_H_INCLUDED"],"group": {"kind": "build","isDefault": true},"problemMatcher": ["$gcc"]}]
}

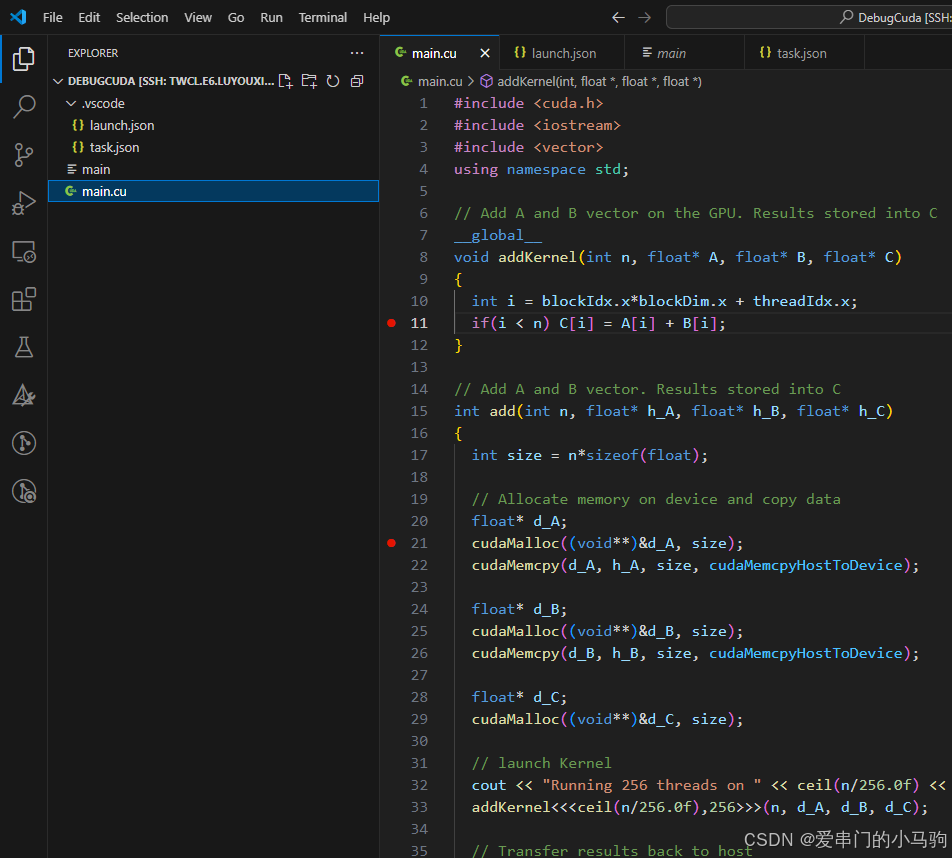

四、创建main.cu

注意：名称一定是main.cu，和上面的json文件中的main对应。

#include <cuda.h>
#include <iostream>
#include <vector>
using namespace std;// Add A and B vector on the GPU. Results stored into C
__global__
void addKernel(int n, float* A, float* B, float* C)
{int i = blockIdx.x*blockDim.x + threadIdx.x;if(i < n) C[i] = A[i] + B[i];
}// Add A and B vector. Results stored into C
int add(int n, float* h_A, float* h_B, float* h_C)
{int size = n*sizeof(float);// Allocate memory on device and copy datafloat* d_A;cudaMalloc((void**)&d_A, size);cudaMemcpy(d_A, h_A, size, cudaMemcpyHostToDevice);float* d_B;cudaMalloc((void**)&d_B, size);cudaMemcpy(d_B, h_B, size, cudaMemcpyHostToDevice);float* d_C;cudaMalloc((void**)&d_C, size);// launch Kernelcout << "Running 256 threads on " << ceil(n/256.0f) << " blocks -> " << 256*ceil(n/256.0f) << endl;addKernel<<<ceil(n/256.0f),256>>>(n, d_A, d_B, d_C);// Transfer results back to hostcudaMemcpy(h_C, d_C, size, cudaMemcpyDeviceToHost);// Free device memorycudaFree(d_A);cudaFree(d_B);cudaFree(d_C);return 0;
}// C = A + B on a GPU, where A is a vector of 1.0f and B a vector of 2.0f
// The main function takes one argument, the size of the vectors
int main(int argc, char* argv[])
{int n = atoi(argv[1]);vector<float> h_A(n, 1.0f);vector<float> h_B(n, 2.0f);vector<float> h_C(n);add(n, h_A.data(), h_B.data(), h_C.data());for(auto& c : h_C) {if(fabs(c-3.0f) > 0.00001f) {cout << "Error!" << endl;return 1;}}cout << "The program completed successfully" << endl;return 0;
}
