工作流介绍
- 了解工作流对大模型进行高质量工作的辅助意义
- 学会复现吴恩达博士的翻译工作流开源项目
- 了解构成大模型工作流系统的关键元素
- 学会搭建一个更复杂的业务场景工作流
一、为什么我们需要工作流？
❓ 什么样的职场打工人是合格的打工人？
- 反应快，理解能力强？
- 有相关经验，学过相关学科？
- 有行动力，不纸上谈兵，还要能下地干活？
哪些因素会影响大模型应用的效果？
- 模型能力（智力）
- 通识理解和泛化能力
- 输入信息理解、推理、规划、执行能力
- 输入信息补充知识学习能力
- 文字生成创作的风格
- 相关信息（知识）
- 与任务相关的信息
- 与互动背景相关的信息
- 模型输出控制（行动方法）
- 单次请求控制
- Prompt表达优化
- 以CoT为代表的思维链控制方法
- 输出格式控制（文本格式语法、工程结构化数据输出…）
- 多次请求控制
- 以ReAct（Action-Observation-Reflection）为代表的多轮自我反思优化
- 复杂任务的执行过程编排管理
- 单次请求控制
单次请求的局限性
- 上下文窗口长度限制、输出长度限制（早期的LangChain长文本Summarize）
- 直接进行CoT控制（尤其是用自然语言表达CoT）会输出思考过程，但我们不希望用户看到这个过程
- 随着工作进展出现的新信息，对任务时序、编排有依赖的信息，不一定能在单次请求中一次性完成输入
工作流的优势
- 将工作任务拆分成多个工作节点
- 能够将模型单次请求调用视作一个工作节点
- 能够灵活将其他代码逻辑也写入工作节点
- 能够对工作节点进行任务编排
- 能够在工作节点之间进行数据传递
[试一试]
直接请求模型的效果：
from ENV import deep_seek_url, deep_seek_api_key, deep_seek_default_model
import Agently
agent = (Agently.create_agent().set_settings("current_model", "OAIClient").set_settings("model.OAIClient.url", deep_seek_url).set_settings("model.OAIClient.auth", { "api_key": deep_seek_api_key }).set_settings("model.OAIClient.options", { "model": deep_seek_default_model })
)result = agent.input(input("[请输入您的要求]: ")).start()
print("[回复]: ", result)使用工作流：
workflow = Agently.Workflow()@workflow.chunk()
def user_input(inputs, storage):storage.set("user_input", input("[请输入您的要求]: "))return@workflow.chunk()
def judge_intent_and_quick_reply(inputs, storage):result = (agent.input(storage.get("user_input")).output({"user_intent": ("闲聊 | 售后问题 | 其他", "判断用户提交的{input}内容属于给定选项中的哪一种"),"quick_reply": ("str",
"""如果{user_intent}=='闲聊'，那么直接给出你的回应；
如果{user_intent}=='售后问题'，那么请用合适的方式告诉用户你已经明白用户的诉求，安抚客户情绪并请稍等你去看看应该如何处理；
如果{user_intent}=='其他'，此项输出null""")}).start())storage.set("reply", result["quick_reply"])return result["user_intent"]@workflow.chunk()
def generate_after_sales_reply(inputs, storage):storage.set("reply", (agent.input(storage.get("user_input")).instruct(
"""请根据{input}的要求，以一个专业客户服务人员的角色给出回复，遵循如下模板进行回复：
亲爱的客户，感谢您的耐心等待。
我理解您希望{{复述客户的要求}}，是因为{{复述客户要求提出要求的理由}}，您的心情一定非常{{阐述你对客户心情/感受的理解}}。
{{给出对客户当前心情的抚慰性话语}}。
我们会尽快和相关人员沟通，并尽量进行满足。请留下您的联系方式以方便我们尽快处理后与您联系。
"""
).start()))return@workflow.chunk()
def generate_other_topic_reply(inputs, storage):storage.set("reply", "我们好像不应该聊这个，还是回到您的问题或诉求上来吧。")return@workflow.chunk_class()
def reply(inputs, storage):print("[回复]: ", storage.get("reply"))return(workflow.connect_to("user_input").connect_to("judge_intent_and_quick_reply").if_condition(lambda return_value, storage: return_value=="闲聊").connect_to("@reply").connect_to("end").elif_condition(lambda return_value, storage: return_value=="售后问题").connect_to("@reply").connect_to("generate_after_sales_reply").connect_to("@reply").connect_to("user_input").else_condition().connect_to("generate_other_topic_reply").connect_to("@reply").connect_to("END")
)workflow.start()
pass
二、让我们从吴恩达博士的开源翻译工作流项目说起
-
项目地址：https://github.com/andrewyng/translation-agent
-
项目基本思路：
- 让模型在完成首轮翻译之后，通过自我反思后修正的工作流优化翻译结果，以提升最终文本翻译的质量
-
关键步骤：
-
第一步：
- 输入信息：原始文本语言(source_lang) 、翻译目标语言(target_lang) 和 原始文本(source_text)
- 角色设定：以翻译文本为任务目标的语言学家
- 输出结果：基于所有输入信息，对 原始文本(source_text) 进行 第一轮翻译的结果(translation_1)；
-
第二步：
- 输入信息：原始文本语言(source_lang) 、翻译目标语言(target_lang) 、 原始文本(source_text) 和 第一轮翻译结果(translation_1)
- 角色设定：以阅读原始文本和翻译文本，并给出翻译改进意见为任务目标的语言学家
- 输出结果：基于所有输入信息，对 第一轮翻译结果(translation_1) 提出的 改进意见反思(reflection)
-
第三步：
- 输入信息：原始文本语言(source_lang) 、翻译目标语言(target_lang) 、 原始文本(source_text) 、 第一轮翻译结果(translation_1) 和 改进意见反思(reflection)
- 角色设定：以翻译文本为任务目标的语言学家（和第一步相同）
- 输出结果：基于所有输入信息，给出的第二轮优化后翻译结果(translation_2)
-
-
关键代码文件：https://github.com/andrewyng/translation-agent/blob/main/src/translation_agent/utils.py
-
关键代码片段：
def one_chunk_initial_translation(source_lang: str, target_lang: str, source_text: str ) -> str:"""Translate the entire text as one chunk using an LLM.Args:source_lang (str): The source language of the text.target_lang (str): The target language for translation.source_text (str): The text to be translated.Returns:str: The translated text."""system_message = f"You are an expert linguist, specializing in translation from {source_lang} to {target_lang}."translation_prompt = f"""This is an {source_lang} to {target_lang} translation, please provide the {target_lang} translation for this text. \ Do not provide any explanations or text apart from the translation. {source_lang}: {source_text}{target_lang}:"""prompt = translation_prompt.format(source_text=source_text)translation = get_completion(prompt, system_message=system_message)return translationdef one_chunk_reflect_on_translation(source_lang: str,target_lang: str,source_text: str,translation_1: str,country: str = "", ) -> str:"""Use an LLM to reflect on the translation, treating the entire text as one chunk.Args:source_lang (str): The source language of the text.target_lang (str): The target language of the translation.source_text (str): The original text in the source language.translation_1 (str): The initial translation of the source text.country (str): Country specified for target language.Returns:str: The LLM's reflection on the translation, providing constructive criticism and suggestions for improvement."""system_message = f"You are an expert linguist specializing in translation from {source_lang} to {target_lang}. \ You will be provided with a source text and its translation and your goal is to improve the translation."if country != "":reflection_prompt = f"""Your task is to carefully read a source text and a translation from {source_lang} to {target_lang}, and then give constructive criticism and helpful suggestions to improve the translation. \ The final style and tone of the translation should match the style of {target_lang} colloquially spoken in {country}.The source text and initial translation, delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT> and <TRANSLATION></TRANSLATION>, are as follows:<SOURCE_TEXT> {source_text} </SOURCE_TEXT><TRANSLATION> {translation_1} </TRANSLATION>When writing suggestions, pay attention to whether there are ways to improve the translation's \n\ (i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),\n\ (ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules, and ensuring there are no unnecessary repetitions),\n\ (iii) style (by ensuring the translations reflect the style of the source text and takes into account any cultural context),\n\ (iv) terminology (by ensuring terminology use is consistent and reflects the source text domain; and by only ensuring you use equivalent idioms {target_lang}).\n\Write a list of specific, helpful and constructive suggestions for improving the translation. Each suggestion should address one specific part of the translation. Output only the suggestions and nothing else."""else:reflection_prompt = f"""Your task is to carefully read a source text and a translation from {source_lang} to {target_lang}, and then give constructive criticism and helpful suggestions to improve the translation. \The source text and initial translation, delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT> and <TRANSLATION></TRANSLATION>, are as follows:<SOURCE_TEXT> {source_text} </SOURCE_TEXT><TRANSLATION> {translation_1} </TRANSLATION>When writing suggestions, pay attention to whether there are ways to improve the translation's \n\ (i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),\n\ (ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules, and ensuring there are no unnecessary repetitions),\n\ (iii) style (by ensuring the translations reflect the style of the source text and takes into account any cultural context),\n\ (iv) terminology (by ensuring terminology use is consistent and reflects the source text domain; and by only ensuring you use equivalent idioms {target_lang}).\n\Write a list of specific, helpful and constructive suggestions for improving the translation. Each suggestion should address one specific part of the translation. Output only the suggestions and nothing else."""prompt = reflection_prompt.format(source_lang=source_lang,target_lang=target_lang,source_text=source_text,translation_1=translation_1,)reflection = get_completion(prompt, system_message=system_message)return reflectiondef one_chunk_improve_translation(source_lang: str,target_lang: str,source_text: str,translation_1: str,reflection: str, ) -> str:"""Use the reflection to improve the translation, treating the entire text as one chunk.Args:source_lang (str): The source language of the text.target_lang (str): The target language for the translation.source_text (str): The original text in the source language.translation_1 (str): The initial translation of the source text.reflection (str): Expert suggestions and constructive criticism for improving the translation.Returns:str: The improved translation based on the expert suggestions."""system_message = f"You are an expert linguist, specializing in translation editing from {source_lang} to {target_lang}."prompt = f"""Your task is to carefully read, then edit, a translation from {source_lang} to {target_lang}, taking into account a list of expert suggestions and constructive criticisms.The source text, the initial translation, and the expert linguist suggestions are delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT>, <TRANSLATION></TRANSLATION> and <EXPERT_SUGGESTIONS></EXPERT_SUGGESTIONS> \ as follows:<SOURCE_TEXT> {source_text} </SOURCE_TEXT><TRANSLATION> {translation_1} </TRANSLATION><EXPERT_SUGGESTIONS> {reflection} </EXPERT_SUGGESTIONS>Please take into account the expert suggestions when editing the translation. Edit the translation by ensuring:(i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text), (ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules and ensuring there are no unnecessary repetitions), \ (iii) style (by ensuring the translations reflect the style of the source text) (iv) terminology (inappropriate for context, inconsistent use), or (v) other errors.Output only the new translation and nothing else."""translation_2 = get_completion(prompt, system_message)return translation_2def one_chunk_translate_text(source_lang: str, target_lang: str, source_text: str, country: str = "" ) -> str:"""Translate a single chunk of text from the source language to the target language.This function performs a two-step translation process:1. Get an initial translation of the source text.2. Reflect on the initial translation and generate an improved translation.Args:source_lang (str): The source language of the text.target_lang (str): The target language for the translation.source_text (str): The text to be translated.country (str): Country specified for target language.Returns:str: The improved translation of the source text."""translation_1 = one_chunk_initial_translation(source_lang, target_lang, source_text)reflection = one_chunk_reflect_on_translation(source_lang, target_lang, source_text, translation_1, country)translation_2 = one_chunk_improve_translation(source_lang, target_lang, source_text, translation_1, reflection)return translation_2三、使用LangGraph和Agently Workflow分别复现这个工作流
3.1 LangGraph
LangGraph手册：LangGraph
import json
import openai
from ENV import deep_seek_url, deep_seek_api_key, deep_seek_default_model
from langgraph.graph import StateGraph, START, END
import os# 模型请求准备
client = openai.OpenAI(api_key = deep_seek_api_key,base_url =deep_seek_url
)
default_model = deep_seek_default_modeldef get_completion(prompt: str,system_message: str = "You are a helpful assistant.",model: str = default_model,temperature: float = 0.3,json_mode: bool = False,
):response = client.chat.completions.create(model=model,temperature=temperature,top_p=1,messages=[{"role": "system", "content": system_message},{"role": "user", "content": prompt},],)return response.choices[0].message.content# 定义传递的信息结构
from typing import TypedDict, Optional
class State(TypedDict):source_lang: strtarget_lang: strsource_text: strcountry: Optional[str] = Nonetranslation_1: Optional[str] = Nonereflection: Optional[str] = Nonetranslation_2: Optional[str] = None# 创建一个工作流对象
workflow = StateGraph(State)# 定义三个工作块
"""
获取state中的信息：state.get("key_name")
更新state中的信息：return { "key_name": new_value }
"""
def initial_translation(state):source_lang = state.get("source_lang")target_lang = state.get("target_lang")source_text = state.get("source_text")system_message = f"You are an expert linguist, specializing in translation from {source_lang} to {target_lang}."prompt = f"""This is an {source_lang} to {target_lang} translation, please provide the {target_lang} translation for this text. \
Do not provide any explanations or text apart from the translation.
{source_lang}: {source_text}{target_lang}:"""translation = get_completion(prompt, system_message=system_message)print("[初次翻译结果]: \n", translation)return { "translation_1": translation }def reflect_on_translation(state):source_lang = state.get("source_lang")target_lang = state.get("target_lang")source_text = state.get("source_text")country = state.get("country") or ""translation_1 = state.get("translation_1")system_message = f"You are an expert linguist specializing in translation from {source_lang} to {target_lang}. \
You will be provided with a source text and its translation and your goal is to improve the translation."additional_rule = (f"The final style and tone of the translation should match the style of {target_lang} colloquially spoken in {country}."if country != ""else "")prompt = f"""Your task is to carefully read a source text and a translation from {source_lang} to {target_lang}, and then give constructive criticism and helpful suggestions to improve the translation. \
{additional_rule}The source text and initial translation, delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT> and <TRANSLATION></TRANSLATION>, are as follows:<SOURCE_TEXT>
{source_text}
</SOURCE_TEXT><TRANSLATION>
{translation_1}
</TRANSLATION>When writing suggestions, pay attention to whether there are ways to improve the translation's \n\
(i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),\n\
(ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules, and ensuring there are no unnecessary repetitions),\n\
(iii) style (by ensuring the translations reflect the style of the source text and takes into account any cultural context),\n\
(iv) terminology (by ensuring terminology use is consistent and reflects the source text domain; and by only ensuring you use equivalent idioms {target_lang}).\n\Write a list of specific, helpful and constructive suggestions for improving the translation.
Each suggestion should address one specific part of the translation.
Output only the suggestions and nothing else."""reflection = get_completion(prompt, system_message=system_message)print("[初次翻译结果]: \n", reflection)return { "reflection": reflection }def improve_translation(state):source_lang = state.get("source_lang")target_lang = state.get("target_lang")source_text = state.get("source_text")translation_1 = state.get("translation_1")reflection = state.get("reflection")system_message = f"You are an expert linguist, specializing in translation editing from {source_lang} to {target_lang}."prompt = f"""Your task is to carefully read, then edit, a translation from {source_lang} to {target_lang}, taking into
account a list of expert suggestions and constructive criticisms.The source text, the initial translation, and the expert linguist suggestions are delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT>, <TRANSLATION></TRANSLATION> and <EXPERT_SUGGESTIONS></EXPERT_SUGGESTIONS> \
as follows:<SOURCE_TEXT>
{source_text}
</SOURCE_TEXT><TRANSLATION>
{translation_1}
</TRANSLATION><EXPERT_SUGGESTIONS>
{reflection}
</EXPERT_SUGGESTIONS>Please take into account the expert suggestions when editing the translation. Edit the translation by ensuring:(i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),
(ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules and ensuring there are no unnecessary repetitions), \
(iii) style (by ensuring the translations reflect the style of the source text)
(iv) terminology (inappropriate for context, inconsistent use), or
(v) other errors.Output only the new translation and nothing else."""translation_2 = get_completion(prompt, system_message)print("[初次翻译结果]: \n", translation_2)return { "translation_2": translation_2 }# 规划执行任务
## 节点（node）注册
workflow.add_node("initial_translation", initial_translation)
workflow.add_node("reflect_on_translation", reflect_on_translation)
workflow.add_node("improve_translation", improve_translation)
## 连接节点
workflow.set_entry_point("initial_translation")
#workflow.add_edge(START, )
workflow.add_edge("initial_translation", "reflect_on_translation")
workflow.add_edge("reflect_on_translation", "improve_translation")
workflow.add_edge("improve_translation", END)# 开始执行
app = workflow.compile()
result = app.invoke({"source_lang": "English","target_lang": "中文","source_text": """Translation Agent: Agentic translation using reflection workflow
This is a Python demonstration of a reflection agentic workflow for machine translation. The main steps are:Prompt an LLM to translate a text from source_language to target_language;
Have the LLM reflect on the translation to come up with constructive suggestions for improving it;
Use the suggestions to improve the translation.
Customizability
By using an LLM as the heart of the translation engine, this system is highly steerable. For example, by changing the prompts, it is easier using this workflow than a traditional machine translation (MT) system to:Modify the output's style, such as formal/informal.
Specify how to handle idioms and special terms like names, technical terms, and acronyms. For example, including a glossary in the prompt lets you make sure particular terms (such as open source, H100 or GPU) are translated consistently.
Specify specific regional use of the language, or specific dialects, to serve a target audience. For example, Spanish spoken in Latin America is different from Spanish spoken in Spain; French spoken in Canada is different from how it is spoken in France.
This is not mature software, and is the result of Andrew playing around with translations on weekends the past few months, plus collaborators (Joaquin Dominguez, Nedelina Teneva, John Santerre) helping refactor the code.According to our evaluations using BLEU score on traditional translation datasets, this workflow is sometimes competitive with, but also sometimes worse than, leading commercial offerings. However, we’ve also occasionally gotten fantastic results (superior to commercial offerings) with this approach. We think this is just a starting point for agentic translations, and that this is a promising direction for translation, with significant headroom for further improvement, which is why we’re releasing this demonstration to encourage more discussion, experimentation, research and open-source contributions.If agentic translations can generate better results than traditional architectures (such as an end-to-end transformer that inputs a text and directly outputs a translation) -- which are often faster/cheaper to run than our approach here -- this also provides a mechanism to automatically generate training data (parallel text corpora) that can be used to further train and improve traditional algorithms. (See also this article in The Batch on using LLMs to generate training data.)Comments and suggestions for how to improve this are very welcome!"""
})print(result)# 绘制流程图
from mermaid import Mermaid
Mermaid(app.get_graph().draw_mermaid())3.2 Agently Workflow
- Agently官网：Agently.cn
- Agently Workflow与LangGraph的详细比较：点击查看
- Agently Workflow详细教程：点击查看
import json
from ENV import deep_seek_url, deep_seek_api_key, deep_seek_default_model
import Agently
import os # 将模型请求配置设置到agent工厂，后续工厂创建的agent对象都可以继承这个配置
agent_factory = (Agently.AgentFactory().set_settings("current_model", "OAIClient").set_settings("model.OAIClient.url", deep_seek_url).set_settings("model.OAIClient.auth", { "api_key": deep_seek_api_key }).set_settings("model.OAIClient.options", { "model": deep_seek_default_model })
)# 创建工作流
workflow = Agently.Workflow()# 定义关键处理节点
## 首次翻译
@workflow.chunk()
def initial_translation(inputs, storage):source_lang = storage.get("source_lang")target_lang = storage.get("target_lang")source_text = storage.get("source_text")# 创建一个翻译agent来执行任务translate_agent = agent_factory.create_agent()# 给翻译agent设置system信息translate_agent.set_agent_prompt("role",f"You are an expert linguist, specializing in translation from {source_lang} to {target_lang}.")# 向翻译agent发起翻译任务请求translation_1 = (translate_agent.input(
f"""This is an {source_lang} to {target_lang} translation, please provide the {target_lang} translation for this text. \
Do not provide any explanations or text apart from the translation.
{source_lang}: {source_text}{target_lang}:""").start())# 保存翻译结果storage.set("translation_1", translation_1)# 保存翻译agent备用storage.set("translate_agent", translate_agent)return {"stage": "initial translation","result": translation_1}## 反思优化
@workflow.chunk()
def reflect_on_translation(inputs, storage):source_lang = storage.get("source_lang")target_lang = storage.get("target_lang")source_text = storage.get("source_text")country = storage.get("country", "")translation_1 = storage.get("translation_1")# 创建一个反思agent来执行任务reflection_agent = agent_factory.create_agent()# 给反思agent设置system信息reflection_agent.set_agent_prompt("role",f"You are an expert linguist specializing in translation from {source_lang} to {target_lang}. \
You will be provided with a source text and its translation and your goal is to improve the translation.")additional_rule = ("The final style and tone of the translation should match the style of {target_lang} colloquially spoken in {country}."if country != ""else "")# 向反思agent发起反思任务reflection = (reflection_agent.input(
f"""Your task is to carefully read a source text and a translation from {source_lang} to {target_lang}, and then give constructive criticism and helpful suggestions to improve the translation. \
{additional_rule}The source text and initial translation, delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT> and <TRANSLATION></TRANSLATION>, are as follows:<SOURCE_TEXT>
{source_text}
</SOURCE_TEXT><TRANSLATION>
{translation_1}
</TRANSLATION>When writing suggestions, pay attention to whether there are ways to improve the translation's \n\
(i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),\n\
(ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules, and ensuring there are no unnecessary repetitions),\n\
(iii) style (by ensuring the translations reflect the style of the source text and takes into account any cultural context),\n\
(iv) terminology (by ensuring terminology use is consistent and reflects the source text domain; and by only ensuring you use equivalent idioms {target_lang}).\n\Write a list of specific, helpful and constructive suggestions for improving the translation.
Each suggestion should address one specific part of the translation.
Output only the suggestions and nothing else.""").start())# 保存反思结果storage.set("reflection", reflection)return {"stage": "reflection","result": reflection}## 二次翻译
@workflow.chunk()
def improve_translation(inputs, storage):source_lang = storage.get("source_lang")target_lang = storage.get("target_lang")source_text = storage.get("source_text")translation_1 = storage.get("translation_1")reflection = storage.get("reflection")# 使用保存下来的翻译agenttranslate_agent = storage.get("translate_agent")# 直接发起二次翻译任务translation_2 = (translate_agent.input(
f"""Your task is to carefully read, then edit, a translation from {source_lang} to {target_lang}, taking into
account a list of expert suggestions and constructive criticisms.The source text, the initial translation, and the expert linguist suggestions are delimited by XML tags <SOURCE_TEXT></SOURCE_TEXT>, <TRANSLATION></TRANSLATION> and <EXPERT_SUGGESTIONS></EXPERT_SUGGESTIONS> \
as follows:<SOURCE_TEXT>
{source_text}
</SOURCE_TEXT><TRANSLATION>
{translation_1}
</TRANSLATION><EXPERT_SUGGESTIONS>
{reflection}
</EXPERT_SUGGESTIONS>Please take into account the expert suggestions when editing the translation. Edit the translation by ensuring:(i) accuracy (by correcting errors of addition, mistranslation, omission, or untranslated text),
(ii) fluency (by applying {target_lang} grammar, spelling and punctuation rules and ensuring there are no unnecessary repetitions), \
(iii) style (by ensuring the translations reflect the style of the source text)
(iv) terminology (inappropriate for context, inconsistent use), or
(v) other errors.Output only the new translation and nothing else.""").start())# 保存二次翻译结果storage.set("translation_2", translation_2)return {"stage": "improve translation","result": translation_2}# 连接工作块
(workflow.connect_to("initial_translation").connect_to("reflect_on_translation").connect_to("improve_translation").connect_to("end")

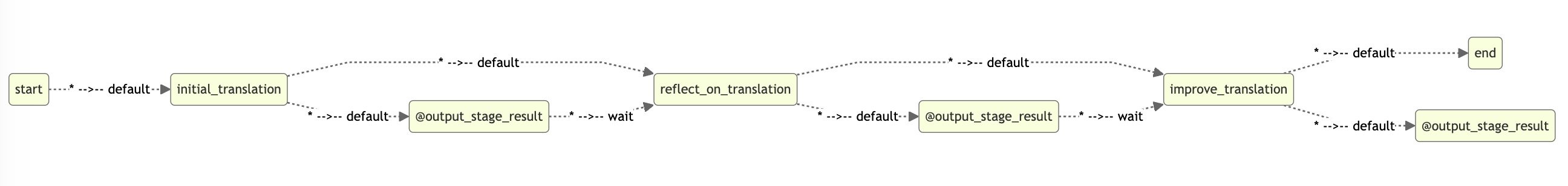

)# 添加过程输出优化
@workflow.chunk_class()
def output_stage_result(inputs, storage):print(f"[{ inputs['default']['stage'] }]:\n", inputs["default"]["result"])return(workflow.chunks["initial_translation"].connect_to("@output_stage_result").connect_to("reflect_on_translation.wait")
)
(workflow.chunks["reflect_on_translation"].connect_to("@output_stage_result").connect_to("improve_translation.wait")
)
(workflow.chunks["improve_translation"].connect_to("@output_stage_result")
)# 启动工作流
result = workflow.start(storage = {"source_lang": "English","target_lang": "中文","source_text": """Translation Agent: Agentic translation using reflection workflow
This is a Python demonstration of a reflection agentic workflow for machine translation. The main steps are:Prompt an LLM to translate a text from source_language to target_language;
Have the LLM reflect on the translation to come up with constructive suggestions for improving it;
Use the suggestions to improve the translation.
Customizability
By using an LLM as the heart of the translation engine, this system is highly steerable. For example, by changing the prompts, it is easier using this workflow than a traditional machine translation (MT) system to:Modify the output's style, such as formal/informal.
Specify how to handle idioms and special terms like names, technical terms, and acronyms. For example, including a glossary in the prompt lets you make sure particular terms (such as open source, H100 or GPU) are translated consistently.
Specify specific regional use of the language, or specific dialects, to serve a target audience. For example, Spanish spoken in Latin America is different from Spanish spoken in Spain; French spoken in Canada is different from how it is spoken in France.
This is not mature software, and is the result of Andrew playing around with translations on weekends the past few months, plus collaborators (Joaquin Dominguez, Nedelina Teneva, John Santerre) helping refactor the code.According to our evaluations using BLEU score on traditional translation datasets, this workflow is sometimes competitive with, but also sometimes worse than, leading commercial offerings. However, we’ve also occasionally gotten fantastic results (superior to commercial offerings) with this approach. We think this is just a starting point for agentic translations, and that this is a promising direction for translation, with significant headroom for further improvement, which is why we’re releasing this demonstration to encourage more discussion, experimentation, research and open-source contributions.If agentic translations can generate better results than traditional architectures (such as an end-to-end transformer that inputs a text and directly outputs a translation) -- which are often faster/cheaper to run than our approach here -- this also provides a mechanism to automatically generate training data (parallel text corpora) that can be used to further train and improve traditional algorithms. (See also this article in The Batch on using LLMs to generate training data.)Comments and suggestions for how to improve this are very welcome!"""
})# 打印执行结果
#print(workflow.storage.get("translation_1"))
#print(workflow.storage.get("reflection"))
#print(workflow.storage.get("translation_2"))
print(json.dumps(result, indent=4, ensure_ascii=False))
四、大模型应用工作流的关键要素解析
4.1 基本要素

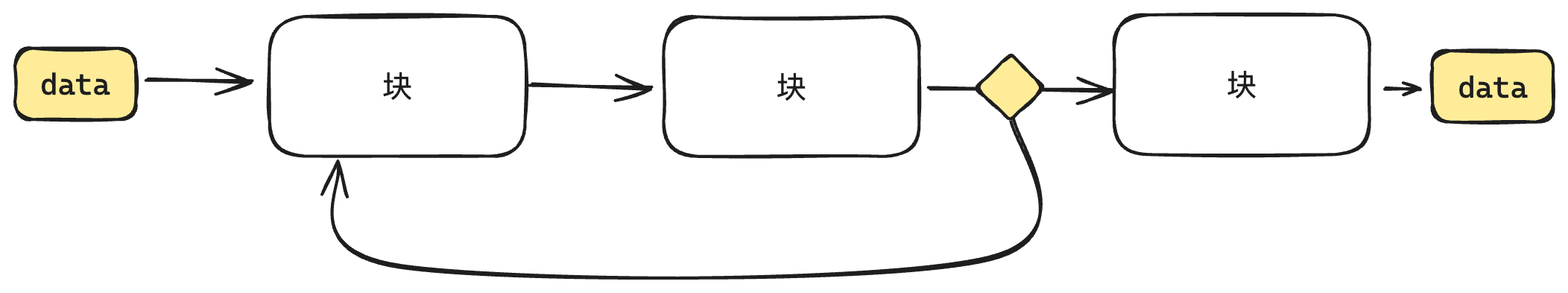

- 工作流基本要素
- 🟩 工作块/工作节点
- 🔀 连接关系
- 普通连接
- 条件连接
- 📡 数据通讯
- 块间数据传递
- 工作流内数据传递
4.2 大模型应用工作流需要具备的特性
-
💫 能够成环
以支持在特定工作环（多步工作）中反复尝试，尝试结果不符合预期可以回到第一步重试
-
🛜 能够按条件分发
以支持意图识别、路径规划、工具选择、多agent路由等场景中，根据推理结果进入不同的下游工作流，同时也能支持符合特定条件后跳出环
-
⏭️ 能够多分支并行执行并在终点被等待
以支持面对复杂任务时，能够发起不同分支从不同处理角度/用不同处理方式对任务进行处理
-
📋 能够对列表型数据进行拆分处理并回收处理结果
例如生成行动清单、提纲等列表性质的结果后，根据列表项进行逐项处理，或执行类似Map-Reduce的逻辑
-
📡 可在工作流中进行复杂通讯：
-
🛰️ 使用全局环境数据通讯
工作流相当于提供了一个复杂的沙盒环境，沙盒环境中的全局环境数据会影响工作流运行状态，并存储工作流运行过程中的过程数据和最终成果
-
📨 工作块间运行上下游通讯
在复杂工作流中，如果所有的数据都使用全局环境数据通讯，尤其是在不同工作块中对同一个键指向的数据进行操作时，会因为对运行时序的判断困难而导致数据管理混乱，这时候，需要通过块间数据传递来确保数据变化与运行时序期望一致，用大白话说，就是确保“块2”能够正确使用它的前一个块“块1”生成的数据进行工作。
-

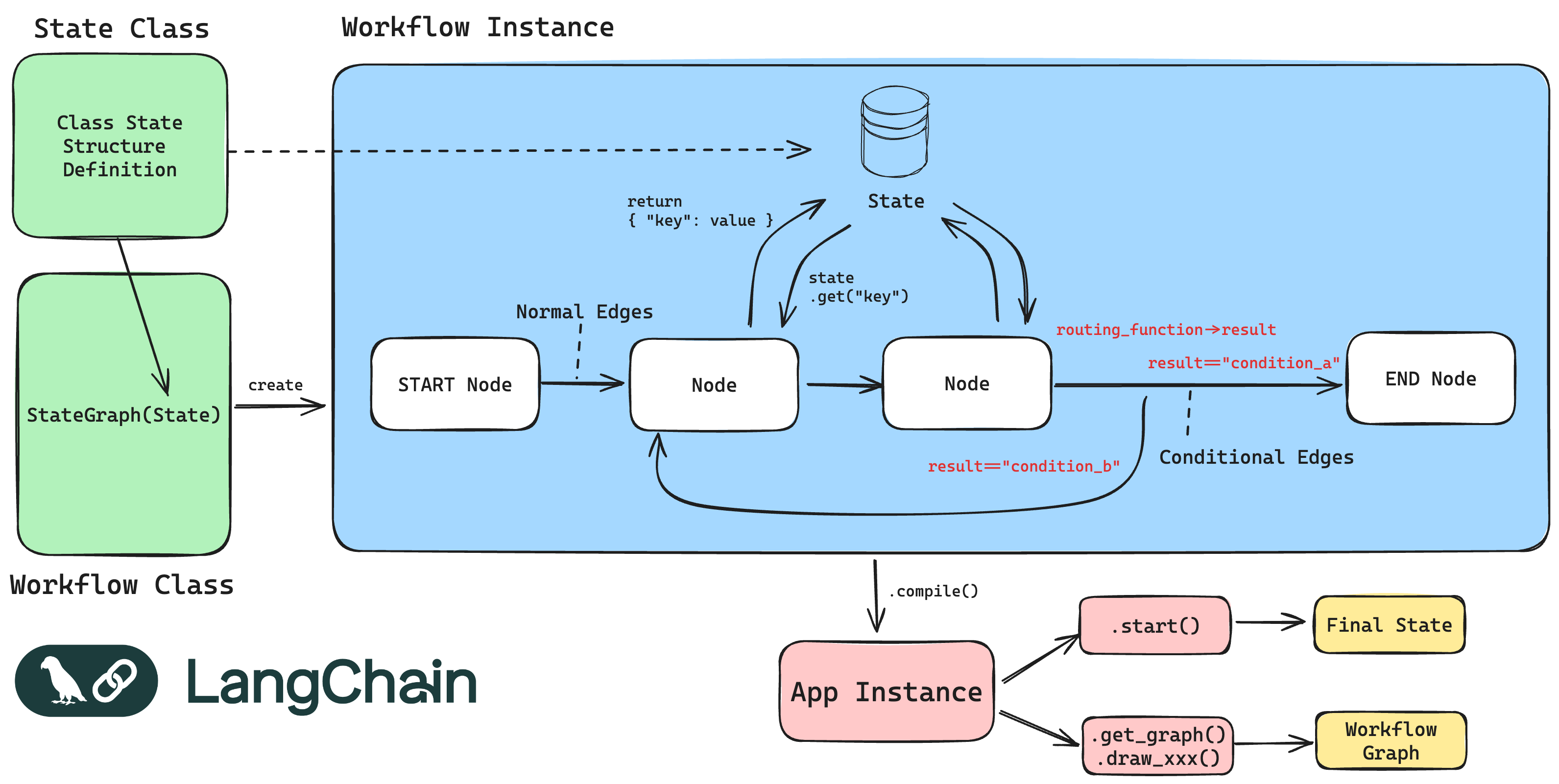

4.3 LangGraph的工作流要素图示

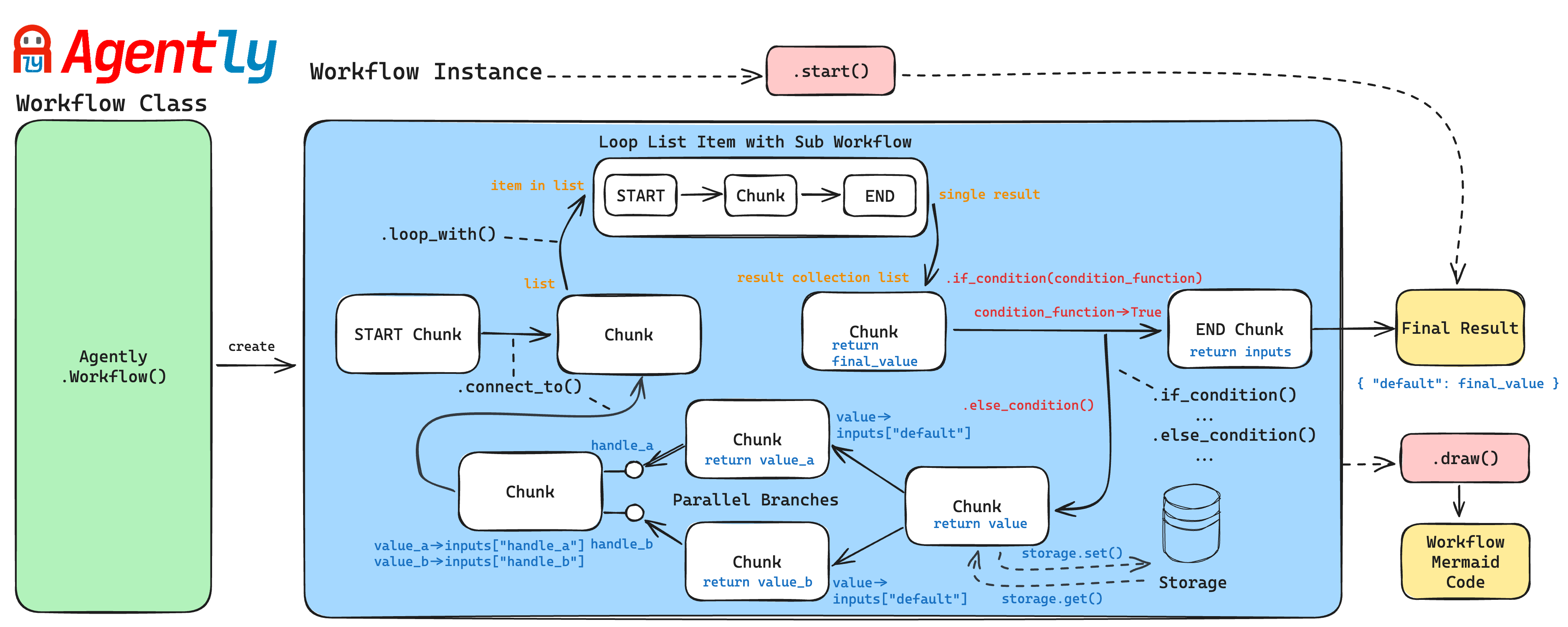

4.4 Agently Workflow的工作流要素图示
五、复杂的工作流：故事创作
5.1 设计思路

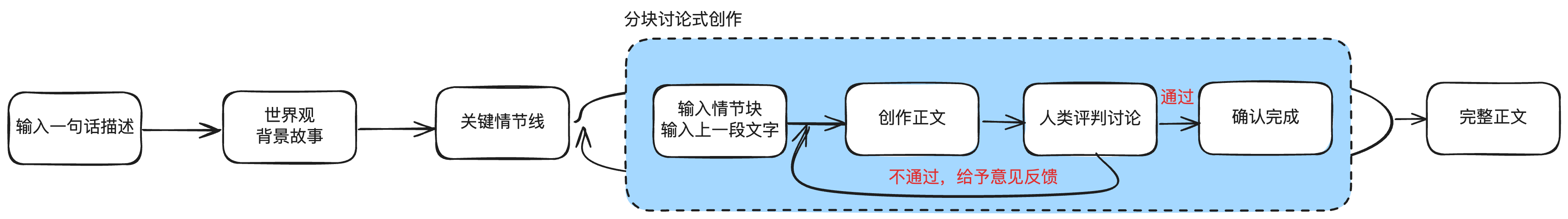

5.2 实现方案

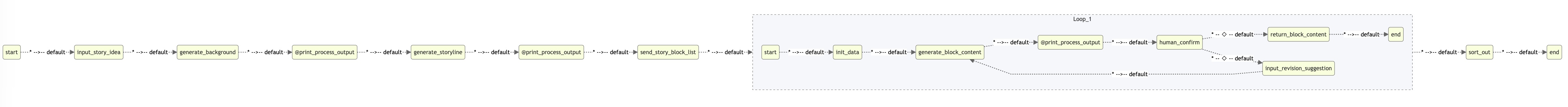

import json
from ENV import deep_seek_url, deep_seek_api_key, deep_seek_default_model
import Agently
import os # 创建一个作家agentwriter = (Agently.create_agent().set_settings("current_model", "OAIClient").set_settings("model.OAIClient.url", os.environ["DEEPSEEK_BASE_URL"]).set_settings("model.OAIClient.auth", { "api_key": os.environ["DEEPSEEK_API_KEY"] }).set_settings("model.OAIClient.options", { "model": os.environ["DEEP_SEEK_DEFAULT_MODEL"] })
)# 创建两个工作流：主工作流和分块创作工作流
main_workflow = Agently.Workflow()
block_workflow = Agently.Workflow()# 定义主工作流的工作块
## 输入一句话描述
@main_workflow.chunk()
def input_story_idea(inputs, storage):storage.set("story_idea", input("[💡请输入您的故事灵感]: "))return## 创建世界观背景故事
@main_workflow.chunk()
def generate_background(inputs, storage):story_idea = storage.get("story_idea")background = (writer.input({"故事灵感": story_idea}).instruct(
"""请根据{故事灵感}创作故事的世界信息和背景故事，其中：
世界信息需要包括世界的主要国家或地区分布，不同国家或地区的环境描写，科技水平，信仰情况等
世界背景故事需要以时间线的形式描述世界的主要历史沿革，国家或地区之间的重大事件及带来的影响变化等""").output({"世界名称": ("str", ),"主要国家或地区": [{"名称": ("str", ),"关键信息": ("str", ),}],"世界背景故事": [("str", )],}).start())storage.set("background", background)return {"title": "世界观背景故事","result": background,}## 创建关键情节线
@main_workflow.chunk()
def generate_storyline(inputs, storage):story_idea = storage.get("story_idea")background = storage.get("background")storyline = (writer.input({"故事灵感": story_idea,"世界观背景故事": background,}).instruct(
"""请根据{世界观背景故事}，围绕{故事灵感}，创作故事的关键情节线安排""").output({"情节结构类型": ("str", "基于常见的故事、小说、剧作创作方法，输出你将要使用的剧情结构类型名称"),"情节结构特点": ("str", "阐述{剧情结构类型}的剧情结构手法、特点"),"故事线详细创作": [{"本段故事作用": ("str", "描述本段故事在整体结构中发挥的作用"),"关键情节": ([("str", )], "按时序描述本段故事中的关键情节，以及情节中的关键细节"),"涉及关键人物": ([("str", )], "给出本段故事中涉及的关键人物名"),}],}).start())storage.set("storyline", storyline)return {"title": "关键情节线","result": storyline,}## 分发故事段落设计
@main_workflow.chunk()
def send_story_block_list(inputs, storage):storyline = storage.get("storyline")storyline_details = storyline["故事线详细创作"]extra_instruction = input("[您是否还有其他创作指导说明？如创作风格、注意事项等]")story_block_list = []for item in storyline_details:item.update({ "补充创作指导": extra_instruction })story_block_list.append(item)return story_block_list## 过程产出输出
@main_workflow.chunk_class()
def print_process_output(inputs, storage):print(f"[{ inputs['default']['title'] }]:")if isinstance(inputs["default"]["result"], dict):print(json.dumps(inputs["default"]["result"], indent=4, ensure_ascii=False))else:print(inputs["default"]["result"])return## 最终结果整理
@main_workflow.chunk()
def sort_out(inputs, storage):result = []for item in inputs["default"]:result.append(item["default"])return "\n\n".join(result)# 定义分块创作工作流的工作块
## 获取初始数据
@block_workflow.chunk()
def init_data(inputs, storage):storage.set("story_block", inputs["default"])# 从公共存储中取出上一段创作结果storage.set("last_block_content", block_workflow.public_storage.get("last_block_content"))return## 进行正文创作
@block_workflow.chunk()
def generate_block_content(inputs, storage):# 要考虑的条件较多，可以在请求外部构造input和instruct的prompt数据## 围绕故事线详细创作信息的prompt## {"本段故事作用": ,"关键情节": , "涉及关键人物": , "补充创作指导": }input_dict = storage.get("story_block")instruction_list = ["参考{本段故事作用}及{涉及关键人物}，将{关键情节}扩写为完整的故事","每段故事需要尽量包括行动描写、心理活动描写和对白等细节","每次创作只是完整文章结构中的一部分，承担{本段故事作用}说明的作用任务，只需要按要求完成{关键情节}的描述即可，不需要考虑本段故事自身结构的完整性",]## 如果有前一段内容，通过传入前一段内容末尾确保创作的连贯性last_block_content = storage.get("last_block_content", None)if last_block_content:## 在这里取上一段落的最后50个字，可根据需要修改保留的长度keep_length = 50input_dict.update({ "上一段落的末尾": last_block_content[(-1 * keep_length):] })instruction_list.append("创作时需要承接{上一段落的末尾}，确保表达的连贯性")## 如果有人类评判反馈的修改意见，添加promptlast_generation = storage.get("block_content", None)revision_suggestion = storage.get("revision_suggestion", None)if last_generation and revision_suggestion:input_dict.update({"已有创作结果": last_generation,"修改意见": revision_suggestion,})instruction_list.append("你之前已经创作了{已有创作结果}，但仍然需要修改，请参考{修改意见}进行修订")# 开始创作block_content = (writer.input(input_dict).instruct(instruction_list).start())# 保存创作结果storage.set("block_content", block_content)return {"title": f"本轮创作目标：{ input_dict['本段故事作用'] }","result": block_content,}## 人类判断是否满意
@block_workflow.chunk()
def human_confirm(inputs, storage):confirm = ""while confirm.lower() not in ("y", "n"):confirm = input("[您是否满意本次创作结果？(y/n)]: ")return confirm.lower()## 提交修改意见
@block_workflow.chunk()
def input_revision_suggestion(inputs, storage):storage.set("revision_suggestion", input("[请输入您的修改意见]: "))return## 输出满意的创作成果
@block_workflow.chunk()
def return_block_content(inputs, storage):block_content = storage.get("block_content")# 记得在公共存储中更新本次创作结果block_workflow.public_storage.set("last_block_content", block_content)return block_content## 过程产出输出
@block_workflow.chunk_class()
def print_process_output(inputs, storage):print(f"[{ inputs['default']['title'] }]:")if isinstance(inputs["default"]["result"], dict):print(json.dumps(inputs["default"]["result"], indent=4, ensure_ascii=False))else:print(inputs["default"]["result"])return# 定义分块创作工作流的工作流程
(block_workflow.connect_to("init_data").connect_to("generate_block_content").connect_to("@print_process_output").connect_to("human_confirm").if_condition(lambda return_value, storage: return_value == "y").connect_to("return_block_content").connect_to("end").else_condition().connect_to("input_revision_suggestion").connect_to("generate_block_content")
)(main_workflow.connect_to("input_story_idea").connect_to("generate_background").connect_to("@print_process_output").connect_to("generate_storyline").connect_to("@print_process_output").connect_to("send_story_block_list")# -> list[item1, item2, item3, ...].loop_with(block_workflow) # item1 -> block_workflow:inputs["default"]; item2 -> block_workflow: i#.connect_to("sort_out").connect_to("end")
)# 打印流程图，检查流程正确性
print(main_workflow.draw())
# 开始执行
result = main_workflow.start()
print(result["default"])5.3 进一步思考和讨论
以下讨论点全部为开放性讨论，没有标准的正确答案，仅作为启发思考和开拓思路的作用
- 使用LangGraph是否可以复现上面的工作流？
- 世界背景和故事线是否也可以引入人类讨论协作的机制？该怎么改写？
- 是否可以像翻译项目一样，引入反思机制？如果可以，反思机制应该如何设计？
- 还有没有更好的故事创作工作流设计？
- 你还有哪些好的工作流点子？学完本课之后，还有哪些创作难点？
6. 其他信息
- Mermaid在线渲染网站：mermaid.live
- 手绘风格流程图在线编辑：excalidraw.com
