表关联映射工具
坐席业绩场景通常存在数据分散在不同的系统情况，字段可以关联的场景可以直接使用字段关联，字段无法关联的场景需要进行值关联，典型的情况：坐席ID不变，这个月张三在打电话，下个月张三离职了，是李四在打电话，但坐席ID没有变，人换了，这个时候就需要使用值关联来实现业绩的统计。
下面是字段关联和值关联的实现的例子，提供了优化易操作的界面，在进行字段关联和值关联的同时还可以自动生成SQL，供统计查询使用。
假设B是坐席辅助系统的表，A是从其它系统导出的数据表，通常以CSV格式存在，导入到坐席辅助系统后，表名为A。
下面是基于拖动操作并字段生成SQL的例子代码：
<!DOCTYPE html>
<html lang="zh-CN">
<head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><title>表关联映射工具</title><script src="https://cdn.tailwindcss.com"></script><link href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.7.2/css/all.min.css" rel="stylesheet"><script>tailwind.config = {theme: {extend: {colors: {primary: '#3b82f6',secondary: '#64748b',success: '#10b981',warning: '#f59e0b',danger: '#ef4444',info: '#06b6d4',light: '#f8fafc',dark: '#1e293b'},fontFamily: {inter: ['Inter', 'sans-serif'],},},}}</script><style type="text/tailwindcss">@layer utilities {.content-auto {content-visibility: auto;}.dragging {@apply opacity-50 scale-95 cursor-grabbing;}.drop-zone {@apply border-2 border-dashed border-primary/50 bg-primary/5;}.connection-line {@apply fixed pointer-events-none z-10;}.transition-all-300 {@apply transition-all duration-300 ease-in-out;}.hover-scale {@apply hover:scale-105 transition-all duration-200;}.card-shadow {@apply shadow-lg hover:shadow-xl transition-all duration-300;}.sql-container {@apply relative;}.sql-copy-btn {@apply absolute top-2 right-2 bg-primary/10 text-primary px-2 py-1 rounded text-sm hover:bg-primary/20 transition-all-300;}}</style>
</head>
<body class="bg-gray-50 font-inter text-gray-800 min-h-screen"><!-- 顶部导航栏 --><header class="bg-white shadow-md sticky top-0 z-50"><div class="container mx-auto px-4 py-3 flex justify-between items-center"><div class="flex items-center space-x-2"><i class="fa fa-database text-primary text-2xl"></i><h1 class="text-xl font-bold text-gray-800">表关联映射工具</h1></div><div class="flex items-center space-x-4"><button class="px-4 py-2 bg-primary text-white rounded-lg hover:bg-primary/90 transition-all-300 flex items-center"><i class="fa fa-save mr-2"></i>保存映射</button><button class="px-4 py-2 bg-gray-200 text-gray-700 rounded-lg hover:bg-gray-300 transition-all-300 flex items-center"><i class="fa fa-question-circle mr-2"></i>帮助</button></div></div></header><main class="container mx-auto px-4 py-8"><!-- 映射状态指示器 --><div class="mb-8 bg-white rounded-xl p-4 shadow-md"><div class="flex items-center justify-between"><div class="flex items-center space-x-4"><div class="flex items-center"><div class="w-3 h-3 rounded-full bg-success mr-2"></div><span>字段映射: <span class="font-semibold">3/5</span></span></div><div class="flex items-center"><div class="w-3 h-3 rounded-full bg-warning mr-2"></div><span>值映射: <span class="font-semibold">2/4</span></span></div></div><div class="flex space-x-3"><button class="px-3 py-1.5 bg-primary/10 text-primary rounded-lg hover:bg-primary/20 transition-all-300"><i class="fa fa-refresh mr-1"></i>重置映射</button><button class="px-3 py-1.5 bg-gray-200 text-gray-700 rounded-lg hover:bg-gray-300 transition-all-300"><i class="fa fa-code mr-1"></i>导出配置</button></div></div><div class="w-full bg-gray-200 rounded-full h-2.5 mt-3"><div class="bg-gradient-to-r from-primary to-success h-2.5 rounded-full" style="width: 50%"></div></div></div><div class="grid grid-cols-1 lg:grid-cols-2 gap-8"><!-- 表A区域 --><div class="bg-white rounded-xl overflow-hidden shadow-lg card-shadow"><div class="bg-primary text-white p-4 flex justify-between items-center"><h2 class="text-lg font-bold flex items-center"><i class="fa fa-table mr-2"></i>表 A</h2><div class="flex space-x-2"><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="刷新"><i class="fa fa-refresh"></i></button><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="设置"><i class="fa fa-cog"></i></button></div></div><!-- 表A字段 --><div class="p-4 border-b border-gray-200"><h3 class="font-semibold mb-3 flex items-center"><i class="fa fa-list-ul text-primary mr-2"></i>字段列表</h3><div id="table-a-fields" class="grid grid-cols-1 sm:grid-cols-2 gap-2"><div class="field-item bg-gray-100 p-3 rounded-lg cursor-move hover-scale flex justify-between items-center" draggable="true" data-field="id"><div class="flex items-center"><i class="fa fa-arrows-alt text-gray-400 mr-2"></i><span class="font-medium">ID</span></div><span class="text-xs text-gray-500">int</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-move hover-scale flex justify-between items-center" draggable="true" data-field="name"><div class="flex items-center"><i class="fa fa-arrows-alt text-gray-400 mr-2"></i><span class="font-medium">姓名</span></div><span class="text-xs text-gray-500">varchar</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-move hover-scale flex justify-between items-center" draggable="true" data-field="age"><div class="flex items-center"><i class="fa fa-arrows-alt text-gray-400 mr-2"></i><span class="font-medium">年龄</span></div><span class="text-xs text-gray-500">int</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-move hover-scale flex justify-between items-center" draggable="true" data-field="gender"><div class="flex items-center"><i class="fa fa-arrows-alt text-gray-400 mr-2"></i><span class="font-medium">性别</span></div><span class="text-xs text-gray-500">varchar</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-move hover-scale flex justify-between items-center" draggable="true" data-field="email"><div class="flex items-center"><i class="fa fa-arrows-alt text-gray-400 mr-2"></i><span class="font-medium">邮箱</span></div><span class="text-xs text-gray-500">varchar</span></div></div></div><!-- 表A数据 --><div class="p-4"><h3 class="font-semibold mb-3 flex items-center"><i class="fa fa-database text-primary mr-2"></i>数据示例</h3><div id="table-a-data" class="overflow-x-auto"><table class="min-w-full divide-y divide-gray-200"><thead class="bg-gray-50"><tr><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">ID</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">姓名</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">年龄</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">性别</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">邮箱</th></tr></thead><tbody class="bg-white divide-y divide-gray-200"><tr class="value-row hover:bg-gray-50"><td class="px-3 py-2 whitespace-nowrap text-sm font-medium text-gray-900 value-item" draggable="true" data-value="1" data-field="id">1</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="张三" data-field="name">张三</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="25" data-field="age">25</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="男" data-field="gender">男</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="zhangsan@example.com" data-field="email">zhangsan@example.com</td></tr><tr class="value-row hover:bg-gray-50"><td class="px-3 py-2 whitespace-nowrap text-sm font-medium text-gray-900 value-item" draggable="true" data-value="2" data-field="id">2</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="李四" data-field="name">李四</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="30" data-field="age">30</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="女" data-field="gender">女</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 value-item" draggable="true" data-value="lisi@example.com" data-field="email">lisi@example.com</td></tr></tbody></table></div></div></div><!-- 表B区域 --><div class="bg-white rounded-xl overflow-hidden shadow-lg card-shadow"><div class="bg-info text-white p-4 flex justify-between items-center"><h2 class="text-lg font-bold flex items-center"><i class="fa fa-table mr-2"></i>表 B</h2><div class="flex space-x-2"><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="刷新"><i class="fa fa-refresh"></i></button><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="设置"><i class="fa fa-cog"></i></button></div></div><!-- 表B字段 --><div class="p-4 border-b border-gray-200"><h3 class="font-semibold mb-3 flex items-center"><i class="fa fa-list-ul text-info mr-2"></i>字段列表</h3><div id="table-b-fields" class="grid grid-cols-1 sm:grid-cols-2 gap-2"><div class="field-item bg-gray-100 p-3 rounded-lg cursor-pointer hover-scale flex justify-between items-center drop-zone" data-field="user_id"><div class="flex items-center"><i class="fa fa-link text-gray-400 mr-2"></i><span class="font-medium">USER_ID</span></div><span class="text-xs text-gray-500">int</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-pointer hover-scale flex justify-between items-center drop-zone" data-field="full_name"><div class="flex items-center"><i class="fa fa-link text-gray-400 mr-2"></i><span class="font-medium">FULL_NAME</span></div><span class="text-xs text-gray-500">varchar</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-pointer hover-scale flex justify-between items-center drop-zone" data-field="years_old"><div class="flex items-center"><i class="fa fa-link text-gray-400 mr-2"></i><span class="font-medium">YEARS_OLD</span></div><span class="text-xs text-gray-500">int</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-pointer hover-scale flex justify-between items-center drop-zone" data-field="user_gender"><div class="flex items-center"><i class="fa fa-link text-gray-400 mr-2"></i><span class="font-medium">USER_GENDER</span></div><span class="text-xs text-gray-500">varchar</span></div><div class="field-item bg-gray-100 p-3 rounded-lg cursor-pointer hover-scale flex justify-between items-center drop-zone" data-field="user_email"><div class="flex items-center"><i class="fa fa-link text-gray-400 mr-2"></i><span class="font-medium">USER_EMAIL</span></div><span class="text-xs text-gray-500">varchar</span></div></div></div><!-- 表B数据 --><div class="p-4"><h3 class="font-semibold mb-3 flex items-center"><i class="fa fa-database text-info mr-2"></i>数据示例</h3><div id="table-b-data" class="overflow-x-auto"><table class="min-w-full divide-y divide-gray-200"><thead class="bg-gray-50"><tr><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">USER_ID</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">FULL_NAME</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">YEARS_OLD</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">USER_GENDER</th><th scope="col" class="px-3 py-2 text-left text-xs font-medium text-gray-500 uppercase tracking-wider">USER_EMAIL</th></tr></thead><tbody class="bg-white divide-y divide-gray-200"><tr class="value-row hover:bg-gray-50"><td class="px-3 py-2 whitespace-nowrap text-sm font-medium text-gray-900 drop-zone" data-value="101" data-field="user_id">101</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="Zhang San" data-field="full_name">Zhang San</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="25" data-field="years_old">25</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="Male" data-field="user_gender">Male</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="zhangsan@example.com" data-field="user_email">zhangsan@example.com</td></tr><tr class="value-row hover:bg-gray-50"><td class="px-3 py-2 whitespace-nowrap text-sm font-medium text-gray-900 drop-zone" data-value="102" data-field="user_id">102</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="Li Si" data-field="full_name">Li Si</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="30" data-field="years_old">30</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="Female" data-field="user_gender">Female</td><td class="px-3 py-2 whitespace-nowrap text-sm text-gray-500 drop-zone" data-value="lisi@example.com" data-field="user_email">lisi@example.com</td></tr></tbody></table></div></div></div></div><!-- 映射关系展示 --><div class="mt-8 bg-white rounded-xl overflow-hidden shadow-lg card-shadow"><div class="bg-secondary text-white p-4 flex justify-between items-center"><h2 class="text-lg font-bold flex items-center"><i class="fa fa-sitemap mr-2"></i>映射关系</h2><div class="flex space-x-2"><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="刷新"><i class="fa fa-refresh"></i></button><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="导出"><i class="fa fa-download"></i></button></div></div><div class="p-4"><div class="grid grid-cols-1 md:grid-cols-2 gap-6"><!-- 字段映射 --><div><h3 class="font-semibold mb-3 flex items-center text-primary"><i class="fa fa-link mr-2"></i>字段映射</h3><div id="field-mappings" class="space-y-2"><div class="bg-primary/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">ID</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">USER_ID</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div><div class="bg-primary/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">姓名</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">FULL_NAME</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div><div class="bg-primary/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">年龄</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">YEARS_OLD</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div></div></div><!-- 值映射 --><div><h3 class="font-semibold mb-3 flex items-center text-info"><i class="fa fa-exchange mr-2"></i>值映射</h3><div id="value-mappings" class="space-y-2"><div class="bg-info/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">男</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">Male</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div><div class="bg-info/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">女</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">Female</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div><div class="bg-info/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">张三</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">Zhang San</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div><div class="bg-info/5 p-3 rounded-lg flex justify-between items-center"><div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">李四</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">Li Si</span></div><button class="text-gray-400 hover:text-danger transition-all-300"><i class="fa fa-times"></i></button></div></div></div></div></div></div><!-- SQL 生成区域 --><div class="mt-8 bg-white rounded-xl overflow-hidden shadow-lg card-shadow"><div class="bg-success text-white p-4 flex justify-between items-center"><h2 class="text-lg font-bold flex items-center"><i class="fa fa-code mr-2"></i>生成的 SQL</h2><div class="flex space-x-2"><button id="copy-sql-btn" class="p-1.5 rounded hover:bg-white/20 transition-all-300 flex items-center"><i class="fa fa-copy mr-1"></i>复制</button><button class="p-1.5 rounded hover:bg-white/20 transition-all-300" title="下载"><i class="fa fa-download"></i></button></div></div><div class="p-4"><div class="mb-4 flex items-center text-sm text-gray-600"><i class="fa fa-info-circle text-info mr-2"></i><span>基于当前映射关系生成的 SQL 语句。可根据需要进行调整。</span></div><div class="sql-container"><button class="sql-copy-btn" id="copy-select-sql"><i class="fa fa-copy mr-1"></i>复制 SELECT</button><pre class="bg-gray-800 text-green-400 p-4 rounded-lg overflow-x-auto"><code id="select-sql">SELECTa.id AS user_id,CASE a.姓名WHEN '张三' THEN 'Zhang San'WHEN '李四' THEN 'Li Si'ELSE a.姓名END AS full_name,a.年龄 AS years_old,CASE a.性别WHEN '男' THEN 'Male'WHEN '女' THEN 'Female'ELSE a.性别END AS user_gender,a.邮箱 AS user_email
FROM表A a
LEFT JOIN表B b ON a.id = b.user_id;</code></pre></div><div class="sql-container mt-4"><button class="sql-copy-btn" id="copy-insert-sql"><i class="fa fa-copy mr-1"></i>复制 INSERT</button><pre class="bg-gray-800 text-green-400 p-4 rounded-lg overflow-x-auto"><code id="insert-sql">INSERT INTO 表B (user_id, full_name, years_old, user_gender, user_email)
SELECTa.id,CASE a.姓名WHEN '张三' THEN 'Zhang San'WHEN '李四' THEN 'Li Si'ELSE a.姓名END,a.年龄,CASE a.性别WHEN '男' THEN 'Male'WHEN '女' THEN 'Female'ELSE a.性别END,a.邮箱
FROM表A a
WHERENOT EXISTS (SELECT 1 FROM 表B b WHERE b.user_id = a.id);</code></pre></div><div class="sql-container mt-4"><button class="sql-copy-btn" id="copy-update-sql"><i class="fa fa-copy mr-1"></i>复制 UPDATE</button><pre class="bg-gray-800 text-green-400 p-4 rounded-lg overflow-x-auto"><code id="update-sql">UPDATE 表B b
SETb.full_name = CASE a.姓名WHEN '张三' THEN 'Zhang San'WHEN '李四' THEN 'Li Si'ELSE a.姓名END,b.years_old = a.年龄,b.user_gender = CASE a.性别WHEN '男' THEN 'Male'WHEN '女' THEN 'Female'ELSE a.性别END,b.user_email = a.邮箱
FROM表A a
WHEREb.user_id = a.id;</code></pre></div></div></div></main><footer class="bg-gray-800 text-white py-6 mt-8"><div class="container mx-auto px-4"><div class="flex flex-col md:flex-row justify-between items-center"><div class="mb-4 md:mb-0"><div class="flex items-center space-x-2"><i class="fa fa-database text-primary text-xl"></i><span class="font-bold text-lg">表关联映射工具</span></div><p class="text-gray-400 text-sm mt-1">高效完成数据表字段与值的映射配置</p></div><div class="flex space-x-6"><a href="#" class="text-gray-400 hover:text-white transition-all-300"><i class="fa fa-question-circle"></i> 帮助</a><a href="#" class="text-gray-400 hover:text-white transition-all-300"><i class="fa fa-book"></i> 文档</a><a href="#" class="text-gray-400 hover:text-white transition-all-300"><i class="fa fa-github"></i> GitHub</a></div></div><div class="border-t border-gray-700 mt-4 pt-4 text-center text-gray-400 text-sm">© 2025 表关联映射工具. 保留所有权利.</div></div></footer><script>// 存储映射关系const fieldMappings = new Map();const valueMappings = new Map();const fieldValueMap = new Map(); // 跟踪值映射属于哪个字段// 存储当前拖拽的元素信息let draggedItem = null;let dragType = null; // 'field' 或 'value'// 获取所有可拖拽的字段元素const fieldItems = document.querySelectorAll('.field-item[draggable="true"]');// 获取所有可拖拽的值元素const valueItems = document.querySelectorAll('.value-item[draggable="true"]');// 获取所有放置区域const dropZones = document.querySelectorAll('.drop-zone');// 初始化拖拽事件function initDragAndDrop() {// 设置字段拖拽事件fieldItems.forEach(item => {item.addEventListener('dragstart', handleFieldDragStart);item.addEventListener('dragend', handleDragEnd);});// 设置值拖拽事件valueItems.forEach(item => {item.addEventListener('dragstart', handleValueDragStart);item.addEventListener('dragend', handleDragEnd);});// 设置放置区域事件dropZones.forEach(zone => {zone.addEventListener('dragover', handleDragOver);zone.addEventListener('dragenter', handleDragEnter);zone.addEventListener('dragleave', handleDragLeave);zone.addEventListener('drop', handleDrop);});}// 处理字段拖拽开始function handleFieldDragStart(e) {draggedItem = this;dragType = 'field';this.classList.add('dragging');// 设置拖拽数据const fieldName = this.getAttribute('data-field');e.dataTransfer.setData('text/plain', fieldName);// 创建自定义拖拽图像const crt = this.cloneNode(true);crt.style.position = 'absolute';crt.style.top = '-1000px';document.body.appendChild(crt);e.dataTransfer.setDragImage(crt, 20, 20);// 短暂延迟后移除克隆元素setTimeout(() => {document.body.removeChild(crt);}, 0);}// 处理值拖拽开始function handleValueDragStart(e) {draggedItem = this;dragType = 'value';this.classList.add('dragging');// 设置拖拽数据const value = this.getAttribute('data-value');const field = this.getAttribute('data-field');e.dataTransfer.setData('text/plain', value);e.dataTransfer.setData('field', field);// 创建自定义拖拽图像const crt = this.cloneNode(true);crt.style.position = 'absolute';crt.style.top = '-1000px';document.body.appendChild(crt);e.dataTransfer.setDragImage(crt, 20, 20);// 短暂延迟后移除克隆元素setTimeout(() => {document.body.removeChild(crt);}, 0);}// 处理拖拽结束function handleDragEnd() {this.classList.remove('dragging');// 移除所有高亮document.querySelectorAll('.drop-zone').forEach(zone => {zone.classList.remove('bg-primary/10');});}// 处理拖拽经过function handleDragOver(e) {e.preventDefault(); // 允许放置this.classList.add('bg-primary/10');}// 处理拖拽进入function handleDragEnter(e) {e.preventDefault();this.classList.add('bg-primary/10');}// 处理拖拽离开function handleDragLeave() {this.classList.remove('bg-primary/10');}// 处理放置function handleDrop(e) {e.preventDefault();this.classList.remove('bg-primary/10');if (!draggedItem) return;// 获取拖拽数据const data = e.dataTransfer.getData('text/plain');const sourceField = e.dataTransfer.getData('field');// 获取目标元素信息const targetItem = this;const targetValue = targetItem.getAttribute('data-value');const targetField = targetItem.getAttribute('data-field');// 根据拖拽类型处理映射if (dragType === 'field') {// 处理字段映射const sourceField = draggedItem.getAttribute('data-field');if (sourceField && targetField) {// 添加到映射关系fieldMappings.set(sourceField, targetField);// 更新映射关系显示updateFieldMappingsDisplay();// 添加视觉反馈showConnection(draggedItem, targetItem, 'field');// 添加成功提示showToast(`成功映射字段: ${sourceField} → ${targetField}`);// 更新SQLupdateGeneratedSQL();}} else if (dragType === 'value') {// 处理值映射if (sourceField && targetValue) {// 添加到映射关系valueMappings.set(data, targetValue);fieldValueMap.set(data, sourceField);// 更新映射关系显示updateValueMappingsDisplay();// 添加视觉反馈showConnection(draggedItem, targetItem, 'value');// 添加成功提示showToast(`成功映射值: ${data} → ${targetValue}`);// 更新SQLupdateGeneratedSQL();}}// 重置拖拽状态draggedItem = null;dragType = null;}// 更新字段映射显示function updateFieldMappingsDisplay() {const container = document.getElementById('field-mappings');container.innerHTML = '';fieldMappings.forEach((target, source) => {const sourceItem = document.querySelector(`.field-item[data-field="${source}"]`);const targetItem = document.querySelector(`.field-item[data-field="${target}"]`);if (sourceItem && targetItem) {const sourceText = sourceItem.querySelector('span.font-medium').textContent;const targetText = targetItem.querySelector('span.font-medium').textContent;const mappingEl = document.createElement('div');mappingEl.className = 'bg-primary/5 p-3 rounded-lg flex justify-between items-center hover-scale';mappingEl.innerHTML = `<div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">${sourceText}</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">${targetText}</span></div><button class="text-gray-400 hover:text-danger transition-all-300 delete-mapping" data-type="field" data-source="${source}"><i class="fa fa-times"></i></button>`;container.appendChild(mappingEl);}});// 添加删除映射事件document.querySelectorAll('.delete-mapping[data-type="field"]').forEach(btn => {btn.addEventListener('click', function() {const source = this.getAttribute('data-source');fieldMappings.delete(source);// 同时删除相关的值映射fieldValueMap.forEach((field, value) => {if (field === source) {valueMappings.delete(value);fieldValueMap.delete(value);}});updateFieldMappingsDisplay();updateValueMappingsDisplay();showToast(`已删除字段映射: ${source}`);updateGeneratedSQL();});});}// 更新值映射显示function updateValueMappingsDisplay() {const container = document.getElementById('value-mappings');container.innerHTML = '';valueMappings.forEach((target, source) => {const field = fieldValueMap.get(source);const fieldItem = document.querySelector(`.field-item[data-field="${field}"]`);const fieldName = fieldItem ? fieldItem.querySelector('span.font-medium').textContent : field;const mappingEl = document.createElement('div');mappingEl.className = 'bg-info/5 p-3 rounded-lg flex justify-between items-center hover-scale';mappingEl.innerHTML = `<div class="flex items-center"><span class="bg-primary/10 text-primary px-2 py-1 rounded text-sm font-medium mr-2">${source}</span><i class="fa fa-long-arrow-right text-gray-400 mx-2"></i><span class="bg-info/10 text-info px-2 py-1 rounded text-sm font-medium">${target}</span><span class="ml-2 text-xs text-gray-500">(${fieldName})</span></div><button class="text-gray-400 hover:text-danger transition-all-300 delete-mapping" data-type="value" data-source="${source}"><i class="fa fa-times"></i></button>`;container.appendChild(mappingEl);});// 添加删除映射事件document.querySelectorAll('.delete-mapping[data-type="value"]').forEach(btn => {btn.addEventListener('click', function() {const source = this.getAttribute('data-source');valueMappings.delete(source);fieldValueMap.delete(source);updateValueMappingsDisplay();showToast(`已删除值映射: ${source}`);updateGeneratedSQL();});});}// 显示连接动画function showConnection(sourceEl, targetEl, type) {// 获取元素位置const sourceRect = sourceEl.getBoundingClientRect();const targetRect = targetEl.getBoundingClientRect();// 计算连接线路径const startX = sourceRect.right;const startY = sourceRect.top + sourceRect.height / 2;const endX = targetRect.left;const endY = targetRect.top + targetRect.height / 2;const controlX1 = startX + (endX - startX) / 3;const controlY1 = startY;const controlX2 = startX + 2 * (endX - startX) / 3;const controlY2 = endY;// 创建SVG路径const svgNS = "http://www.w3.org/2000/svg";const svg = document.createElementNS(svgNS, "svg");svg.setAttribute("width", window.innerWidth);svg.setAttribute("height", window.innerHeight);svg.setAttribute("class", "connection-line");const path = document.createElementNS(svgNS, "path");const pathData = `M ${startX} ${startY} C ${controlX1} ${controlY1}, ${controlX2} ${controlY2}, ${endX} ${endY}`;path.setAttribute("d", pathData);path.setAttribute("stroke", type === 'field' ? '#3b82f6' : '#06b6d4');path.setAttribute("stroke-width", "2");path.setAttribute("fill", "none");path.setAttribute("stroke-dasharray", "5,5");path.setAttribute("opacity", "0.7");svg.appendChild(path);document.body.appendChild(svg);// 动画效果let dashoffset = 10;const animatePath = () => {dashoffset--;if (dashoffset < 0) dashoffset = 10;path.setAttribute("stroke-dashoffset", dashoffset);if (dashoffset > 0) {requestAnimationFrame(animatePath);} else {// 动画结束后移除setTimeout(() => {svg.remove();}, 1000);}};animatePath();}// 显示提示消息function showToast(message) {const toast = document.createElement('div');toast.className = 'fixed bottom-4 right-4 bg-dark text-white px-4 py-2 rounded-lg shadow-lg transform translate-y-10 opacity-0 transition-all duration-300 z-50';toast.textContent = message;document.body.appendChild(toast);// 显示动画setTimeout(() => {toast.classList.remove('translate-y-10', 'opacity-0');}, 10);// 3秒后隐藏setTimeout(() => {toast.classList.add('translate-y-10', 'opacity-0');setTimeout(() => {document.body.removeChild(toast);}, 300);}, 3000);}// 更新生成的SQLfunction updateGeneratedSQL() {// 获取SELECT SQL元素const selectSqlEl = document.getElementById('select-sql');// 获取INSERT SQL元素const insertSqlEl = document.getElementById('insert-sql');// 获取UPDATE SQL元素const updateSqlEl = document.getElementById('update-sql');// 生成SELECT SQLlet selectFields = [];fieldMappings.forEach((target, source) => {// 获取字段的中文名称const sourceItem = document.querySelector(`.field-item[data-field="${source}"]`);const sourceText = sourceItem ? sourceItem.querySelector('span.font-medium').textContent : source;// 检查是否有值映射let valueMappingCases = [];let hasValueMapping = false;valueMappings.forEach((targetValue, sourceValue) => {if (fieldValueMap.get(sourceValue) === source) {hasValueMapping = true;valueMappingCases.push(` WHEN '${sourceValue}' THEN '${targetValue}'`);}});if (hasValueMapping) {// 有值映射，生成CASE语句let caseStmt = ` CASE a.${source}\n`;caseStmt += valueMappingCases.join('\n');caseStmt += `\n ELSE a.${source}\n END AS ${target}`;selectFields.push(caseStmt);} else {// 没有值映射，直接映射字段selectFields.push(` a.${source} AS ${target}`);}});// 生成完整的SELECT SQLconst selectSql = `SELECT
${selectFields.join(',\n')}
FROM表A a
LEFT JOIN表B b ON a.${getPrimaryKey()} = b.${fieldMappings.get(getPrimaryKey()) || 'user_id'};`;// 生成INSERT SQLconst insertFields = Array.from(fieldMappings.values()).join(', ');const insertValues = Array.from(fieldMappings.keys()).map(key => {// 检查是否有值映射let valueMappingCases = [];let hasValueMapping = false;valueMappings.forEach((targetValue, sourceValue) => {if (fieldValueMap.get(sourceValue) === key) {hasValueMapping = true;valueMappingCases.push(` WHEN '${sourceValue}' THEN '${targetValue}'`);}});if (hasValueMapping) {// 有值映射，生成CASE语句let caseStmt = `CASE a.${key}\n`;caseStmt += valueMappingCases.join('\n');caseStmt += `\n ELSE a.${key}\n END`;return caseStmt;} else {// 没有值映射，直接使用源字段return `a.${key}`;}}).join(',\n ');const insertSql = `INSERT INTO 表B (${insertFields})
SELECT${insertValues}
FROM表A a
WHERENOT EXISTS (SELECT 1 FROM 表B b WHERE b.${fieldMappings.get(getPrimaryKey()) || 'user_id'} = a.${getPrimaryKey()});`;// 生成UPDATE SQLconst updateSet = Array.from(fieldMappings.entries()).map(([source, target]) => {// 检查是否有值映射let valueMappingCases = [];let hasValueMapping = false;valueMappings.forEach((targetValue, sourceValue) => {if (fieldValueMap.get(sourceValue) === source) {hasValueMapping = true;valueMappingCases.push(` WHEN '${sourceValue}' THEN '${targetValue}'`);}});if (hasValueMapping) {// 有值映射，生成CASE语句let caseStmt = ` b.${target} = CASE a.${source}\n`;caseStmt += valueMappingCases.join('\n');caseStmt += `\n ELSE a.${source}\n END`;return caseStmt;} else {// 没有值映射，直接赋值return ` b.${target} = a.${source}`;}}).join(',\n');const updateSql = `UPDATE 表B b
SET
${updateSet}
FROM表A a
WHEREb.${fieldMappings.get(getPrimaryKey()) || 'user_id'} = a.${getPrimaryKey()};`;// 更新UIselectSqlEl.textContent = selectSql;insertSqlEl.textContent = insertSql;updateSqlEl.textContent = updateSql;// 添加语法高亮类hljs.highlightElement(selectSqlEl);hljs.highlightElement(insertSqlEl);hljs.highlightElement(updateSqlEl);}// 获取主键字段名（简单假设ID为主键）function getPrimaryKey() {return 'id';}// 复制SQL到剪贴板function copySQLToClipboard(elementId, message) {const text = document.getElementById(elementId).textContent;navigator.clipboard.writeText(text).then(() => {showToast(message);}).catch(err => {showToast('复制失败，请手动复制');console.error('复制失败: ', err);});}// 页面加载完成后初始化document.addEventListener('DOMContentLoaded', () => {initDragAndDrop();updateFieldMappingsDisplay();updateValueMappingsDisplay();updateGeneratedSQL();// 添加复制按钮事件document.getElementById('copy-sql-btn').addEventListener('click', () => {copySQLToClipboard('select-sql', '已复制所有SQL');});document.getElementById('copy-select-sql').addEventListener('click', () => {copySQLToClipboard('select-sql', '已复制SELECT SQL');});document.getElementById('copy-insert-sql').addEventListener('click', () => {copySQLToClipboard('insert-sql', '已复制INSERT SQL');});document.getElementById('copy-update-sql').addEventListener('click', () => {copySQLToClipboard('update-sql', '已复制UPDATE SQL');});});</script><!-- 引入代码高亮库 --><link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.7.0/styles/atom-one-dark.min.css"><script src="https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.7.0/highlight.min.js"></script><script src="https://cdnjs.cloudflare.com/ajax/libs/highlight.js/11.7.0/languages/sql.min.js"></script>
</body>
</html>效果如下：

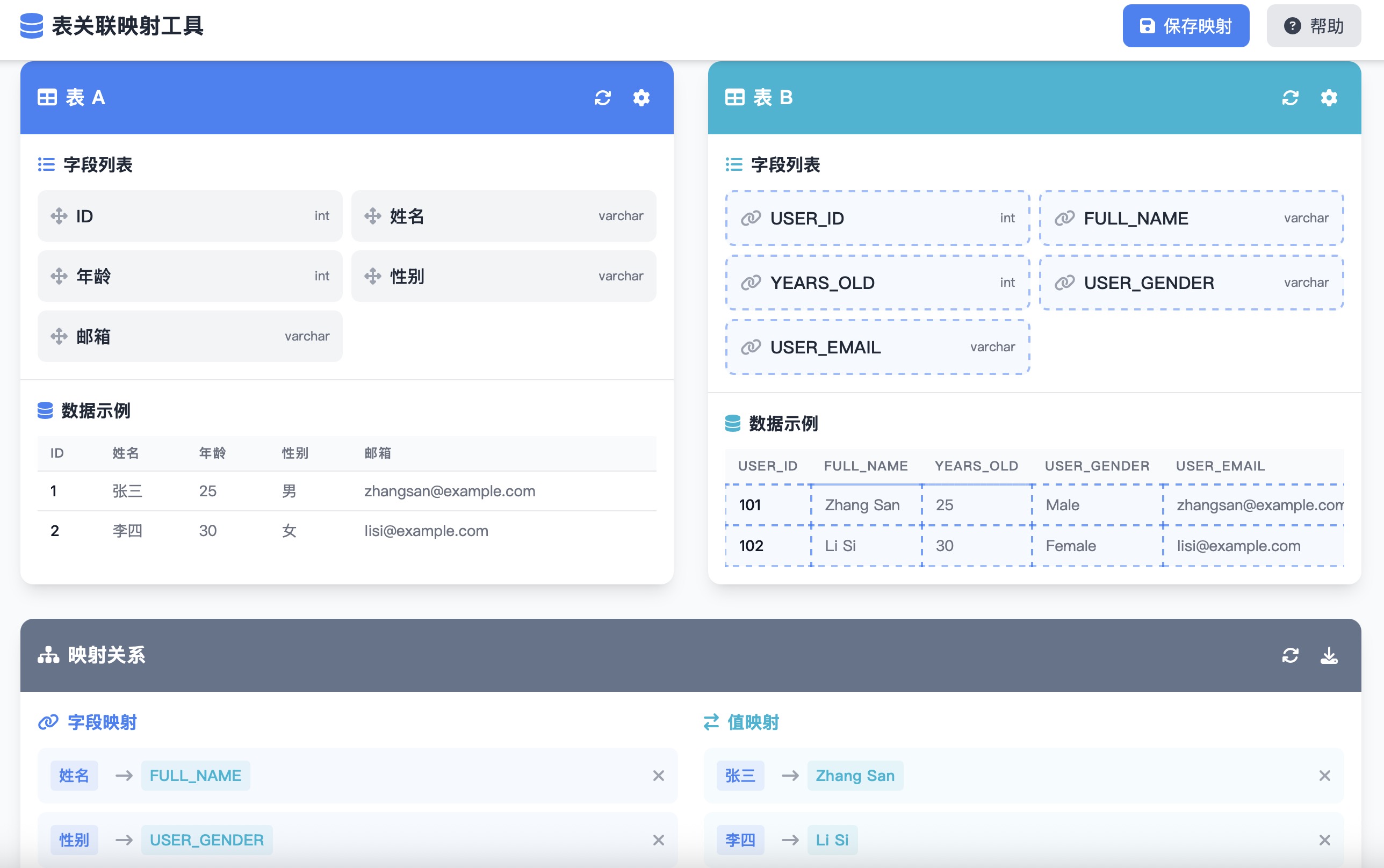

字段与值映射：

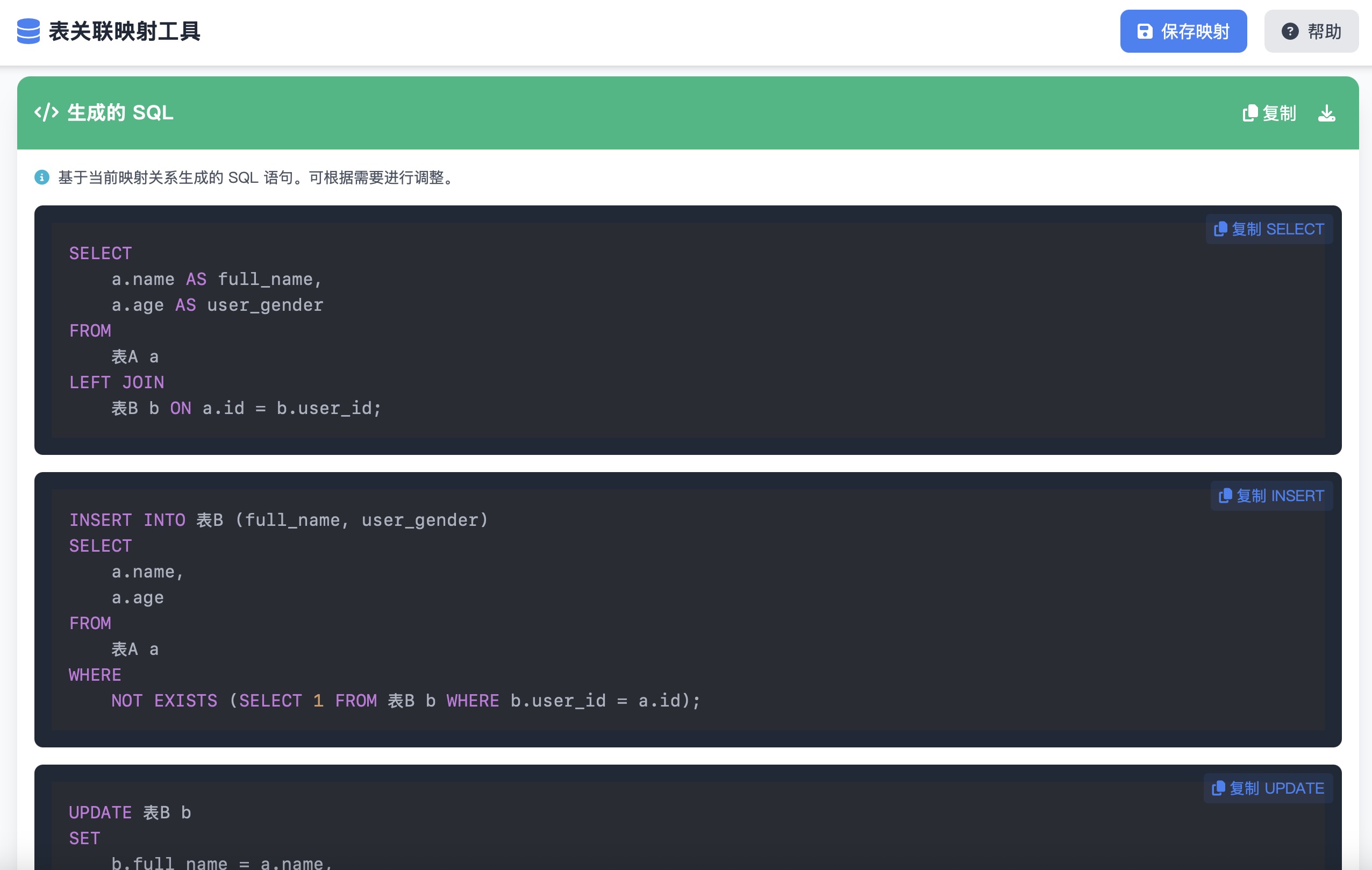

字段映射+SQL：
字段+值映射+SQL：
