反应釜压力监控组件

这是一个用于反应釜压力监控的自定义组件，专为化工厂反应釜压力监控设计。采用苹果工业风格界面，简洁优雅，功能实用，易于使用。

功能特点

实时压力可视化：直观展示反应釜压力数据变化趋势
多反应釜监控：支持同时监控多个反应釜设备
压力预警系统：提供高/低压力阈值监控和报警
设备状态指示：清晰展示各反应釜工作状态
简洁数据面板：展示关键数据指标和统计信息
苹果工业风格：优雅简洁的界面设计，符合现代工业审美

组件区域说明

组件主要包含以下功能区域：

总览视图：顶部显示反应釜系统整体状态和关键指标
压力趋势图：中部展示历史压力数据和实时变化趋势
设备状态列表：右侧显示各反应釜的详细状态和当前压力
告警信息区：底部显示最近的告警信息和处理状态

自定义选项

可以根据实际需求调整以下内容：

压力阈值：在脚本中设置高/低压力预警阈值
监控反应釜数量：通过修改配置调整监控的设备数量
图表显示时长：调整历史数据显示的时间范围
刷新频率：根据需要调整数据更新频率
颜色主题：修改CSS变量来调整整体配色方案

连接实际数据源

组件默认使用模拟数据。如需连接真实数据源：

替换fetchVesselData()函数中的数据模拟逻辑
实现与实际数据API的连接
根据实际数据格式调整数据处理逻辑

项目结构

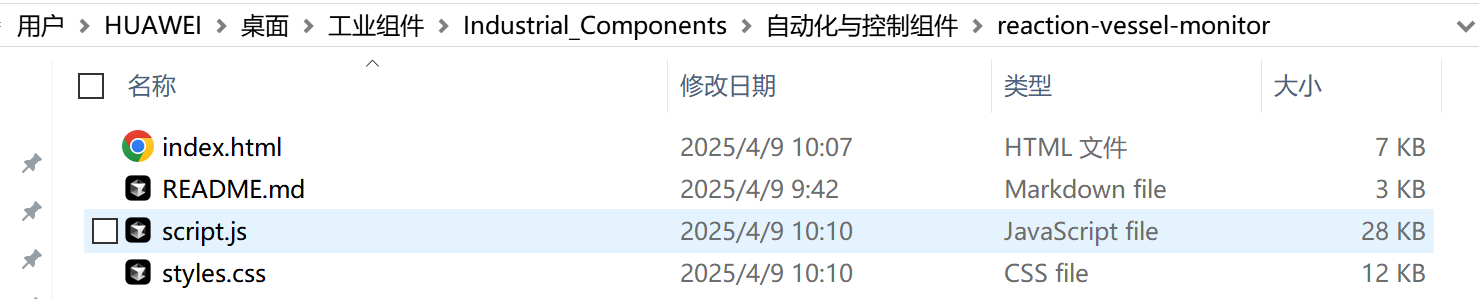

在这里插入图片描述

效果展示

在这里插入图片描述

源码
