端口隔离基本配置

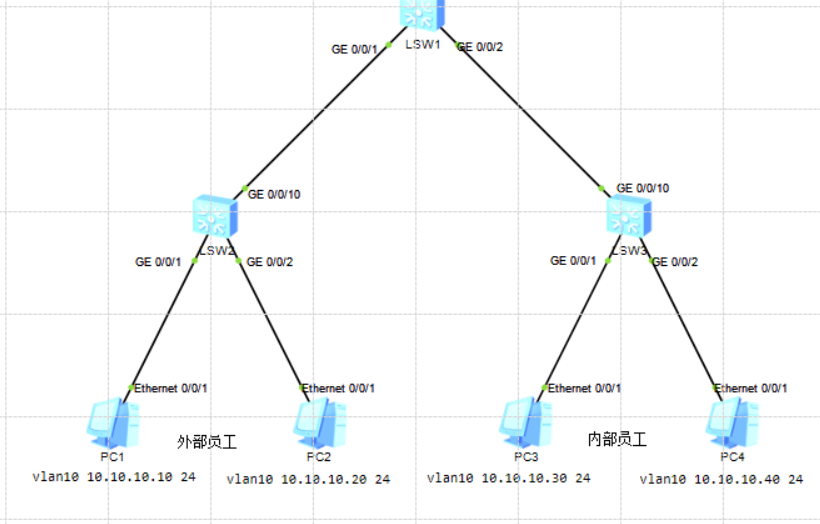

1.top图

2.交换机配置

#
sysname sw1
#
vlan batch 10
#
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/2port link-type trunkport trunk allow-pass vlan 10

sys sw2
#
vlan batch 10
#
interface GigabitEthernet0/0/1  port link-type accessport default vlan 10port-isolate enable group 1
#
interface GigabitEthernet0/0/2  port link-type accessport default vlan 10port-isolate enable group 1
#
interface GigabitEthernet0/0/10  port link-type trunkport trunk allow-pass vlan 10

sys sw3
#
vlan batch 10
#
interface GigabitEthernet0/0/1  # 连接PC3port link-type accessport default vlan 10
#
interface GigabitEthernet0/0/2  # 连接PC4port link-type accessport default vlan 10
#
interface GigabitEthernet0/0/10port link-type trunkport trunk allow-pass vlan 10

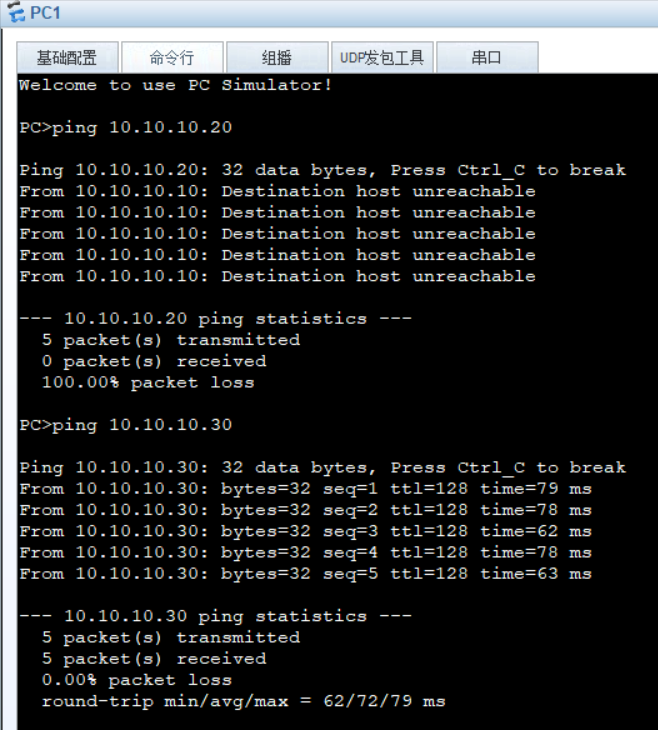

3.ping
