树莓派5 外设GPIO使能 PWM

news 来源：原创 2025/5/14 9:09:56

系统版本：Raspberry OS

6.6.51+rpt-rpi-2712 #1 SMP PREEMPT Debian 1:6.6.51-1+rpt3 (2024-10-08) aarch64 GNU/Linux

目标：使能外设引脚GPIO12 用作PWM功能

步骤：

1. 增加config.txt 配置

Pi:/$ cd /boot/firmware/overlays/
Pi:/boot/firmware/overlays$ ls pwm-2chan.dtbo
pwm-2chan.dtbo

Pi:/boot/firmware$ vi config.txt

add in endline:
dtoverlay=pwm-2chan

then reboot Raspiberry5

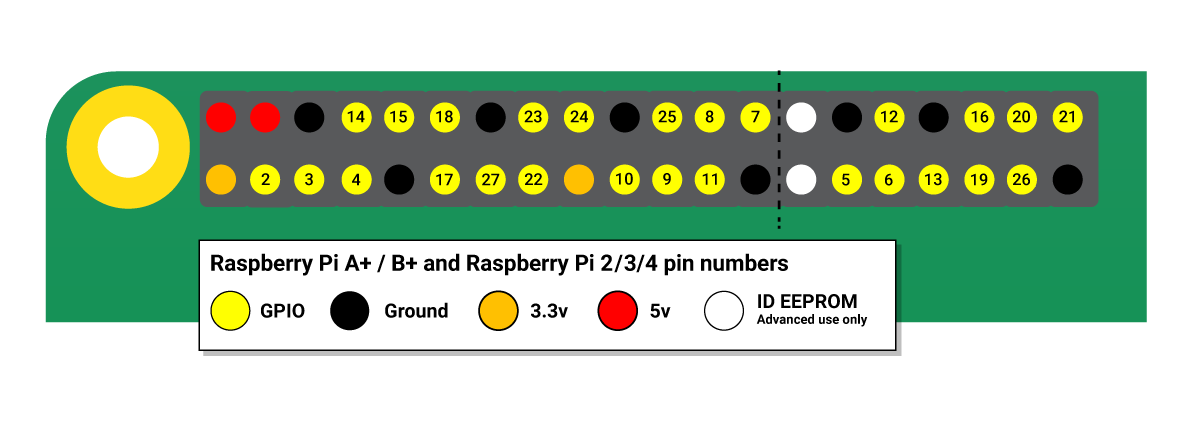

2. 配置GPIO12


Pi:~$ ls /sys/class/pwm/pwmchip
pwmchip0/ pwmchip2/
Pi:~$ ls /sys/class/pwm/pwmchip2/
device/    export     npwm       power/     subsystem/ uevent     unexport
Pi:~$ cd /sys/class/pwm/pwmchip2/
Pi:/sys/class/pwm/pwmchip2$ echo 0 > export
Pi:/sys/class/pwm/pwmchip2$ cd pwm0/
Pi:/sys/class/pwm/pwmchip2/pwm0$ ls
capture  duty_cycle  enable  period  polarity  power  uevent
Pi:/sys/class/pwm/pwmchip2/pwm0$ echo 20000 > period
Pi:/sys/class/pwm/pwmchip2/pwm0$ echo 10000 > duty_cycle

Pi:/sys/class/pwm/pwmchip2/pwm0$ pinctrl get 12
12: no    pd | -- // GPIO12 = none
Pi:/sys/class/pwm/pwmchip2/pwm0$ pinctrl set 12 a0
Pi:/sys/class/pwm/pwmchip2/pwm0$ pinctrl get 12
12: a0    pd | lo // GPIO12 = PWM0_CHAN0
Pi:/sys/class/pwm/pwmchip2/pwm0$
Pi:/sys/class/pwm/pwmchip2/pwm0$ echo 1 > enable

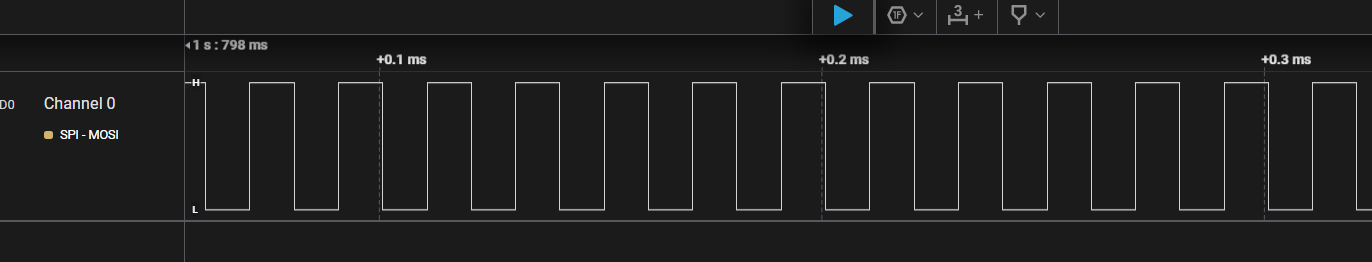

3. 在GPIO12上测量波形
