golang-互斥锁-mutex-源码阅读笔记

news 来源：原创 2025/5/25 4:59:25

互斥锁的机制

Go语言中互斥锁（Mutex）的公平性机制。互斥锁是一种用于保护共享资源，防止多个goroutine同时访问的同步原语。这段注释详细说明了互斥锁的两种操作模式：普通模式和饥饿模式。

普通模式（Normal Mode）

在普通模式下，等待获取锁的goroutine会按照先进先出（FIFO）的顺序排队。当一个等待的goroutine被唤醒时，它并不直接拥有锁，而是与新到达的goroutine竞争锁的所有权。新到达的goroutine由于已经在运行，因此在竞争中有优势。如果一个等待的goroutine在竞争中失败，它会被重新排队到等待队列的前面。如果一个goroutine连续1毫秒以上无法获取锁，互斥锁会切换到饥饿模式。

饥饿模式（Starvation Mode）

在饥饿模式下，锁的所有权直接从解锁的goroutine传递给等待队列前面的goroutine。新到达的goroutine即使发现锁处于未锁定状态，也不会尝试获取锁，而是直接排队到等待队列的末尾。这种模式下，新到达的goroutine不会尝试自旋（即不断尝试获取锁）。

模式切换

如果一个goroutine成功获取到锁，并且发现它是队列中的最后一个等待者，或者它等待的时间少于1毫秒，它会将互斥锁切换回普通模式。

性能考虑

普通模式具有更好的性能，因为一个goroutine可以连续多次获取锁，即使有阻塞的等待者。饥饿模式则用于防止极端情况下的尾部延迟问题，确保等待时间较长的goroutine能够及时获取锁。

介绍

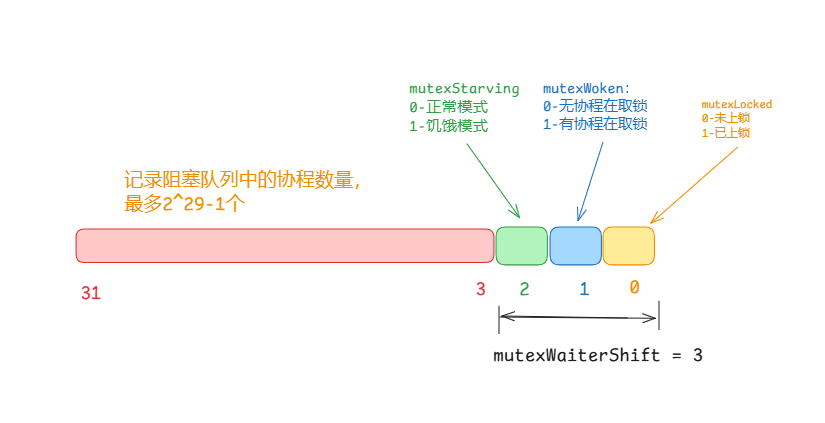

数据结构

// A Mutex is a mutual exclusion lock.
type Mutex struct {
	state int32
	sema  uint32
}

包中的常量

const (
  // mutex = 1
	mutexLocked = 1 << iota // mutex is locked
  // mutexWoken = 2
	mutexWoken
  // mutexStarving = 4
	mutexStarving
  // mutexWaiterShift = 3
	mutexWaiterShift = iota

	// Mutex fairness.
	//
	// Mutex can be in 2 modes of operations: normal and starvation.
	// In normal mode waiters are queued in FIFO order, but a woken up waiter
	// does not own the mutex and competes with new arriving goroutines over
	// the ownership. New arriving goroutines have an advantage -- they are
	// already running on CPU and there can be lots of them, so a woken up
	// waiter has good chances of losing. In such case it is queued at front
	// of the wait queue. If a waiter fails to acquire the mutex for more than 1ms,
	// it switches mutex to the starvation mode.
	//
	// In starvation mode ownership of the mutex is directly handed off from
	// the unlocking goroutine to the waiter at the front of the queue.
	// New arriving goroutines don't try to acquire the mutex even if it appears
	// to be unlocked, and don't try to spin. Instead they queue themselves at
	// the tail of the wait queue.
	//
	// If a waiter receives ownership of the mutex and sees that either
	// (1) it is the last waiter in the queue, or (2) it waited for less than 1 ms,
	// it switches mutex back to normal operation mode.
	//
	// Normal mode has considerably better performance as a goroutine can acquire
	// a mutex several times in a row even if there are blocked waiters.
	// Starvation mode is important to prevent pathological cases of tail latency.

  // 100000
	starvationThresholdNs = 1e6
)

加锁

func (m *Mutex) Lock() {
	// Fast path: grab unlocked mutex.
	if atomic.CompareAndSwapInt32(&m.state, 0, mutexLocked) {
		return
	}
	// Slow path (outlined so that the fast path can be inlined)
	m.lockSlow()
}

fast path

如果state为0，也就是没有被加锁，也不是饥饿模式，没有排队等待的goroutine。直接走fast path，通过原子操作给mutex加上锁

如果失败，则进入slow path

slow path

自旋

满足一下三种情况进入自旋模式

  1. mutex被加锁，也就是mutexLocked标志位为1
  2. mutex不是饥饿模式

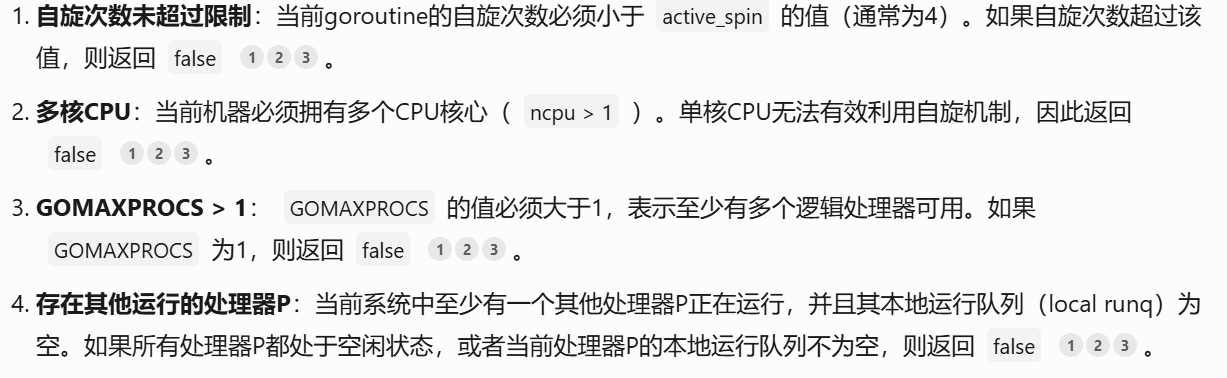

  3. 满足自旋的条件，如下

进入自旋后，如果无协程正在取锁，但是有协程在阻塞等待，则将mutexWoken标志位置为1

var waitStartTime int64
	starving := false
	awoke := false
	iter := 0
	old := m.state
	for {
		// Don't spin in starvation mode, ownership is handed off to waiters
		// so we won't be able to acquire the mutex anyway.
		if old&(mutexLocked|mutexStarving) == mutexLocked && runtime_canSpin(iter) {
      // mutex已被加锁且不是饥饿模式，并且runtime_canSpin()返回true

			// Active spinning makes sense.
			// Try to set mutexWoken flag to inform Unlock
			// to not wake other blocked goroutines.
      // 如果无协程正在取锁，但是有协程在阻塞等待，则将mutexWoken标志位置为1
			if !awoke && old&mutexWoken == 0 && old>>mutexWaiterShift != 0 &&
				atomic.CompareAndSwapInt32(&m.state, old, old|mutexWoken) {
        awoke = true
			}
			runtime_doSpin()
			iter++
			old = m.state
			continue
		}

根据状态位设置新的状态位

不满足自旋情况后，也就是三个条件不满足之后进入这一步

  1. mutex的mutexLocked标志位未被加锁
  2. mutex处于饥饿模式
  3. 不满足自旋条件

会一直进行下面三步

  1. 如果不是饥饿模式，设置加锁标志位，尝试抢锁。饥饿模式的话，需排队抢锁
  2. 如果状态已被加锁或者饥饿模式，增加state中等待的goroutine数量
  3. 如果进入饥饿模式，且已被加锁，则将新值设置为饥饿模式
  4. 如果已经有阻塞的协程被唤醒，需要将mutexWoken标志位置为0；因为接下来要么是加锁成功，要么失败阻塞
for {
		if old&(mutexLocked|mutexStarving) == mutexLocked && runtime_canSpin(iter) {
			// ... 自旋逻辑
		}
		new := old
		// Don't try to acquire starving mutex, new arriving goroutines must queue.
    // 不处于饥饿模式，考虑抢锁
		if old&mutexStarving == 0 {
			new |= mutexLocked
		}
    // 如果被加锁或者饥饿模式，增加state中等待的goroutine数量
		if old&(mutexLocked|mutexStarving) != 0 {
			new += 1 << mutexWaiterShift
		}
		// The current goroutine switches mutex to starvation mode.
		// But if the mutex is currently unlocked, don't do the switch.
		// Unlock expects that starving mutex has waiters, which will not
		// be true in this case.
    // 如果进入饥饿模式，且已被加锁，则将新值设置为饥饿模式
		if starving && old&mutexLocked != 0 {
			new |= mutexStarving
		}
    // 如果已经有阻塞的协程被唤醒，需要将mutexWoken标志位置为0
    // 因为接下来要么是加锁成功，要么失败阻塞
		if awoke {
			// The goroutine has been woken from sleep,
			// so we need to reset the flag in either case.
			// ...
			new &^= mutexWoken
		}

替换新值

抢锁
  1. CAS失败，说明mutex的值已被修改，进入新一轮加锁流程
  2. CAS成功，旧值未加锁且不是饥饿模式，加锁成功，退出循环
  3. 未抢到锁或者饥饿模式，如果是第一次阻塞，设置等待起始时间
  4. 阻塞挂起， 老协程插入队头，新协程插入队尾
唤醒
  1. 判断是否是饥饿模式
  2. 如果是饥饿模式，无需竞争加锁，直接成功。更新状态值
  3. 如果不是饥饿模式，进入新一轮加锁流程
// ... 自旋
// ... 根据状态位设置新值
    if atomic.CompareAndSwapInt32(&m.state, old, new) {
      // 加锁成功且不是饥饿模式，直接退出
			if old&(mutexLocked|mutexStarving) == 0 {
				break // locked the mutex with CAS
			}
			// If we were already waiting before, queue at the front of the queue.
			queueLifo := waitStartTime != 0
      // 新进入抢锁的协程，未阻塞过，设置等待起始时间
			if waitStartTime == 0 {
				waitStartTime = runtime_nanotime()
			}
      // 阻塞， 老协程插入队头，新协程插入队尾
			runtime_SemacquireMutex(&m.sema, queueLifo, 2)
      // 被唤醒，设置饥饿模式，原来是饥饿模式或者等待时间超过阈值1ms
			starving = starving || runtime_nanotime()-waitStartTime > starvationThresholdNs
			old = m.state
      // 饥饿模式被唤醒，无需竞争抢锁
			if old&mutexStarving != 0 {
				// If this goroutine was woken and mutex is in starvation mode,
				// ownership was handed off to us but mutex is in somewhat
				// inconsistent state: mutexLocked is not set and we are still
				// accounted as waiter. Fix that.
				// ... 检测状态是否正常
        // 更新锁的状态，等待的协程个数，是否为饥饿模式
				delta := int32(mutexLocked - 1<<mutexWaiterShift)
				if !starving || old>>mutexWaiterShift == 1 {
					// Exit starvation mode.
					// Critical to do it here and consider wait time.
					// Starvation mode is so inefficient, that two goroutines
					// can go lock-step infinitely once they switch mutex
					// to starvation mode.
					delta -= mutexStarving
				}
				atomic.AddInt32(&m.state, delta)
				break
			}
      // 如果不是饥饿模式，进入新的一轮抢锁流程
			awoke = true
			iter = 0
		} else {
      // CAS失败，重新进入循环
			old = m.state
		}

解锁

快速路径

如果发现只有一个goroutine等待解锁，直接返回即可

如果发现锁中还有阻塞协程，则走入unlockSlow分支

func (m *Mutex) Unlock() {
	// Fast path: drop lock bit.
	new := atomic.AddInt32(&m.state, -mutexLocked)
	if new != 0 {
		// Outlined slow path to allow inlining the fast path.
		// To hide unlockSlow during tracing we skip one extra frame when tracing GoUnblock.
		m.unlockSlow(new)
	}
}

慢分支

未被加锁

倘若发现mutex此前未被加锁，直接抛出fatal

func (m *Mutex) unlockSlow(new int32) {
	if (new+mutexLocked)&mutexLocked == 0 {
		fatal("sync: unlock of unlocked mutex")
	}
	...
}

非饥饿模式

如果不是饥饿模式

且无等待的阻塞协程，或者mutexLocked|mutexWoken|mutexStarving任一标志位不为0，说明已经有其他活跃协程介入，无需关心后续流程

如果不满足，则唤醒一个等待的协程，失败则再次进入循环

if new&mutexStarving == 0 {
    old := new
    for {
        // If there are no waiters or a goroutine has already
        // been woken or grabbed the lock, no need to wake anyone.
        // In starvation mode ownership is directly handed off from unlocking
        // goroutine to the next waiter. We are not part of this chain,
        // since we did not observe mutexStarving when we unlocked the mutex above.
        // So get off the way.
        if old>>mutexWaiterShift == 0 || old&(mutexLocked|mutexWoken|mutexStarving) != 0 {
            return
        }
        // Grab the right to wake someone.
        new = (old - 1<<mutexWaiterShift) | mutexWoken
        if atomic.CompareAndSwapInt32(&m.state, old, new) {
            runtime_Semrelease(&m.sema, false, 2)
            return
        }
        old = m.state
    }
}

饥饿模式

直接唤醒阻塞协程队列头部的协程

if new&mutexStarving == 0 {
	... // 非饥饿模式的操作
	} else {
		// Starving mode: handoff mutex ownership to the next waiter, and yield
		// our time slice so that the next waiter can start to run immediately.
		// Note: mutexLocked is not set, the waiter will set it after wakeup.
		// But mutex is still considered locked if mutexStarving is set,
		// so new coming goroutines won't acquire it.
		runtime_Semrelease(&m.sema, true, 2)
	}
