C++初阶-queue和deque（队列和双端队列）

news 来源：原创 2025/6/17 9:52:36

1.std::queue

在C++官网（链接：

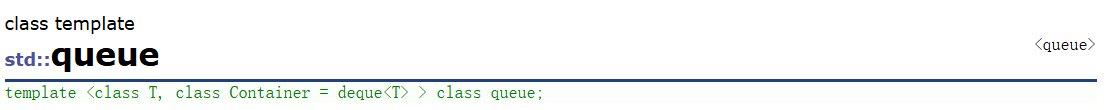

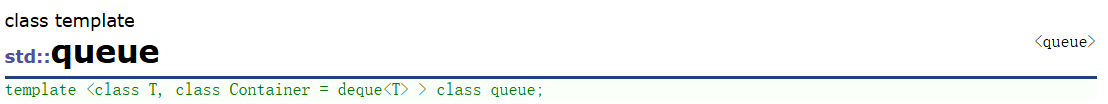

Reference - C++ Referencehttps://legacy.cplusplus.com/reference）中，我们搜索queue有以下结果：

queue就是我们数据结构中的队列，关于队列，我在数据结构初阶中的博客讲解过，见：

数据结构初阶-队列-CSDN博客文章浏览阅读417次，点赞6次，收藏10次。概念：只允许在以一端进行插入数据的操作，只允许在另外一端进行删除数据的操作，其中插入数据的一端称为队尾，删除数据的一端称为队头，删除数据被称为出队列，插入数据称为入队列。所以我们可以称队列具有先入先出的特点，我们可以理解为我们去食堂等地方去排队时，先来的人先出去，而后来的人只能从最后进行往前走。但是我们需要的是结点的结构，所以这个结点包括：所存储的数据data，一个包含下一个结点的next指针。队列相对于之前的知识比较简单，下章将讲队列的应用，喜欢的可以一键三连（代码记得保存，下节课要用）。https://blog.csdn.net/2401_86446710/article/details/145690769?spm=1011.2415.3001.10575&sharefrom=mp_manage_link队列就是先入先出的一个数据结构，只能在队尾入数据，只能在队头出数据，类似于我们生活中的排队一样，如果第一个人办完事情那么就出去，后面的人又往前一位的那样。

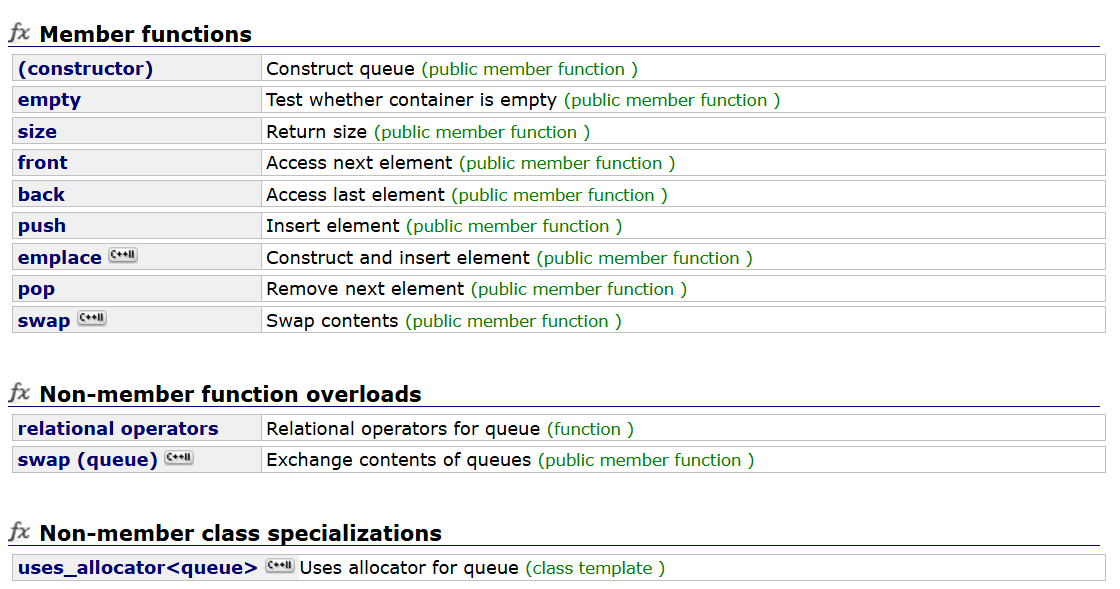

我只讲解一下每个函数的用处，每个函数的用法就不进行讲解了：

empty：队列判空；size：队列元素个数；front：返回队头元素；back：返回队尾元素；push：从队尾入队；emplace：和push功能差不多（具体要自行搜索资料，现阶段用得不多）；pop：从队头出队；swap：交换两个队列；relational operators：各种操作符；swap（queue）：交换两个队列。如果要交换q1和q2两个队列，我们可以：q1.swap(q2)，也可以q2.swap(q1)，还可以swap(q1,q2)。

2.std::deque

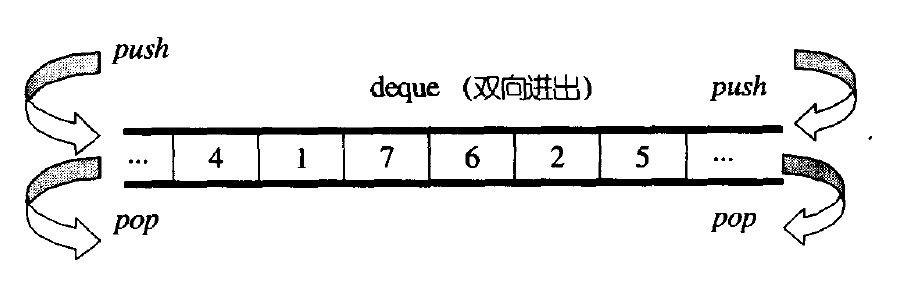

这个容器是C++新增的一个数据结构，可以认为是双端队列（两端开口即头、尾都可进行插入、删除的队列）。设计这个东西的目的是：满足在vector中中间插入、删除时效率很低，在list中不支持下标的随机访问，导致查找时效率很低。所以设计出来了一个新的数据结构deque，结合两个数据结构的优点创造出的一个新的数据结构。我们可以在C++官网中搜索deque有以下结果：

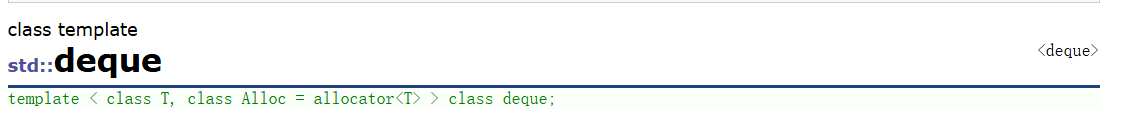

2.1std::deque的概述

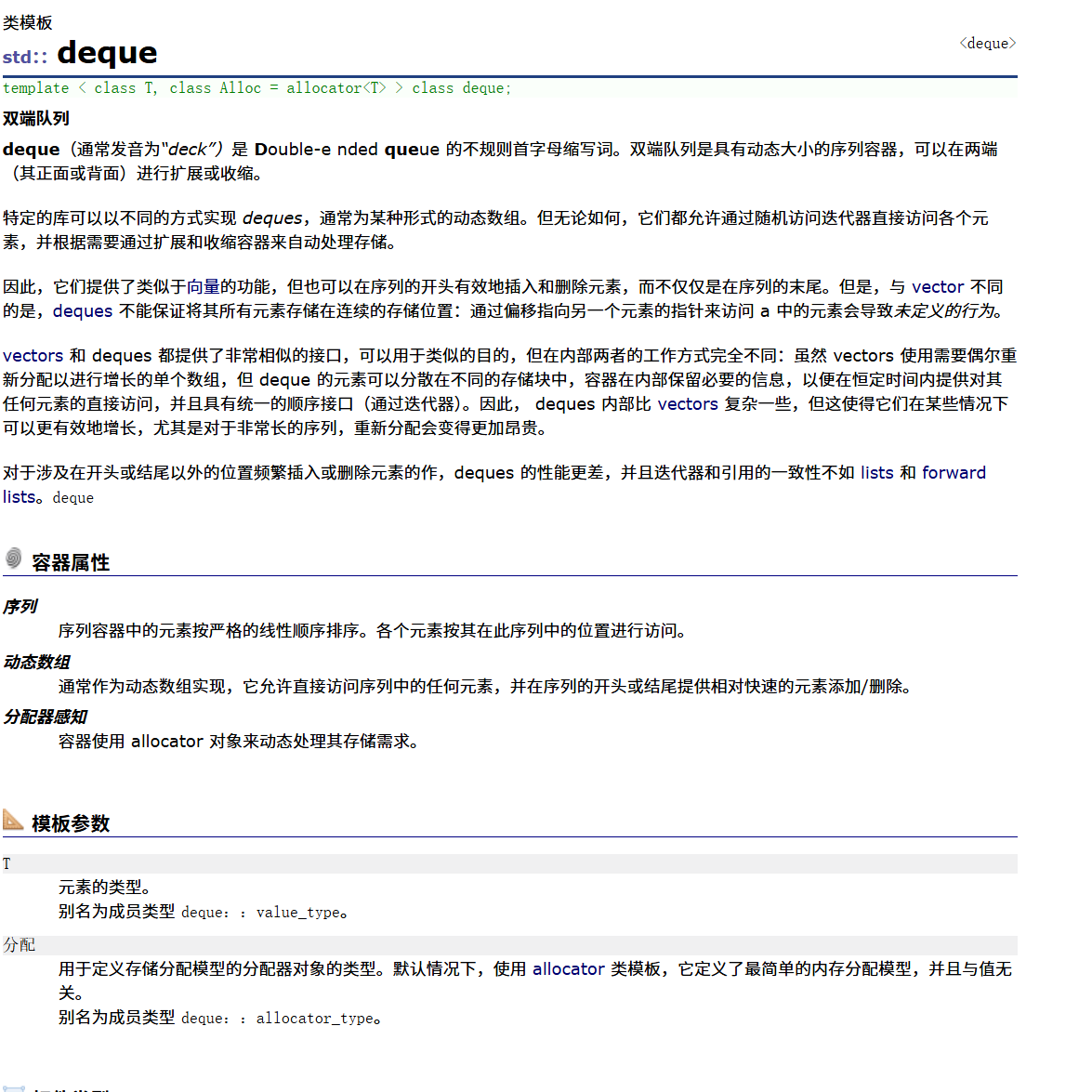

我们把下面的解释用翻译器翻译一下得到了如下结果：

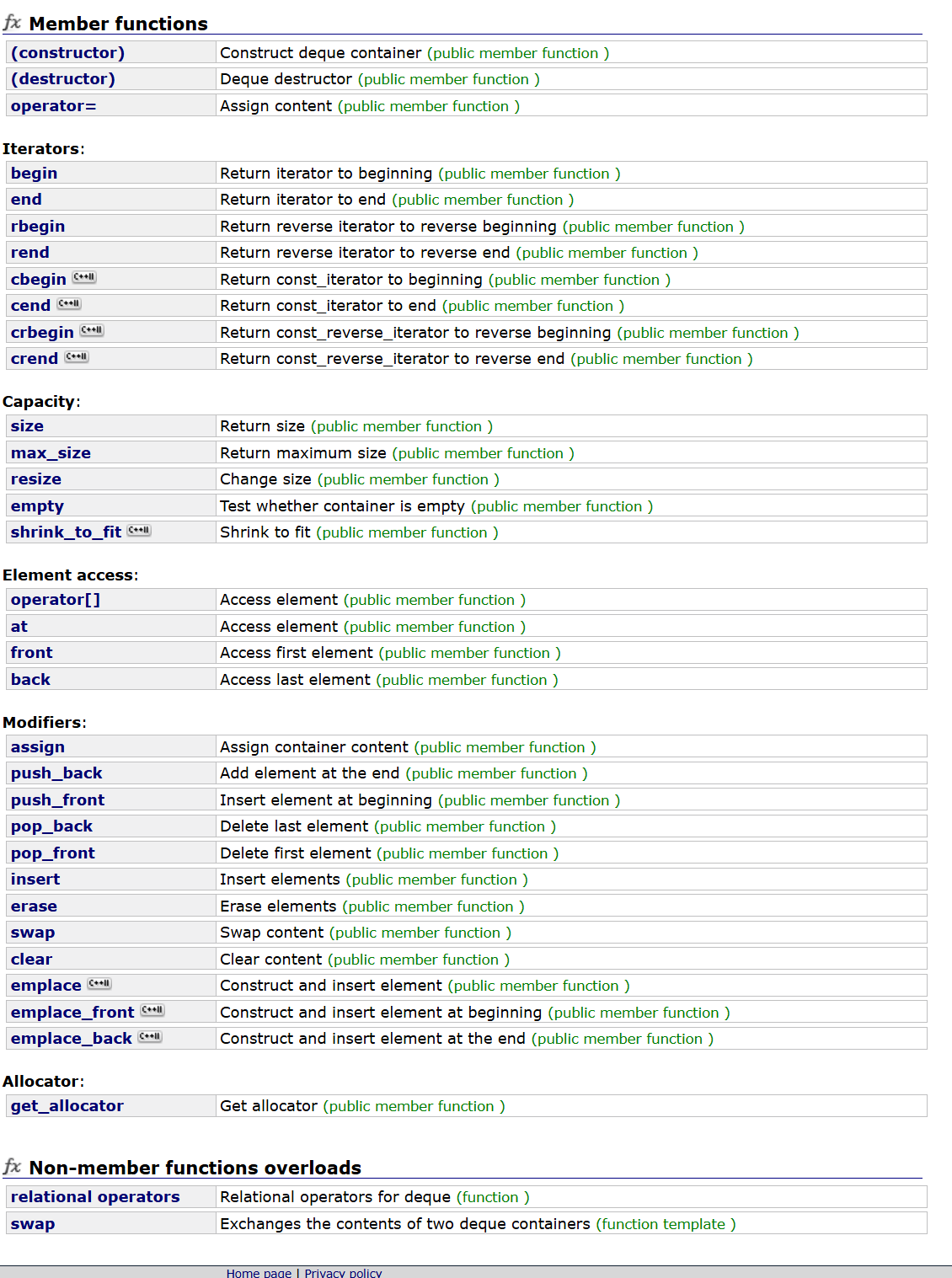

2.2std::deque的成员函数的概述

这些函数可以称之为：vector和list的结合，也就是说deque都可以用，其用法也不多讲了，只要知道有这个容器就可以了。

2.3std::deque的底层

deque（双端队列）：是一种双开口的“连续”空间的数据结构，双开口的含义是：可以在头尾两端进行插入和删除操作，且时间复杂度为O（1），与vector比较，头插效率高，不需要搬移元素，与list比较，空间利用率比较高（list要存储一个数据要存放prev指针、next指针，浪费空间比较多）：

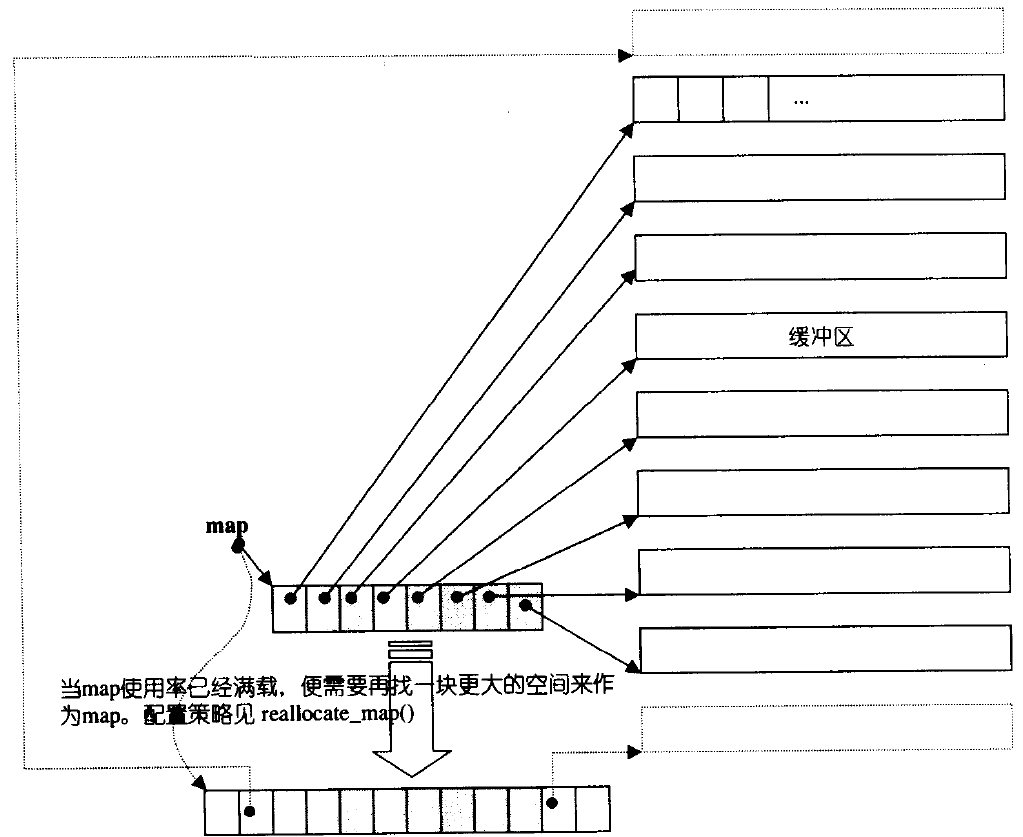

deque并不是真正连续的空间，而是由一段段连续的小空间拼接而成的，实际deque类似于一个

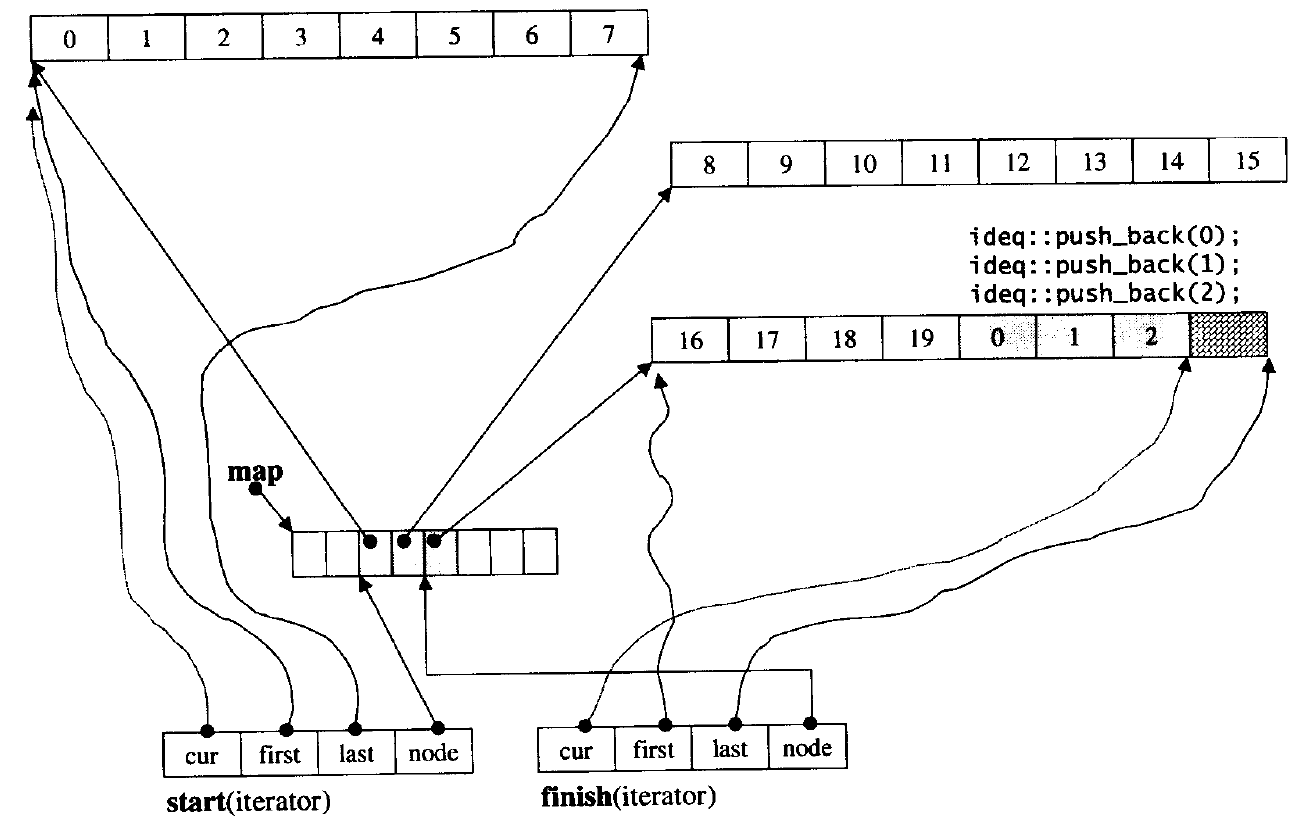

动态的二维数组，其底层结构如下图所示：

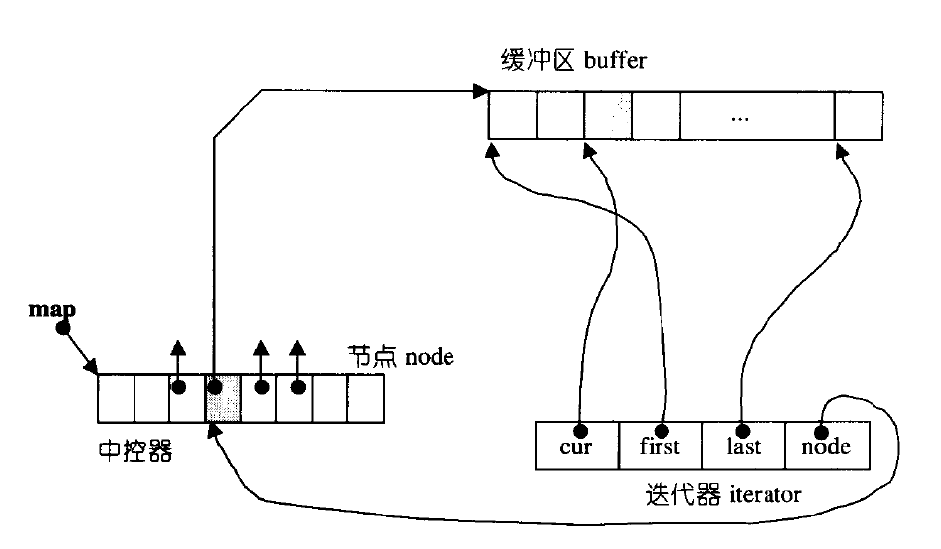

双端队列底层是一段假象的连续空间，实际是分段连续的，为了维护其“整体连续”以及随机访问
的假象，落在了deque的迭代器身上，因此deque的迭代器设计就比较复杂，如下图所示：

那deque是如何借助其迭代器维护其假想连续的结构呢？

通过以上图片，我进行解释：如果在进行头插的时候，不是把原有元素往后移动一位，而是先看一下首元素前是否还有空间，如果有空间就直接插入，否则申请一块大小为buff（一个一维数组）的空间，然后从最后一个元素开始进行插入，其中还有中控台来存储这个buff的第一个元素和最后一个元素的地址，也就相当于：我们把链表中的一个结点扩展为一个一维数组了，而这个一维数组可以存放很多元素，而且每个元素的地址是连续的，也就是满足了下标的直接访问；如果用下标访问的方式来找数据，是从第一个buff数组开始看每个数组所存元素个数，然后依次减少，直到找到该下标为止的数据，比如：一个buff有10个数据，第一个buff只存了3个数据，我想访问第64个元素，我们先判断64是否小于3，如果不小于，那么就直接减；再依次比较每个buff的大小，重复操作之后找到即可，其实到第二个buff就可以直接取模操作得到那个buff数组的地址，再进行解引用即可。

如果我们想要在中间插入/删除数据，那么麻烦程度也是比较高的，首先我们需要判断：这个中间位置离开头近一些还是离结尾近一些，如果离开头近，那么把前面的所有数据进行往前/后移动，如果空间不够还需要扩容（只有插入时要判断），对于下标为1-9的（假设buff大小为10）（对于删除下标为0-9），直接赋值即可，但是对于下标为0/10的，则需要先找到前一个buff的最后一个元素的地址，然后进行赋值操作，如果数据量非常大，那么效率比vector还低一些，如果离结尾近，那么也差不多。

为什么中间插入/删除时不能直接在这个buff的前面和后面再申请一个buff数组大小的空间？

因为插入和删除操作本来就是很少见的，一般都是初始化的时候确定好空间大小了，所以如果就插入几次，那么再扩容一段有些大的空间（实际情况一个buff数组可能有1000个数据），那么就会很浪费空间，所以为了减少扩容，就只能用时间换空间了。

deque设计得非常复杂，所以我们要理解它是很麻烦的。

2.4std::deque的源码

这个源码是非常长的，如果不想看的话，可以直接跳转到2.5对于std::deque的源码的简单讲解。

std::deque的源码：

/*** Copyright (c) 1994* Hewlett-Packard Company** Permission to use, copy, modify, distribute and sell this software* and its documentation for any purpose is hereby granted without fee,* provided that the above copyright notice appear in all copies and* that both that copyright notice and this permission notice appear* in supporting documentation.  Hewlett-Packard Company makes no* representations about the suitability of this software for any* purpose.  It is provided "as is" without express or implied warranty.*** Copyright (c) 1997* Silicon Graphics Computer Systems, Inc.** Permission to use, copy, modify, distribute and sell this software* and its documentation for any purpose is hereby granted without fee,* provided that the above copyright notice appear in all copies and* that both that copyright notice and this permission notice appear* in supporting documentation.  Silicon Graphics makes no* representations about the suitability of this software for any* purpose.  It is provided "as is" without express or implied warranty.*//* NOTE: This is an internal header file, included by other STL headers.*   You should not attempt to use it directly.*/#ifndef __SGI_STL_INTERNAL_DEQUE_H
#define __SGI_STL_INTERNAL_DEQUE_H/* Class invariants:*  For any nonsingular iterator i:*    i.node is the address of an element in the map array.  The*      contents of i.node is a pointer to the beginning of a node.*    i.first == *(i.node) *    i.last  == i.first + node_size*    i.cur is a pointer in the range [i.first, i.last).  NOTE:*      the implication of this is that i.cur is always a dereferenceable*      pointer, even if i is a past-the-end iterator.*  Start and Finish are always nonsingular iterators.  NOTE: this means*    that an empty deque must have one node, and that a deque*    with N elements, where N is the buffer size, must have two nodes.*  For every node other than start.node and finish.node, every element*    in the node is an initialized object.  If start.node == finish.node,*    then [start.cur, finish.cur) are initialized objects, and*    the elements outside that range are uninitialized storage.  Otherwise,*    [start.cur, start.last) and [finish.first, finish.cur) are initialized*    objects, and [start.first, start.cur) and [finish.cur, finish.last)*    are uninitialized storage.*  [map, map + map_size) is a valid, non-empty range.  *  [start.node, finish.node] is a valid range contained within *    [map, map + map_size).  *  A pointer in the range [map, map + map_size) points to an allocated*    node if and only if the pointer is in the range [start.node, finish.node].*//** In previous versions of deque, node_size was fixed by the * implementation.  In this version, however, users can select* the node size.  Deque has three template parameters; the third,* a number of type size_t, is the number of elements per node.* If the third template parameter is 0 (which is the default), * then deque will use a default node size.** The only reason for using an alternate node size is if your application* requires a different performance tradeoff than the default.  If,* for example, your program contains many deques each of which contains* only a few elements, then you might want to save memory (possibly* by sacrificing some speed) by using smaller nodes.** Unfortunately, some compilers have trouble with non-type template * parameters; stl_config.h defines __STL_NON_TYPE_TMPL_PARAM_BUG if* that is the case.  If your compiler is one of them, then you will* not be able to use alternate node sizes; you will have to use the* default value.*/__STL_BEGIN_NAMESPACE #if defined(__sgi) && !defined(__GNUC__) && (_MIPS_SIM != _MIPS_SIM_ABI32)
#pragma set woff 1174
#endif// Note: this function is simply a kludge to work around several compilers'
//  bugs in handling constant expressions.
inline size_t __deque_buf_size(size_t n, size_t sz)
{return n != 0 ? n : (sz < 512 ? size_t(512 / sz) : size_t(1));
}#ifndef __STL_NON_TYPE_TMPL_PARAM_BUG
template <class T, class Ref, class Ptr, size_t BufSiz>
struct __deque_iterator {typedef __deque_iterator<T, T&, T*, BufSiz>             iterator;typedef __deque_iterator<T, const T&, const T*, BufSiz> const_iterator;static size_t buffer_size() {return __deque_buf_size(BufSiz, sizeof(T)); }
#else /* __STL_NON_TYPE_TMPL_PARAM_BUG */
template <class T, class Ref, class Ptr>
struct __deque_iterator {typedef __deque_iterator<T, T&, T*>             iterator;typedef __deque_iterator<T, const T&, const T*> const_iterator;static size_t buffer_size() {return __deque_buf_size(0, sizeof(T)); }
#endiftypedef random_access_iterator_tag iterator_category;typedef T value_type;typedef Ptr pointer;typedef Ref reference;typedef size_t size_type;typedef ptrdiff_t difference_type;typedef T** map_pointer;typedef __deque_iterator self;T* cur;T* first;T* last;map_pointer node;__deque_iterator(T* x, map_pointer y) : cur(x), first(*y), last(*y + buffer_size()), node(y) {}__deque_iterator() : cur(0), first(0), last(0), node(0) {}__deque_iterator(const iterator& x): cur(x.cur), first(x.first), last(x.last), node(x.node) {}reference operator*() const { return *cur; }
#ifndef __SGI_STL_NO_ARROW_OPERATORpointer operator->() const { return &(operator*()); }
#endif /* __SGI_STL_NO_ARROW_OPERATOR */difference_type operator-(const self& x) const {return difference_type(buffer_size()) * (node - x.node - 1) +(cur - first) + (x.last - x.cur);}self& operator++() {++cur;if (cur == last) {set_node(node + 1);cur = first;}return *this; }self operator++(int)  {self tmp = *this;++*this;return tmp;}self& operator--() {if (cur == first) {set_node(node - 1);cur = last;}--cur;return *this;}self operator--(int) {self tmp = *this;--*this;return tmp;}self& operator+=(difference_type n) {difference_type offset = n + (cur - first);if (offset >= 0 && offset < difference_type(buffer_size()))cur += n;else {difference_type node_offset =offset > 0 ? offset / difference_type(buffer_size()): -difference_type((-offset - 1) / buffer_size()) - 1;set_node(node + node_offset);cur = first + (offset - node_offset * difference_type(buffer_size()));}return *this;}self operator+(difference_type n) const {self tmp = *this;return tmp += n;}self& operator-=(difference_type n) { return *this += -n; }self operator-(difference_type n) const {self tmp = *this;return tmp -= n;}reference operator[](difference_type n) const { return *(*this + n); }bool operator==(const self& x) const { return cur == x.cur; }bool operator!=(const self& x) const { return !(*this == x); }bool operator<(const self& x) const {return (node == x.node) ? (cur < x.cur) : (node < x.node);}void set_node(map_pointer new_node) {node = new_node;first = *new_node;last = first + difference_type(buffer_size());}
};#ifndef __STL_CLASS_PARTIAL_SPECIALIZATION#ifndef __STL_NON_TYPE_TMPL_PARAM_BUGtemplate <class T, class Ref, class Ptr, size_t BufSiz>
inline random_access_iterator_tag
iterator_category(const __deque_iterator<T, Ref, Ptr, BufSiz>&) {return random_access_iterator_tag();
}template <class T, class Ref, class Ptr, size_t BufSiz>
inline T* value_type(const __deque_iterator<T, Ref, Ptr, BufSiz>&) {return 0;
}template <class T, class Ref, class Ptr, size_t BufSiz>
inline ptrdiff_t* distance_type(const __deque_iterator<T, Ref, Ptr, BufSiz>&) {return 0;
}#else /* __STL_NON_TYPE_TMPL_PARAM_BUG */template <class T, class Ref, class Ptr>
inline random_access_iterator_tag
iterator_category(const __deque_iterator<T, Ref, Ptr>&) {return random_access_iterator_tag();
}template <class T, class Ref, class Ptr>
inline T* value_type(const __deque_iterator<T, Ref, Ptr>&) { return 0; }template <class T, class Ref, class Ptr>
inline ptrdiff_t* distance_type(const __deque_iterator<T, Ref, Ptr>&) {return 0;
}#endif /* __STL_NON_TYPE_TMPL_PARAM_BUG */#endif /* __STL_CLASS_PARTIAL_SPECIALIZATION */// See __deque_buf_size().  The only reason that the default value is 0
//  is as a workaround for bugs in the way that some compilers handle
//  constant expressions.
template <class T, class Alloc = alloc, size_t BufSiz = 0>
class deque {
public:                         // Basic typestypedef T value_type;typedef value_type* pointer;typedef const value_type* const_pointer;typedef value_type& reference;typedef const value_type& const_reference;typedef size_t size_type;typedef ptrdiff_t difference_type;public:                         // Iterators
#ifndef __STL_NON_TYPE_TMPL_PARAM_BUGtypedef __deque_iterator<T, T&, T*, BufSiz>              iterator;typedef __deque_iterator<T, const T&, const T&, BufSiz>  const_iterator;
#else /* __STL_NON_TYPE_TMPL_PARAM_BUG */typedef __deque_iterator<T, T&, T*>                      iterator;typedef __deque_iterator<T, const T&, const T*>          const_iterator;
#endif /* __STL_NON_TYPE_TMPL_PARAM_BUG */#ifdef __STL_CLASS_PARTIAL_SPECIALIZATIONtypedef reverse_iterator<const_iterator> const_reverse_iterator;typedef reverse_iterator<iterator> reverse_iterator;
#else /* __STL_CLASS_PARTIAL_SPECIALIZATION */typedef reverse_iterator<const_iterator, value_type, const_reference, difference_type>  const_reverse_iterator;typedef reverse_iterator<iterator, value_type, reference, difference_type>reverse_iterator;
#endif /* __STL_CLASS_PARTIAL_SPECIALIZATION */protected:                      // Internal typedefstypedef pointer* map_pointer;typedef simple_alloc<value_type, Alloc> data_allocator;typedef simple_alloc<pointer, Alloc> map_allocator;static size_type buffer_size() {return __deque_buf_size(BufSiz, sizeof(value_type));}static size_type initial_map_size() { return 8; }protected:                      // Data membersiterator start;iterator finish;map_pointer map;size_type map_size;public:                         // Basic accessorsiterator begin() { return start; }iterator end() { return finish; }const_iterator begin() const { return start; }const_iterator end() const { return finish; }reverse_iterator rbegin() { return reverse_iterator(finish); }reverse_iterator rend() { return reverse_iterator(start); }const_reverse_iterator rbegin() const {return const_reverse_iterator(finish);}const_reverse_iterator rend() const {return const_reverse_iterator(start);}reference operator[](size_type n) { return start[difference_type(n)]; }const_reference operator[](size_type n) const {return start[difference_type(n)];}reference front() { return *start; }reference back() {iterator tmp = finish;--tmp;return *tmp;}const_reference front() const { return *start; }const_reference back() const {const_iterator tmp = finish;--tmp;return *tmp;}size_type size() const { return finish - start;; }size_type max_size() const { return size_type(-1); }bool empty() const { return finish == start; }public:                         // Constructor, destructor.deque(): start(), finish(), map(0), map_size(0){create_map_and_nodes(0);}deque(const deque& x): start(), finish(), map(0), map_size(0){create_map_and_nodes(x.size());__STL_TRY {uninitialized_copy(x.begin(), x.end(), start);}__STL_UNWIND(destroy_map_and_nodes());}deque(size_type n, const value_type& value): start(), finish(), map(0), map_size(0){fill_initialize(n, value);}deque(int n, const value_type& value): start(), finish(), map(0), map_size(0){fill_initialize(n, value);}deque(long n, const value_type& value): start(), finish(), map(0), map_size(0){fill_initialize(n, value);}explicit deque(size_type n): start(), finish(), map(0), map_size(0){fill_initialize(n, value_type());}#ifdef __STL_MEMBER_TEMPLATEStemplate <class InputIterator>deque(InputIterator first, InputIterator last): start(), finish(), map(0), map_size(0){range_initialize(first, last, iterator_category(first));}#else /* __STL_MEMBER_TEMPLATES */deque(const value_type* first, const value_type* last): start(), finish(), map(0), map_size(0){create_map_and_nodes(last - first);__STL_TRY {uninitialized_copy(first, last, start);}__STL_UNWIND(destroy_map_and_nodes());}deque(const_iterator first, const_iterator last): start(), finish(), map(0), map_size(0){create_map_and_nodes(last - first);__STL_TRY {uninitialized_copy(first, last, start);}__STL_UNWIND(destroy_map_and_nodes());}#endif /* __STL_MEMBER_TEMPLATES */~deque() {destroy(start, finish);destroy_map_and_nodes();}deque& operator= (const deque& x) {const size_type len = size();if (&x != this) {if (len >= x.size())erase(copy(x.begin(), x.end(), start), finish);else {const_iterator mid = x.begin() + difference_type(len);copy(x.begin(), mid, start);insert(finish, mid, x.end());}}return *this;}        void swap(deque& x) {__STD::swap(start, x.start);__STD::swap(finish, x.finish);__STD::swap(map, x.map);__STD::swap(map_size, x.map_size);}public:                         // push_* and pop_*void push_back(const value_type& t) {if (finish.cur != finish.last - 1) {construct(finish.cur, t);++finish.cur;}elsepush_back_aux(t);}void push_front(const value_type& t) {if (start.cur != start.first) {construct(start.cur - 1, t);--start.cur;}elsepush_front_aux(t);}void pop_back() {if (finish.cur != finish.first) {--finish.cur;destroy(finish.cur);}elsepop_back_aux();}void pop_front() {if (start.cur != start.last - 1) {destroy(start.cur);++start.cur;}else pop_front_aux();}public:                         // Insertiterator insert(iterator position, const value_type& x) {if (position.cur == start.cur) {push_front(x);return start;}else if (position.cur == finish.cur) {push_back(x);iterator tmp = finish;--tmp;return tmp;}else {return insert_aux(position, x);}}iterator insert(iterator position) { return insert(position, value_type()); }void insert(iterator pos, size_type n, const value_type& x); void insert(iterator pos, int n, const value_type& x) {insert(pos, (size_type) n, x);}void insert(iterator pos, long n, const value_type& x) {insert(pos, (size_type) n, x);}#ifdef __STL_MEMBER_TEMPLATES  template <class InputIterator>void insert(iterator pos, InputIterator first, InputIterator last) {insert(pos, first, last, iterator_category(first));}#else /* __STL_MEMBER_TEMPLATES */void insert(iterator pos, const value_type* first, const value_type* last);void insert(iterator pos, const_iterator first, const_iterator last);#endif /* __STL_MEMBER_TEMPLATES */void resize(size_type new_size, const value_type& x) {const size_type len = size();if (new_size < len) erase(start + new_size, finish);elseinsert(finish, new_size - len, x);}void resize(size_type new_size) { resize(new_size, value_type()); }public:                         // Eraseiterator erase(iterator pos) {iterator next = pos;++next;difference_type index = pos - start;if (index < (size() >> 1)) {copy_backward(start, pos, next);pop_front();}else {copy(next, finish, pos);pop_back();}return start + index;}iterator erase(iterator first, iterator last);void clear(); protected:                        // Internal construction/destructionvoid create_map_and_nodes(size_type num_elements);void destroy_map_and_nodes();void fill_initialize(size_type n, const value_type& value);#ifdef __STL_MEMBER_TEMPLATES  template <class InputIterator>void range_initialize(InputIterator first, InputIterator last,input_iterator_tag);template <class ForwardIterator>void range_initialize(ForwardIterator first, ForwardIterator last,forward_iterator_tag);#endif /* __STL_MEMBER_TEMPLATES */protected:                        // Internal push_* and pop_*void push_back_aux(const value_type& t);void push_front_aux(const value_type& t);void pop_back_aux();void pop_front_aux();protected:                        // Internal insert functions#ifdef __STL_MEMBER_TEMPLATES  template <class InputIterator>void insert(iterator pos, InputIterator first, InputIterator last,input_iterator_tag);template <class ForwardIterator>void insert(iterator pos, ForwardIterator first, ForwardIterator last,forward_iterator_tag);#endif /* __STL_MEMBER_TEMPLATES */iterator insert_aux(iterator pos, const value_type& x);void insert_aux(iterator pos, size_type n, const value_type& x);#ifdef __STL_MEMBER_TEMPLATES  template <class ForwardIterator>void insert_aux(iterator pos, ForwardIterator first, ForwardIterator last,size_type n);#else /* __STL_MEMBER_TEMPLATES */void insert_aux(iterator pos,const value_type* first, const value_type* last,size_type n);void insert_aux(iterator pos, const_iterator first, const_iterator last,size_type n);#endif /* __STL_MEMBER_TEMPLATES */iterator reserve_elements_at_front(size_type n) {size_type vacancies = start.cur - start.first;if (n > vacancies) new_elements_at_front(n - vacancies);return start - difference_type(n);}iterator reserve_elements_at_back(size_type n) {size_type vacancies = (finish.last - finish.cur) - 1;if (n > vacancies)new_elements_at_back(n - vacancies);return finish + difference_type(n);}void new_elements_at_front(size_type new_elements);void new_elements_at_back(size_type new_elements);void destroy_nodes_at_front(iterator before_start);void destroy_nodes_at_back(iterator after_finish);protected:                      // Allocation of map and nodes// Makes sure the map has space for new nodes.  Does not actually//  add the nodes.  Can invalidate map pointers.  (And consequently, //  deque iterators.)void reserve_map_at_back (size_type nodes_to_add = 1) {if (nodes_to_add + 1 > map_size - (finish.node - map))reallocate_map(nodes_to_add, false);}void reserve_map_at_front (size_type nodes_to_add = 1) {if (nodes_to_add > start.node - map)reallocate_map(nodes_to_add, true);}void reallocate_map(size_type nodes_to_add, bool add_at_front);pointer allocate_node() { return data_allocator::allocate(buffer_size()); }void deallocate_node(pointer n) {data_allocator::deallocate(n, buffer_size());}#ifdef __STL_NON_TYPE_TMPL_PARAM_BUG
public:bool operator==(const deque<T, Alloc, 0>& x) const {return size() == x.size() && equal(begin(), end(), x.begin());}bool operator!=(const deque<T, Alloc, 0>& x) const {return size() != x.size() || !equal(begin(), end(), x.begin());}bool operator<(const deque<T, Alloc, 0>& x) const {return lexicographical_compare(begin(), end(), x.begin(), x.end());}
#endif /* __STL_NON_TYPE_TMPL_PARAM_BUG */
};// Non-inline member functionstemplate <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert(iterator pos,size_type n, const value_type& x) {if (pos.cur == start.cur) {iterator new_start = reserve_elements_at_front(n);uninitialized_fill(new_start, start, x);start = new_start;}else if (pos.cur == finish.cur) {iterator new_finish = reserve_elements_at_back(n);uninitialized_fill(finish, new_finish, x);finish = new_finish;}else insert_aux(pos, n, x);
}#ifndef __STL_MEMBER_TEMPLATES  template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert(iterator pos,const value_type* first,const value_type* last) {size_type n = last - first;if (pos.cur == start.cur) {iterator new_start = reserve_elements_at_front(n);__STL_TRY {uninitialized_copy(first, last, new_start);start = new_start;}__STL_UNWIND(destroy_nodes_at_front(new_start));}else if (pos.cur == finish.cur) {iterator new_finish = reserve_elements_at_back(n);__STL_TRY {uninitialized_copy(first, last, finish);finish = new_finish;}__STL_UNWIND(destroy_nodes_at_back(new_finish));}elseinsert_aux(pos, first, last, n);
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert(iterator pos,const_iterator first,const_iterator last)
{size_type n = last - first;if (pos.cur == start.cur) {iterator new_start = reserve_elements_at_front(n);__STL_TRY {uninitialized_copy(first, last, new_start);start = new_start;}__STL_UNWIND(destroy_nodes_at_front(new_start));}else if (pos.cur == finish.cur) {iterator new_finish = reserve_elements_at_back(n);__STL_TRY {uninitialized_copy(first, last, finish);finish = new_finish;}__STL_UNWIND(destroy_nodes_at_back(new_finish));}elseinsert_aux(pos, first, last, n);
}#endif /* __STL_MEMBER_TEMPLATES */template <class T, class Alloc, size_t BufSize>
deque<T, Alloc, BufSize>::iterator
deque<T, Alloc, BufSize>::erase(iterator first, iterator last) {if (first == start && last == finish) {clear();return finish;}else {difference_type n = last - first;difference_type elems_before = first - start;if (elems_before < (size() - n) / 2) {copy_backward(start, first, last);iterator new_start = start + n;destroy(start, new_start);for (map_pointer cur = start.node; cur < new_start.node; ++cur)data_allocator::deallocate(*cur, buffer_size());start = new_start;}else {copy(last, finish, first);iterator new_finish = finish - n;destroy(new_finish, finish);for (map_pointer cur = new_finish.node + 1; cur <= finish.node; ++cur)data_allocator::deallocate(*cur, buffer_size());finish = new_finish;}return start + elems_before;}
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::clear() {for (map_pointer node = start.node + 1; node < finish.node; ++node) {destroy(*node, *node + buffer_size());data_allocator::deallocate(*node, buffer_size());}if (start.node != finish.node) {destroy(start.cur, start.last);destroy(finish.first, finish.cur);data_allocator::deallocate(finish.first, buffer_size());}elsedestroy(start.cur, finish.cur);finish = start;
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::create_map_and_nodes(size_type num_elements) {size_type num_nodes = num_elements / buffer_size() + 1;map_size = max(initial_map_size(), num_nodes + 2);map = map_allocator::allocate(map_size);map_pointer nstart = map + (map_size - num_nodes) / 2;map_pointer nfinish = nstart + num_nodes - 1;map_pointer cur;__STL_TRY {for (cur = nstart; cur <= nfinish; ++cur)*cur = allocate_node();}
#     ifdef  __STL_USE_EXCEPTIONS catch(...) {for (map_pointer n = nstart; n < cur; ++n)deallocate_node(*n);map_allocator::deallocate(map, map_size);throw;}
#     endif /* __STL_USE_EXCEPTIONS */start.set_node(nstart);finish.set_node(nfinish);start.cur = start.first;finish.cur = finish.first + num_elements % buffer_size();
}// This is only used as a cleanup function in catch clauses.
template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::destroy_map_and_nodes() {for (map_pointer cur = start.node; cur <= finish.node; ++cur)deallocate_node(*cur);map_allocator::deallocate(map, map_size);
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::fill_initialize(size_type n,const value_type& value) {create_map_and_nodes(n);map_pointer cur;__STL_TRY {for (cur = start.node; cur < finish.node; ++cur)uninitialized_fill(*cur, *cur + buffer_size(), value);uninitialized_fill(finish.first, finish.cur, value);}
#       ifdef __STL_USE_EXCEPTIONScatch(...) {for (map_pointer n = start.node; n < cur; ++n)destroy(*n, *n + buffer_size());destroy_map_and_nodes();throw;}
#       endif /* __STL_USE_EXCEPTIONS */
}#ifdef __STL_MEMBER_TEMPLATES  template <class T, class Alloc, size_t BufSize>
template <class InputIterator>
void deque<T, Alloc, BufSize>::range_initialize(InputIterator first,InputIterator last,input_iterator_tag) {create_map_and_nodes(0);for ( ; first != last; ++first)push_back(*first);
}template <class T, class Alloc, size_t BufSize>
template <class ForwardIterator>
void deque<T, Alloc, BufSize>::range_initialize(ForwardIterator first,ForwardIterator last,forward_iterator_tag) {size_type n = 0;distance(first, last, n);create_map_and_nodes(n);__STL_TRY {uninitialized_copy(first, last, start);}__STL_UNWIND(destroy_map_and_nodes());
}#endif /* __STL_MEMBER_TEMPLATES */// Called only if finish.cur == finish.last - 1.
template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::push_back_aux(const value_type& t) {value_type t_copy = t;reserve_map_at_back();*(finish.node + 1) = allocate_node();__STL_TRY {construct(finish.cur, t_copy);finish.set_node(finish.node + 1);finish.cur = finish.first;}__STL_UNWIND(deallocate_node(*(finish.node + 1)));
}// Called only if start.cur == start.first.
template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::push_front_aux(const value_type& t) {value_type t_copy = t;reserve_map_at_front();*(start.node - 1) = allocate_node();__STL_TRY {start.set_node(start.node - 1);start.cur = start.last - 1;construct(start.cur, t_copy);}
#     ifdef __STL_USE_EXCEPTIONScatch(...) {start.set_node(start.node + 1);start.cur = start.first;deallocate_node(*(start.node - 1));throw;}
#     endif /* __STL_USE_EXCEPTIONS */
} // Called only if finish.cur == finish.first.
template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>:: pop_back_aux() {deallocate_node(finish.first);finish.set_node(finish.node - 1);finish.cur = finish.last - 1;destroy(finish.cur);
}// Called only if start.cur == start.last - 1.  Note that if the deque
//  has at least one element (a necessary precondition for this member
//  function), and if start.cur == start.last, then the deque must have
//  at least two nodes.
template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::pop_front_aux() {destroy(start.cur);deallocate_node(start.first);start.set_node(start.node + 1);start.cur = start.first;
}      #ifdef __STL_MEMBER_TEMPLATES  template <class T, class Alloc, size_t BufSize>
template <class InputIterator>
void deque<T, Alloc, BufSize>::insert(iterator pos,InputIterator first, InputIterator last,input_iterator_tag) {copy(first, last, inserter(*this, pos));
}template <class T, class Alloc, size_t BufSize>
template <class ForwardIterator>
void deque<T, Alloc, BufSize>::insert(iterator pos,ForwardIterator first,ForwardIterator last,forward_iterator_tag) {size_type n = 0;distance(first, last, n);if (pos.cur == start.cur) {iterator new_start = reserve_elements_at_front(n);__STL_TRY {uninitialized_copy(first, last, new_start);start = new_start;}__STL_UNWIND(destroy_nodes_at_front(new_start));}else if (pos.cur == finish.cur) {iterator new_finish = reserve_elements_at_back(n);__STL_TRY {uninitialized_copy(first, last, finish);finish = new_finish;}__STL_UNWIND(destroy_nodes_at_back(new_finish));}elseinsert_aux(pos, first, last, n);
}#endif /* __STL_MEMBER_TEMPLATES */template <class T, class Alloc, size_t BufSize>
typename deque<T, Alloc, BufSize>::iterator
deque<T, Alloc, BufSize>::insert_aux(iterator pos, const value_type& x) {difference_type index = pos - start;value_type x_copy = x;if (index < size() / 2) {push_front(front());iterator front1 = start;++front1;iterator front2 = front1;++front2;pos = start + index;iterator pos1 = pos;++pos1;copy(front2, pos1, front1);}else {push_back(back());iterator back1 = finish;--back1;iterator back2 = back1;--back2;pos = start + index;copy_backward(pos, back2, back1);}*pos = x_copy;return pos;
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert_aux(iterator pos,size_type n, const value_type& x) {const difference_type elems_before = pos - start;size_type length = size();value_type x_copy = x;if (elems_before < length / 2) {iterator new_start = reserve_elements_at_front(n);iterator old_start = start;pos = start + elems_before;__STL_TRY {if (elems_before >= difference_type(n)) {iterator start_n = start + difference_type(n);uninitialized_copy(start, start_n, new_start);start = new_start;copy(start_n, pos, old_start);fill(pos - difference_type(n), pos, x_copy);}else {__uninitialized_copy_fill(start, pos, new_start, start, x_copy);start = new_start;fill(old_start, pos, x_copy);}}__STL_UNWIND(destroy_nodes_at_front(new_start));}else {iterator new_finish = reserve_elements_at_back(n);iterator old_finish = finish;const difference_type elems_after = difference_type(length) - elems_before;pos = finish - elems_after;__STL_TRY {if (elems_after > difference_type(n)) {iterator finish_n = finish - difference_type(n);uninitialized_copy(finish_n, finish, finish);finish = new_finish;copy_backward(pos, finish_n, old_finish);fill(pos, pos + difference_type(n), x_copy);}else {__uninitialized_fill_copy(finish, pos + difference_type(n),x_copy,pos, finish);finish = new_finish;fill(pos, old_finish, x_copy);}}__STL_UNWIND(destroy_nodes_at_back(new_finish));}
}#ifdef __STL_MEMBER_TEMPLATES  template <class T, class Alloc, size_t BufSize>
template <class ForwardIterator>
void deque<T, Alloc, BufSize>::insert_aux(iterator pos,ForwardIterator first,ForwardIterator last,size_type n)
{const difference_type elems_before = pos - start;size_type length = size();if (elems_before < length / 2) {iterator new_start = reserve_elements_at_front(n);iterator old_start = start;pos = start + elems_before;__STL_TRY {if (elems_before >= difference_type(n)) {iterator start_n = start + difference_type(n); uninitialized_copy(start, start_n, new_start);start = new_start;copy(start_n, pos, old_start);copy(first, last, pos - difference_type(n));}else {ForwardIterator mid = first;advance(mid, difference_type(n) - elems_before);__uninitialized_copy_copy(start, pos, first, mid, new_start);start = new_start;copy(mid, last, old_start);}}__STL_UNWIND(destroy_nodes_at_front(new_start));}else {iterator new_finish = reserve_elements_at_back(n);iterator old_finish = finish;const difference_type elems_after = difference_type(length) - elems_before;pos = finish - elems_after;__STL_TRY {if (elems_after > difference_type(n)) {iterator finish_n = finish - difference_type(n);uninitialized_copy(finish_n, finish, finish);finish = new_finish;copy_backward(pos, finish_n, old_finish);copy(first, last, pos);}else {ForwardIterator mid = first;advance(mid, elems_after);__uninitialized_copy_copy(mid, last, pos, finish, finish);finish = new_finish;copy(first, mid, pos);}}__STL_UNWIND(destroy_nodes_at_back(new_finish));}
}#else /* __STL_MEMBER_TEMPLATES */template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert_aux(iterator pos,const value_type* first,const value_type* last,size_type n)
{const difference_type elems_before = pos - start;size_type length = size();if (elems_before < length / 2) {iterator new_start = reserve_elements_at_front(n);iterator old_start = start;pos = start + elems_before;__STL_TRY {if (elems_before >= difference_type(n)) {iterator start_n = start + difference_type(n);uninitialized_copy(start, start_n, new_start);start = new_start;copy(start_n, pos, old_start);copy(first, last, pos - difference_type(n));}else {const value_type* mid = first + (difference_type(n) - elems_before);__uninitialized_copy_copy(start, pos, first, mid, new_start);start = new_start;copy(mid, last, old_start);}}__STL_UNWIND(destroy_nodes_at_front(new_start));}else {iterator new_finish = reserve_elements_at_back(n);iterator old_finish = finish;const difference_type elems_after = difference_type(length) - elems_before;pos = finish - elems_after;__STL_TRY {if (elems_after > difference_type(n)) {iterator finish_n = finish - difference_type(n);uninitialized_copy(finish_n, finish, finish);finish = new_finish;copy_backward(pos, finish_n, old_finish);copy(first, last, pos);}else {const value_type* mid = first + elems_after;__uninitialized_copy_copy(mid, last, pos, finish, finish);finish = new_finish;copy(first, mid, pos);}}__STL_UNWIND(destroy_nodes_at_back(new_finish));}
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::insert_aux(iterator pos,const_iterator first,const_iterator last,size_type n)
{const difference_type elems_before = pos - start;size_type length = size();if (elems_before < length / 2) {iterator new_start = reserve_elements_at_front(n);iterator old_start = start;pos = start + elems_before;__STL_TRY {if (elems_before >= n) {iterator start_n = start + n;uninitialized_copy(start, start_n, new_start);start = new_start;copy(start_n, pos, old_start);copy(first, last, pos - difference_type(n));}else {const_iterator mid = first + (n - elems_before);__uninitialized_copy_copy(start, pos, first, mid, new_start);start = new_start;copy(mid, last, old_start);}}__STL_UNWIND(destroy_nodes_at_front(new_start));}else {iterator new_finish = reserve_elements_at_back(n);iterator old_finish = finish;const difference_type elems_after = length - elems_before;pos = finish - elems_after;__STL_TRY {if (elems_after > n) {iterator finish_n = finish - difference_type(n);uninitialized_copy(finish_n, finish, finish);finish = new_finish;copy_backward(pos, finish_n, old_finish);copy(first, last, pos);}else {const_iterator mid = first + elems_after;__uninitialized_copy_copy(mid, last, pos, finish, finish);finish = new_finish;copy(first, mid, pos);}}__STL_UNWIND(destroy_nodes_at_back(new_finish));}
}#endif /* __STL_MEMBER_TEMPLATES */template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::new_elements_at_front(size_type new_elements) {size_type new_nodes = (new_elements + buffer_size() - 1) / buffer_size();reserve_map_at_front(new_nodes);size_type i;__STL_TRY {for (i = 1; i <= new_nodes; ++i)*(start.node - i) = allocate_node();}
#       ifdef __STL_USE_EXCEPTIONScatch(...) {for (size_type j = 1; j < i; ++j)deallocate_node(*(start.node - j));      throw;}
#       endif /* __STL_USE_EXCEPTIONS */
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::new_elements_at_back(size_type new_elements) {size_type new_nodes = (new_elements + buffer_size() - 1) / buffer_size();reserve_map_at_back(new_nodes);size_type i;__STL_TRY {for (i = 1; i <= new_nodes; ++i)*(finish.node + i) = allocate_node();}
#       ifdef __STL_USE_EXCEPTIONScatch(...) {for (size_type j = 1; j < i; ++j)deallocate_node(*(finish.node + j));      throw;}
#       endif /* __STL_USE_EXCEPTIONS */
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::destroy_nodes_at_front(iterator before_start) {for (map_pointer n = before_start.node; n < start.node; ++n)deallocate_node(*n);
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::destroy_nodes_at_back(iterator after_finish) {for (map_pointer n = after_finish.node; n > finish.node; --n)deallocate_node(*n);
}template <class T, class Alloc, size_t BufSize>
void deque<T, Alloc, BufSize>::reallocate_map(size_type nodes_to_add,bool add_at_front) {size_type old_num_nodes = finish.node - start.node + 1;size_type new_num_nodes = old_num_nodes + nodes_to_add;map_pointer new_nstart;if (map_size > 2 * new_num_nodes) {new_nstart = map + (map_size - new_num_nodes) / 2 + (add_at_front ? nodes_to_add : 0);if (new_nstart < start.node)copy(start.node, finish.node + 1, new_nstart);elsecopy_backward(start.node, finish.node + 1, new_nstart + old_num_nodes);}else {size_type new_map_size = map_size + max(map_size, nodes_to_add) + 2;map_pointer new_map = map_allocator::allocate(new_map_size);new_nstart = new_map + (new_map_size - new_num_nodes) / 2+ (add_at_front ? nodes_to_add : 0);copy(start.node, finish.node + 1, new_nstart);map_allocator::deallocate(map, map_size);map = new_map;map_size = new_map_size;}start.set_node(new_nstart);finish.set_node(new_nstart + old_num_nodes - 1);
}// Nonmember functions.#ifndef __STL_NON_TYPE_TMPL_PARAM_BUGtemplate <class T, class Alloc, size_t BufSiz>
bool operator==(const deque<T, Alloc, BufSiz>& x,const deque<T, Alloc, BufSiz>& y) {return x.size() == y.size() && equal(x.begin(), x.end(), y.begin());
}template <class T, class Alloc, size_t BufSiz>
bool operator<(const deque<T, Alloc, BufSiz>& x,const deque<T, Alloc, BufSiz>& y) {return lexicographical_compare(x.begin(), x.end(), y.begin(), y.end());
}#endif /* __STL_NON_TYPE_TMPL_PARAM_BUG */#if defined(__STL_FUNCTION_TMPL_PARTIAL_ORDER) && \!defined(__STL_NON_TYPE_TMPL_PARAM_BUG)template <class T, class Alloc, size_t BufSiz>
inline void swap(deque<T, Alloc, BufSiz>& x, deque<T, Alloc, BufSiz>& y) {x.swap(y);
}#endif#if defined(__sgi) && !defined(__GNUC__) && (_MIPS_SIM != _MIPS_SIM_ABI32)
#pragma reset woff 1174
#endif__STL_END_NAMESPACE #endif /* __SGI_STL_INTERNAL_DEQUE_H */// Local Variables:
// mode:C++
// End:

2.5对于std::deque的源码的简单讲解

这个源码非常长，有1335行，差不多30000个字，我们不需要看它太多部分，主要看它的类成员定义、operator++这些操作：

在97-100行、115-122行可以看到：

struct __deque_iterator {typedef __deque_iterator<T, T&, T*, BufSiz>             iterator;typedef __deque_iterator<T, const T&, const T*, BufSiz> const_iterator;static size_t buffer_size() {return __deque_buf_size(BufSiz, sizeof(T)); }
typedef T** map_pointer;typedef __deque_iterator self;T* cur;
T* first;
T* last;
map_pointer node;

可以知道node就是T**也就是我们的二维数组，这个数组里面还存放着开始位置的地址（first）、结束位置的地址（last），遍历到的位置的地址（cur），我们也就可以通过这些来进行操作。

在140-147行可以看到：

 self& operator++() {++cur;if (cur == last) {set_node(node + 1);cur = first;}return *this; }
//202-206行void set_node(map_pointer new_node) {node = new_node;first = *new_node;last = first + difference_type(buffer_size());}

这也就相当于如果遇到结尾就找下一个buff数组的地址这种操作。

在第252-261行、295-298行看到：

template <class T, class Alloc = alloc, size_t BufSiz = 0>
class deque {
public:                         // Basic typestypedef T value_type;typedef value_type* pointer;typedef const value_type* const_pointer;typedef value_type& reference;typedef const value_type& const_reference;typedef size_t size_type;typedef ptrdiff_t difference_type;//295-298
protected:                      // Data membersiterator start;iterator finish;map_pointer map;size_type map_size;

其中的map代表我们的中控数组。

若只有一个buff那么map_size就为1，如果这个buff数组满了或者要头插而下标为0的位置的buff数组已经满了，那么就需要再申请一个buff数组的空间才行，这是finish的first指向该buff的开始，last指向该buff结束位置，cur也指向开始，node也指向开始，这样更方便控制遍历，也方便处理数据。若尾删，那么直接把最后一个buff数组空间释放掉，然后差不多的操作后把map_size--即可。

若头插，若第一个buff未满，则直接在cur位置插入，cur--；否则新申请一块空间，first指向开始，end指向结束位置，cur指向buff数组的结尾，node也指向结尾。

2.6对于std::deque的看法

deque有优点也有缺点，deque的优点：①头尾插入和删除效率很高，优于vector和list；②下标随机访问还行，略逊于vector（要有很多解引用等操作）。

deque的缺点：insert和erase的效率很长，若想效率高，最好：把该buff进行扩容（对进行操作的下标对应的那个buff），但是这会导致每个buff数据元素个数不一样，很难受，所以只能建议：减少使用insert/erase。

对于deque，它看似面面俱到，但效率差，也就是说它处处都不行，相当于对我们实际中的应用是一点用都没有的！

2.7std::deque的swap函数与std::vector的swap函数性能比较

用以下函数进行测试：

#define _CRT_SECURE_NO_WARNINGS 1
#include <stdio.h>
#include <string.h>
#include <math.h>
#include <stdlib.h>
#include <assert.h>
#include <ctype.h>
#include<stdbool.h>
#include<stddef.h>//NULL
#include<time.h>
#include<iostream>
#include<deque>
#include<algorithm>
#include<vector>
using namespace std;
void test_op2()
{srand(time(0));const int N = 1000000;deque<int> dq1;deque<int> dq2;for (int i = 0; i < N; ++i){auto e = rand() + i;dq1.push_back(e);dq2.push_back(e);}int begin1 = clock();sort(dq1.begin(), dq1.end(), less<int>());int end1 = clock();int begin2 = clock();// 拷贝到vectorvector<int> v(dq2.begin(), dq2.end());sort(v.begin(), v.end());dq2.assign(v.begin(), v.end());int end2 = clock();printf("deque sort:%d\n", end1 - begin1);printf("deque copy vector sort, copy back deque:%d\n", end2 - begin2);
}int main()
{test_op2();return 0;
}

其实两个都是用库里面的swap函数进行特化出来的结果，基本上效率不会差多少，所以sort函数并写法差不多，所以更能体现二者的效率。

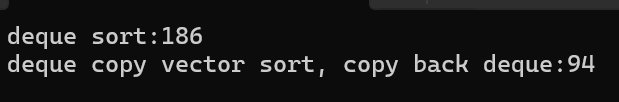

这是debug模式下的运行结果：
