RP2040 arduino使用内置USB串口 发送数据串口助手接收不到数据原因

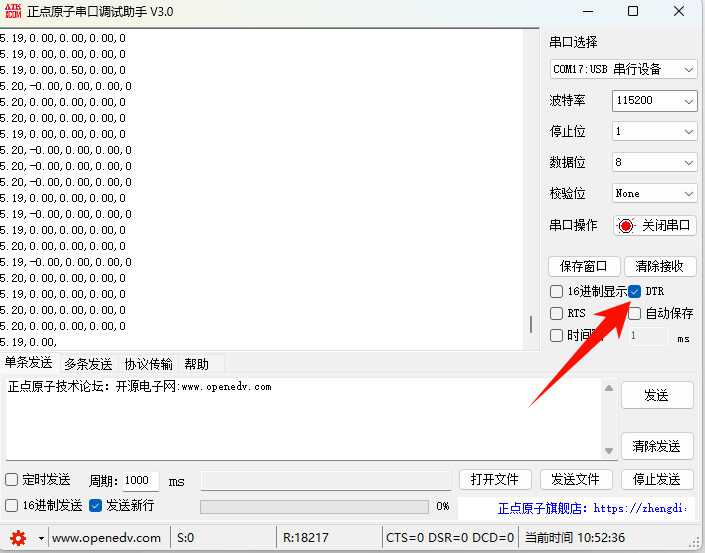

不改ARDUINO代码的话需要串口助手需要勾选DTR。

修改arduino代码

  Serial.begin(115200);Serial.ignoreFlowControl();//增加一段这个代码

RP2040 Specific SerialUSB methods
void Serial.ignoreFlowControl(bool ignore)
In some cases, the target application will not assert the DTR virtual line, thus preventing writing operations to succeed.

For this reason, the SerialUSB::ignoreFlowControl() method disables the connection’s state verification, enabling the program to write on the port, even though the data might be lost.

bool Serial.dtr()
Returns the current state of the DTR virtual line. A USB CDC host (such as the Arduino serial monitor) typically raises the DTR pin when opening the device, and may lower it when closing the device.

bool Serial.rts()
Returns the current state of the RTS virtual line.
