（NAT64）IPv6网络用户访问IPv4网络服务器(动态映射方式)

news 来源：原创 2025/5/31 18:41:24

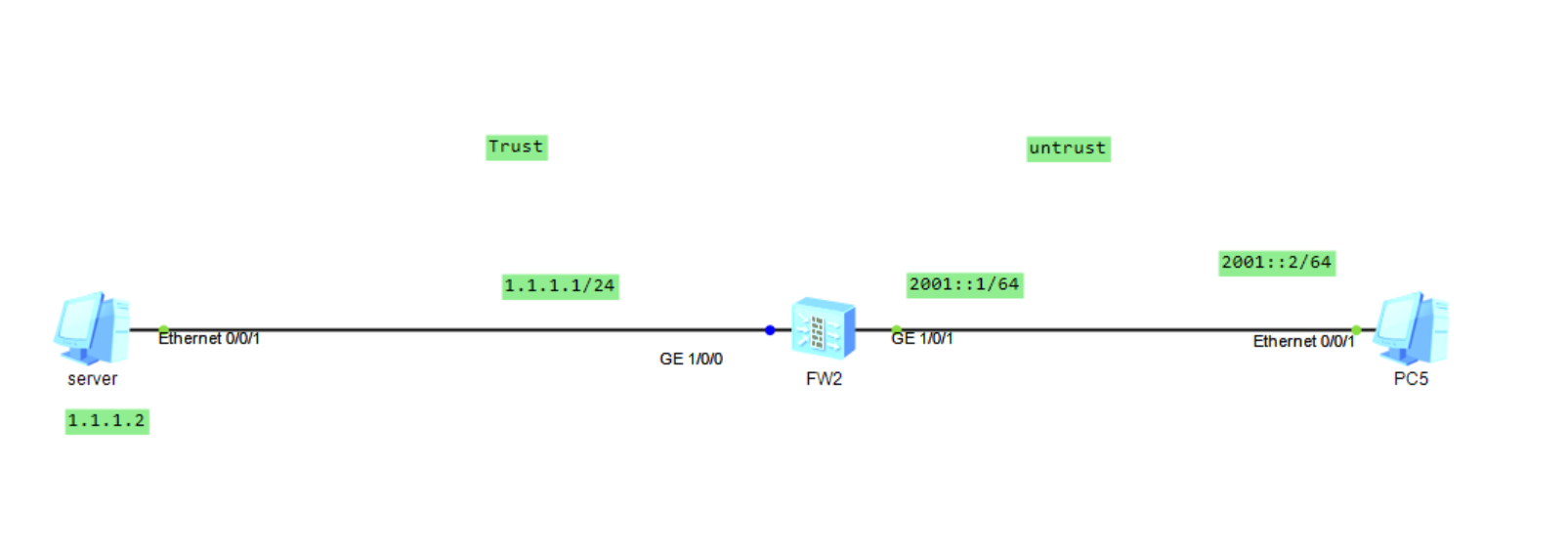

1.实验拓扑

2.配置

[FW1]dis cu
2025-05-29 10:44:44.030
!Software Version V500R005C10SPC300
#
sysname FW1
#
ipv6
#nat64 prefix 3001:: 96
#
interface GigabitEthernet1/0/0undo shutdownip address 1.1.1.1 255.255.255.0
#
interface GigabitEthernet1/0/1undo shutdownipv6 enableipv6 address 2001::1/64nat64 enable
#
firewall zone trustset priority 85add interface GigabitEthernet0/0/0add interface GigabitEthernet1/0/0
#
firewall zone untrustset priority 5add interface GigabitEthernet1/0/1
#
nat address-group 1 0mode patsection 0 1.1.1.6 1.1.1.10
#
security-policyrule name untrust->trustsource-zone untrustdestination-zone trustsource-address 2001:: 64action permit
#
nat-policyrule name nat64source-zone untrustdestination-zone trustsource-address 2001:: 64nat-type nat64action source-nat address-group 1
#

3.重点配置

[FW1]int g1/0/1

[FW1-GigabitEthernet1/0/1]ipv6 enable

[FW1-GigabitEthernet1/0/1]ipv6 add 2001::1 64

[FW1-GigabitEthernet1/0/1]nat64 enable

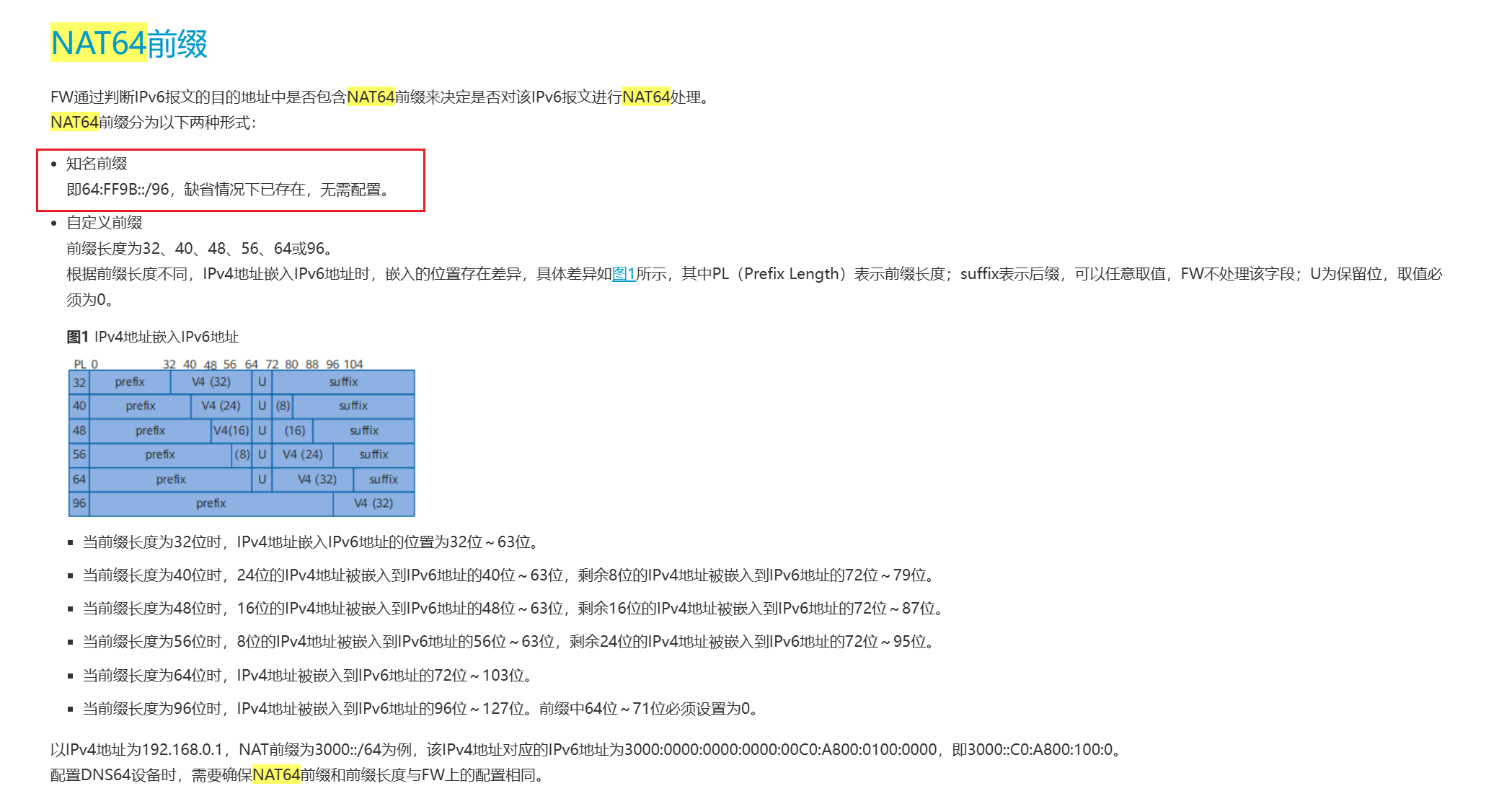

[FW1]nat64 prefix 3001:: 96

[FW1-policy-security]di th
2025-05-29 10:54:31.080
#
security-policy
rule name untrust->trust
source-zone untrust
destination-zone trust
source-address 2001:: 64
action permit

[FW1]nat address-group 1
[FW1-address-group-1]mode pat
[FW1-address-group-1]section 1.1.1.6 1.1.1.10

[FW1-policy-nat]di th
2025-05-29 10:55:32.270
#
nat-policy
rule name nat64
source-zone untrust
destination-zone trust
source-address 2001:: 64
nat-type nat64
action source-nat address-group 1
