湖仓一体部署

数据存储 hadoop-3.4.1

 下载并安装软件

上传安装软件到服务器

解压安装：tar -xzvf hadoop-3.4.1.tar.gz  -C /opt/module/

Hadoop配置

1. 配置hadoop环境变量：

   sudo vim /etc/profile.d/myprofile.sh#HADOOP_HOME
   export HADOOP_HOME=/opt/module/hadoop-3.4.1
   export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin
   export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop

   应用变更： source /etc/profile
2. 配置hadoop使用的JAVA环境

   sudo vim $HADOOP_HOME/etc/hadoop/hadoop-env.sh# 配置Hadoop使用的JAVA路径
   export JAVA_HOME=/opt/module/jdk-17.0.10

3. 配置core-site.xml

   vim $HADOOP_HOME/etc/hadoop/core-site.xml



   <configuration><property><name>fs.defaultFS</name><value>hdfs://mydoris:9000</value><description>NameNode的地址</description></property><property><name>hadoop.tmp.dir</name><value>/opt/data/hadoop/tmp</value><description>hadoop数据存储目录</description></property>
   </configuration>

4. 配置hdfs-site.xml

   vim  $HADOOP_HOME/etc/hadoop/hdfs-site.xml

   <configuration><property><name>dfs.replication</name><value>1</value>  <!-- 单机只需1副本 --></property><property><name>dfs.namenode.name.dir</name><value>file://${hadoop.tmp.dir}/dfs/name</value></property><property><name>dfs.datanode.data.dir</name><value>file://${hadoop.tmp.dir}/dfs/data</value></property>
   </configuration>

5. 配置 yarn-site.xml

   vim $HADOOP_HOME/etc/hadoop/yarn-site.xml

   <configuration><property><name>yarn.nodemanager.aux-services</name><value>mapreduce_shuffle</value></property><!-- 原默认值8030与doris冲突，改为 18030 --><property><name>yarn.resourcemanager.scheduler.address</name><value>0.0.0.0:18030</value></property><!-- 原默认值8040与doris冲突，改为 18040 --><property><name>yarn.nodemanager.localizer.address</name><value>0.0.0.0:18040</value></property><property><name>yarn.nodemanager.env-whitelist</name><value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAPRED_HOME</value></property>
   </configuration>

6. 1. 配置mapred-site.xml

      vim $HADOOP_HOME/etc/hadoop/mapred-site.xml

      <configuration><property><name>mapreduce.framework.name</name><value>yarn</value></property>
      </configuration>

7. 解决Hadoop 3.4与JDK 17冲突问题

   # 编辑 Hadoop 环境配置文件
   cd /opt/module/hadoop-3.4.1
   vim etc/hadoop/hadoop-env.sh# 文件末尾 添加以下内容：
   # Fix for JDK 17+ module access restrictions
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.lang=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.lang.reflect=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.net=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.util=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/sun.nio.ch=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.nio=ALL-UNNAMED"
   export HADOOP_OPTS="$HADOOP_OPTS --add-opens=java.base/java.util.concurrent=ALL-UNNAMED"# 若已经启动过hdfs,需要清理并重启hadoop
   # 停止
   ./sbin/stop-yarn.sh
   ./sbin/stop-dfs.sh# 删除临时数据（避免 clusterID 冲突）
   rm -rf /tmp/hadoop-*# 重新格式化（使用 JDK 17）
   hdfs namenode -format# 启动
   ./sbin/start-dfs.sh
   ./sbin/start-yarn.sh

启动Hadoop服务

格式化 NameNode（首次）

./bin/hdfs namenode -format

启动 HDFS + YARN

$HADOOP_HOME/sbin/start-dfs.sh
$HADOOP_HOME/sbin/start-yarn.sh

验证服务

jps

查看启动日志

日志路径：/opt/module/hadoop-3.4.1/logs/

访问 WEB UI

HDFS: http://mydoris:9870

YARN: http://mydoris:8088

测试 HDFS 读写

./bin/hadoop fs -mkdir /t001
./bin/hadoop fs -put ~/.bashrc /t001/
./bin/hadoop fs -ls /t001

启停脚本

1. 创建脚本文件：vim /opt/script/xhadoop

   #!/bin/bashif [ $# -lt 1 ]
   thenecho "No Args Input..."exit ;
   ficase $1 in
   "start")ssh mydoris "${HADOOP_HOME}/sbin/start-dfs.sh"ssh mydoris "${HADOOP_HOME}/sbin/start-yarn.sh";;
   "stop")ssh mydoris "${HADOOP_HOME}/sbin/stop-dfs.sh"ssh mydoris "${HADOOP_HOME}/sbin/stop-yarn.sh"
   ;;
   *)echo "Input Args Error..."
   ;;
   esac

2. 修改脚本权限   chmod 777 /opt/script/xhadoop
3. 添加一个链接 sudo ln -s -f /opt/script/xhadoop /bin/xhadoop
4. 使用脚本
   xhadoop start
   xhadoop stop

数据湖 Iceberg 1.6.1

HIve Catalog

MySQL 8.0.43

1. 在线安装MySQL

   # 更新软件包列表
   sudo apt update
   # 查看可使用的安装包
   sudo apt search mysql-server
   # 安装最新版本
   sudo apt install -y mysql-server
   # 安装指定版本：
   sudo apt install -y mysql-server-8.0

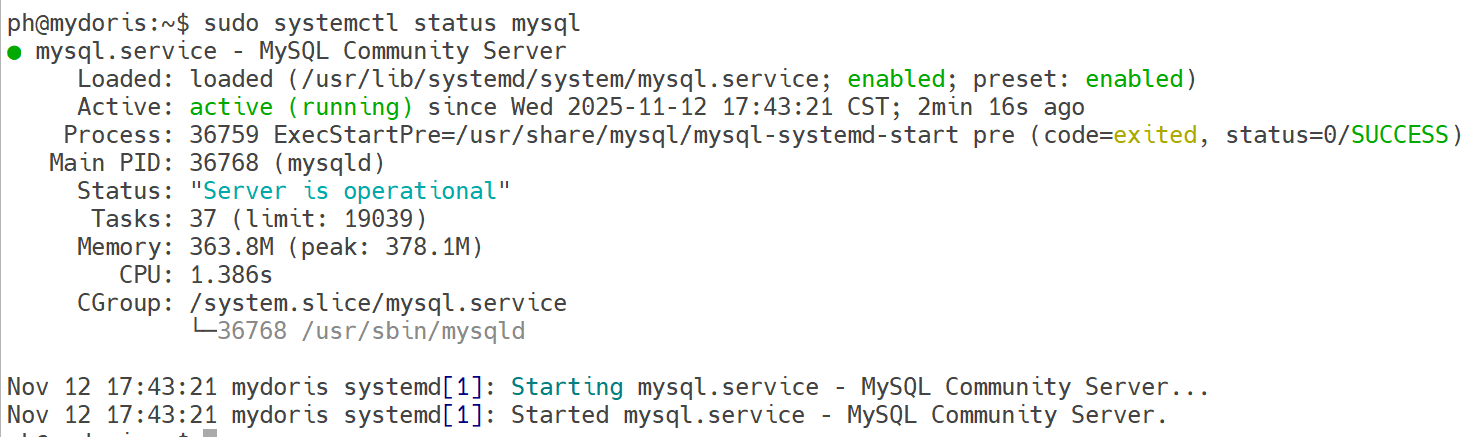

2. 检查MySQL状态

   sudo systemctl status mysql



   # 解压文件
   tar -xJf mysql-8.0.43-linux-glibc2.17-x86_64.tar.xz
   mv mysql-8.0.43-linux-glibc2.17-x86_64 /opt/module/
   # 创建软链接
   sudo ln -s /opt/module/mysql-8.0.43-linux-glibc2.17-x86_64 /usr/local/mysql

3. 设置开机启动

   # 启动MySQL服务（默认安装后会自动启动，不需要再执行）
   sudo systemctl start mysql
   # 设置开机自启动：
   sudo systemctl enable mysql

4. 修改密码、权限、允许远程访问

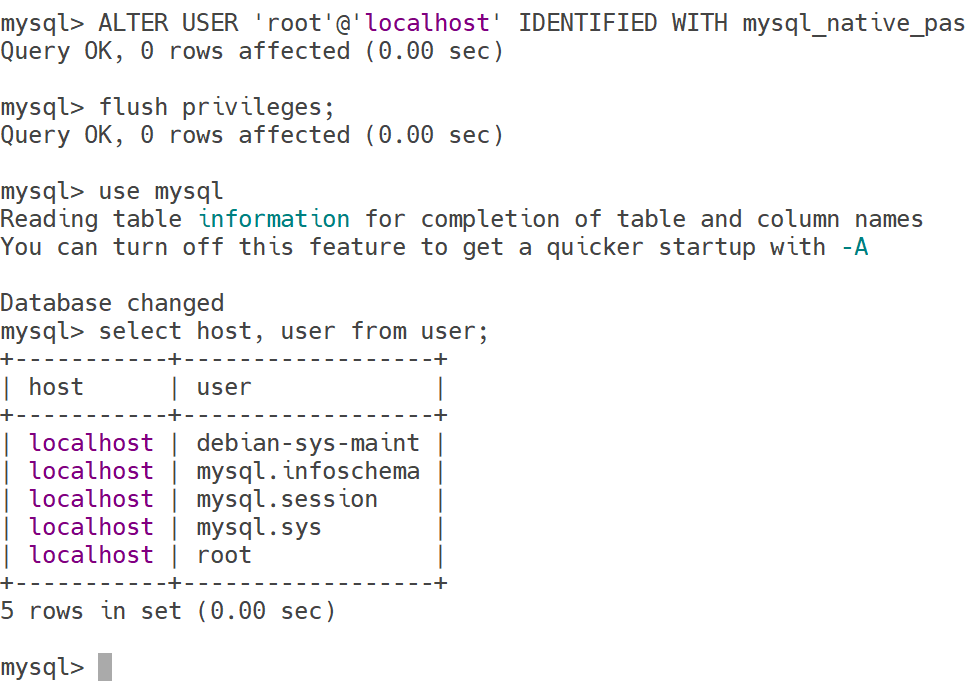

   1. 登录mysql，在默认安装时如果没有让我们设置密码，则直接回车就能登录成功
      sudo mysql -u root -p

   2. 设置密码：ALTER USER 'root'@'localhost' IDENTIFIED WITH mysql_native_password BY 'Admin1234';

   3. 刷新缓存：flush privileges;

   4. use mysql

   5. 检查用户可在哪台主机访问数据库
      select host, user from user;


   6. 修改root可在任意位置访问：update user set host = '%' where user = 'root';

   7. 配置mysqld.cnf


      sudo vim /etc/mysql/mysql.conf.d/mysqld.cnf
      bind-address           = 0.0.0.0
      mysqlx-bind-address    = 0.0.0.0

   8. 重启MySQL重新加载一下配置：sudo systemctl restart mysql

   9. 检查端口：netstat -an | grep 3306


   10. 创建 Hive Metastore 数据库和用户


       mysql -u root -pCREATE DATABASE hive_metastore;
       CREATE USER 'hive'@'%' IDENTIFIED BY 'Admin1234';
       GRANT ALL PRIVILEGES ON hive_metastore.* TO 'hive'@'%';
       FLUSH PRIVILEGES;

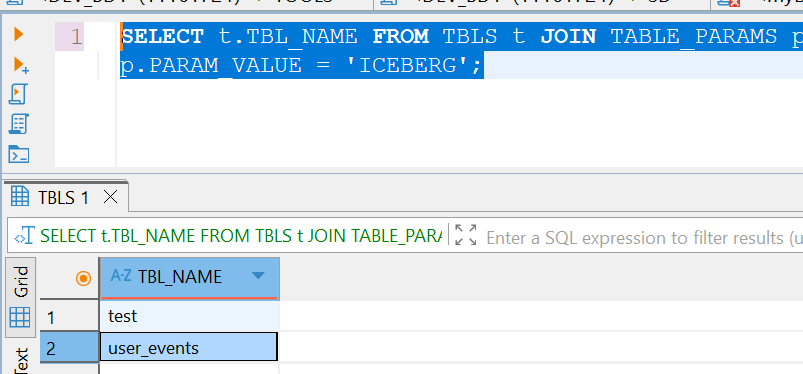

       EXIT;SELECT SCHEMA_NAME FROM information_schema.SCHEMATA WHERE SCHEMA_NAME = 'hive_metastore';

hive-3.1.3

1. 上传 apache-hive-3.1.3-bin.tar.gz 到服务器
2. 解压安装

   tar -xzf apache-hive-3.1.3-bin.tar.gz
   mv apache-hive-3.1.3-bin /opt/module
   mv /opt/module/apache-hive-3.1.3-bin/ /opt/modulehive-3.1.3

3. 设置hive环境变量

   sudo vim /etc/profile.d/myprofile.sh#设置 hive 环境变量
   export HIVE_HOME=/opt/module/hive-3.1.3
   export PATH=$PATH:$HIVE_HOME/bin# 使配置生效
   source /etc/profile



4. 添加依赖JAR

   # MySQL 驱动（必须）
   将 mysql-connector-java-8.0.33.jar 放到 $HIVE_HOME/lib/
   # Iceberg Hive Runtime（关键！让 HMS 识别 Iceberg 表）
   将 iceberg-hive-runtime-1.6.1.jar 放到 $HIVE_HOME/lib/

5. 配置 hive-site.xml
   vim $HIVE_HOME/conf/hive-site.xml

   <?xml version="1.0" encoding="UTF-8"?><configuration><!-- Mysql MetaStore -->
   <property><name>hive.metastore.db.type</name><value>mysql</value>
   </property>
   <property><name>javax.jdo.option.ConnectionURL</name><value>jdbc:mysql://mydoris:3306/hive_metastore?useSSL=false</value>
   </property>
   <property><name>javax.jdo.option.ConnectionDriverName</name><value>com.mysql.cj.jdbc.Driver</value>
   </property>
   <property><name>javax.jdo.option.ConnectionUserName</name><value>hive</value>
   </property>
   <property><name>javax.jdo.option.ConnectionPassword</name><value>Admin1234</value>
   </property><!-- Hive Metastore Service --><property><name>hive.metastore.uris</name><value>thrift://mydoris:9083</value></property><property><name>hive.metastore.schema.verification</name><value>false</value></property>
   <!-- Iceberg 支持 --><property><name>metastore.storage.schema.reader.impl</name><value>org.apache.hadoop.hive.metastore.SerDeStorageSchemaReader</value></property><!-- 重要：指定 warehouse 基于 HDFS --><property><name>hive.metastore.warehouse.dir</name><value>/iceberg/warehouse</value>  <!-- HDFS 路径 --></property></configuration>

6. 初始化 Metastore Schema

   $HIVE_HOME/bin/schematool -dbType mysql -initSchema \-userName hive -passWord Admin1234 \-url "jdbc:mysql://mydoris:3306/hive_metastore?useSSL=false&allowPublicKeyRetrieval=true"

7. 启动 Hive Metastore

   $HIVE_HOME/bin/hive --service metastore

8. 验证
   netstat -tuln | grep 9083

9.


启停脚本

1. 创建脚本文件：vim /opt/script/xhive
2. 脚本内容

   #!/bin/bash# Hive Metastore 启停脚本 for Hive 3.1.3
   # 支持 start / stop / statusexport HIVE_HOME=${HIVE_HOME:-/opt/module/hive-3.1.3}
   export HADOOP_HOME=${HADOOP_HOME:-/opt/module/hadoop-3.4.1}LOG_DIR="$HIVE_HOME/logs"
   PID_FILE="$LOG_DIR/metastore.pid"
   PORT=${METASTORE_PORT:-9083}
   HOST=${METASTORE_HOST:-localhost}mkdir -p "$LOG_DIR"start() {if [ -f "$PID_FILE" ] && kill -0 $(cat "$PID_FILE") 2>/dev/null; thenecho "Hive Metastore is already running (PID: $(cat $PID_FILE))"exit 1fiecho "Starting Hive Metastore on $HOST:$PORT ..."nohup "$HIVE_HOME/bin/hive" --service metastore \> "$LOG_DIR/metastore.log" 2>&1 &echo $! > "$PID_FILE"sleep 2if kill -0 $(cat "$PID_FILE") 2>/dev/null; thenecho "Hive Metastore started successfully (PID: $(cat $PID_FILE))"elseecho "Failed to start Hive Metastore. Check $LOG_DIR/metastore.log"rm -f "$PID_FILE"exit 1fi
   }stop() {if [ ! -f "$PID_FILE" ]; thenecho "Not running."return 0fiPID=$(cat "$PID_FILE")if ! kill -0 "$PID" 2>/dev/null; thenecho "Stale PID."rm -f "$PID_FILE"return 0fiecho "Stopping Metastore (PID: $PID)..."kill "$PID"        # SIGTERM - 优雅sleep 8if kill -0 "$PID" 2>/dev/null; thenkill -9 "$PID"   # SIGKILL - 强制firm -f "$PID_FILE"echo "Stopped."
   }status() {if [ -f "$PID_FILE" ]; thenPID=$(cat "$PID_FILE")if kill -0 "$PID" 2>/dev/null; thenecho "Hive Metastore is running (PID: $PID)"echo "Log: tail -f $LOG_DIR/metastore.log"return 0elseecho "Hive Metastore is NOT running (stale PID file)."rm -f "$PID_FILE"return 1fielseecho "Hive Metastore is NOT running."return 1fi
   }case "$1" instart)start;;stop)stop;;restart)stopsleep 2start;;status)status;;*)echo "Usage: $0 {start|stop|restart|status}"exit 1;;
   esac

3. 修改脚本权限 chmod 777 /opt/script/xhive
4. 添加一个链接 : sudo ln -s -f /opt/script/xhive /bin/xhive
5. 使用脚本
   xhive start
   xhive stop
   xhive restart
   xhive status

 消息队列 kafka_2.13-3.8.1

安装配置

1. 将压缩包 kafka_2.13-3.8.1.tgz 上传到服务器
2. 解压安装：tar -zxvf /opt/software/kafka_2.13-3.8.1.tgz -C /opt/module/
3. 添加环境变量

   sudo vim /etc/profile.d/myprofile.sh
   # 设置kafka环境变量
   export KAFKA_HOME=/opt/module/kafka_2.13-3.8.1
   export PATH=$PATH:$KAFKA_HOME/bin# 重新加载配置
   source /etc/profile

配置 KRaft 模式

1. 创建数据目录 mkdir -p /opt/data/kafka/kraft-logs
2. 编辑配置文件

   cp $KAFKA_HOME/config/kraft/server.properties $KAFKA_HOME/config/kraft/server.properties.bak
   vim $KAFKA_HOME/config/kraft/server.propertieslog.dirs=/opt/data/kafka/kraft-logs

3. 生成 Cluster ID（唯一标识）

   KAFKA_CLUSTER_ID=$($KAFKA_HOME/bin/kafka-storage.sh random-uuid)
   echo $KAFKA_CLUSTER_ID  # 保存这个值，例如：pHsOvoSPR8-tocrVrTTrQw

4. 格式化数据目录

   $KAFKA_HOME/bin/kafka-storage.sh format \-t $KAFKA_CLUSTER_ID \-c $KAFKA_HOME/config/kraft/server.properties

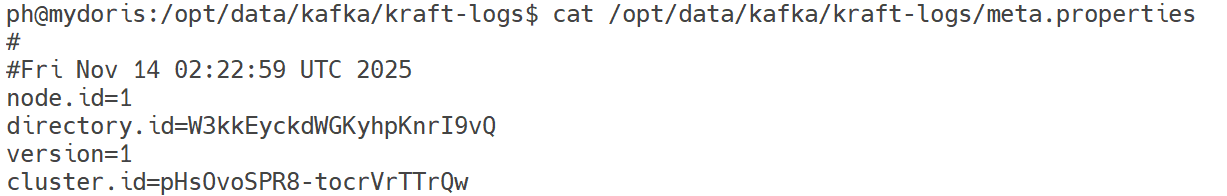

5. 验证 meta.properties 是否生成

   cat /opt/data/kafka/kraft-logs/meta.properties



6. 启动 Kafka


   $KAFKA_HOME/bin/kafka-server-start.sh \$KAFKA_HOME/config/kraft/server.properties

功能测试

# 创建主题
./bin/kafka-topics.sh --create --topic user_events --bootstrap-server localhost:9092 --partitions 3 --replication-factor 1
# 查看主题
./bin/kafka-topics.sh --bootstrap-server localhost:9092 --list
# 查询主题
./bin/kafka-topics.sh --bootstrap-server localhost:9092 --describe --topic user_events
# 删除主题
./bin/kafka-topics.sh --delete --topic user_events --bootstrap-server localhost:9092

启停脚本

#!/bin/bash
CONFIG=$KAFKA_HOME/config/kraft/server.properties
LOG_DIR=/opt/data/kafka/kraft-logs
PID_FILE=$LOG_DIR/kafka.pidstart() {if [ -f "$PID_FILE" ] && kill -0 $(cat $PID_FILE) 2>/dev/null; thenecho "Kafka already running (PID: $(cat $PID_FILE))"exit 1finohup $KAFKA_HOME/bin/kafka-server-start.sh $CONFIG \> $LOG_DIR/kafka.log 2>&1 &echo $! > $PID_FILEecho "Started Kafka (PID: $(cat $PID_FILE))"
}stop() {if [ ! -f "$PID_FILE" ]; thenecho "Kafka not running"returnfikill $(cat $PID_FILE)sleep 5rm -f $PID_FILEecho "Kafka stopped"
}case $1 instart) start ;;stop)  stop ;;restart) stop; sleep 2; start ;;*) echo "Usage: $0 {start|stop|restart}" ;;
esac

xkafka start

xkafka stop

xkafka restart


OLAP doris 3.0.8

修改环境变量

1. 修改系统最大打开文件句柄数（需重新登录生效）

   sudo vim /etc/security/limits.conf
   * soft nofile 1000000
   * hard nofile 1000000

2. 修改虚拟内存区域

   sudo vim /etc/sysctl.conf
   vm.max_map_count=2000000
   # 应用更改
   sudo sysctl -p
   # 检查
   cat /proc/sys/vm/max_map_count


3. 检查主机是否支持 AVX2 指令集

   cat /proc/cpuinfo | grep avx2
   # 若有输出表示机器支持 AVX2 指令集，使用apache-doris-2.1.8.1-bin-x64.tar.gz
   # 否则使用apache-doris-2.1.8.1-bin-x64-noavx2.tar.gz


准备安装介质

从Apache Doris - Download | Easily deploy Doris anywhere - Apache Doris下载doris安装介质

apache-doris-3.0.8-bin-x64.tar

解压安装

1. 将压缩包apache-doris-3.0.8-bin-x64.tar.gz上传到服务器
2. 解压安装

   tar -zxvf apache-doris-3.0.8-bin-x64.tar.gz -C /opt/module/
   mv /opt/module/apache-doris-3.0.8-bin-x64/ /opt/module/doris-3.0.8


Doris 配置

1. 配置环境变量

   sudo vim /etc/profile.d/myprofile.sh
   #设置DORIS环境变量
   export DORIS_HOME=/opt/module/doris-3.0.8
   export PATH=$DORIS_HOME/fe/bin:$DORIS_HOME/be/bin:$PATH
   # 使配置生效
   source /etc/profile

2. 配置FE元数据目录（仅FE主机）

   # 选择独立于 BE 数据的硬盘，创建 FE 的元数据目录
   mkdir -p /opt/data/doris/meta
   vim $DORIS_HOME/fe/conf/fe.conf
   meta_dir = /opt/data/doris/meta

iceberg配置

vim $DORIS_HOME/fe/conf/fe.conf
# iceberg 配置
catalog.iceberg_hive.type=iceberg
catalog.iceberg_hive.hive.metastore.uris=thrift://mydoris:9083
catalog.iceberg_hive.hadoop_conf_path=/opt/module/hadoop-3.4.1/etc/hadoop

启停脚本

后台启停	$DORIS_HOME/fe/bin/start_fe.sh --daemon $DORIS_HOME/be/bin/start_be.sh --daemon $DORIS_HOME/fe/bin/stop_fe.sh --daemon $DORIS_HOME/be/bin/stop_be.sh --daemon
前台启停	$DORIS_HOME/fe/bin/start_fe.sh $DORIS_HOME/be/bin/start_be.sh
脚本启停	xdoris start xdoris stop

1. 创建脚本文件：vim /opt/script/xdoris

   #!/bin/bash# 定义节点列表和路径
   NODES=("mydoris")
   DORIS_HOME="/opt/module/doris-3.0.8"
   JAVA_HOME="/opt/module/jdk-17.0.10"
   # 检查参数是否有效
   case $1 in"start"|"stop");;*)echo "Invalid Args!"echo "Usage: $(basename $0) start|stop"exit 1;;
   esac
   # 定义启动和停止函数
   start_node() {local NODE=$1echo "Starting BE on $NODE..."ssh -o ConnectTimeout=5 $NODE "export JAVA_HOME=$JAVA_HOME && cd $DORIS_HOME && ./be/bin/start_be.sh --daemon"if [ $? -ne 0 ]; thenecho "Failed to start BE on $NODE."return 1elseecho "Successfully started BE on $NODE."fi
   }stop_node() {local NODE=$1echo "Stopping BE on $NODE..."ssh -o ConnectTimeout=5 $NODE "export JAVA_HOME=$JAVA_HOME && cd $DORIS_HOME && ./be/bin/stop_be.sh"if [ $? -ne 0 ]; thenecho "Failed to stop BE on $NODE."return 1elseecho "Successfully stopped BE on $NODE."fi
   }# 主逻辑
   case $1 in"start")# 启动 FEecho "Starting FE"ssh -o ConnectTimeout=5 mydoris "export JAVA_HOME=$JAVA_HOME && cd $DORIS_HOME && ./fe/bin/start_fe.sh --daemon"if [ $? -ne 0 ]; thenecho "Failed to start FE on mydoris."exit 1fi# 启动每个 BE 节点for NODE in "${NODES[@]}"; dostart_node $NODE &donewaitecho "Cluster started successfully.";;"stop")# 停止每个 BE 节点for NODE in "${NODES[@]}"; dostop_node $NODEdone# 停止 FEecho "Stopping FE on mydoris..."ssh -o ConnectTimeout=5 mydoris "export JAVA_HOME=$JAVA_HOME && cd $DORIS_HOME && ./fe/bin/stop_fe.sh"if [ $? -ne 0 ]; thenecho "Failed to stop FE on mydoris."exit 1fiecho "Cluster stopped successfully.";;
   esac


2. 修改脚本权限
   chmod 777 /opt/script/xdoris
3. 添加一个链接
   sudo ln -s -f /opt/script/xdoris /bin/xdoris
4. 使用脚本
   xdoris start
   xdoris stop

注册 BE 节点（仅一次）

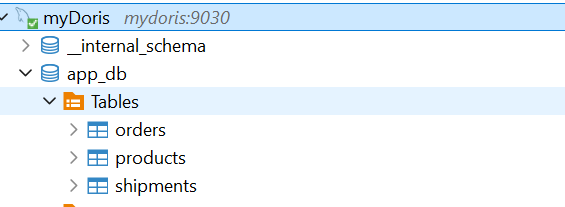

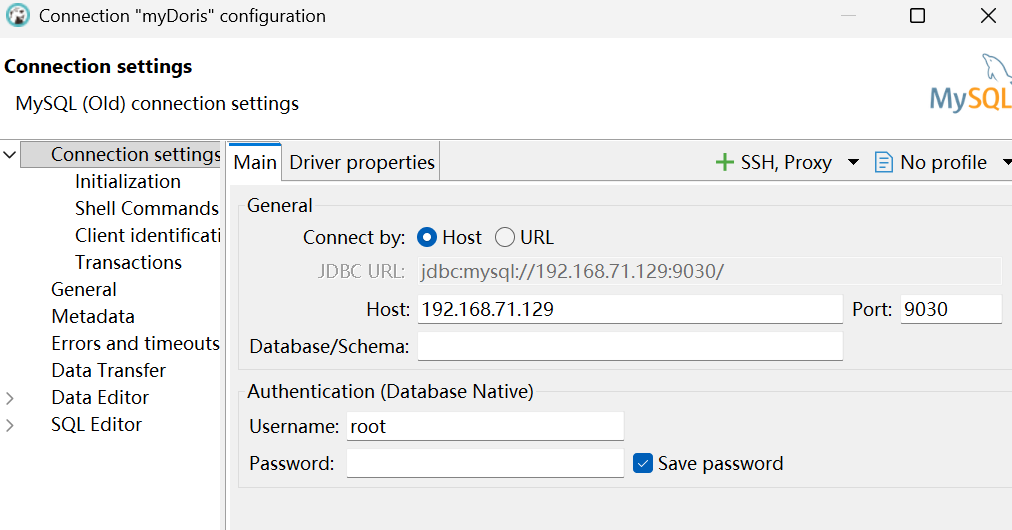

1. 配置dbeaver连接
   ​
2. 使用SQL命令添加BE（仅需执行一次）

   ALTER SYSTEM ADD BACKEND "mydoris:9050";

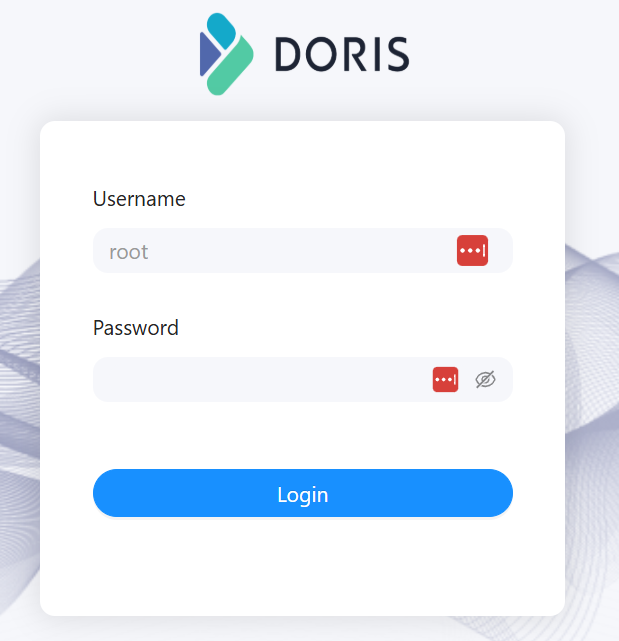

登录

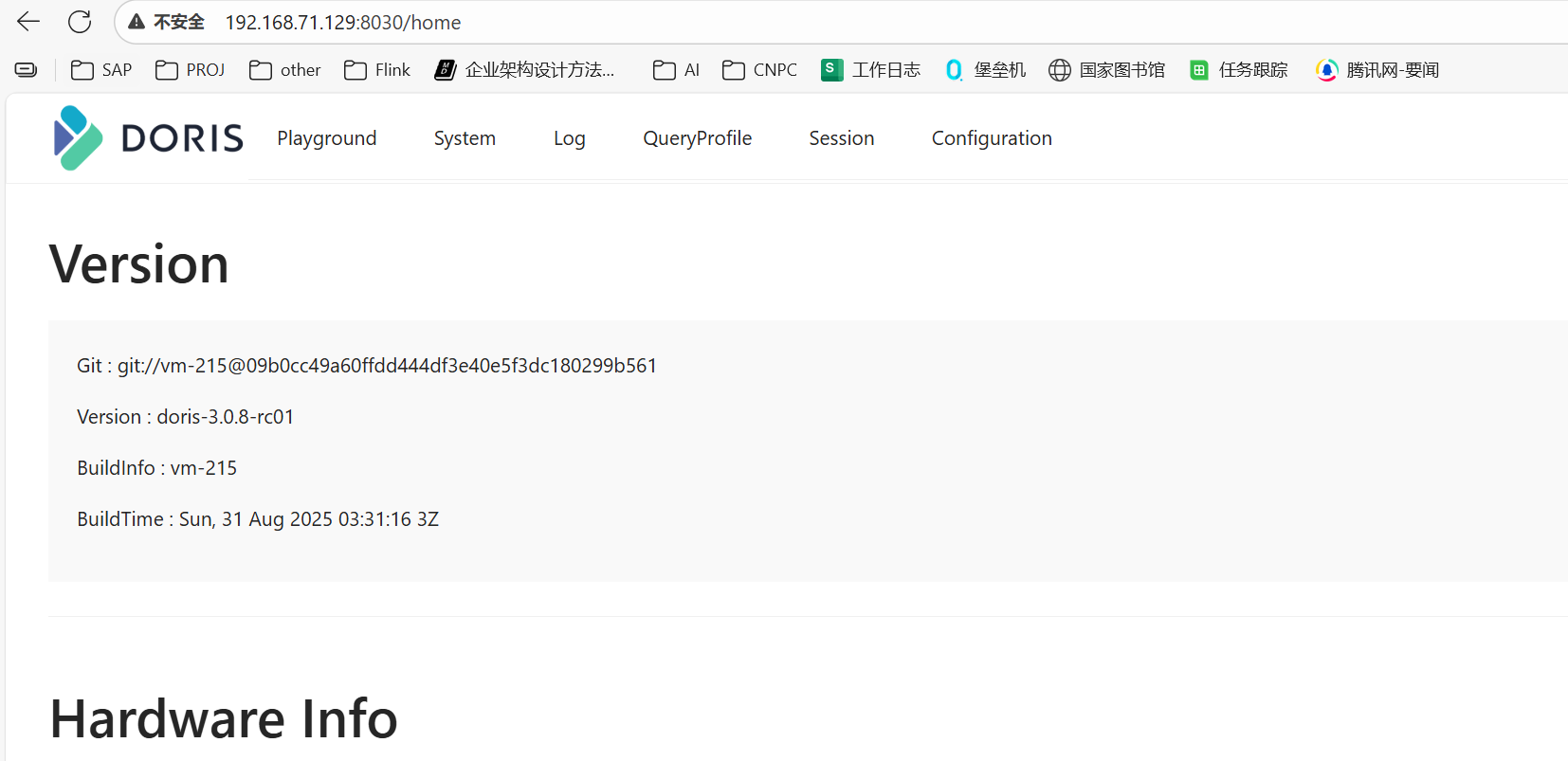

1. 打开页面：http://mydoris:8030/

2. 用户 root 密码 空
   ​
   ​

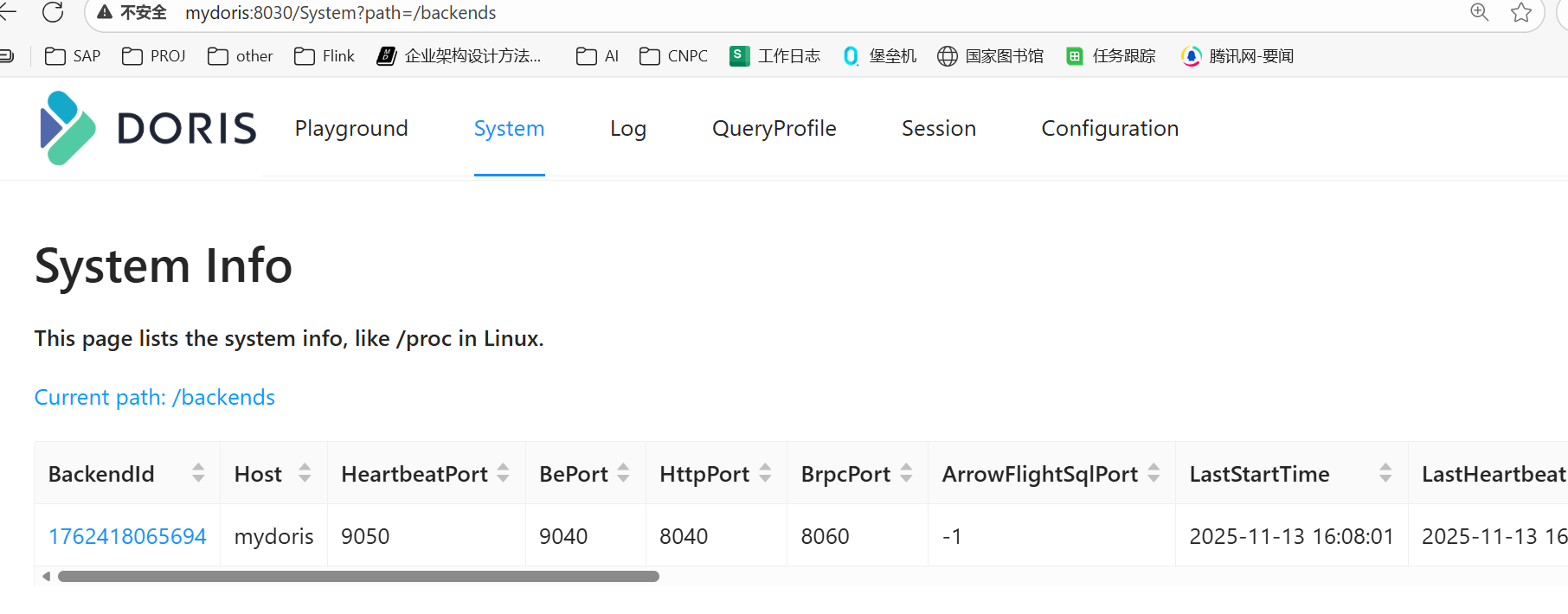

3. 检查BE注册情况
   ​

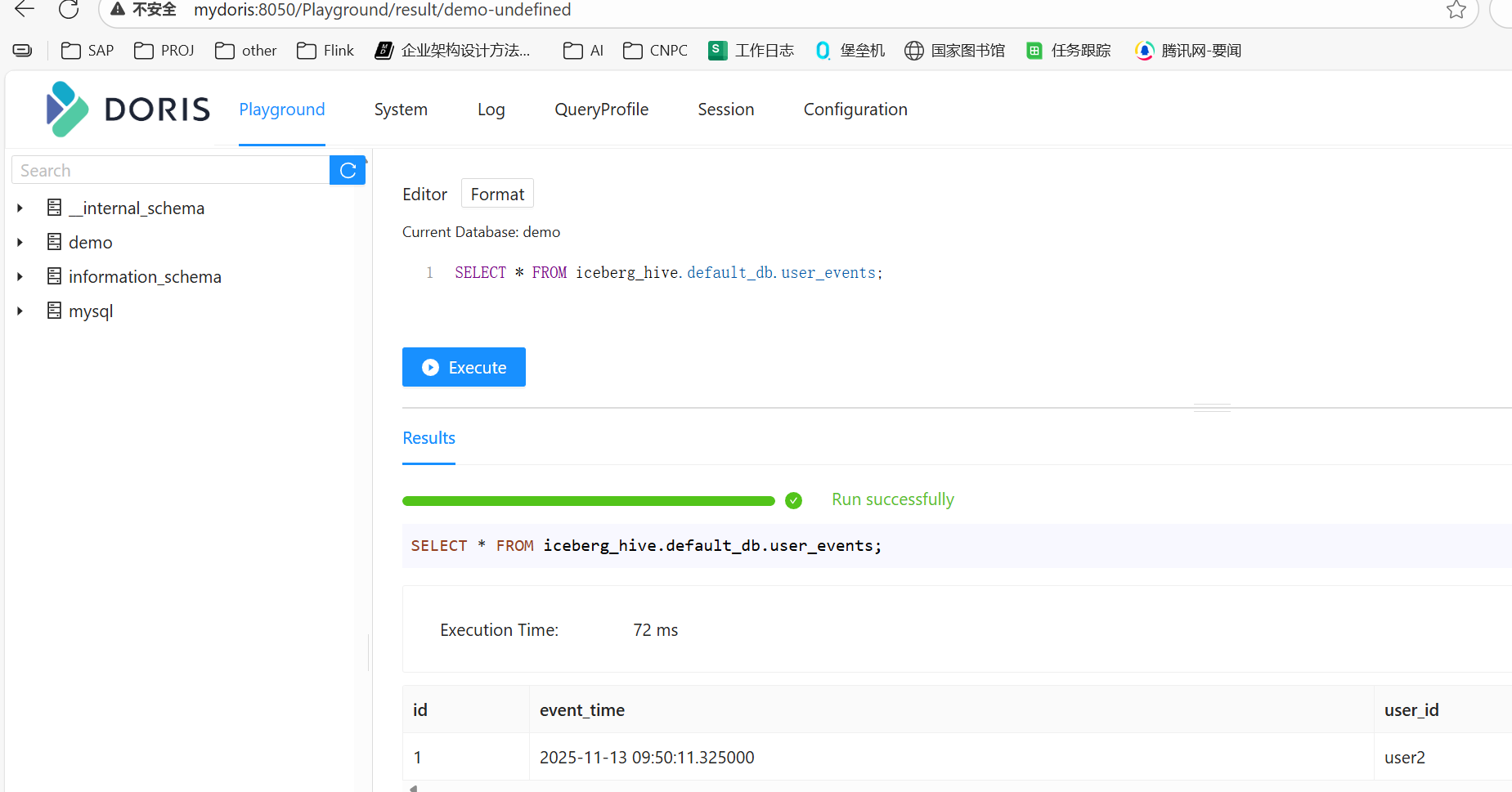

4. 查询iceberg表数据

   -- 查看 Catalog
   SHOW CATALOGS;
   -- 切换 catalog
   SWITCH iceberg_hive;
   -- 查看 database
   SHOW DATABASES;
   -- 切换 database
   USE default_db;
   -- 查看表
   show tables;
   -- 查看数据
   SELECT * FROM iceberg_hive.default_db.user_events;




修改root 密码

默认root密码为空，需修改为非空

mysql -h mydoris -P 9030 -uroot
SET PASSWORD FOR 'root' = PASSWORD('Admin1234');

计算引擎 Flink 1.18.1

安装配置

1. 将压缩包 flink-1.18.1-bin-scala_2.12.gz上传到服务器
2. 解压安装
   tar -zxvf flink-1.18.1-bin-scala_2.12.tgz -C /opt/module/

3. 配置环境变量

   sudo vim /etc/profile.d/myprofile.sh
   #设置 flink 环境变量
   export FLINK_HOME=/opt/module/flink-1.18.1
   export PATH=$FLINK_HOME/bin:$PATH# 配置生效
   source /etc/profile

4. 配置flink-conf

   vim $FLINK_HOME/conf/flink-conf.yaml
   # flink web ui 可在外部访问
   rest.bind-address: 0.0.0.0
   rest.address: mydoris
   # 设置taskmanager有4个作业Slot
   taskmanager.numberOfTaskSlots: 4

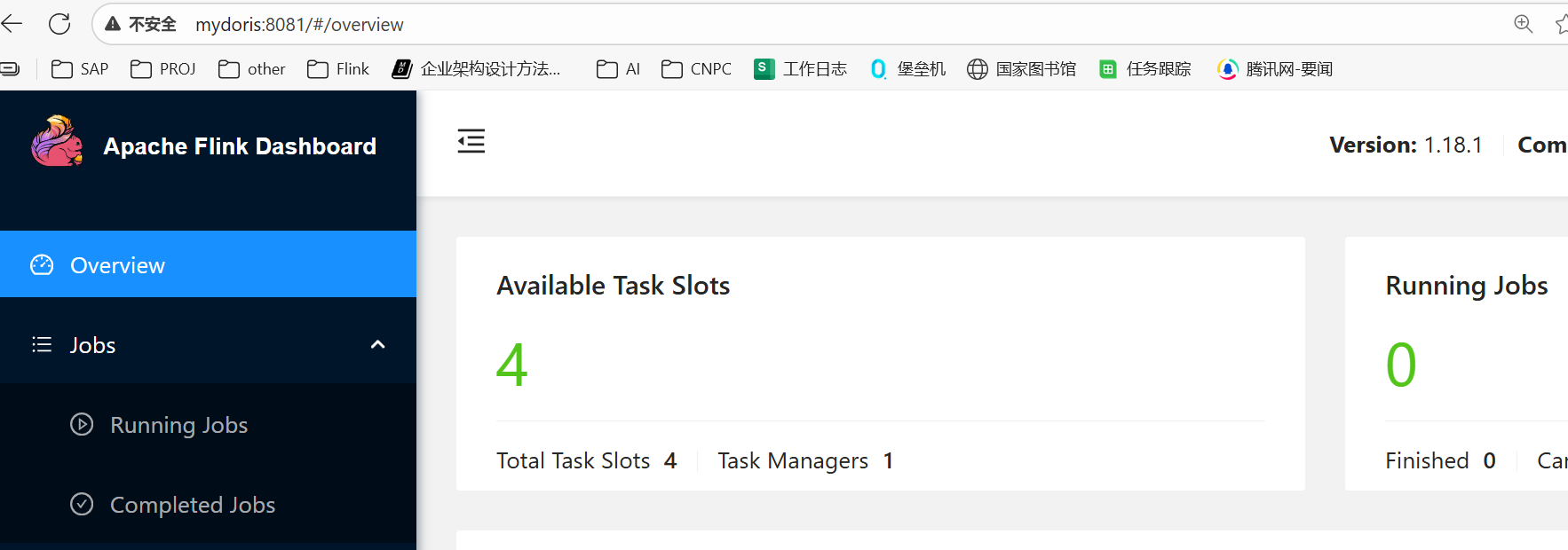

5. 启动集群：$FLINK_HOME/bin/start-cluster.sh
6. 访问Flink Web UI
   http://mydoris:8081


启停脚本

	#!/bin/bash# 检查是否传入参数if [ $# -lt 1 ]; thenecho "No Args Input..."echo "Usage: $0 {start|stop}"exit 1fi# 定义环境变量JAVA_HOME="/opt/module/jdk-17.0.10"FLINK_HOME=${FLINK_HOME:-"/opt/module/flink-1.18.1"} # 如果未设置 FLINK_HOME，则使用默认路径# 获取命令参数case $1 in"start")echo "============== 启动 Flink 集群 ==================="# 检查 FLINK_HOME 是否有效if [ ! -d "$FLINK_HOME" ]; thenecho "Error: FLINK_HOME ($FLINK_HOME) 路径不存在，请检查配置。"exit 1fi# 启动 Flink 集群ssh mydoris "export JAVA_HOME=$JAVA_HOME && ${FLINK_HOME}/bin/start-cluster.sh";;"stop")echo "============== 关闭 Flink 集群 ==================="# 检查 FLINK_HOME 是否有效if [ ! -d "$FLINK_HOME" ]; thenecho "Error: FLINK_HOME ($FLINK_HOME) 路径不存在，请检查配置。"exit 1fi# 停止 Flink 集群ssh mydoris "export JAVA_HOME=$JAVA_HOME && ${FLINK_HOME}/bin/stop-cluster.sh";;*)echo "Input Args Error... Usage: $0 {start|stop}"exit 1;;esac

场景练习

Iceberg 建表

1. 创建 SQL 初始化文件

2. cat > $FLINK_HOME/conf/init-iceberg.sql <<'EOF'
   -- 创建 Iceberg catalog
   CREATE CATALOG iceberg_hms WITH ('type' = 'iceberg','catalog-type' = 'hive','uri' = 'thrift://mydoris:9083','warehouse' = 'hdfs://mydoris:9000/user/hive/warehouse','clients' = '5'
   );
   EOF

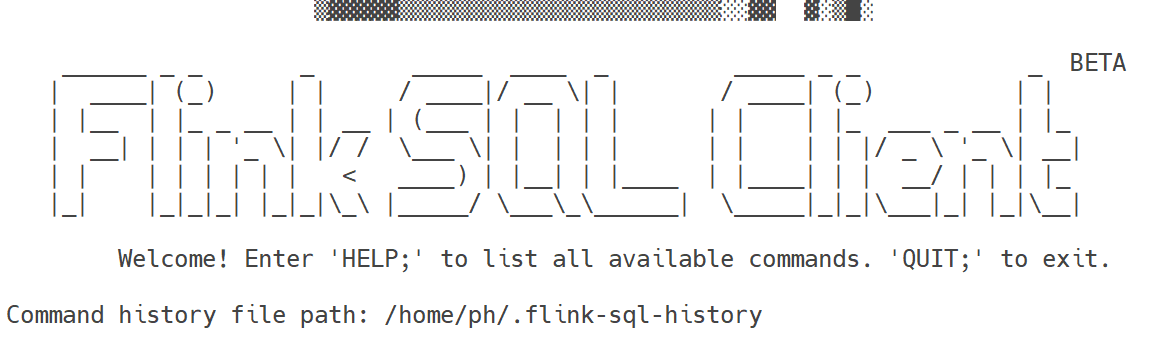

3. 打开客户端

   $FLINK_HOME/bin/sql-client.sh -i $FLINK_HOME/conf/init-iceberg.sql




   # 客户端启动有问题，可临时使用日志
   # 临时开启 SQL Client 的 DEBUG 日志
   # 备份原日志配置
   cp $FLINK_HOME/conf/log4j-cli.properties $FLINK_HOME/conf/log4j-cli.properties.bak
   # 添加 DEBUG 配置
   cat >> $FLINK_HOME/conf/log4j-cli.properties <<EOFlogger.iceberg.name = org.apache.iceberg
   logger.iceberg.level = DEBUG
   logger.client.name = org.apache.flink.table.client
   logger.client.level = DEBUG
   EOF
   # 启动 SQL Client 并查看日志
   cat  /opt/module/flink-1.18.1/log/flink-ph-sql-client-mydoris.log


4. 操作数据表

   -- 如果不是 iceberg_hms，则需切换或加前缀
   SHOW CATALOGS;
   SHOW CURRENT CATALOG;
   USE CATALOG iceberg_hms;
   --
   SHOW DATABASES;
   -- 创建数据库（如果 default_db 不存在）
   CREATE DATABASE IF NOT EXISTS default_db;
   -- 切换到该库
   USE default_db;
   -- 在 Iceberg 中建表
   CREATE TABLE default_db.user_events (id BIGINT,event_time TIMESTAMP(3),user_id STRING,event_type STRING
   ) PARTITIONED BY (event_time)
   WITH ('write.format.default' = 'parquet','write.target-file-size-bytes' = '536870912',  -- 512MB'format-version' = '2'
   );
   -- 看有哪些表
   SHOW TABLES;
   -- 描述表
   DESCRIBE user_events;
   -- 插入数据
   INSERT INTO user_events VALUES (1, NOW(), 'user2', 'click');
   -- 查询数据
   SELECT * FROM user_events;

5. 在mysql通过查询元数据看iceberg中有哪些表

   SELECT t.TBL_NAME FROM TBLS t JOIN TABLE_PARAMS p ON t.TBL_ID = p.TBL_ID WHERE p.PARAM_KEY = 'table_type' AND p.PARAM_VALUE = 'ICEBERG';



flink CDC

1. 解压安装 flink-cdc-3.0.0-bin.tar.gz
   tar -xzvf flink-cdc-3.0.0-bin.tar.gz

2. 将连接器上载到lib

   ph@mydoris:/opt/module/flink-cdc-3.0.0/lib$ ls *pip*con*
   flink-cdc-pipeline-connector-doris-3.0.0.jar
   flink-cdc-pipeline-connector-mysql-3.0.0.jar




3. 开启 checkpoint

   vim $FLINK_HOME/conf/flink-conf.yaml# 每15一次
   execution.checkpointing.interval: 15000# 重启集群
   $FLINK_HOME/bin/stop-cluster.sh
   $FLINK_HOME/bin/start-cluster.sh

4. 在mysql数据库准备同步数据

   -- 创建数据库
   CREATE DATABASE app_db;USE app_db;-- 创建 orders 表
   CREATE TABLE `orders` (
   `id` INT NOT NULL,
   `price` DECIMAL(10,2) NOT NULL,
   PRIMARY KEY (`id`)
   );-- 插入数据
   INSERT INTO `orders` (`id`, `price`) VALUES (1, 4.00);
   INSERT INTO `orders` (`id`, `price`) VALUES (2, 100.00);-- 创建 shipments 表
   CREATE TABLE `shipments` (
   `id` INT NOT NULL,
   `city` VARCHAR(255) NOT NULL,
   PRIMARY KEY (`id`)
   );-- 插入数据
   INSERT INTO `shipments` (`id`, `city`) VALUES (1, 'beijing');
   INSERT INTO `shipments` (`id`, `city`) VALUES (2, 'xian');-- 创建 products 表
   CREATE TABLE `products` (
   `id` INT NOT NULL,
   `product` VARCHAR(255) NOT NULL,
   PRIMARY KEY (`id`)
   );-- 插入数据
   INSERT INTO `products` (`id`, `product`) VALUES (1, 'Beer');
   INSERT INTO `products` (`id`, `product`) VALUES (2, 'Cap');
   INSERT INTO `products` (`id`, `product`) VALUES (3, 'Peanut');

5. 在doris中创建数据库

   create database app_db;

6. 创建整库同步任务配置文件
   mysql-to-doris.yaml

   ################################################################################
   # Description: Sync MySQL all tables to Doris
   ################################################################################
   source:type: mysqlhostname: mydorisport: 3306username: rootpassword: Admin1234tables: app_db.\.*server-id: 5400-5404server-time-zone: UTC+8sink:type: dorisfenodes: mydoris:8030username: rootpassword: "Admin1234"table.create.properties.light_schema_change: truetable.create.properties.replication_num: 1pipeline:name: Sync MySQL Database to Dorisparallelism: 2


7. 通过命令行提交任务到 Flink Standalone cluster


   ph@mydoris:/opt/module/flink-cdc-3.0.0/yaml$ /opt/module/flink-cdc-3.0.0/bin/flink-cdc.sh mysql-to-doris.yaml
   Pipeline has been submitted to cluster.
   Job ID: daf31e7e87299e00dcd398ae217874d8
   Job Description: Sync MySQL Database to Doris

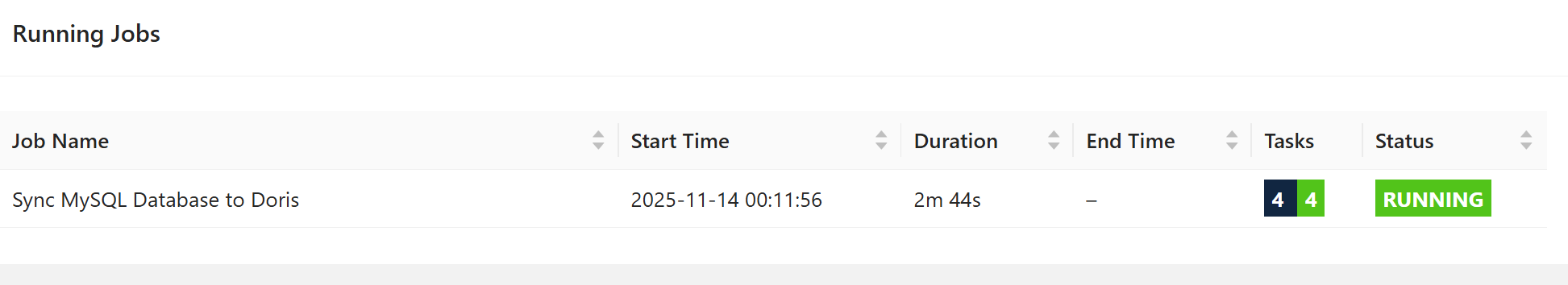

8. 查看作业

9. 查看表已经同步
