三、ingress全面详解： 实例配置及访问

news 2025/11/14 9:43:49

说在开头：本文所 实例放在结尾，测试实验可先跳至文末提取。需要注意修改image源

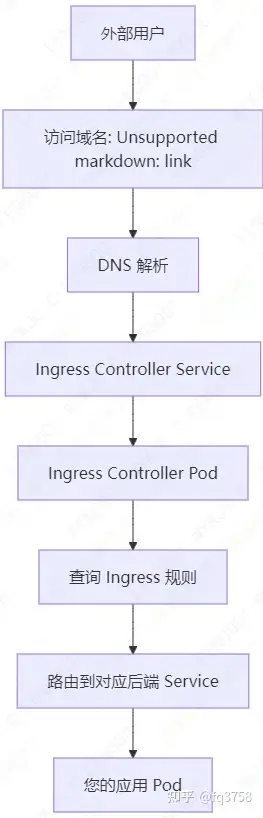

访问流程图

步骤一：确认 Ingress 环境就绪

1.1 检查 Ingress Controller 状态

# 检查 ingress controller 的 Pod 是否运行
kubectl get pods -n ingress-nginx# 检查 ingress controller 的 Service
kubectl get svc -n ingress-nginx

实例输出：

[root@k8s-m01 ~]# kubectl -n ingress-nginx get pods
NAME                                       READY   STATUS    RESTARTS        AGE
ingress-nginx-controller-f7c47664d-mtrt4   1/1     Running   6 (6m51s ago)   5h15m
[root@k8s-m01 ~]# kubectl -n ingress-nginx get svc
NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller             NodePort    10.107.119.188   <none>        80:30458/TCP,443:30634/TCP   5h15m
ingress-nginx-controller-admission   ClusterIP   10.102.128.196   <none>        443/TCP                      5h15m
[root@k8s-m01 ~]#

1.2 检查应用和 Service

# 检查应用 Pod
kubectl get pods -l app=my-app# 检查 Service
kubectl get svc my-app-service

实例输出：

[root@k8s-m01 ~]# kubectl get pod --show-labels
NAME                                READY   STATUS    RESTARTS        AGE     LABELS
apple-app-5955985997-4wc4b          1/1     Running   4 (9m1s ago)    5h51m   app=apple,pod-template-hash=5955985997
apple-app-5955985997-5vxcp          1/1     Running   4 (8m59s ago)   5h51m   app=apple,pod-template-hash=5955985997
banana-app-5fc5fb864b-bpfh8         1/1     Running   4 (8m59s ago)   5h51m   app=banana,pod-template-hash=5fc5fb864b
banana-app-5fc5fb864b-h55ld         1/1     Running   4 (8m59s ago)   5h51m   app=banana,pod-template-hash=5fc5fb864b
nginx-deployment-5c89bd966f-4979d   1/1     Running   4 (8m59s ago)   5h51m   app=nginx,pod-template-hash=5c89bd966f
nginx-deployment-5c89bd966f-q72fm   1/1     Running   4 (8m59s ago)   5h51m   app=nginx,pod-template-hash=5c89bd966f
nginx-deployment-5c89bd966f-x62b9   1/1     Running   4 (9m1s ago)    5h51m   app=nginx,pod-template-hash=5c89bd966f
[root@k8s-m01 ~]# kubectl get svc  -o wide
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE    SELECTOR
apple-service    ClusterIP   10.107.5.38     <none>        80/TCP    22h    app=apple
banana-service   ClusterIP   10.108.121.94   <none>        80/TCP    22h    app=banana
kubernetes       ClusterIP   10.96.0.1       <none>        443/TCP   15d    <none>
nginx-service    ClusterIP   10.106.32.140   <none>        80/TCP    5d3h   app=nginx

1.3 检查 Ingress 资源

# 查看已创建的 Ingress
kubectl get ingress# 查看 Ingress 详细信息
kubectl describe ingress my-app-ingress

实例输出：

[root@k8s-m01 ~]# kubectl get ingress
NAME              CLASS   HOSTS                 ADDRESS          PORTS   AGE
example-ingress   nginx   minikube.local        192.168.80.103   80      22h
minimal-ingress   nginx   example.ingress.com   192.168.80.103   80      5d3h
[root@k8s-m01 ~]# kubectl describe ingress example-ingress
Name:             example-ingress
Labels:           <none>
Namespace:        default
Address:          192.168.80.103
Ingress Class:    nginx
Default backend:  <default>
Rules:Host            Path  Backends----            ----  --------minikube.local/apple    apple-service:80 (10.244.1.105:80,10.244.1.110:80)/banana   banana-service:80 (10.244.1.106:80,10.244.1.107:80)
Annotations:      nginx.ingress.kubernetes.io/rewrite-target: /
Events:Type    Reason  Age                    From                      Message----    ------  ----                   ----                      -------Normal  Sync    6h55m (x3 over 6h56m)  nginx-ingress-controller  Scheduled for syncNormal  Sync    5h1m (x2 over 5h2m)    nginx-ingress-controller  Scheduled for syncNormal  Sync    153m (x3 over 154m)    nginx-ingress-controller  Scheduled for syncNormal  Sync    50m (x3 over 51m)      nginx-ingress-controller  Scheduled for syncNormal  Sync    39m (x3 over 40m)      nginx-ingress-controller  Scheduled for syncNormal  Sync    7m13s (x3 over 8m13s)  nginx-ingress-controller  Scheduled for sync

步骤二：获取访问入口地址

根据你的环境选择相应的方法：

2.1 本地环境（Docker Desktop / Kind）

# 查看 Service 的 NodePort
kubectl get svc -n ingress-nginx ingress-nginx-controller

使用 localhost 或节点 IP + NodePort 访问

2.2 裸机环境

# 获取节点的 IP 地址
kubectl get nodes -o wide# 获取 NodePort
kubectl get svc -n ingress-nginx ingress-nginx-controller

使用节点 IP + NodePort 访问

实例输出：

[root@k8s-m01 ~]# kubectl -n ingress-nginx get svc ingress-nginx-controller
NAME                       TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller   NodePort   10.107.119.188   <none>        80:30458/TCP,443:30634/TCP   5h24m
[root@k8s-m01 ~]# kubectl -n ingress-nginx get pod -o wide
NAME                                       READY   STATUS    RESTARTS      AGE     IP             NODE      NOMINATED NODE   READINESS GATES
ingress-nginx-controller-f7c47664d-mtrt4   1/1     Running   6 (16m ago)   5h24m   10.244.1.102   k8s-n02   <none>           <none>
[root@k8s-m01 ~]# kubectl get node -o wide
NAME      STATUS   ROLES           AGE   VERSION   INTERNAL-IP      EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION              CONTAINER-RUNTIME
k8s-m01   Ready    control-plane   15d   v1.34.0   192.168.80.101   <none>        CentOS Linux 7 (Core)   6.6.9-1.el7.elrepo.x86_64   docker://26.1.3
k8s-n01   Ready    <none>          14d   v1.34.0   192.168.80.102   <none>        CentOS Linux 7 (Core)   6.6.9-1.el7.elrepo.x86_64   docker://26.1.4
k8s-n02   Ready    <none>          14d   v1.34.0   192.168.80.103   <none>        CentOS Linux 7 (Core)   6.6.9-1.el7.elrepo.x86_64   docker://26.1.4

步骤三：配置域名解析

3.1 生产环境 - 配置真实 DNS

在域名服务商处添加 A 记录：

  • 记录类型：A
  • 主机记录：my-app（或 @ 表示根域名）
  • 记录值：EXTERNAL-IP（步骤二获取的）

3.2 测试环境 - 配置本地 hosts 文件

注意： 解析的IP地址，是ingress-nginx-controller的POD后在的node节点的IP地址。

Windows 系统：

# 以管理员身份运行记事本或 PowerShell，编辑：
notepad C:\Windows\System32\drivers\etc\hosts# 添加记录（将 IP 替换为你的实际 IP）：
192.168.80.103 example.ingress.com
192.168.80.103 minikube.local

Linux/Mac 系统：

sudo vim /etc/hosts# 添加记录：
192.168.80.103 example.ingress.com
192.168.80.103 minikube.local

实例输出：

[root@k8s-m01 ~]# kubectl get ingress
NAME              CLASS   HOSTS                 ADDRESS          PORTS   AGE
example-ingress   nginx   minikube.local        192.168.80.103   80      23h
minimal-ingress   nginx   example.ingress.com   192.168.80.103   80      5d3h
[root@k8s-m01 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6192.168.80.101   k8s-m01
192.168.80.102   k8s-n01
192.168.80.103   k8s-n02
192.168.80.104   k8s-n03192.168.80.100 harbor.fq.com
192.168.80.103 example.ingress.com
192.168.80.103 minikube.local

步骤四：访问应用

使用节点 IP + NodePort 访问

[root@k8s-m01 ~]# kubectl -n ingress-nginx get svc
NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller             NodePort    10.107.119.188   <none>        80:30458/TCP,443:30634/TCP   5h47m

4.1 使用浏览器访问

直接在浏览器地址栏输入：

http://my-app.example.com：30458

4.2 使用命令行测试

# 使用 curl 测试
curl http://my-app.example.com:NodePort# 详细测试（显示响应头）
curl -v http://my-app.example.com# 测试特定路径（如果配置了路径路由）
curl http://my-app.example.com/api/v1/users

实例输出：

[root@k8s-m01 ~]# curl http://example.ingress.com:30458
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p><p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p><p><em>Thank you for using nginx.</em></p>
</body>
</html>[root@k8s-m01 ~]# curl http://minikube.local:30458/apple
<html><body><h1>I am a apple!</h1></body></html>
[root@k8s-m01 ~]# curl http://minikube.local:30458/banana
<html><body><h1>I am a banana!</h1></body></html>

4.3 测试不同域名（如果配置了多域名）

# 假设你还配置了 api.example.com
curl http://api.example.com

步骤五：验证和排查

如果无法访问，按以下顺序排查：

5.1 检查 DNS 解析

# 检查域名是否解析到正确 IP
nslookup my-app.example.com
# 或
ping my-app.example.com

5.2 检查网络连通性

# 测试是否能访问到入口 IP
telnet <EXTERNAL-IP> 80# 或使用 curl 测试 IP（绕过 DNS）
curl http://<EXTERNAL-IP> -H "Host: my-app.example.com"

5.3 检查 Ingress 日志

# 查看 ingress controller 日志
kubectl logs -n ingress-nginx deployment/ingress-nginx-controller -f# 查看具体的 ingress 资源事件
kubectl describe ingress my-app-ingress

5.4 检查后端应用

# 直接访问 Service 测试后端
kubectl port-forward svc/my-app-service 8080:80
# 然后在浏览器访问 http://localhost:8080

访问路径处理方案

实例一、应用部署文件（ingress-nginx-demo.yaml）

[root@k8s-m01 YAML]# cat ingress-nginx-demo.yaml
apiVersion: apps/v1
kind: Deployment
metadata:name: nginx-deployment
spec:selector:matchLabels:app: nginxreplicas: 3template:metadata:labels:app: nginxspec:#imagePullSecrets:#  - name: harbor-secretcontainers:- name: nginximage: harbor.fq.com/public/nginx:1.27.3ports:- containerPort: 80---
apiVersion: v1
kind: Service
metadata:labels:app: nginxname: nginx-service
spec:ports:- port: 80name: nginx-serviceprotocol: TCPtargetPort: 80selector:app: nginxtype: ClusterIP---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:name: minimal-ingressannotations:nginx.ingress.kubernetes.io/rewrite-target: /
spec:ingressClassName: nginxrules:- host: example.ingress.comhttp:paths:- path: /pathType: Prefixbackend:service:name: nginx-serviceport:number: 80

实例二 、 基于路径的路由：多path路径实例（fruits-ingress.yaml）

[root@k8s-m01 YAML]# cat apple.yaml
# apple.yaml
apiVersion: apps/v1
kind: Deployment
metadata:name: apple-app
spec:replicas: 2selector:matchLabels:app: appletemplate:metadata:labels:app: applespec:containers:- name: apple-containerimage: harbor.fq.com/public/nginx:1.27.3ports:- containerPort: 80command:- /bin/sh- -c- |echo "<html><body><h1>I am a apple!</h1></body></html>" > /usr/share/nginx/html/index.htmlnginx -g 'daemon off;'
---
apiVersion: v1
kind: Service
metadata:name: apple-service
spec:selector:app: appleports:- port: 80targetPort: 80[root@k8s-m01 YAML]# cat banana.yaml
#banana.yaml
apiVersion: apps/v1
kind: Deployment
metadata:name: banana-app
spec:replicas: 2selector:matchLabels:app: bananatemplate:metadata:labels:app: bananaspec:containers:- name: banana-containerimage: harbor.fq.com/public/nginx:1.27.3ports:- containerPort: 80command:- /bin/sh- -c- |echo "<html><body><h1>I am a banana!</h1></body></html>" > /usr/share/nginx/html/index.htmlnginx -g 'daemon off;'
---
apiVersion: v1
kind: Service
metadata:name: banana-service
spec:selector:app: bananaports:- port: 80targetPort: 80
[root@k8s-m01 YAML]# cat fruits-ingress.yaml
# ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:name: fruits-ingressannotations:# 某些场景下可能需要注解，这里是一个通用示例nginx.ingress.kubernetes.io/rewrite-target: /
spec:ingressClassName: nginx # 指定使用 nginx ingress controllerrules:- host: fruits.local # 假设的域名，在测试机上需要配置 hosts 文件http:paths:- path: /applepathType: Prefixbackend:service:name: apple-serviceport:number: 80- path: /bananapathType: Prefixbackend:service:name: banana-serviceport:number: 80

访问验证

[root@k8s-m01 ~]# curl http://minikube.local:31913/apple
<html><body><h1>I am a apple!</h1></body></html>[root@k8s-m01 ~]# curl http://minikube.local:31913/banana
<html><body><h1>I am a banana!</h1></body></html>

实例三、基于主机名的路由：多host实例（fruits-ingress-multi-host.yaml）

# fruits-ingress-multi-host.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:name: fruits-ingressannotations:nginx.ingress.kubernetes.io/rewrite-target: /
spec:ingressClassName: nginxrules:# 访问 apple 服务- host: apple.localhttp:paths:- path: /pathType: Prefixbackend:service:name: apple-serviceport:number: 80# 访问 banana 服务- host: banana.localhttp:paths:- path: /pathType: Prefixbackend:service:name: banana-serviceport:number: 80

访问验证

[root@k8s-m01 YAML]# echo "192.168.80.102 apple.local" >> /etc/hosts
[root@k8s-m01 YAML]# echo "192.168.80.102 banana.local" >> /etc/hosts[root@k8s-m01 YAML]# curl -k http://banana.local:30287
<html><body><h1>I am a banana!</h1></body></html>
[root@k8s-m01 YAML]# curl -k http://apple.local:30287
<html><body><h1>I am a apple!</h1></body></html>

实例四、 高级访问方式 HTTPS 访问

1、创建自签名证书

# 生成自签名证书（banana.local）
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \-keyout banana.key -out banana.crt \-subj "/CN=banana.local/O=banana"# 创建 Kubernetes Secret（供容器和 Ingress 共用）
kubectl create secret tls banana-tls \--cert=banana.crt \--key=banana.key

2、检查 secrets

[root@k8s-m01 YAML]# kubectl get secrets
NAME            TYPE                             DATA   AGE
banana-tls      kubernetes.io/tls                2      17h
harbor-secret   kubernetes.io/dockerconfigjson   1      15d

3、修改banana的配置，添加tls认证，端口修改为443 banana-tls-deployment.yaml

#  banana-tls-deployment.yaml（修正版）
apiVersion: apps/v1
kind: Deployment
metadata:name: banana-app
spec:replicas: 2selector:matchLabels:app: bananatemplate:metadata:labels:app: bananaspec:containers:- name: banana-containerimage: harbor.fq.com/public/nginx:1.27.3ports:- containerPort: 443volumeMounts:- name: banana-certmountPath: /etc/nginx/sslcommand:- /bin/sh- -c- |cat <<EOF > /etc/nginx/conf.d/default.confserver {listen 443 ssl;server_name banana.local;ssl_certificate /etc/nginx/ssl/tls.crt;ssl_certificate_key /etc/nginx/ssl/tls.key;ssl_protocols TLSv1.2 TLSv1.3;location / {root /usr/share/nginx/html;index index.html;}}EOFecho "<html><body><h1>I am a banana! 🍌 (Full HTTPS OK)</h1></body></html>" > /usr/share/nginx/html/index.htmlnginx -g 'daemon off;'volumes:- name: banana-certsecret:secretName: banana-tls
---
apiVersion: v1
kind: Service
metadata:name: banana-service
spec:selector:app: bananaports:- name: httpsport: 443targetPort: 443

5、修改ingress的配置文件fruits-ingress-tls.yaml

# fruits-ingress-tls.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:name: fruits-ingressannotations:nginx.ingress.kubernetes.io/rewrite-target: /nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
spec:ingressClassName: nginxrules:- host: apple.localhttp:paths:- path: /pathType: Prefixbackend:service:name: apple-serviceport:number: 80- host: banana.localhttp:paths:- path: /pathType: Prefixbackend:service:name: banana-serviceport:number: 443tls:- hosts:- banana.localsecretName: banana-tls

6、访问验证 通过下面信息，可以看出通过https能正常访问到banana文件，apple因使用的是80端口，不能正常访问

[root@k8s-m01 YAML]# kubectl -n ingress-nginx get svc
NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx-controller             NodePort    10.110.109.165   <none>        80:30287/TCP,443:31910/TCP   2d18h
ingress-nginx-controller-admission   ClusterIP   10.109.240.117   <none>        443/TCP                      2d18h[root@k8s-m01 YAML]# kubectl get ingress
NAME              CLASS   HOSTS                      ADDRESS          PORTS     AGE
fruits-ingress    nginx   apple.local,banana.local   192.168.80.102   80, 443   16h
minimal-ingress   nginx   example.ingress.com        192.168.80.102   80        14d[root@k8s-m01 YAML]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6192.168.80.101   k8s-m01
192.168.80.102   k8s-n01
192.168.80.103   k8s-n02
192.168.80.104   k8s-n03192.168.80.100 harbor.fq.com
192.168.80.103 example.ingress.com
#192.168.80.103 fruits.local
192.168.80.102 service2.example.com
192.168.80.102 service1.example.com
192.168.80.102 example.ingress.com
192.168.80.102 fruits.local
192.168.80.103 service1.example.com
192.168.80.103 service2.example.com
192.168.80.102 apple.local
192.168.80.102 banana.local[root@k8s-m01 YAML]# curl -k https://banana.local:31910
<html><body><h1>I am a banana! 🍌 (Full HTTPS OK)</h1></body></html>    #  通https访问到了banana
[root@k8s-m01 YAML]# curl -k http://banana.local:31910
<html>
<head><title>400 The plain HTTP request was sent to HTTPS port</title></head>
<body>
<center><h1>400 Bad Request</h1></center>
<center>The plain HTTP request was sent to HTTPS port</center>
<hr><center>nginx</center>
</body>
</html>[root@k8s-m01 YAML]# curl -k https://apple.local:31910
<html>
<head><title>502 Bad Gateway</title></head>
<body>
<center><h1>502 Bad Gateway</h1></center>
<hr><center>nginx</center>
</body>
</html>[root@k8s-m01 YAML]# curl -k http://apple.local:31910
<html>
<head><title>400 The plain HTTP request was sent to HTTPS port</title></head>
<body>
<center><h1>400 Bad Request</h1></center>
<center>The plain HTTP request was sent to HTTPS port</center>
<hr><center>nginx</center>
</body>
</html>

# 查看 ingress controller 的实时访问日志
kubectl logs -n ingress-nginx deployment/ingress-nginx-controller -f --tail=10 nginx
# 查看 ingress controller 的实时访问日志
kubectl logs -n ingress-nginx deployment/ingress-nginx-controller -f --tail=10
http://www.dtcms.com/a/606334.html

相关文章：

  • 商丘三合一网站建设云南做网站费用
  • 用php做京东网站页面产品开发流程6个步骤
  • 北京网站seo推广上海有名的效果图公司
  • Windows下 AutoGen（二）Autogen Studio
  • 用别人公司名字做网站违法么中国建设招标网 官方网站下载
  • 2026中国（济南）国际化工装备与智能制造展览会将于3月9日举办
  • Linux入门攻坚——54、SCSI与iSCSI协议初步
  • 如何在需求文档不清导致返工后改进流程
  • 网站建设简运维 简历宣武深圳网站建设公司
  • 自己做相册的网站免费域名注册查询入口
  • 深圳企业网站建设费用楚雄 网站建设
  • 使用goaccess监控系统
  • Go语言使用的编译器 | 入门到实战全解析
  • 成都网站建设制作网络与智能媒体设计 干什么?
  • Flink 的 RocksDB 状态后端在 vivo 的实践
  • 5-脱氧-5-甲硫腺苷标记生物素，5-MTA-Biotin，Biotin-5-脱氧-5-甲硫腺苷，5-MTA-生物素复合物
  • 怎么做自己的网站免费进入公众号继续阅读下一章
  • fastapi项目结构
  • 家居网站建设方案wordpress 3.8下载
  • 一般网站建设需求有哪些方面找人注册公司需要多少钱
  • 聚焦Solana做多做空场景，XBIT以多维工具与合规架构筑牢交易价值根基
  • 数字货币的“iPhone时刻”：从概念到规模应用的挑战与突破路径
  • 备案时填写 网站内容图片类的wordpress
  • .net按地址动态调用VC++DLL将非托管DLL中的函数地址转换为.NET可调用的委托
  • 为什么要使用 .asStateFlow() 而不是直接赋值？
  • ICMP timestamp请求响应漏洞 处理
  • 绍兴市建设局网站信金在线制作网站
  • 深入解析 ZooKeeper 3.5.7 配置文件 zoo.cfg —— 每个参数的用途与场景详解
  • LeetcodeHot100|76.最小覆盖子串
  • GPIO中断实现流程
