webrtc降噪-PriorSignalModelEstimator类源码分析与算法原理

news 2025/11/13 5:29:42

PriorSignalModelEstimator在WebRTC噪声抑制系统中承担先验模型参数估计的核心角色。该类通过分析LRT、频谱平坦度和频谱差异三个特征的统计直方图，动态估计噪声检测的关键阈值。采用峰值检测、波动性分析和自适应权重分配算法，它能智能区分语音与噪声状态。基于直方图统计学习，自动调整各特征的检测阈值和贡献权重，确保噪声抑制系统在不同音频环境下都能保持最佳性能。这种自适应性显著提升了WebRTC在复杂场景中的语音增强效果和系统鲁棒性。

1. 核心功能

PriorSignalModelEstimator类负责估计先验信号模型参数，用于噪声抑制中的语音/噪声概率估计。它通过分析音频特征的统计直方图，动态调整噪声检测的阈值参数。

2. 核心算法原理

2.1 LRT特征更新算法

// LRT特征更新算法数学原理：
// 平均值计算：μ = Σ(hist[i] * bin_mid) / count
// 平方平均值：E[x²] = Σ(hist[i] * bin_mid²) / window_size
// 波动性判断：E[x²] - μ * E[x] < 0.05void UpdateLrt(rtc::ArrayView<const int, kHistogramSize> lrt_histogram,float* prior_model_lrt, bool* low_lrt_fluctuations) {// 计算前10个bin的平均值（主要关注低LRT区域）for (int i = 0; i < 10; ++i) {float bin_mid = (i + 0.5f) * kBinSizeLrt;average += lrt_histogram[i] * bin_mid;  // 加权平均count += lrt_histogram[i];}// 计算整个直方图的统计量for (int i = 0; i < kHistogramSize; ++i) {float bin_mid = (i + 0.5f) * kBinSizeLrt;average_squared += lrt_histogram[i] * bin_mid * bin_mid;  // 平方平均average_compl += lrt_histogram[i] * bin_mid;              // 完整平均}// 判断LRT波动性：方差较小表示稳定噪声状态*low_lrt_fluctuations = average_squared - average * average_compl < 0.05f;// 根据波动性设置LRT阈值if (*low_lrt_fluctuations) {*prior_model_lrt = kMaxLrt;  // 低波动→很可能是噪声→高LRT阈值} else {*prior_model_lrt = std::min(kMaxLrt, std::max(kMinLrt, 1.2f * average));}
}

2.2 双峰检测与合并算法

// 双峰检测算法：寻找直方图中最大的两个峰值
// 如果两峰距离小于2*bin_size且权重相近，则合并void FindFirstOfTwoLargestPeaks(float bin_size, rtc::ArrayView<const int, kHistogramSize> spectral_flatness,float* peak_position, int* peak_weight) {// 遍历直方图，寻找两个最大峰值for (int i = 0; i < kHistogramSize; ++i) {const float bin_mid = (i + 0.5f) * bin_size;if (spectral_flatness[i] > peak_value) {// 发现新的主峰，将原主峰降级为次峰secondary_peak_value = peak_value;secondary_peak_weight = *peak_weight;secondary_peak_position = *peak_position;// 更新主峰信息peak_value = spectral_flatness[i];*peak_weight = spectral_flatness[i];*peak_position = bin_mid;} else if (spectral_flatness[i] > secondary_peak_value) {// 发现新的次峰secondary_peak_value = spectral_flatness[i];secondary_peak_weight = spectral_flatness[i];secondary_peak_position = bin_mid;}}// 峰值合并条件：距离近且权重相当if ((fabs(secondary_peak_position - *peak_position) < 2 * bin_size) &&(secondary_peak_weight > 0.5f * (*peak_weight))) {*peak_weight += secondary_peak_weight;                    // 权重相加*peak_position = 0.5f * (*peak_position + secondary_peak_position); // 位置平均}
}

3. 关键数据结构

3.1 PriorSignalModel（先验信号模型）

// 存储噪声检测的关键阈值参数和权重
struct PriorSignalModel {float lrt;                    // 似然比检验阈值float flatness_threshold;     // 频谱平坦度阈值  float template_diff_threshold;// 频谱差异阈值float lrt_weighting;          // LRT特征权重float flatness_weighting;     // 平坦度特征权重float difference_weighting;   // 差异特征权重
};

3.2 Histograms（特征直方图）

// 存储音频特征的统计直方图
class Histograms {const std::array<int, kHistogramSize>& get_lrt() const;           // LRT直方图const std::array<int, kHistogramSize>& get_spectral_flatness() const; // 频谱平坦度直方图const std::array<int, kHistogramSize>& get_spectral_diff() const; // 频谱差异直方图
};

4. 核心方法详解

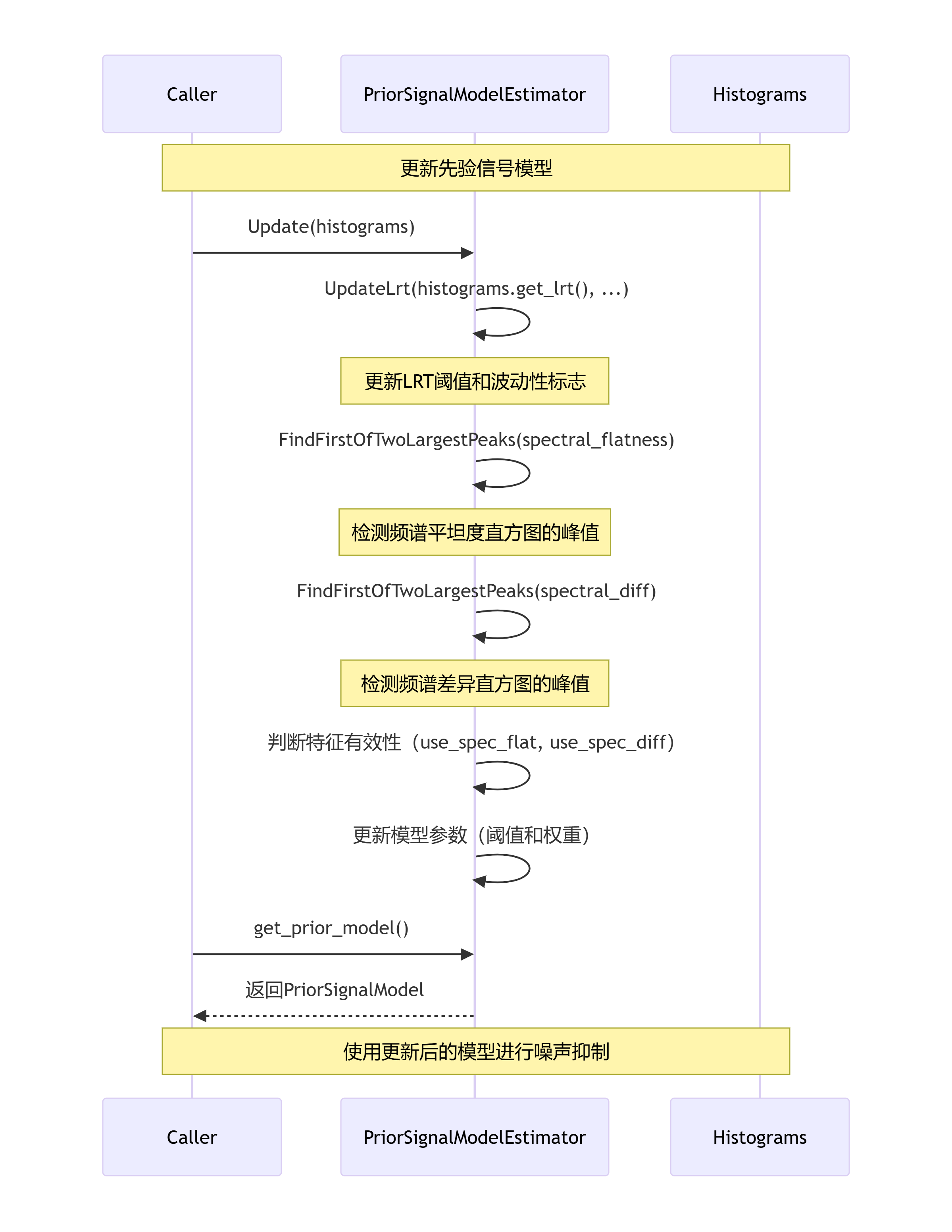

4.1 Update方法 - 模型参数更新入口

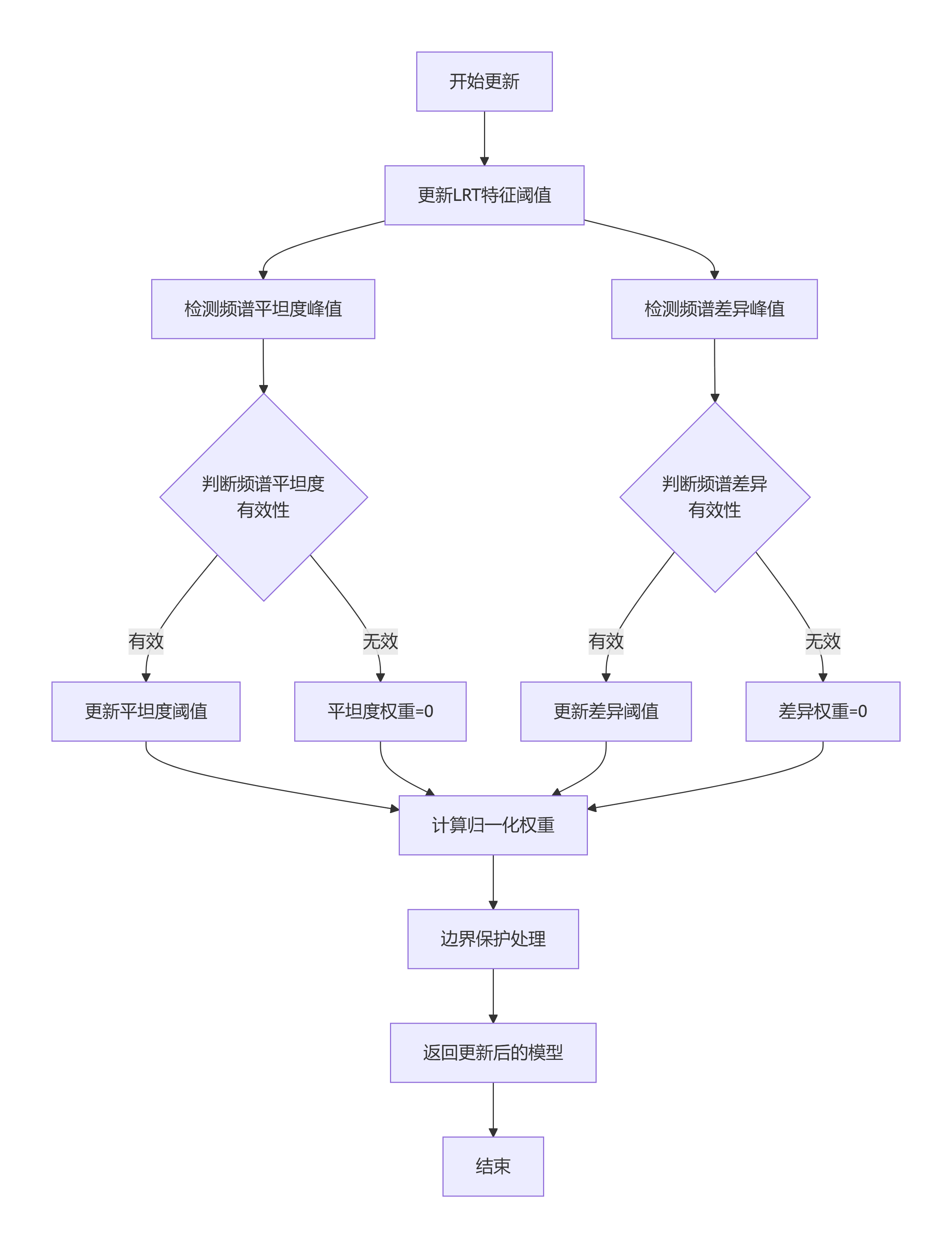

void PriorSignalModelEstimator::Update(const Histograms& histograms) {// 步骤1：更新LRT特征阈值bool low_lrt_fluctuations;UpdateLrt(histograms.get_lrt(), &prior_model_.lrt, &low_lrt_fluctuations);// 步骤2：检测频谱平坦度和频谱差异的峰值float spectral_flatness_peak_position;int spectral_flatness_peak_weight;FindFirstOfTwoLargestPeaks(kBinSizeSpecFlat, histograms.get_spectral_flatness(),&spectral_flatness_peak_position, &spectral_flatness_peak_weight);float spectral_diff_peak_position;int spectral_diff_peak_weight;FindFirstOfTwoLargestPeaks(kBinSizeSpecDiff, histograms.get_spectral_diff(),&spectral_diff_peak_position, &spectral_diff_peak_weight);// 步骤3：特征有效性判断const int use_spec_flat = spectral_flatness_peak_weight < 0.3f * 500 || spectral_flatness_peak_position < 0.6f ? 0 : 1;const int use_spec_diff = spectral_diff_peak_weight < 0.3f * 500 || low_lrt_fluctuations ? 0 : 1;// 步骤4：更新模型参数prior_model_.template_diff_threshold = 1.2f * spectral_diff_peak_position;prior_model_.template_diff_threshold = std::min(1.f, std::max(0.16f, prior_model_.template_diff_threshold));// 步骤5：计算特征权重（归一化）float one_by_feature_sum = 1.f / (1.f + use_spec_flat + use_spec_diff);prior_model_.lrt_weighting = one_by_feature_sum;if (use_spec_flat == 1) {prior_model_.flatness_threshold = 0.9f * spectral_flatness_peak_position;prior_model_.flatness_threshold = std::min(.95f, std::max(0.1f, prior_model_.flatness_threshold));prior_model_.flatness_weighting = one_by_feature_sum;} else {prior_model_.flatness_weighting = 0.f;  // 无效特征权重为0}if (use_spec_diff == 1) {prior_model_.difference_weighting = one_by_feature_sum;} else {prior_model_.difference_weighting = 0.f;}
}
