websocket（即时通讯）

什么是websocket？

WebSocket是一种在单个TCP连接上进行全双工通信的协议。WebSocket通信协议于2011年被IETF定为标准RFC 6455，并由RFC7936补充规范。WebSocket API也被W3C定为标准。
WebSocket使得客户端和服务器之间的数据交换变得更加简单，允许服务端主动向客户端推送数据。在WebSocket API中，浏览器和服务器只需要完成一次握手，两者之间就直接可以创建持久性的连接，并进行双向数据传输。

为什么有了HTTP协议还要WebSocket

HTTP协议采用的是客户端（浏览器）轮询的方式，即客户端发送请求，服务端做出响应，为了获取最新的数据，需要不断的轮询发出HTTP请求，占用大量带宽。

WebSocket采用了一些特殊的报头，使得浏览器和服务器只需要通过“握手”建立一条连接通道后，此链接保持活跃状态，之后的客户端和服务器的通信都使用这个连接，解决了Web实时性的问题，相比于HTTP有以下好处：

• 一个Web客户端只建立一个TCP连接
• WebSocket服务端可以主动推送（push）数据到Web客户端
• 有更加轻量级的头，减少了数据传输量

特点

1. 建立在TCP协议只上，服务端比较容易实现
2. 于HTTP协议有良好的兼容性，默认端口也是80和443，握手阶段使用HTTP协议，因此握手时不容
   易屏蔽，能通过各种HTTP代理服务器
3. 数据格式轻量，通信高效且节省带宽
4. 支持传输文本数据和二进制数据
5. 没有同源限制，客户端可以与任意服务器通信
6. 也支持加密传输，WS+SSL，URL形如wss://

先建一个springboot项目

代码演示

引入pom文件

<dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-websocket</artifactId>
</dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><version>1.18.32</version> <!-- 请使用当前最新稳定版 --><scope>provided</scope>
</dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope>
</dependency>

新建spring文件夹

在com/hsh下新建

创建MyWsConfig

package com.mc.wsdemo.spring;import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.config.annotation.WebSocketConfigurer;
import org.springframework.web.socket.config.annotation.WebSocketHandlerRegistry;import javax.annotation.Resource;@Configuration
@EnableWebSocket
public class MyWsConfig implements WebSocketConfigurer {@ResourceMyWsHandler myWsHandler;@ResourceMyWsInterceptor myWsInterceptor;@Overridepublic void registerWebSocketHandlers(WebSocketHandlerRegistry registry) {registry.addHandler(myWsHandler,"/myWs1").addInterceptors(myWsInterceptor).setAllowedOrigins("*");}
}

创建SessionBean

package com.mc.wsdemo.spring;import lombok.AllArgsConstructor;
import lombok.Data;
import org.springframework.web.socket.WebSocketSession;@AllArgsConstructor
@Data
public class SessionBean {private WebSocketSession webSocketSession;private Integer clientId;
}

创建MyWsHandler

package com.mc.wsdemo.spring;import lombok.extern.slf4j.Slf4j;
import org.springframework.cglib.beans.BeanMap;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import org.springframework.web.socket.CloseStatus;
import org.springframework.web.socket.TextMessage;
import org.springframework.web.socket.WebSocketSession;
import org.springframework.web.socket.handler.AbstractWebSocketHandler;import java.io.IOException;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.atomic.AtomicInteger;/*** web socket 主处理程序*/
@Slf4j
@Component
public class MyWsHandler extends AbstractWebSocketHandler {private static Map<String,SessionBean> sessionBeanMap ;private static AtomicInteger clientIdMaker;private static StringBuffer stringBuffer;static {sessionBeanMap = new ConcurrentHashMap<>();clientIdMaker = new AtomicInteger(0);stringBuffer = new StringBuffer();}//连接建立@Overridepublic void afterConnectionEstablished(WebSocketSession session) throws Exception {super.afterConnectionEstablished(session);// (会话,id)SessionBean sessionBean = new SessionBean(session,clientIdMaker.getAndIncrement());// 加入map集合sessionBeanMap.put(session.getId(),sessionBean);// 打印日志log.info(sessionBeanMap.get(session.getId()).getClientId()+"建立了连接");// 谁进入群聊  String message = id+进入了群聊stringBuffer.append(sessionBeanMap.get(session.getId()).getClientId()+"进入了群聊<br/>");// 调用群发的方法  sendMessage(message)sendMessage(sessionBeanMap);}//收到消息@Overrideprotected void handleTextMessage(WebSocketSession session, TextMessage message) throws Exception {super.handleTextMessage(session, message);log.info(sessionBeanMap.get(session.getId()).getClientId()+":"+message.getPayload());// String message = id+"前端发送的消息"stringBuffer.append(sessionBeanMap.get(session.getId()).getClientId()+":"+message.getPayload()+"<br/>");// 调用群发方法sendMessage(sessionBeanMap);}//传输异常@Overridepublic void handleTransportError(WebSocketSession session, Throwable exception) throws Exception {super.handleTransportError(session, exception);if(session.isOpen()){session.close();}sessionBeanMap.remove(session.getId());}//连接关闭@Overridepublic void afterConnectionClosed(WebSocketSession session, CloseStatus status) throws Exception {super.afterConnectionClosed(session, status);int clientId = sessionBeanMap.get(session.getId()).getClientId();sessionBeanMap.remove(session);log.info(clientId+"关闭了连接");stringBuffer.append(clientId+"退出了群聊<br/>");sendMessage(sessionBeanMap);}//    //每2s发送给客户端心跳消息
//    @Scheduled(fixedRate = 2000)
//    public void sendMsg() throws IOException {
//        for(String key:sessionBeanMap.keySet()){
//            sessionBeanMap.get(key).getWebSocketSession().sendMessage(new TextMessage("心跳"));
//        }
//    }/*** 群发方法(包括谁进入聊天室，谁发送了信息，谁退出了聊天室)* @param sessionBeanMap*/public void sendMessage(Map<String,SessionBean> sessionBeanMap){for(String key:sessionBeanMap.keySet()){try {sessionBeanMap.get(key).getWebSocketSession().sendMessage(new TextMessage(stringBuffer.toString()));} catch (IOException e) {
//                e.printStackTrace();log.error(e.getMessage());}}}
}

创建MyWsInterceptor

package com.mc.wsdemo.spring;import lombok.extern.slf4j.Slf4j;
import org.springframework.http.server.ServerHttpRequest;
import org.springframework.http.server.ServerHttpResponse;
import org.springframework.stereotype.Component;
import org.springframework.web.socket.WebSocketHandler;
import org.springframework.web.socket.server.support.HttpSessionHandshakeInterceptor;import java.util.Map;/*** 握手拦截器*/
@Component
@Slf4j
public class MyWsInterceptor extends HttpSessionHandshakeInterceptor {@Overridepublic boolean beforeHandshake(ServerHttpRequest request, ServerHttpResponse response, WebSocketHandler wsHandler, Map<String, Object> attributes) throws Exception {log.info(request.getRemoteAddress().toString()+"开始握手");return super.beforeHandshake(request, response, wsHandler, attributes);}@Overridepublic void afterHandshake(ServerHttpRequest request, ServerHttpResponse response, WebSocketHandler wsHandler, Exception ex) {log.info(request.getRemoteAddress().toString()+"完成握手");super.afterHandshake(request, response, wsHandler, ex);}
}

在static文件夹下新建ws-client.html

在resources/static文件夹下新建ws-client.html

<!DOCTYPE html>
<html lang="en">
<head><meta charset="UTF-8"><title>ws client</title>
</head>
<body>
<p style="border:1px solid black;width: 600px;height: 500px" id="talkMsg"></p>
<input id="message" /><button id="sendBtn" onclick="sendMsg()">发送</button>
</body>
<script>// 给后端发消息说我建立连接let ws = new WebSocket("ws://localhost:8080/myWs1")// ws.onopen=function () {// }// 后端给前端发消息(相当于是前端监听作用，有消息进来就在P标签中  展示)ws.onmessage=function (message) {document.getElementById("talkMsg").innerHTML = message.data}// 前端给后端发消息(点击发送按钮)function sendMsg() {ws.send(document.getElementById("message").value)document.getElementById("message").value=""}
</script>
</html>

测试

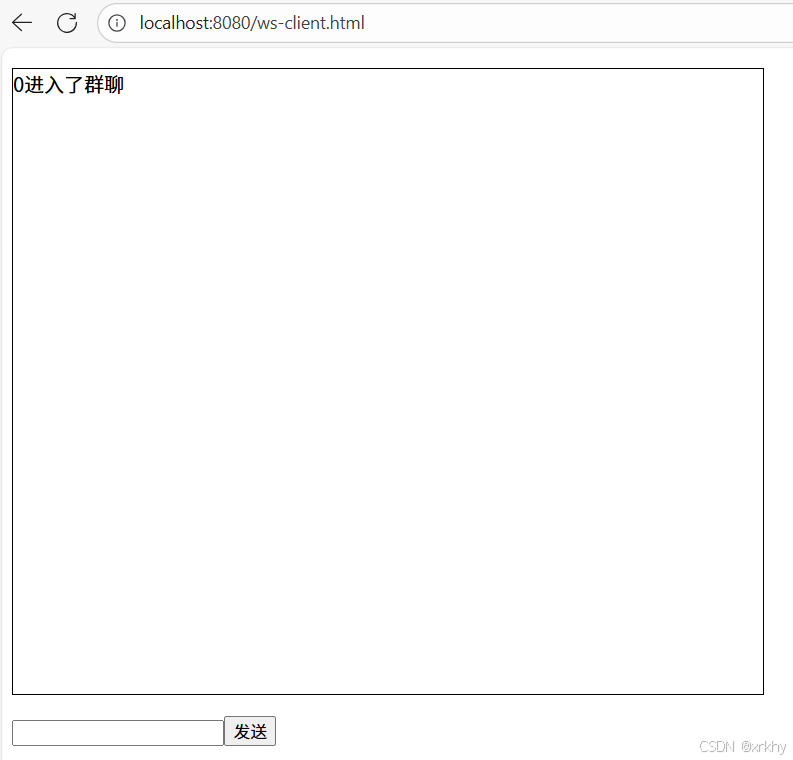

输入http://localhost:8080/ws-client.html访问

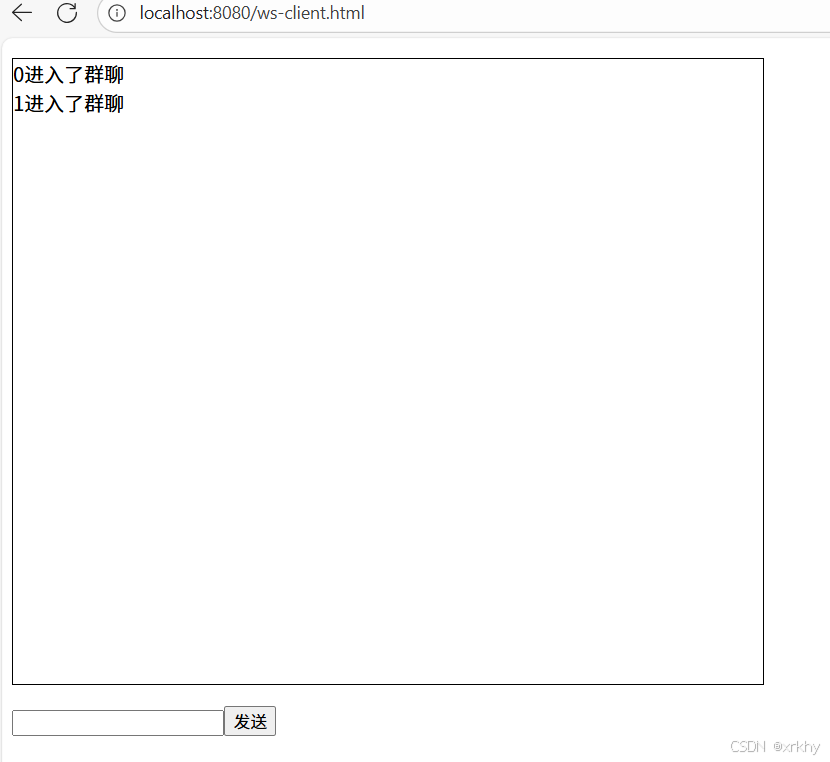

在开一个浏览器窗口
