使用Rancher快速部署K8S集群
原文链接
1、安装要求
在开始之前，部署Kubernetes集群机器需要满足以下几个条件：
（1）一台或多台机器，操作系统 CentOS7.x-86_x64 （2）硬件配置：2GB或更多RAM，2个CPU或更多CPU，硬盘30GB或更多 （3）可以访问外网，需要拉取镜像，如果服务器不能上网，需要提前下载镜像并导入节点 （4）禁止swap分区
2、准备环境
角色 IP 用途 k8s-master 192.168.1.76 master节点 k8s-node01 192.168.1.77 node节点 k8s-node02 192.168.1.78 node节点 k8s-server 192.168.1.79 rancher-server节点 以下操作在全部节点进行：
# 关闭防火墙 systemctl stop firewalld # 禁用防火墙 systemctl disable firewalld # 关闭selinux setenforce 0 # 临时 sed -i 's/enforcing/disabled/' /etc/selinux/config # 永久 # 关闭swap swapoff -a # 临时 sed -ri 's/.*swap.*/#&/' /etc/fstab # 永久 关闭后需要重启服务器 # 根据规划设置主机名 hostnamectl set-hostname <hostname> # 在master添加hosts cat >> /etc/hosts << EOF 192.168.1.76 k8s-master 192.168.1.77 k8s-node01 192.168.1.78 k8s-node02 192.168.1.79 k8s-server EOF # 将桥接的IPv4流量传递到iptables的链 vim /etc/sysctl.conf cat > /etc/sysctl.conf << EOF net.ipv4.ip_forward = 1 net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 EOF sysctl --system # 生效 # 时间同步 yum install ntpdate -y ntpdate time.windows.com
3、安装rancher
（1）安装docker
（2）启动rancher（k8s-rancher-server）
mkdir -p /data/rancher2.7.9 docker run -d --privileged -p 80:80 -p 443:443 -v /data/rancher2.7.9:/var/lib/rancher --restart=always --name rancher2.7.9 rancher/rancher:v2.7.9
（3）访问https://192.168.1.79，设置admin的用户密码，最低12位
（4）创建集群

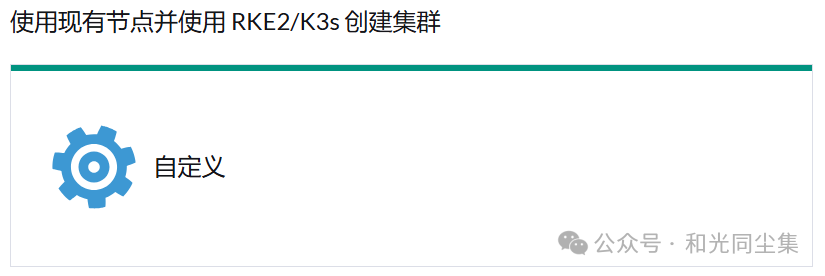

（4.1）选择自定义集群

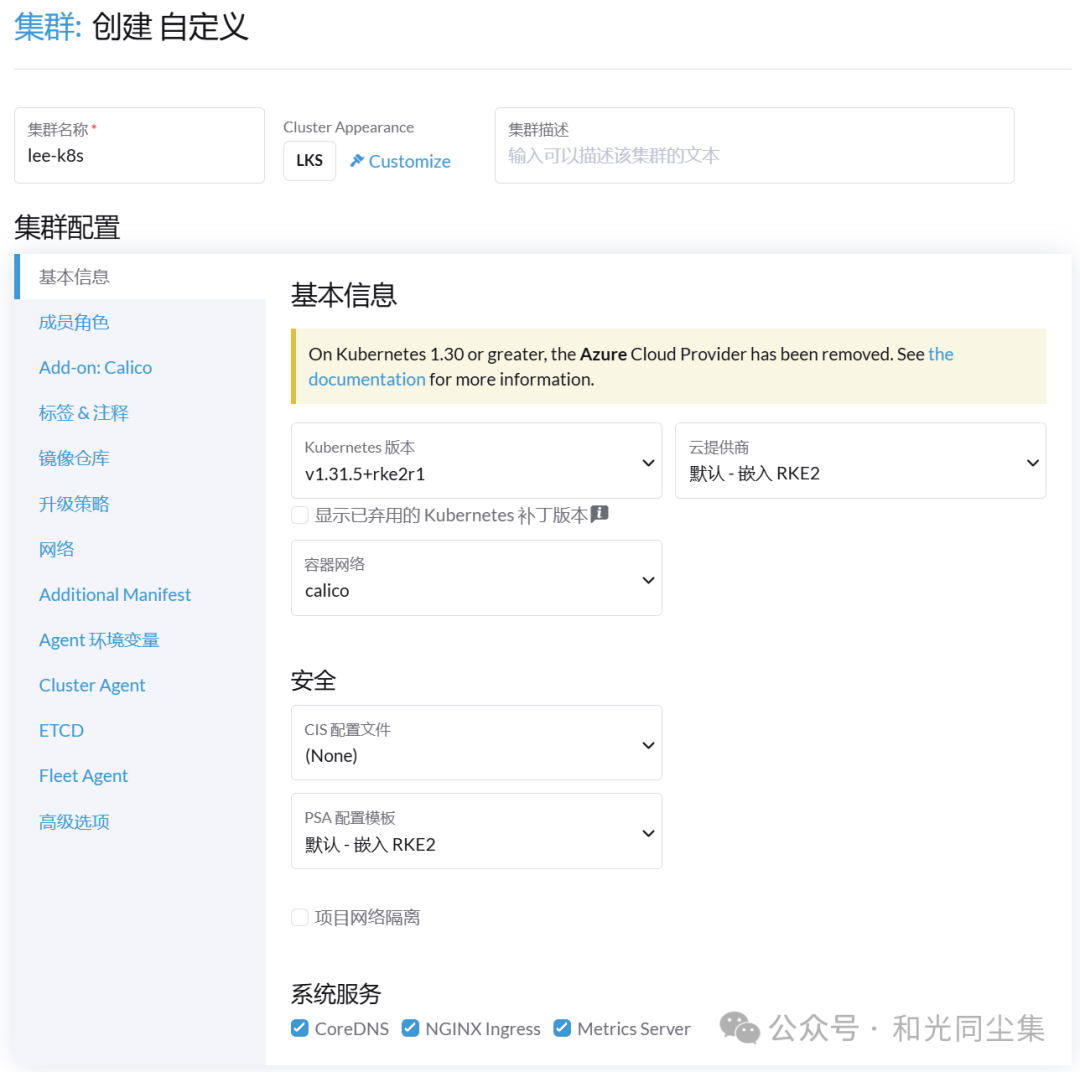

（4.2）基本信息

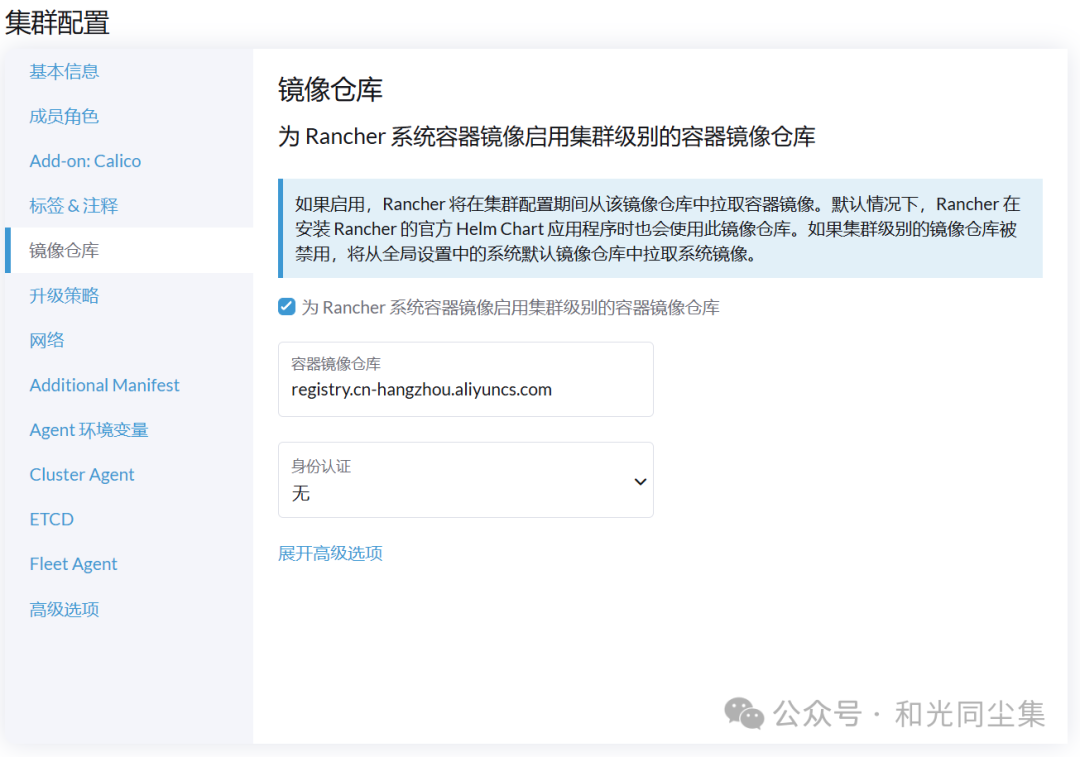

（4.3）镜像仓库改为阿里云仓库：（registry.cn-hangzhou.aliyuncs.com）
（4.4）点击创建

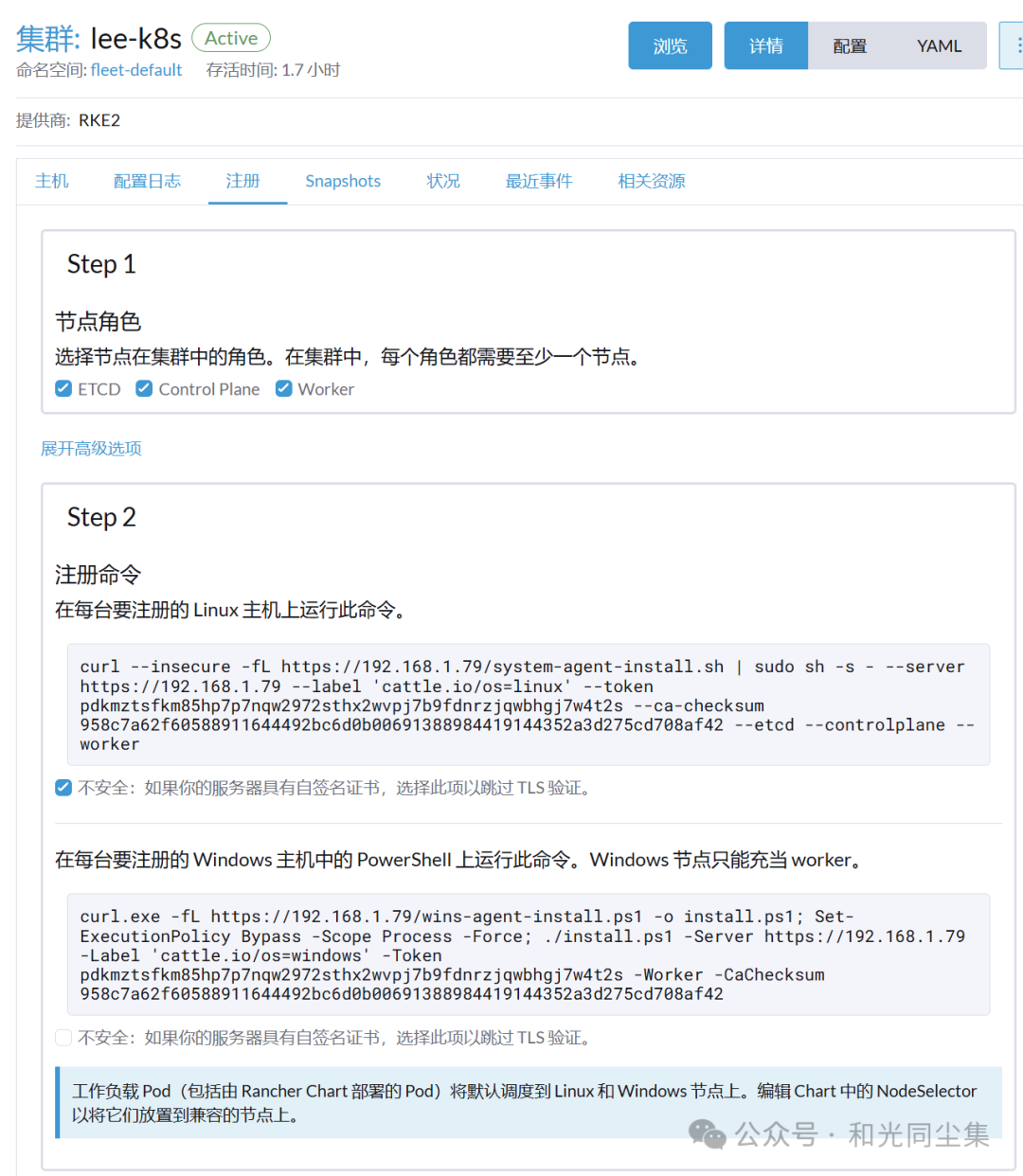

（4.5）注册master节点（如果有多个master节点，就在多台机器执行）
角色全选
复制注册命令到master主机执行：
curl --insecure -fL https://192.168.1.79/system-agent-install.sh | sudo sh -s - --server https://192.168.1.79 --label 'cattle.io/os=linux' --token pdkmztsfkm85hp7p7nqw2972sthx2wvpj7b9fdnrzjqwbhgj7w4t2s --ca-checksum 958c7a62f60588911644492bc6d0b00691388984419144352a3d275cd708af42 --etcd --controlplane --worker

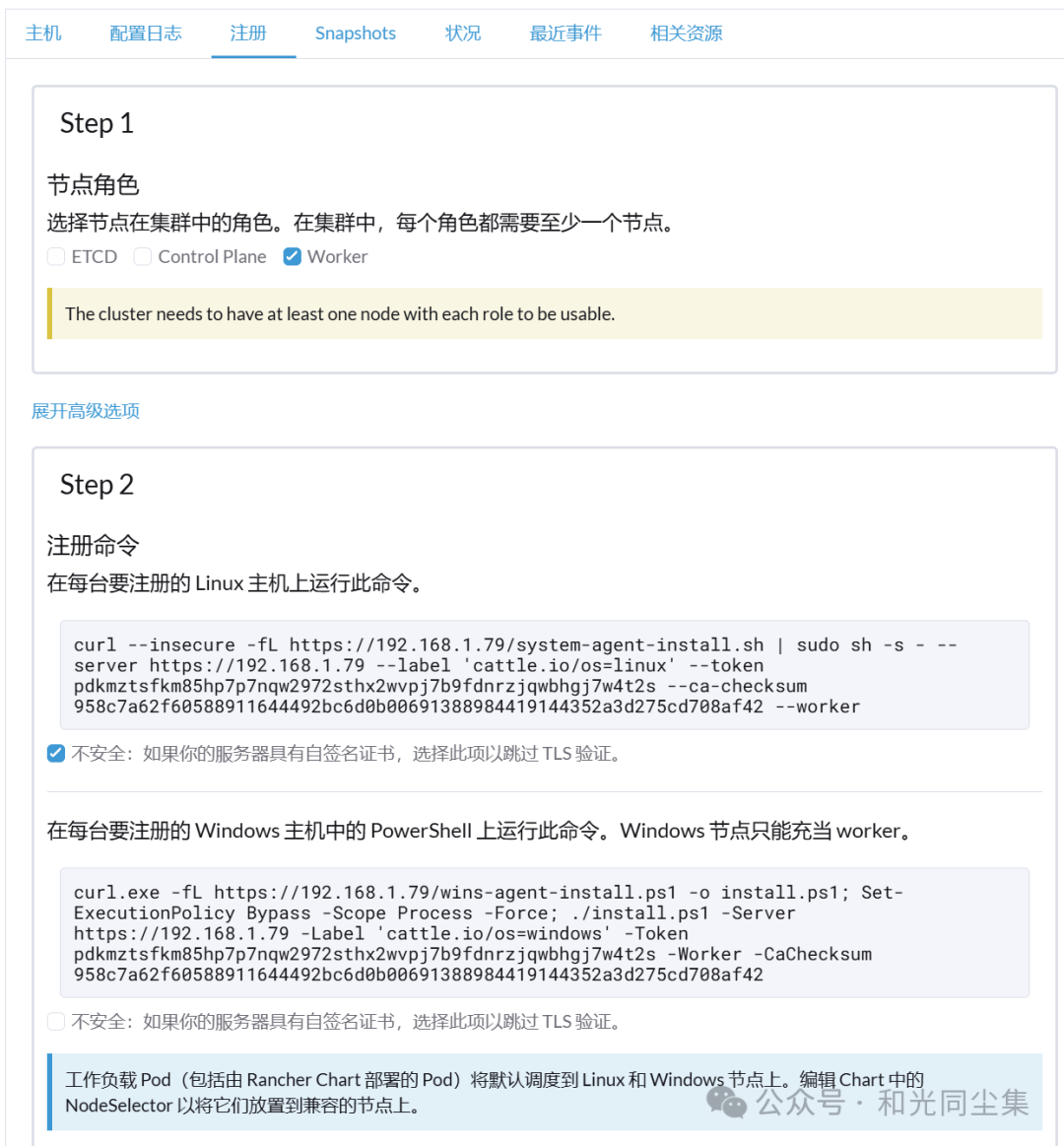

（4.6）注册worker节点，并复制脚本到worker主机执行
由于采用VMW虚拟机做集群，机器性能受限，节点一个一个加入，等待时间较长，配置日志如下：
[INFO ] waiting for at least one control plane, etcd, and worker node to be registered [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for agent to check in and apply initial plan [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, etcd, kube-apiserver, kube-controller-manager, kube-scheduler, kubelet [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, etcd, kube-apiserver, kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-apiserver, kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-apiserver, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for cluster agent to connect [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for cluster agent to connect [INFO ] non-ready bootstrap machine(s) custom-d067344f626e and join url to be available on bootstrap node [INFO ] provisioning done [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for control plane to be available [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for agent to check in and apply initial plan [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for probes: calico, kubelet [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-apiserver [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: etcd, kube-apiserver [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: etcd, kube-apiserver, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: etcd, kube-apiserver, kube-controller-manager, kube-scheduler [INFO ] custom-d067344f626e [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-apiserver [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-apiserver, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: Node condition Ready is False., waiting for probes: kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: Node condition Ready is False., waiting for probes: kube-controller-manager, kube-scheduler, kubelet [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-controller-manager, kube-scheduler, kubelet [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-controller-manager [INFO ] configuring worker node(s) custom-9dde9a1c00dd: waiting for probes: calico [INFO ] provisioning done [INFO ] configuring worker node(s) custom-35b45afe977c: waiting for agent to check in and apply initial plan [INFO ] configuring worker node(s) custom-35b45afe977c: waiting for probes: calico, kubelet [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for cluster agent to connect [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, etcd, kube-apiserver, kube-controller-manager, kube-scheduler, kubelet [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, etcd, kube-apiserver, kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-apiserver, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: calico [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for cluster agent to connect [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: etcd, kube-apiserver [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: etcd, kube-apiserver, kube-controller-manager, kube-scheduler [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-apiserver, kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for probes: kube-controller-manager [INFO ] configuring bootstrap node(s) custom-d067344f626e: waiting for cluster agent to connect [INFO ] configuring worker node(s) custom-35b45afe977c: waiting for probes: calico, kubelet [INFO ] configuring worker node(s) custom-35b45afe977c,custom-9dde9a1c00dd [INFO ] configuring worker node(s) custom-35b45afe977c: Node condition MemoryPressure is Unknown. Node condition DiskPressure is Unknown. Node condition PIDPressure is Unknown. Node condition Ready is Unknown., waiting for probes: calico, kubelet [INFO ] configuring worker node(s) custom-35b45afe977c: waiting for probes: calico, kubelet [INFO ] configuring worker node(s) custom-35b45afe977c: waiting for probes: calico [INFO ] provisioning done

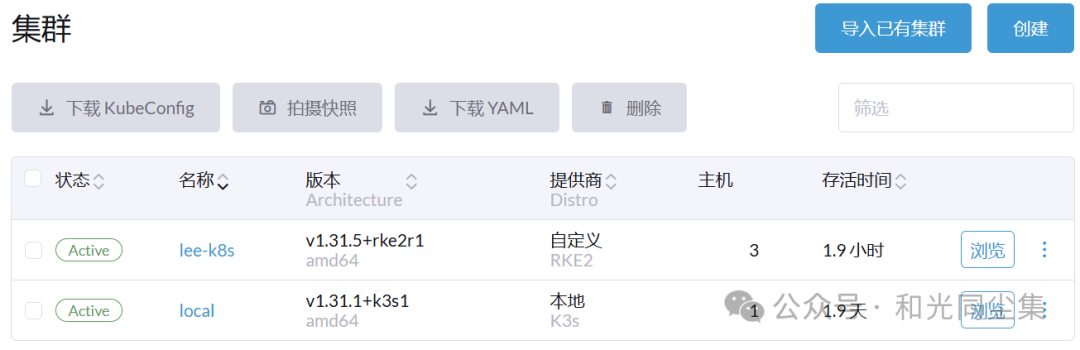

（4.7）搭建完成：
注意：
（1）master节点注册后一直提示：Waiting for probes: kube-controller-manager, kube-scheduler。可能是因为之前注册未成功留下的数据文件db有问题。可以：
查看RKE2服务日志：
journalctl -u rke2-server -f
通过清理并重建 etcd 数据
注意：此操作会丢失现有集群数据，仅适用于新集群或可接受重置的场景。
停止 RKE2 服务：
sudo systemctl stop rke2-server
备份并清理 etcd 数据目录：
sudo mv /var/lib/rancher/rke2/server/db /var/lib/rancher/rke2/server/db.bak
重新启动服务：
sudo systemctl start rke2-server
RKE2 会自动初始化新的 etcd 数据。
（2）worker节点注册后一直提示：Waiting for probes: calico
可以直接删除/var/lib/rancher/文件夹，然后重新进行注册。
