WebSocket调试工具（html），用于调试WebSocket链接是否畅通

news 2025/11/12 5:12:53

WebSocket调试工具，用于调试WebSocket链接是否畅通

纯html+js编写

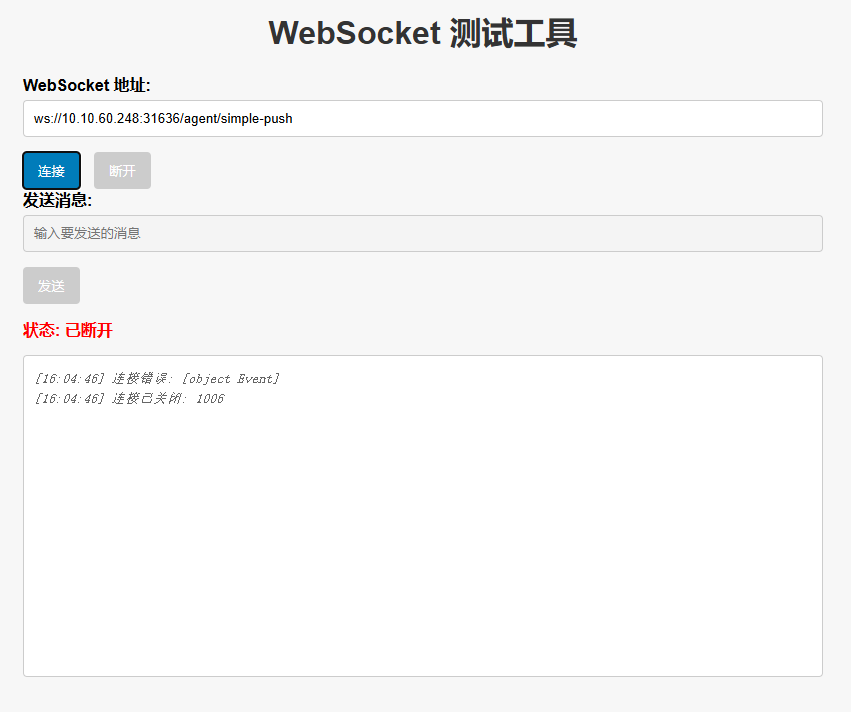

在这里插入图片描述

直接粘贴使用

<!DOCTYPE html>
<html lang="zh"><head><meta charset="UTF-8" /><meta name="viewport" content="width=device-width, initial-scale=1.0" /><title>WebSocket 测试工具</title><style>body {font-family: Arial, sans-serif;max-width: 800px;margin: 20px auto;padding: 20px;background-color: #f7f7f7;}h1 {text-align: center;color: #333;}.form-group {margin-bottom: 15px;}label {display: block;margin-bottom: 5px;font-weight: bold;}input[type="text"] {width: 100%;padding: 10px;border: 1px solid #ccc;border-radius: 4px;box-sizing: border-box;}button {background-color: #007cba;color: white;padding: 10px 15px;border: none;border-radius: 4px;cursor: pointer;margin-right: 10px;}button:hover {background-color: #005a87;}button:disabled {background-color: #ccc;cursor: not-allowed;}#status {margin: 15px 0;font-weight: bold;}#messages {height: 300px;overflow-y: auto;border: 1px solid #ccc;padding: 10px;background-color: #fff;border-radius: 4px;font-family: monospace;}.log {margin: 5px 0;color: #333;}.received {color: #007cba;}.sent {color: #28a745;}.system {color: #666;font-style: italic;}</style></head><body><h1>WebSocket 测试工具</h1><div class="form-group"><label for="wsUrl">WebSocket 地址:</label><inputtype="text"id="wsUrl"placeholder="例如: ws://10.10.2.10:85214 或 wss://yourdomain.com/ws"value="ws://10.10.60.248:31636/agent/simple-push"/></div><button id="connectBtn">连接</button><button id="disconnectBtn" disabled>断开</button><div class="form-group"><label for="messageInput">发送消息:</label><inputtype="text"id="messageInput"placeholder="输入要发送的消息"disabled/></div><button id="sendBtn" disabled>发送</button><div id="status">状态: 未连接</div><div id="messages"></div><script>let ws = null;const wsUrlInput = document.getElementById("wsUrl");const messageInput = document.getElementById("messageInput");const connectBtn = document.getElementById("connectBtn");const disconnectBtn = document.getElementById("disconnectBtn");const sendBtn = document.getElementById("sendBtn");const statusDiv = document.getElementById("status");const messagesDiv = document.getElementById("messages");function log(message, type = "system") {const el = document.createElement("div");el.className = `log ${type}`;el.textContent = `[${new Date().toLocaleTimeString()}] ${message}`;messagesDiv.appendChild(el);messagesDiv.scrollTop = messagesDiv.scrollHeight;}connectBtn.addEventListener("click", () => {const url = wsUrlInput.value.trim();if (!url) {alert("请输入 WebSocket 地址");return;}try {ws = new WebSocket(url);ws.onopen = () => {log("WebSocket 连接已建立", "system");statusDiv.textContent = "状态: 已连接";statusDiv.style.color = "green";messageInput.disabled = false;sendBtn.disabled = false;connectBtn.disabled = true;disconnectBtn.disabled = false;};ws.onmessage = (event) => {log(`收到: ${event.data}`, "received");};ws.onclose = (event) => {log(`连接已关闭: ${event.code} ${event.reason}`, "system");statusDiv.textContent = "状态: 已断开";statusDiv.style.color = "red";messageInput.disabled = true;sendBtn.disabled = true;connectBtn.disabled = false;disconnectBtn.disabled = true;ws = null;};ws.onerror = (error) => {log(`连接错误: ${error}`, "system");statusDiv.textContent = "状态: 连接失败";statusDiv.style.color = "red";};} catch (err) {log(`连接异常: ${err.message}`, "system");}});disconnectBtn.addEventListener("click", () => {if (ws) {ws.close();}});sendBtn.addEventListener("click", () => {const msg = messageInput.value.trim();if (!msg || !ws) return;try {ws.send(msg);log(`发送: ${msg}`, "sent");messageInput.value = "";} catch (err) {log(`发送失败: ${err.message}`, "system");}});// 回车发送messageInput.addEventListener("keypress", (e) => {if (e.key === "Enter") {sendBtn.click();}});</script></body>
</html>
