使用Docker搭建Swagger接口文档工具
1、安装Docker
合集：Docker安装与使用
2、安装Swagger
2.1、方式1
2.1.1、安装swagger-editor
docker pull swaggerapi/swagger-editor
docker run -d --name swagger-editor -p 8080:8080 swaggerapi/swagger-editor2.1.2、安装swagger-ui
mkdir -p /root/swaggerapi/swagger-ui/datadocker pull swaggerapi/swagger-ui
docker run -d --name swagger-ui -v /root/swaggerapi/swagger-ui/data:/usr/share/nginx/html/data -p 3000:8080 swaggerapi/swagger-ui2.2、方式2
2.2.1、安装swagger-editor
创建目录；
mkdir -p /root/swaggerapi/swagger-editor
cd /root/swaggerapi/swagger-editor/下载：
wget https://github.com/swagger-api/swagger-editor/archive/refs/tags/v4.14.5.tar.gz解压：
tar -xf v4.14.5.tar.gz项目结构：
# 命令：
tree -L 1 swagger-editor/# 内容：
swagger-editor/
|-- swagger-editor-4.14.5
`-- v4.14.5.tar.gz1 directory, 1 file查看Dockerfile文件：
# 命令；
cd swagger-editor-4.14.5
cat Dockerfile# 内容：
FROM nginx:1.27.4-alpineLABEL maintainer="vladimir.gorej@smartbear.com" \org.opencontainers.image.authors="vladimir.gorej@smartbear.com" \org.opencontainers.image.url="https://editor.swagger.io" \org.opencontainers.image.source="https://github.com/swagger-api/swagger-editor"ENV BASE_URL="/" \PORT="8080"RUN apk update && apk add --no-cache "tiff>=4.4.0-r4"COPY nginx.conf /etc/nginx/templates/default.conf.templateCOPY ./index.html /usr/share/nginx/html/
COPY ./dist/oauth2-redirect.html /usr/share/nginx/html/
COPY ./dist/* /usr/share/nginx/html/dist/
COPY ./docker-run.sh /docker-entrypoint.d/91-docker-run.shRUN chmod +x /docker-entrypoint.d/91-docker-run.shEXPOSE 8080构建镜像：
docker build -t swagger-editor:v1 .启动容器：
docker run -d --name swagger-editor -p 8080:8080 swagger-editor:v12.2.2、安装swagger-ui
创建目录；
mkdir -p /root/swaggerapi/swagger-ui/data
cd /root/swaggerapi/swagger-ui/下载：
wget https://github.com/swagger-api/swagger-ui/archive/refs/tags/v5.21.0.tar.gz解压：
tar -xf v5.21.0.tar.gz项目结构：
# 命令：
tree -L 1 swagger-ui/# 内容：
swagger-ui/
|-- data
|-- swagger-ui-5.21.0
`-- v5.21.0.tar.gz2 directories, 1 file查看Dockerfile文件：
# 命令：
cd swagger-ui-5.21.0
cat Dockerfile# 内容：
# Looking for information on environment variables?
# We don't declare them here — take a look at our docs.
# https://github.com/swagger-api/swagger-ui/blob/master/docs/usage/configuration.mdFROM nginx:1.27.4-alpineLABEL maintainer="vladimir.gorej@gmail.com" \org.opencontainers.image.authors="vladimir.gorej@gmail.com" \org.opencontainers.image.url="docker.swagger.io/swaggerapi/swagger-ui" \org.opencontainers.image.source="https://github.com/swagger-api/swagger-ui" \org.opencontainers.image.description="SwaggerUI Docker image" \org.opencontainers.image.licenses="Apache-2.0"RUN apk add --update-cache --no-cache "nodejs" "libxml2>=2.13.4-r5" "libexpat>=2.7.0-r0" "libxslt>=1.1.42-r2" "xz-libs>=5.6.3-r1" "c-ares>=1.34.5-r0"LABEL maintainer="char0n"ENV API_KEY="**None**" \SWAGGER_JSON="/app/swagger.json" \PORT="8080" \PORT_IPV6="" \BASE_URL="/" \SWAGGER_JSON_URL="" \CORS="true" \EMBEDDING="false"COPY --chown=nginx:nginx --chmod=0666 ./docker/default.conf.template ./docker/cors.conf ./docker/embedding.conf /etc/nginx/templates/COPY --chmod=0666 ./dist/* /usr/share/nginx/html/
COPY --chmod=0555 ./docker/docker-entrypoint.d/ /docker-entrypoint.d/
COPY --chmod=0666 ./docker/configurator /usr/share/nginx/configurator# Simulates running NGINX as a non root; in future we want to use nginxinc/nginx-unprivileged.
# In future we will have separate unpriviledged images tagged as v5.1.2-unprivileged.
RUN chmod 777 /usr/share/nginx/html/ /etc/nginx/conf.d/ /etc/nginx/conf.d/default.conf /var/cache/nginx/ /var/run/EXPOSE 8080构建镜像：
docker build -t swagger-ui:v1 .启动容器：
docker run -d --name swagger-ui -v /root/swaggerapi/swagger-ui/data:/usr/share/nginx/html/data -p 3000:8080 swagger-ui:v13、浏览器访问
假设当前ip为192.168.186.128
浏览器访问swagger-editor：http://192.168.186.128:8080

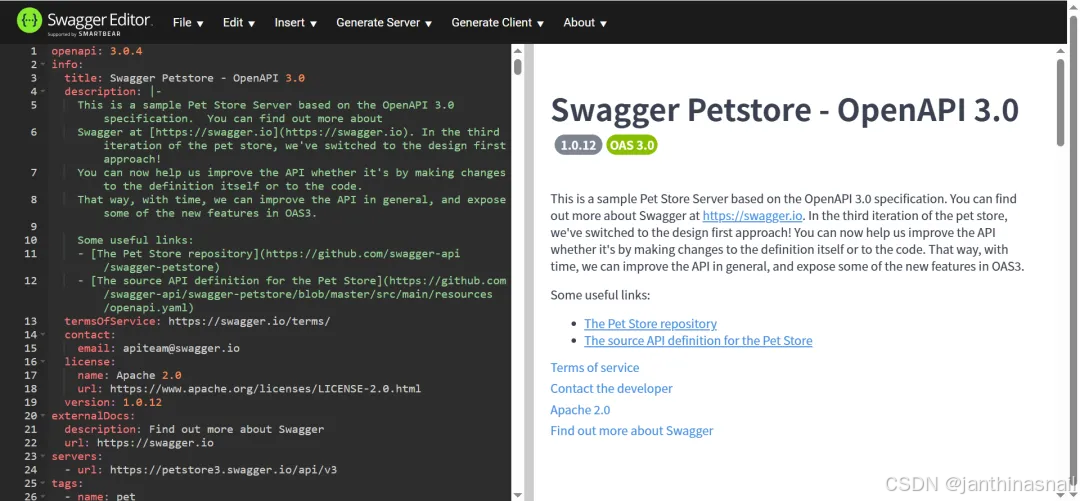

浏览器访问swagger-ui：http://192.168.186.128:3000浏览器访问swagger-editor：

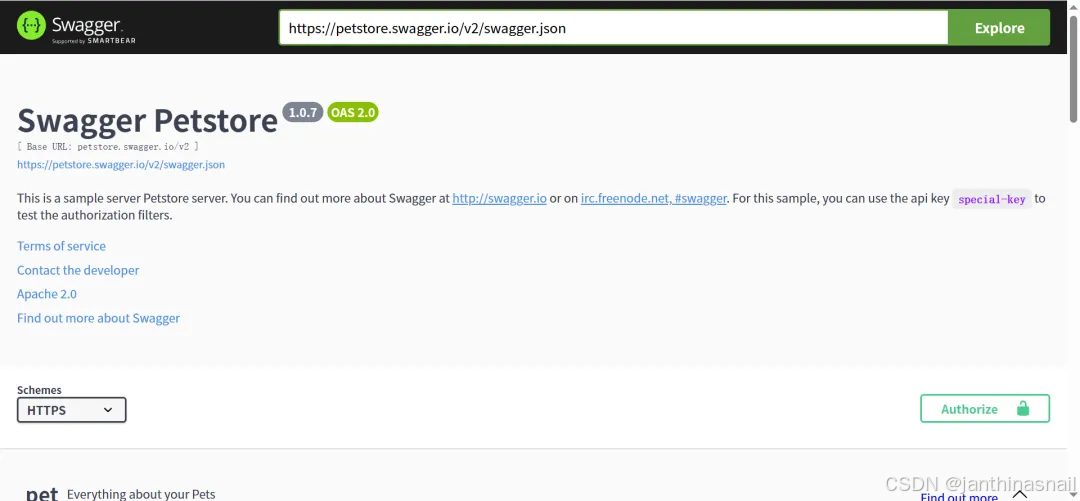

浏览器访问swagger-ui：
4、测试

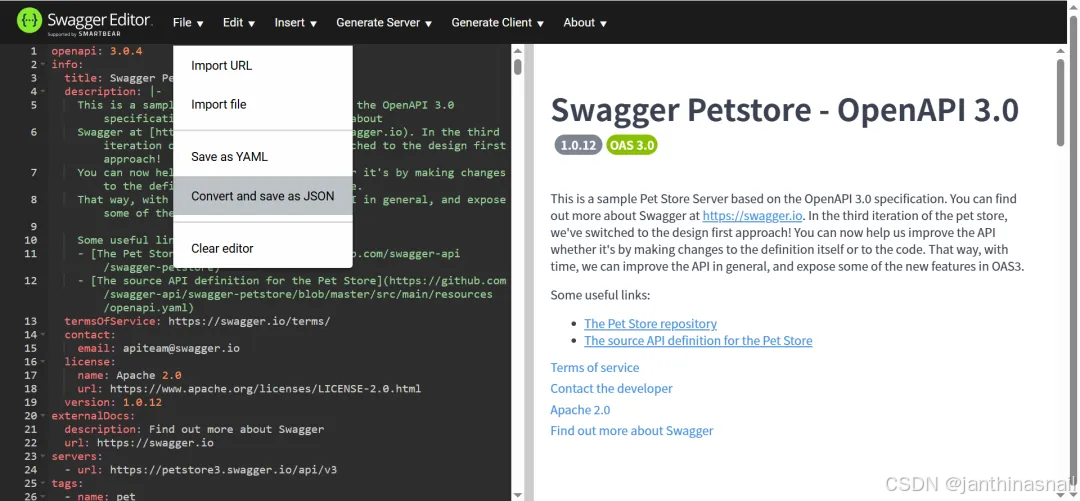

点击“swagger-editor”页面的“File”，选择“Convert and save as JSON”：
将下载的文件上传到服务器的“/root/swaggerapi/swagger-ui/data”：

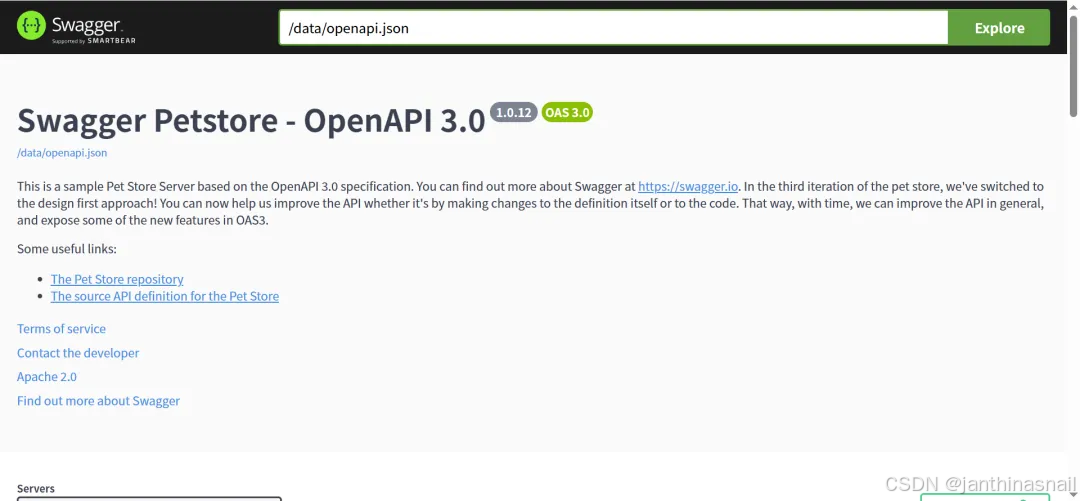

在“swagger-editor”页面的输入框填写“/data/openapi.json”或者“url”，点击“Explore”：
5、详见
https://swagger.io/
https://github.com/swagger-api/swagger-editor
https://github.com/swagger-api/swagger-ui6、其他
