MCP笔记：介绍和原理

news 来源：原创 2025/6/9 13:40:40

1、引言

1.1、背景

早期的模型（如早期的GPT系列）主要依赖静态训练数据，其能力受限于训练时的知识边界，无法直接获取实时数据或与外部系统交互。这种“孤岛式”特性在实际应用中暴露出一系列问题：模型无法理解用户的历史上下文、无法调用外部工具执行任务、也无法动态更新知识库。

随着AI应用场景的复杂化，例如多轮对话系统、代码生成工具和企业级数据分析，开发者开始尝试通过定制化的API或插件将模型与外部数据源连接。然而，这种方法带来了显著的集成挑战。每个数据源（如Google Driver、Stack或内部数据库）都需要独立的接口开发，导致重复劳动和维护成本激增。这种“点对点”集成的N*M问题（N个模型对接M个数据源）使得系统扩展性受限，开发效率低下，同时也增加了安全性和一致性管理的难度。

AI领域缺乏一个通用的、标准化的上下文传递机制，以打破数据孤岛、简化集成流程。

1.2、MCP是什么

2024年11月底，Anthropic公司发布了全新的MCP（Model Context Protocol）协议，即模型上下文协议。该协议是一种开放协议，支持大模型应用程序与外部数据源和工具之间的无缝集成。无论您是构建 AI 驱动的 IDE、增强聊天界面，还是创建自定义 AI 工作流，MCP 都提供了一种标准化的方式来连接 LLMs 需要的上下文。

2、Function Calling和MCP的区别

2.1、Function Calling

Function Calling 指的是 AI 模型根据上下文自动调用函数的机制。
Function Calling 充当了 AI 模型与外部工具之间的桥梁，不同的模型有不同的 Function Calling 实现，代码集成的方式也不一样。由不同的 AI 模型平台来定义和实现。

如果我们使用 Function Calling，那么需要通过代码给 LLM 提供一组 functions，并且提供清晰的函数描述、函数输入和输出，那么 LLM 就可以根据清晰的结构化数据进行推理，调用函数。

Function Calling 的缺点在于处理不好多轮对话和复杂需求，适合边界清晰、描述明确的任务。如果需要处理很多的任务，那么 Function Calling 的代码比较难维护。

2.2、Model Context Protocol (MCP)

MCP 是一个标准协议，如同电子设备的 Type C 协议(可以充电也可以传输数据)，使 AI 模型能够与不同的 API 和数据源无缝交互。
MCP 旨在替换碎片化的 Agent 代码集成，从而使 AI 系统更可靠，更有效。通过建立通用标准，服务商可以基于协议来推出它们自己的服务，从而支持开发者更快的构建更强大的 AI 应用。开发者也不需要重复造轮子，通过开源项目可以建立强大的 AI Agent 生态。
MCP 可以在不同的应用/服务之间保持上下文，从而增强整体自主执行任务的能力。

可以理解为 MCP 是将不同任务进行分层处理，每一层都提供特定的能力、描述和限制。而 MCP Client 端根据不同的任务判断，选择是否需要调用某个能力，然后通过每层的输入和输出，构建一个可以处理复杂、多步对话和统一上下文的 Agent。

总结：Function Calling是AI模型调用函数的机制，MCP是一个标准协议，使大模型与API无缝交互，AI Agent利用Function Calling和MCP来分析和执行任务，实现特定目标。

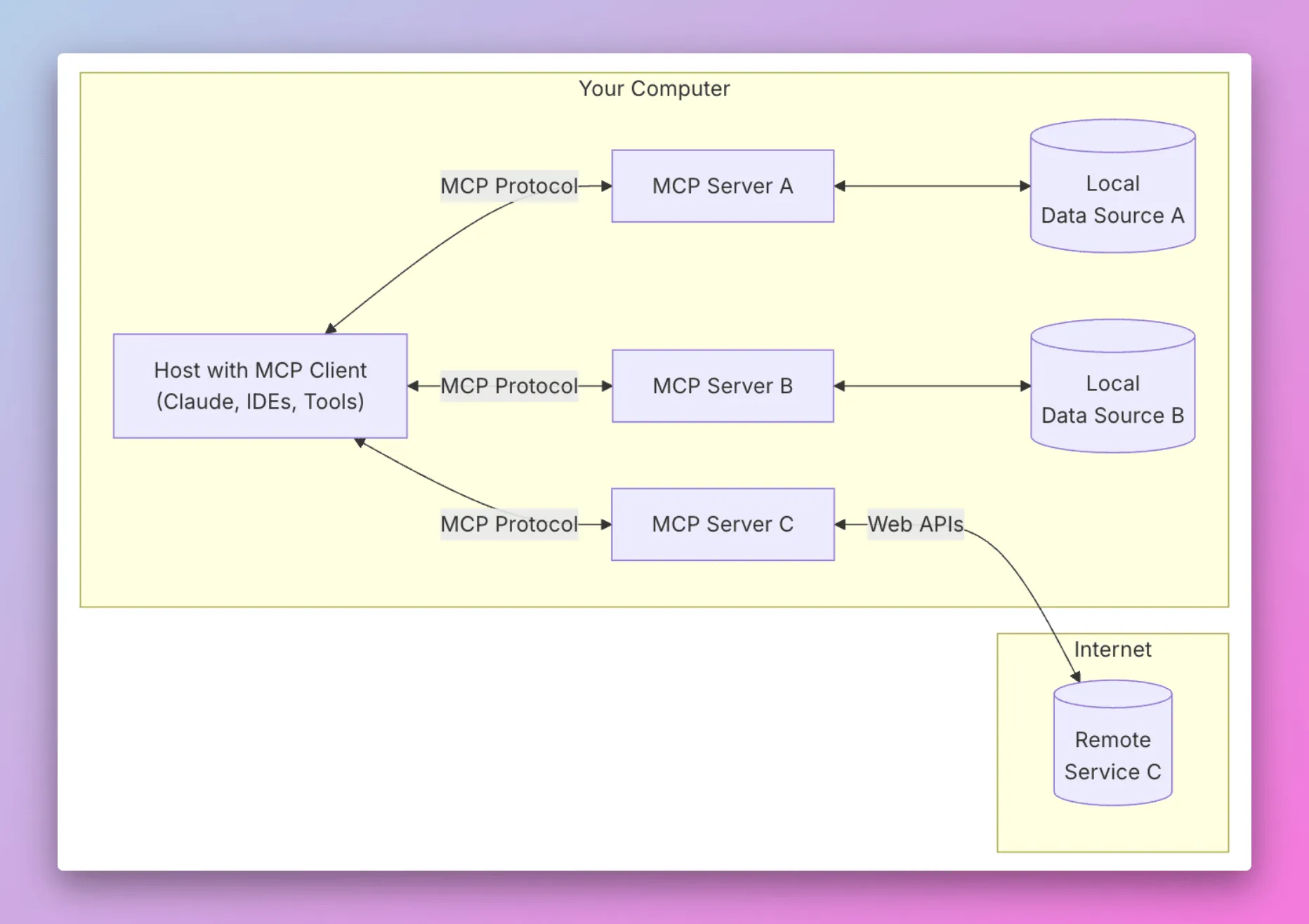

3、MCP核心架构

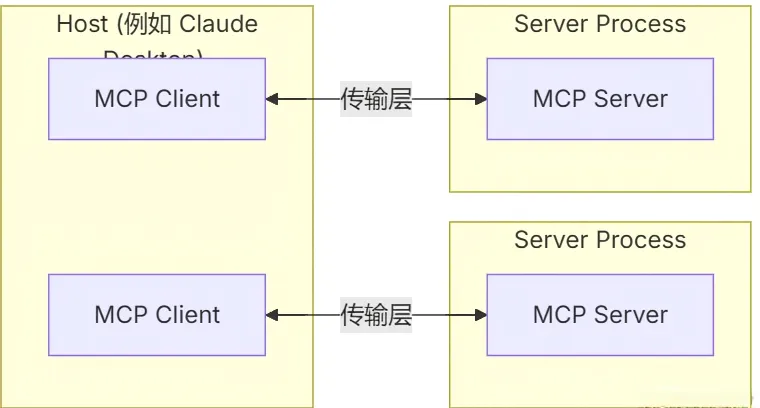

MCP 协议采用了客户端-服务器架构，其中包含以下几个核心概念：

MCP主机（MCP Hosts）：Hosts 是指 LLM 启动连接的应用程序，像 Cursor, Claude Desktop、Cline这样的应用程序。

MCP客户端（MCP Clients）:客户端是用来在 Hosts 应用程序内维护与 Server 之间 1:1 连接。

MCP 服务器（MCP Servers）：通过标准化的协议，为 Client 端提供上下文、工具和提示。

本地资源（Local Resources）：本地的文件、数据库和 API。

远程资源（Remote Services）：外部的文件、数据库和 API。

4、通信机制

MCP 协议支持两种主要的通信机制：基于标准输入输出的本地通信和基于SSE（Server-Sent Events）的远程通信。
这两种机制都使用 JSON-RPC 2.0 格式进行消息传输，确保了通信的标准化和可扩展性。

本地通信：通过 stdio 传输数据，适用于在同一台机器上运行的客户端和服务器之间的通信。
远程通信：利用 SSE 与 HTTP 结合，实现跨网络的实时数据传输，适用于需要访问远程资源或分布式部署的场景。

5、原理

5.1、编写一个MCP Server

准备环境和新建项目请参考视频：MCP终极指南 - 带你深入掌握MCP（进阶篇）_哔哩哔哩_bilibili

mcp server代码：

from typing import Any
import httpx
from mcp.server.fastmcp import FastMCP# Initialize FastMCP server
mcp = FastMCP("weather",log_level="ERROR")# Constance
NWS_API_BASE = "https://api.weather.gov"
USER_AGENT = "weather-app/1.0"async def make_nws_request(url:str) -> dict[str,Any] | None:"""Make a request to the NWS API with proper error handling."""headers = {"User-Agent":USER_AGENT,"Accept":"application/geo+json"}async with httpx.AsyncClient() as client:try:response = await client.get(url,headers=headers,timeout=30.0)response.raise_for_status()return response.json()except Exception:return Nonedef format_alert(feature:dict) -> str:"""Format an alert feature into a readable string."""props = feature["properties"]return f"""
Event:{props.get('event','Unknown')}
Area:{props.get('areaDesc','Unknown')}
Severity:{props.get('severity','Unknown')}
Description:{props.get('description','No description available')}
Instructions:{props.get('instruction','No specific instructions provided')}
"""@mcp.tool()
async def get_alerts(state:str) -> str:"""Get weather alerts for a US state.Args:state:Two-letter US state code (eg: CA,NY)"""url = f"{NWS_API_BASE}/alerts/active/area/{state}"data = await make_nws_request(url)if not data or "features" not in data:return "Unable to fetch alerts or no alerts found"if not data["features"]:return "No active alerts for this state."alerts = [format_alert(feature) for feature in data["features"]]return "\n----\n".join(alerts)@mcp.tool()
async def get_forecast(latitude:float,longitude:float) -> str:"""Get weather forecast for a location.Args:latitude:Latitude of the locationlongitude:Longitude of the location"""points_url = f"{NWS_API_BASE}/points/{latitude},{longitude}"points_data = await make_nws_request(points_url)if not points_data:return "Unable to fetch forecast data for this location."forecast_url = points_data["properties"]["forecast"]forecast_data = await make_nws_request(forecast_url)if not forecast_data:return "Unable to fetch detailed forecast"periods = forecast_data['properties']['periods']forecasts = []for period in periods[:5]:forecast = f"""{period['name']}:Temperature:{period['temperature']}{period['temperatureUnit']}Wind:{period['windSpeed']}{period['windDirection']}Forecast:{period['detailedForecast']}"""forecasts.append(forecast)return "\n---\n".join(forecasts)if __name__ == "__main__":mcp.run(transport='stdio')

代码解释：

@mcp.tool()装饰器：将函数注册为tool,从函数的注释里面提取这个函数的用途，以及每个参数的含义，以便模型决定调用这个函数的最佳时机。提取的内容包括：函数名、函数参数、参数类型、函数的功能、每个参数的功能，这些提取的内容最终都会转换为tool的信息，并在实际调用的时候传给模型。
transport='stdio'：表示MCP Server与Cline的沟通方式是基于标准输入输出的本地通信

5.2、分析MCP底层协议

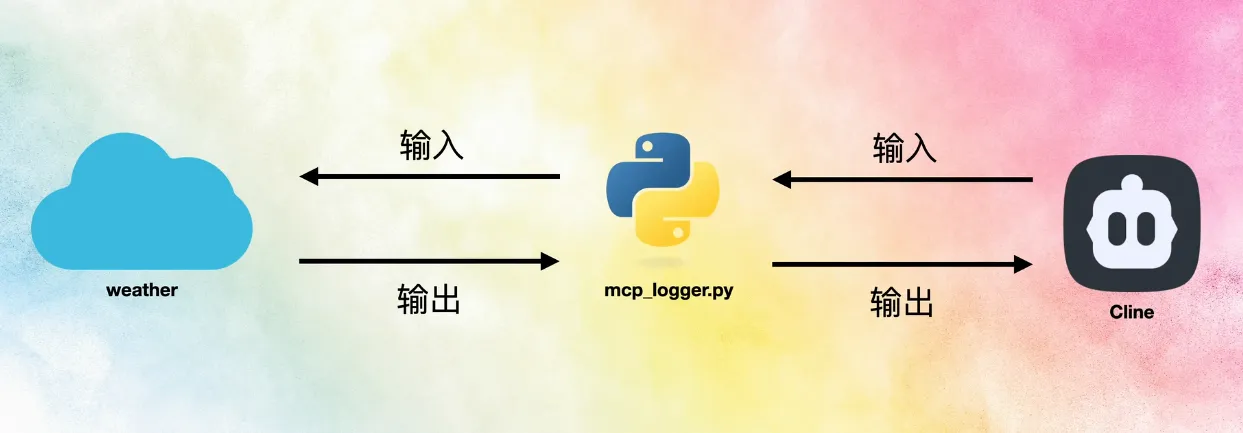

5.2.1、创建一个中间代理

#!/usr/bin/env python3import sys
import subprocess
import threading
import argparse
import os# --- Configuration ---
LOG_FILE = os.path.join(os.path.dirname(os.path.realpath(__file__)), "mcp_io.log")
# --- End Configuration ---# --- Argument Parsing ---
parser = argparse.ArgumentParser(description="Wrap a command, passing STDIN/STDOUT verbatim while logging them.",usage="%(prog)s <command> [args...]"
)
# Capture the command and all subsequent arguments
parser.add_argument('command', nargs=argparse.REMAINDER,help='The command and its arguments to execute.')open(LOG_FILE, 'w', encoding='utf-8')if len(sys.argv) == 1:parser.print_help(sys.stderr)sys.exit(1)args = parser.parse_args()if not args.command:print("Error: No command provided.", file=sys.stderr)parser.print_help(sys.stderr)sys.exit(1)target_command = args.command
# --- End Argument Parsing ---# --- I/O Forwarding Functions ---
# These will run in separate threadsdef forward_and_log_stdin(proxy_stdin, target_stdin, log_file):"""Reads from proxy's stdin, logs it, writes to target's stdin."""try:while True:# Read line by line from the script's actual stdinline_bytes = proxy_stdin.readline()if not line_bytes:  # EOF reachedbreak# Decode for logging (assuming UTF-8, adjust if needed)try:line_str = line_bytes.decode('utf-8')except UnicodeDecodeError:line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n" # Log representation# Log with prefixlog_file.write(f"输入: {line_str}")log_file.flush() # Ensure log is written promptly# Write the original bytes to the target process's stdintarget_stdin.write(line_bytes)target_stdin.flush() # Ensure target receives it promptlyexcept Exception as e:# Log errors happening during forwardingtry:log_file.write(f"!!! STDIN Forwarding Error: {e}\n")log_file.flush()except: pass # Avoid errors trying to log errors if log file is brokenfinally:# Important: Close the target's stdin when proxy's stdin closes# This signals EOF to the target process (like test.sh's read loop)try:target_stdin.close()log_file.write("--- STDIN stream closed to target ---\n")log_file.flush()except Exception as e:try:log_file.write(f"!!! Error closing target STDIN: {e}\n")log_file.flush()except: passdef forward_and_log_stdout(target_stdout, proxy_stdout, log_file):"""Reads from target's stdout, logs it, writes to proxy's stdout."""try:while True:# Read line by line from the target process's stdoutline_bytes = target_stdout.readline()if not line_bytes: # EOF reached (process exited or closed stdout)break# Decode for loggingtry:line_str = line_bytes.decode('utf-8')except UnicodeDecodeError:line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n"# Log with prefixlog_file.write(f"输出: {line_str}")log_file.flush()# Write the original bytes to the script's actual stdoutproxy_stdout.write(line_bytes)proxy_stdout.flush() # Ensure output is seen promptlyexcept Exception as e:try:log_file.write(f"!!! STDOUT Forwarding Error: {e}\n")log_file.flush()except: passfinally:try:log_file.flush()except: pass# Don't close proxy_stdout (sys.stdout) here# --- Main Execution ---
process = None
log_f = None
exit_code = 1 # Default exit code in case of early failuretry:# Open log file in append mode ('a') for the threadslog_f = open(LOG_FILE, 'a', encoding='utf-8')# Start the target process# We use pipes for stdin/stdout# We work with bytes (bufsize=0 for unbuffered binary, readline() still works)# stderr=subprocess.PIPE could be added to capture stderr too if needed.process = subprocess.Popen(target_command,stdin=subprocess.PIPE,stdout=subprocess.PIPE,stderr=subprocess.PIPE, # Capture stderr too, good practicebufsize=0 # Use 0 for unbuffered binary I/O)# Pass binary streams to threadsstdin_thread = threading.Thread(target=forward_and_log_stdin,args=(sys.stdin.buffer, process.stdin, log_f),daemon=True # Allows main thread to exit even if this is stuck (e.g., waiting on stdin) - reconsider if explicit join is needed)stdout_thread = threading.Thread(target=forward_and_log_stdout,args=(process.stdout, sys.stdout.buffer, log_f),daemon=True)# Optional: Handle stderr similarly (log and pass through)stderr_thread = threading.Thread(target=forward_and_log_stdout, # Can reuse the functionargs=(process.stderr, sys.stderr.buffer, log_f), # Pass stderr streams# Add a different prefix in the function if needed, or modify function# For now, it will log with "STDOUT:" prefix - might want to change function# Let's modify the function slightly for thisdaemon=True)# A slightly modified version for stderr loggingdef forward_and_log_stderr(target_stderr, proxy_stderr, log_file):"""Reads from target's stderr, logs it, writes to proxy's stderr."""try:while True:line_bytes = target_stderr.readline()if not line_bytes: breaktry: line_str = line_bytes.decode('utf-8')except UnicodeDecodeError: line_str = f"[Non-UTF8 data, {len(line_bytes)} bytes]\n"log_file.write(f"STDERR: {line_str}") # Use STDERR prefixlog_file.flush()proxy_stderr.write(line_bytes)proxy_stderr.flush()except Exception as e:try:log_file.write(f"!!! STDERR Forwarding Error: {e}\n")log_file.flush()except: passfinally:try:log_file.flush()except: passstderr_thread = threading.Thread(target=forward_and_log_stderr,args=(process.stderr, sys.stderr.buffer, log_f),daemon=True)# Start the forwarding threadsstdin_thread.start()stdout_thread.start()stderr_thread.start() # Start stderr thread too# Wait for the target process to completeprocess.wait()exit_code = process.returncode# Wait briefly for I/O threads to finish flushing last messages# Since they are daemons, they might exit abruptly with the main thread.# Joining them ensures cleaner shutdown and logging.# We need to make sure the pipes are closed so the reads terminate.# process.wait() ensures target process is dead, pipes should close naturally.stdin_thread.join(timeout=1.0) # Add timeout in case thread hangsstdout_thread.join(timeout=1.0)stderr_thread.join(timeout=1.0)except Exception as e:print(f"MCP Logger Error: {e}", file=sys.stderr)# Try to log the error tooif log_f and not log_f.closed:try:log_f.write(f"!!! MCP Logger Main Error: {e}\n")log_f.flush()except: pass # Ignore errors during final logging attemptexit_code = 1 # Indicate logger failurefinally:# Ensure the process is terminated if it's still running (e.g., if logger crashed)if process and process.poll() is None:try:process.terminate()process.wait(timeout=1.0) # Give it a moment to terminateexcept: pass # Ignore errors during cleanupif process.poll() is None: # Still running?try: process.kill() # Force killexcept: pass # Ignore kill errors# Final log messageif log_f and not log_f.closed:try:log_f.close()except: pass # Ignore errors during final logging attempt# Exit with the target process's exit codesys.exit(exit_code)

5.2.2、建立连接的日志分析

输入：Cline->MCP Server

输出：MCP Server->Cline

为了方便描述，cline称为客户端，MCP Server称为服务端

输入: {"method":"initialize","params":{"protocolVersion":"2025-03-26","capabilities":{},"clientInfo":{"name":"Cline","version":"3.17.11"}},"jsonrpc":"2.0","id":0}
输出: {"jsonrpc":"2.0","id":0,"result":{"protocolVersion":"2025-03-26","capabilities":{"experimental":{},"prompts":{"listChanged":false},"resources":{"subscribe":false,"listChanged":false},"tools":{"listChanged":false}},"serverInfo":{"name":"weather","version":"1.9.3"}}}

输入: {"method":"notifications/initialized","jsonrpc":"2.0"}
输入: {"method":"tools/list","jsonrpc":"2.0","id":1}
输出: {"jsonrpc":"2.0","id":1,"result":{"tools":[{"name":"get_alerts","description":"\n Get weather alerts for a US state.\n Args:\n state:Two-letter US state code (eg: CA,NY)\n ","inputSchema":{"properties":{"state":{"title":"State","type":"string"}},"required":["state"],"title":"get_alertsArguments","type":"object"}},{"name":"get_forecast","description":"Get weather forecast for a location.\n\n Args:\n latitude:Latitude of the location\n longitude:Longitude of the location\n ","inputSchema":{"properties":{"latitude":{"title":"Latitude","type":"number"},"longitude":{"title":"Longitude","type":"number"}},"required":["latitude","longitude"],"title":"get_forecastArguments","type":"object"}}]}}

输入: {"method":"resources/list","jsonrpc":"2.0","id":2}
输出: {"jsonrpc":"2.0","id":2,"result":{"resources":[]}}

输入: {"method":"resources/templates/list","jsonrpc":"2.0","id":3}
输出: {"jsonrpc":"2.0","id":3,"result":{"resourceTemplates":[]}}

1、连接初始化：

客户端向服务端发起连接初始化请求，发送自己的信息和能力。
服务端对客户端初始化请求做出响应

2、初始化完成通知

客户端通知服务端初始化过程已经完成：是一个单向的告知，不需要服务端返回响应，它标志着客户端已经准备好进行后续的交互操作。

3、查询工具列表

客户端请求服务端列出可用的工具
服务端对客户端查询工具列表请求做出响应

格式化第六行的json字符串

{
"jsonrpc": "2.0",
"id": 1,
"result": {
"tools": [
{
"name": "get_alerts",
"description": "\n Get weather alerts for a US state.\n Args:\n state:Two-letter US state code (eg: CA,NY)\n ",
"inputSchema": {
"properties": {
"state": {
"title": "State",
"type": "string"
}
},
"required": [
"state"
],
"title": "get_alertsArguments",
"type": "object"
}
},
{
"name": "get_forecast",
"description": "Get weather forecast for a location.\n\n Args:\n latitude:Latitude of the location\n longitude:Longitude of the location\n ",
"inputSchema": {
"properties": {
"latitude": {
"title": "Latitude",
"type": "number"
},
"longitude": {
"title": "Longitude",
"type": "number"
}
},
"required": [
"latitude",
"longitude"
],
"title": "get_forecastArguments",
"type": "object"
}
}
]
}
}

tools工具列表中包含了两个工具，每个工具包含名称、功能描述和工具输入参数的结构，工具输入参数的结构用inputSchema定义。

4、查询资源列表

客户端请求服务端列出资源列表。
服务端对客户端查询资源列表请求做出响应。

5、查询资源模版列表

客户端请求服务端列出资源模板列表。
服务端对客户端查询资源模板列表请求做出响应。

5.2.3、执行任务的日志分析

输入: {"method":"tools/call","params":{"name":"get_forecast","arguments":{"latitude":40.7128,"longitude":-74.006}},"jsonrpc":"2.0","id":4}
输出: {"jsonrpc":"2.0","id":4,"result":{"content":[{"type":"text","text":"\n Tonight:\n Temperature:66\n Wind:7 to 14 mphN\n Forecast:Mostly cloudy, with a low around 66. North wind 7 to 14 mph.\n \n---\n\n Sunday:\n Temperature:76\n Wind:8 to 12 mphNE\n Forecast:A slight chance of rain after 2pm. Mostly cloudy, with a high near 76. Northeast wind 8 to 12 mph. Chance of precipitation is 20%.\n \n---\n\n Sunday Night:\n Temperature:64\n Wind:12 mphE\n Forecast:A chance of rain before 2am, then a chance of rain showers. Mostly cloudy, with a low around 64. East wind around 12 mph. Chance of precipitation is 30%. New rainfall amounts between a tenth and quarter of an inch possible.\n \n---\n\n Monday:\n Temperature:72\n Wind:10 mphE\n Forecast:A chance of rain showers. Mostly cloudy, with a high near 72. East wind around 10 mph. Chance of precipitation is 30%. New rainfall amounts less than a tenth of an inch possible.\n \n---\n\n Monday Night:\n Temperature:65\n Wind:7 to 10 mphSE\n Forecast:A chance of rain showers. Mostly cloudy, with a low around 65. Southeast wind 7 to 10 mph. Chance of precipitation is 40%.\n "}],"isError":false}}

1、客户端请求调用工具get_forecast，即获取天气预报。并按照inputSchema的定义传递工具函数需要的参数。

2、服务端执行get_forecast函数，获取天气预报信息封装在text变量中返回给客户端，后续将作为上下文信息传递给大模型。

现在我们应该就能理解下面这张流程图的含义了
